Invacare TRSX52FBP Tracer SX5 Wheelchair 22" x 16" Frame with Flip-Back Fixed Height Desk
Invacare TRSX52FBP Tracer SX5 Wheelchair 22" x 16" Frame with Flip-Back Fixed Height Desk
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Invacare TRSX52FBP Tracer SX5 Heavy-Duty Wheelchair – 300 lb Capacity, Flip-Back Padded Desk-Length Arms, Dual-Axle Height Adjustment (19.5" Adult / 17.5" Hemi), Urethane Tires & Reinforced Frame for Superior Strength & Comfort

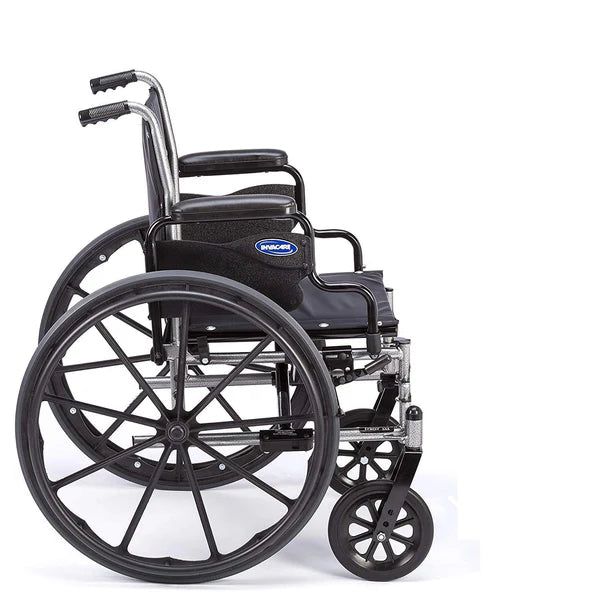

Invacare Tracer SX5 Wheelchair (SKU: TRSX52FBP) is a heavy-duty, lightweight manual wheelchair designed for users needing enhanced durability, wider seating, and reliable performance in daily mobility. It features a spacious 22" W x 16" D seat frame, 300 lb weight capacity, durable carbon steel construction, flip-back fixed-height padded desk-length arms for easy side transfers and comfortable arm support, dual-axle positions for seat-to-floor height adjustment (Adult 19.5" or Hemi 17.5"), 8" solid rubber front casters, 24" urethane corded rear tires mounted on “no flex” wheels for a smooth ride, heavy-duty inner liners to prevent upholstery stretching, dual-embossed upholstery for added reinforcement, 14-gauge cross-braces for extra strength, and an attractive silver vein finish.
Features:
- 300 lb weight capacity – ideal for larger users and heavier daily demands

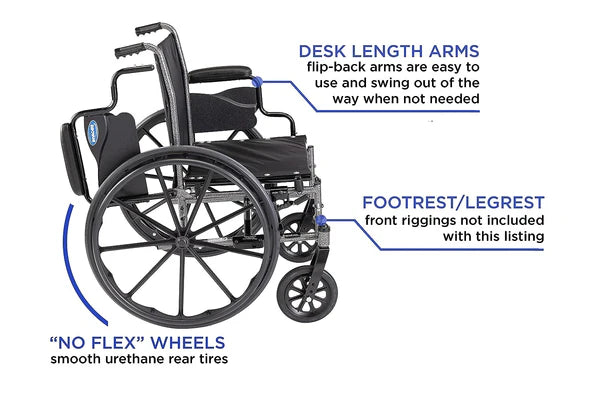

- Flip-back fixed-height padded desk-length arms – easily flip up for convenient side transfers while providing comfortable padded support
- Dual-axle system – tool-free adjustment between Adult (19.5") and Hemi (17.5") seat-to-floor heights for foot propulsion, self-transfer, or caregiver needs
- Durable carbon steel frame – reinforced with 14-gauge dual cross-braces for long-term strength and stability
- 8" solid rubber front casters & 24" urethane corded rear tires on “no flex” wheels – deliver smooth, quiet rolling and excellent durability
- Heavy-duty inner liners & dual-embossed upholstery – prevent stretching/sagging and add reinforcement for extended use

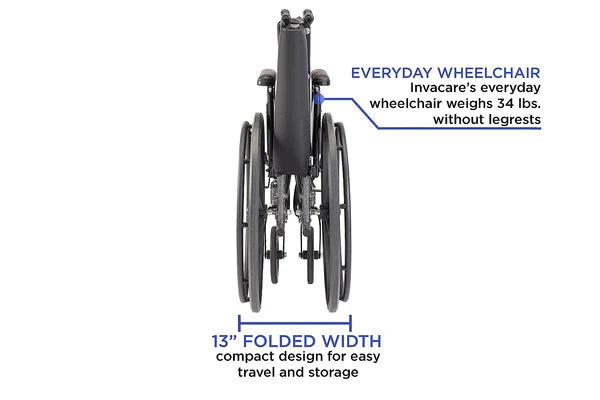

- Folds for travel/storage – compact folding design for easy transport
- Silver vein finish – attractive, durable, and professional appearance
Specifications:
| Specification | Details |
|---|---|
| Model / SKU | TRSX52FBP |
| Seat Dimensions | 22" W × 16" D |
| Weight Capacity | 300 lbs |
| Frame Material | Reinforced heavy-duty carbon steel |
| Arms | Flip-back, fixed height, padded desk-length |
| Seat-to-Floor Height | Adjustable: 19.5" (Adult) / 17.5" (Hemi) via dual axle |
| Front Casters | 8" solid rubber |
| Rear Wheels | 24" urethane corded tires on “no flex” wheels |
| Upholstery Support | Heavy-duty inner liners & dual-embossed fabric |
| Cross-Braces | 14-gauge dual cross-braces |
| Folded Width | Compact (folds for travel/storage) |
| Finish | Attractive silver vein |
| Intended Use | Heavy-duty daily mobility, home care, rehab, facility use |
| Country of Origin | Invacare Corporation (typically USA) |
| Brand | Invacare |
| Shipping Weight (Approx.) | 55–75 lbs (freight shipping recommended – contact for precise quote) |
Variants:
| Variant Name | Description | SKU | Notes / Shipping Weight (Approx.) | ||
|---|---|---|---|---|---|
| Standard 22" x 16" Adult Frame | Flip-back fixed height padded desk-length arms, 300 lb capacity | TRSX52FBP | 55–75 lbs (freight) |
Contents:
| Description | Quantity |
|---|---|
| Invacare Tracer SX5 Wheelchair – Model TRSX52FBP | 1 |
| 22" x 16" Seat Frame | Included |
| Flip-Back Fixed Height Padded Desk-Length Arms | Included |
| Dual-Axle Position System | Included |
| 8" Solid Rubber Front Casters | Included |
| 24" Urethane Corded Rear Tires on “No Flex” Wheels | Included |
| Heavy-Duty Inner Liners & Dual-Embossed Upholstery | Included |
| User Manual/Setup Guide | 1 |
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor (Invacare Corporation). Not cancellable, not returnable once processed.
- Shipping: Medium-heavy item – freight shipping recommended. Calculated at checkout.
- Installation Tips: Ready to use; dual-axle height adjustment is tool-free. Flip-back arms operate easily. Professional fitting recommended to match user needs (seat height, arm positioning).
- Cleaning: Wipe frame, upholstery, and arms with mild soap or disinfectant; materials resist corrosion and stains.
- Permissible Ambient: Indoor/outdoor use (urethane tires suitable for smooth surfaces).
- Applications: Heavy-duty daily mobility, self-propulsion, caregiver-assisted transfers, rehab, and community use for larger/heavier adults in home care, nursing homes, rehab centers, hospitals, and long-term care facilities. Volume discounts available – call or email for orders of 10+ units.
