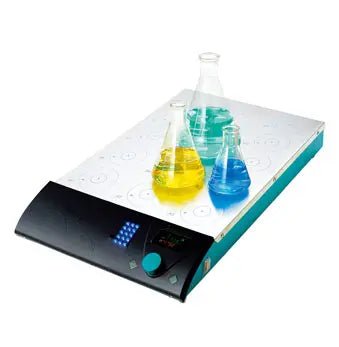

Jeio Tech AAH332615U MS-53M Multi Position Magnetic Stirrer(HorizontalxVertical, 5x3), US Plug 100-240V, 50/60Hz
Jeio Tech AAH332615U MS-53M Multi Position Magnetic Stirrer(HorizontalxVertical, 5x3), US Plug 100-240V, 50/60Hz
Features
Performance & Convenience
- Ergonomic designed, lightweight, easy to operate, and low profile.
- Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
- Spark-less, silent and durable BLDC motor.
- Wide top plate.
- Non-slip strength rubber feet.
- Strong magnetic coupling to ensure constant stirring.
- Digital PID feedback control for every single point, separately.
- User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:
single point, multiple point, whole row, whole column, etc. - Easy-to-read VFD and intuitive control panel.
- Bright and vivid LED position indicating lamps.
- Non-slip see-through silicon plate mat. (optional)
- Chemical-resistant #304 grade stainless steel top-plate.
Safety
- Unit is safely designed to protect internal components from accidental spills.
- Built-in thermal shutdown and current limit protection.
Specifications
| Model | MS-23M | MS-32M | MS-33M | MS-51M | MS-52M | MS-53M | ||
|---|---|---|---|---|---|---|---|---|
| Technical data | Speed control | Feedback control with PID | ||||||
| Stirring | Position | 6 | 6 | 9 | 5 | 10 | 15 | |
| Speed range (rpm) | 30 to 2,000 | |||||||
|
Stirring point distance (W×D) (mm / inch) |
117×170 /4.6×6.69 | 117×90 /4.6×3.54 | 117×90 /4.6×3.54 | 90 / 3.54 | 117×90 / 4.6×3.54 | |||
| Timer | 1 min. to 99 hr. 59 min. | |||||||
| Speed display | VFD | |||||||
|
Motor rating input/ output (W) per each point |
2.9 / 1.6 | |||||||
| Load, Max (kg / lbs) | 30 / 66.14 | |||||||
| General data |
Dimension (W×D×H) (mm / inch) |
377×436×82/ 14.8×17.2×3.2 | 254×436×82/ 10×17.2×3.2 | 377×436×81/ 14.8×17.2×3.2 | 131×603×82/ 5.2×23.7×3.2 | 254×602×82/ 10×23.7×3.2 | 377×599×82/ 14.9×23.6×3.2 | |
| Weight (kg / lbs) | 6 / 13.23 | 5 / 11.02 | 7 / 15.43 | 4 / 8.82 | 8 / 17.64 | 11 / 24.25 | ||
| Electrical requirements | AC 100 ~ 240V, 50 / 60Hz | |||||||
| Power consumption (W) | 45 | 45 | 54 | 45 | 85 | 135 | ||
|
Protection class (DIN EN 60529) |
IP 21 | |||||||
| Cat. No. | KR plug | AAH332115K | AAH332215K | AAH332315K | AAH332415K | AAH332515K | AAH332615K | |
| US plug | AAH332115U | AAH332215U | AAH332315U | AAH332415U | AAH332515U | AAH332615U | ||
