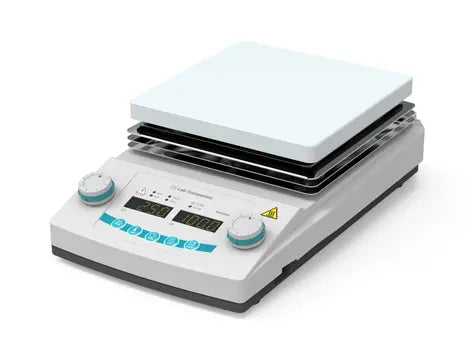

Jeio Tech AAH35085K T-18QG Hotplate (Digital, 180mm, handle), KR plug 230V, 50/60Hz
Jeio Tech AAH35085K T-18QG Hotplate (Digital, 180mm, handle), KR plug 230V, 50/60Hz
Jeio Tech AAH35085K T-18QG Hotplate (Digital, 180mm, handle), KR plug 230V, 50/60Hz
Features
Performance & Convenience
- Microprocessor PID temperature control.
- Auto-tuning and temperature calibration functions.
- Multi-functional temperature control modes. (optimal / fast / slow / user / point)
- Optimum heating level is adjustable from 0 to 100%.
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Precise temperature is set by digital display and optimum heating level is adjustable.
- Advanced dual wait on/off timer modes.
- User can set timer to starts immediately after the timer setting or only after reaching the set temp. - Separate operation RUN/STOP button.
- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes. (optional)
- Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Built in thermal shut off and current limit protection.
- High and low temperature limit setting for user convenience and safety.
- Hot top warning indicator for preventing accidental injuries.
- Keypad lock function prevents accidental changes during operation.
Specifications

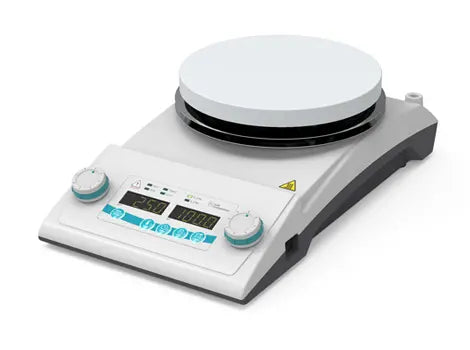

| Model | T-14SG | T-17SG | T-18QG | |
|---|---|---|---|---|
|
Heating |
Temperature range (℃ / ℉) |
Max. 350 / 662 |
||
|
Control |
Feedback control with PID |
|||
|
Display |
LED digital (0.1℃ resolution) |
|||
|
Heating power (W) |
600 |
800 |
||
|
Safety |
Hot top indicator (℃ / ℉) |
Warning lamp (50 / 122) |
||
|
Over temp. |
Top plate / Main body / PCB |
|||
|
Over current |
Current limit protection |
|||
|
Timer |
2 type, 1min. to 99 hr. 59 min. |
|||
|
Load, Max. (kg / Ibs) |
25 / 55.1 |
|||
|
Top plate |
Shape |
Round type |
Square type |
|
|
Material |
Ceramic coated aluminum |
|||
|
Dimension |
140 / 5.5 |
170 / 6.7 |
180x180/ 7.08x7.08 |
|
|
Body |
Shape |
Straight body |
Straight body |
Straight body |
|
Material |
Aluminum |
|||
|
Dimension |
161x290x100/ 6.34x11.42x3.94 |
191x330x101/ 7.52x12.99x3.98 |
209x326x102/ 8.22x12.83x4.0 |
|
|
Net weight (kg / Ibs) |
2.2 / 4.9 |
2.9 / 6.4 |
3.8 / 8.37 |
|
| Electrical requirements (230V, 50/60Hz) | 3.0 A | 4.0 A | ||
| Cat. No. | AAH35045K | AAH35075K | AAH35085K | |
| Electrical requirements (120V, 60Hz) | 5.0 A | 6.7 A | ||
| Cat. No. | AAH35043U | AAH35073U | AAH35083U | |
