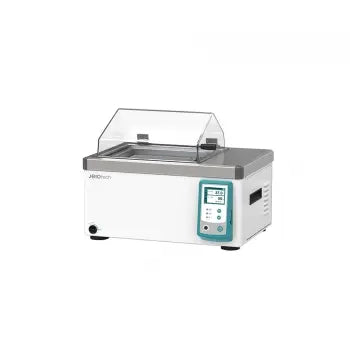

Jeio Tech BS2-10, Shaking Heating Bath, 17L
Features
Performance
- Temperature range from ambient +5°C to 100°C (amb. +9℉ to 212℉).
- Precise rpm(Max 200rpm) and temperature(Max 100℃) control with accuracy.
- Excellent temperature distribution by shaking motion. (50℃ ±0.1℃)
- Better performance with 3-points temperature calibration and 1-point shaking calibration.
- Optimal PID control for the Bath.
- Bath structure for a smooth water circulation flow.
- Extended height for larger sample volumes. (maximum 2.8L of flasks)
Convenience
- Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
- Easy operation with a touch color display.
- Drain port of better accessibility located on the side.
- USB port to connect to PC for recording and monitoring.
- Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
- Corrosion resistance spring wire rack (1ea) is provided. (Standard)
- Real-time temperature and rpm control via mobile monitoring system. (Option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Safety
- Audio and visual alarms and heater shutdown in case of water shortage.
- Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
- Over-current and short circuit protection of device.
Specifications
|
Model |
BS2-10 |
BS2-15 |
BS2-20 |
BS2-30 |
|
|---|---|---|---|---|---|
|
Bath volume (L / cu ft) |
17 / 0.6 |
26 / 0.9 |
37 / 1.3 |
55 / 1.9 |
|
|
Working temperature range (℃ / ℉) |
Amb. +5 to 100 / Amb. +9 to 212 |
||||
|
Temperature stability at 50℃ (±℃ / ℉) |
0.1 / 0.18 |
||||
|
Shaking system |
Motion Type |
Reciprocal |
|||
|
Frequency (rpm) |
30 to 200 |
||||
|
Stroke Length (mm / inch) |
25 / 0.98 |
25 / 0.98 |
30 / 1.18 |
30 / 1.18 |
|
|
Dimension |
Bath Opening, Depth (W×L, D) (mm / inch) |
300 x 250, 235 / 11.8 x 9.8, 9.3 |
300 x 370, 235 / 11.8 x 14.6, 9.3 |
300 x 520, 235 / 11.8 x 20.5, 9.3 |
350 x 670, 235 / 13.8 x 26.4, 9.3 |
|
Exterior (W×L×H) (mm / inch) |
474×417×426 / 18.7×16.4×16.8 |
594×417×426 / 23.5×16.4×16.8 |
746×417×426 / 29.4×16.4×16.8 |
882×467×426 / 34.7×18.4×16.8 |
|
|
Net weight (kg / lbs) |
23 / 51 |
27 / 60 |
31 / 68 |
38 / 84 |
|
