Jeio Tech AAH57XXXX RW3-XXXX Refrigerated & Heating Bath Circulator Including RS-232, 5L to 30L, 120V/230V-50/60Hz
Features
Performance
- Temperature range.
- RW3-35 models from -35℃ to 150℃.
- RW3-25 models from -25℃ to 150℃. - Microprocessor PID control.
- Three point temperature calibration / Automatic tuning / Automatic run.
- Suitable for both internal and external bath environments due to reduced turbulence by using five-speed adjustable pump and built-in cooling coil.
(1 to 3 steps of the pump for internal circulation and 4 to 5 steps for external circulation)
| Pump Step | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Max. pressure (psi) | 0.5 | 1.1 | 2.4 | 4.9 | 5.9 |
| Max. flow rate (L/min) | 5.6 | 8.0 | 12.8 | 18.8 | 28.0 |
※ Bath fluid: water at the normal temperature.
Convenience
- Bright VFD display with quick adjustable dial knob. (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient memory function of up to three frequently set temperature.
- Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
- Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
- CFC-free refrigerant (R-507, R-404A) and a double service valve for leakage prevention.

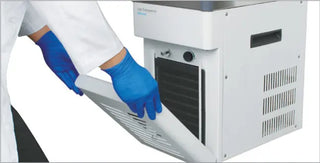

- Quick-release front grill for easy cleaning of the condenser.
- RS-232 / USB interface for external control and data collection.
- Side handles enables convenience handling and transport
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current. - Keypad lock function prevents accidental changes during operation.
Specifications
| Model | RW3-0525 | RW3-1025 | RW3-2025 | RW3-3025 | |
|---|---|---|---|---|---|
| Bath volume (L / cu ft) | 5 / 0.2 | 10 / 0.4 | 20 / 0.7 | 30 / 1.1 | |
| Temperature | Working temperature range (℃ / ℉) | -25 to 150 / -13 to 302 | |||
| Temperature stability 1) (±℃ / ℉) | 0.05 / 0.09 | ||||
| Cooling capacity 2) (bath fluid: ethanol) |
at -20℃ (-4℉), W | 140 |
180 |
310 | 465 |
| at 0℃ (+32℉), W | 270 | 360 | 610 | 700 | |
| at +20℃ (+68℉), W | 400 | 560 | 850 | 980 | |
| Refrigerator | 1/3 LBP, R-507 | 1/3 LBP, R-507 | 1/2 LBP, R-404A | 3/4 LBP, R-404A | |
| Pump(bath fluid: water) | Max. pressure | 5.9 PSI (406.8 millibar) | |||
| Max. flow rate | 7.4 gallons / minute (28 liters / minute) | ||||
| Dimension | Bath opening / depth(W×L, D) (mm / inch) |
150×99, 160/ 5.9×3.9, 6.3 |
211×154, 180/ 8.3×6.1, 7.1 |
290×214, 200/ 11.4×8.4, 7.9 |
300×264, 230/ 11.8×10.4, 9 |
| Exterior(W×L×H) (mm / inch) | 308x480x733/ 12.1x18.9x28.9 |
366x532x780/ 14.4x20.9x30.7 |
386x602x825/ 15.2x23.7x32.5 |
446x662x895/ 17.6x26.1x35.2 |
|
| Net weight (kg / lbs) | 38 / 83.8 | 44 / 97 | 60 / 132.2 | 67 / 147.7 | |
| Model | RW3-0535 | RW3-1035 | RW3-2035 | RW3-3035 | |
|---|---|---|---|---|---|
| Bath volume (L / cu ft) | 5 / 0.2 | 10 / 0.4 | 20 / 0.7 | 30 / 1.1 | |
| Temperature | Working temperature range (℃ / ℉) | -35 to 150 / -31 to 302 | |||
| Temperature stability 1) (±℃ / ℉) | 0.05 / 0.09 | ||||
| Cooling capacity 2) (bath fluid: ethanol) |
at -20℃ (-4℉), W | 140 | 180 | 310 | 465 |
| at 0℃ (+32℉), W | 270 | 360 | 610 | 700 | |
| at +20℃ (+68℉), W | 400 | 560 | 850 | 980 | |
| Refrigerator | 1/2 LBP, R-404A | 1/2 LBP, R-404A | 3/4 LBP, R-404A | 1 LBP, R-404A | |
| Pump(bath fluid: water) | Max. pressure | 5.9 PSI (406.8 millibar) | |||
| Max. flow rate | 7.4 gallons / minute (28 liters / minute) | ||||
| Dimension | Bath opening / depth(W×L, D) (mm / inch) |
150×99, 160/ 5.9×3.9, 6.3 |
211×154, 180/ 8.3×6.1, 7.1 |
290×214, 200/ 11.4×8.4, 7.9 |
300×264, 230/ 11.8×10.4, 9 |
| Exterior(W×L×H) (mm / inch) | 308x480x733/ 12.1x18.9x28.9 |
366x532x780/ 14.4x20.9x30.7 |
386x602x825/ 15.2x23.7x32.5 |
446x662x895/ 17.6x26.1x35.2 |
|
| Net weight (kg / lbs) | 38 / 83.8 | 44 / 97 | 60 / 132.2 | 67 / 147.7 | |
