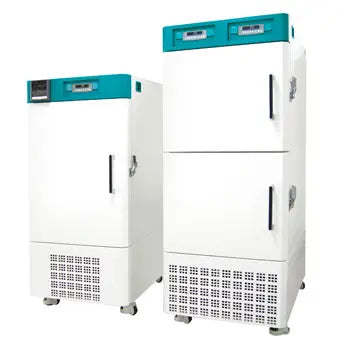

Jeio Tech AAHK6XXXX Heating & Cooling Chamber, 230V, 50Hz, 150L to 485L
by
Jeio Tech
SKU: AAHK6112K
2% off
2% off
2% off
2% off
2% off
2% off
2% off
2% off
2% off
Jeio Tech AAHK6XXXX Heating & Cooling Chamber, 230V, 50Hz, 150L to 485L
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Jeio Tech AAHK6XXXX Heating & Cooling Chamber, 230V, 50Hz, 150L to 485L
Features
Performance
- Microprocessor PID control.
- Temperature calibration / Automatic tuning.
- Adjustable three-step fan speed with defrosting time and period control.
- Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
- Energy efficiency is achieved thanks to optimization of the insulation system. The surface of the unit doesn’t allow high temperatures of over 60℃.
Convenience
- Two independently controlled chambers merged into a single unit for space saving.
- Intuitive control panel with bright LED display (0.1℃resolution) and touch-sensitive keypad.
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings.
- Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
- Built-in cable port to use other instruments inside the chamber. (diameter: 80mm)
- RS-232 interface for external control and data collection.
Safety
- Automatic shut off after overheat alarm.
- Power supply leakage breaker.
- Over current protection.
- Open door alarm.
| Model | LCH-11 | LCH-21 | LCH-31 | LCH-11-2C | |
| Chamber volume (L / cu ft) | 150/5.3 | 255/9.0 | 485/17.1 | 150/5.3 x 2 chambers | |
| Temperature | Range (℃ / ℉) | -20 to 100 / -4 to 212 | |||
| Fluctuation (±℃ / ℉) 1) | 0.3 / 0.54 | ||||
| Variation at 80°C (±℃ / ℉) 1) | 0.8 / 1.44 | ||||
| Time | Heating (min.) | 80 (from 20℃ to100℃) | |||
| Cooling (min.) | 60 (from100℃ to 40℃) | ||||
| No. of wire shelves (standard / max.) | 2/6 | 2/10 | 2/14 | 2 / 6 per chamber | |
| Distance of between shelves (mm / inch) | 30.01.2002 | ||||
| Max. load per shelf (kg / lbs) | 15 / 33.1 | 20 / 44.1 | 20 / 44.1 | 15 / 33.1 | |
| Permitted total load (kg / lbs) | 50 / 110.2 | 70 / 154.3 | 70 / 154.3 | 50 / 110.2 per chamber | |
| Dimension (W×D×H) | Interior (mm / inch) | 600x500x500/ 23.6x19.7x19.7 | 600x500x850/ 23.6x19.7x33.5 | 700x680x1020/ 27.6x26.8x40.2 | 600x500x500/ 23.6x19.7x19.7 |
| Exterior (mm / inch) | 794x1070x1280/ 31.3x42.1x50.4 | 794x1070x1630/ 31.3x42.1x64.2 | 894x1250x1800/ 35.2x49.2x70.9 | 794x1070x1900/ 31.3x42.1x74.8 | |
| Net weight (kg / lbs) | 125/275.6 | 185/407.9 | 225/496.0 | 195/429.9 | |
| Cable Port (mm / inch) | Ø 80 / Ø 3.15 | ||||
| Electrical requirements (230V,60Hz) | 6.3A | 9.2A | 11.1A | 12.6A | |
| Electrical requirements (230V,50Hz) | 6.6A | 9.6A | 11.6A | 13.2A | |
| Electrical requirements (120V,60Hz) | 11.6A | 23.2A | |||
