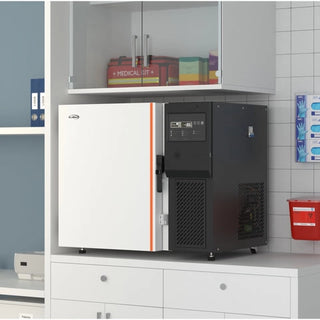

KoolMore KM-PHF-4CUL Undercounter Ultra Low Temp Stackable Medical Freezer with Multi Level Emergency Alarms, LED Display and 9,000 2ml Vial / 4 cu. ft. Storage Capacity in White

Introducing the KoolMore -86°C Undercounter Ultra Low-Temperature Freezer, designed for medical and laboratory applications.

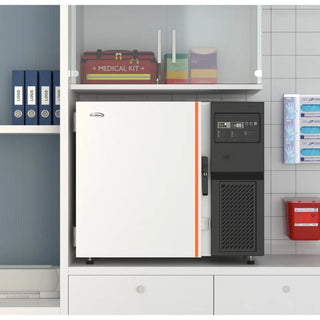

With its compact under-counter design, this freezer offers a large 4 cu. ft. storage capacity while fitting neatly in smaller spaces.

It features advanced VIP insulation and gaskets to ensure excellent temperature retention, while the digital microcontroller provides precise temperature control, maintaining an impressive range from -86°C to -40°C.

Safety is a priority, with multiple alarms, including high/low temperature, power failure, and door ajar alarms, all backed up by a 12V rechargeable lead-acid battery to ensure data logging and alarm functionality during power outages.

The freezer is stackable, allowing you to maximize space, and includes a USB port for easy data export.

Built to last, it features stainless-steel shelving with a 108 lb. capacity and comes UL-listed for safety, backed by a 1-year manufacturer warranty, offering reliable, long-term performance for critical environments.

Features:

  • Compact Design with Large Capacity: This space-saving under-counter unit offers 4 cu. ft. of storage, can hold up to 9,000 2ml vials, and is stackable for added efficiency.
  • VIP Foam Insulation and Self-Closing Door: Advanced vacuum-insulated panels and door gaskets provide excellent thermal efficiency, with a self-closing swing door for easy access and minimized temperature loss.
  • Ultra-Low Temperature Performance: Operates between -86°C to -40°C, with quick pull-down to -81°C in 3 hours, ensuring optimal storage for sensitive materials.

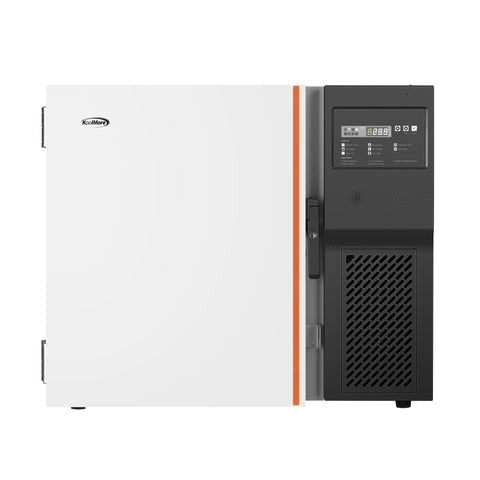

  • Temperature Control with Digital LED Display: Features a digital microcontroller with precise temperature readings within ±0.1°C, adjustable via an easy-to-read digital LED display in Celsius for ultra-low temperature control.
  • Multi-Level Safety Alarms: Equipped with alarms for power failure, low and high temperatures, door ajar, and sensor failures, along with a lock for secure storage to protect stored contents.
  • Backup Battery for Alarms and Data Logging: A 52-hour backup battery maintains alarm and data logging functions during power outages. It has a USB port for easy data transfer.
  • Energy-Efficient and Environmentally Friendly: Uses an environmentally friendly refrigerant mixture for efficient cooling and is energy-efficient, consuming 1898 KWH/year.

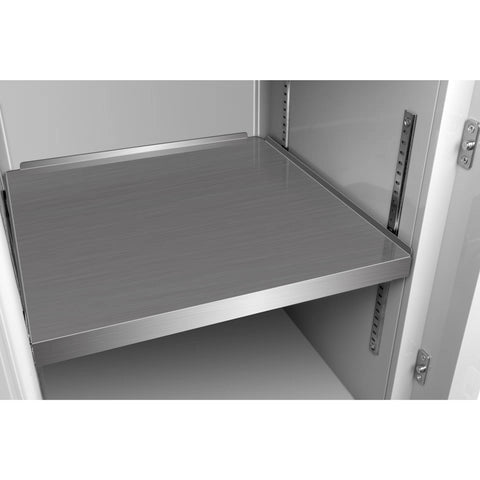

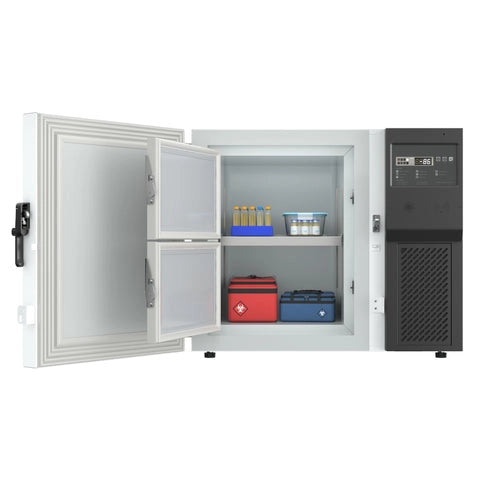

  • Adjustable Shelving with High Load Capacity: Stainless-steel adjustable shelf supports up to 108 lbs., ideal for flexible storage needs. Remote Monitoring Compatible: Compatible with most remote monitoring systems for enhanced tracking and compliance in professional settings.
  • Quiet and Low-Maintenance Operation: Operates at just 58 dB and has a manual defrost system for hassle-free maintenance.

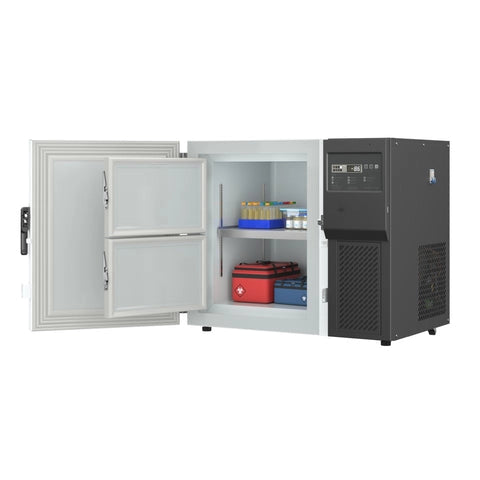

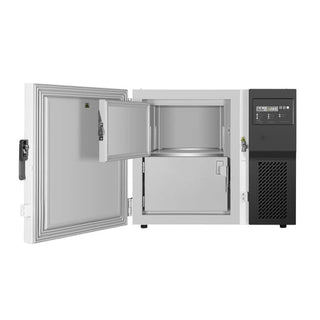

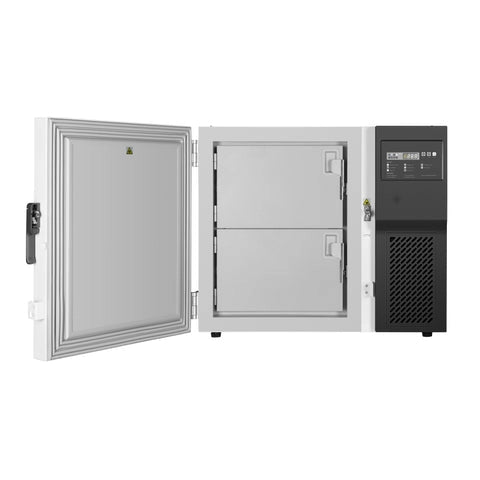

  • Single Outer Door with Dual Inner Compartments: The freezer includes 1 outer door and 2 insulated inner compartments, ensuring optimal temperature retention when accessing stored items.
  • UL Certified and 1 Year Manufacturer's Warranty: Built to meet stringent UL safety standards, guaranteeing reliable performance, and backed by a comprehensive 1-year warranty covering parts and labor, ensuring support and service should you require assistance.

Specifications:

Model# KM-PHF-4CUL
Certifications UL Listed for Safety
Amps 8
Hertz 60
Phase 1
Voltage 115
Wattage 550
Plug Type NEMA 5-15P
Power Cord Length 67
Energy Consumption KWH Year 1898 KWH/year
Electrical Installation Type Plug-in
Interior Depth 17.13
Interior Width 17.32
Interior Height 23.23

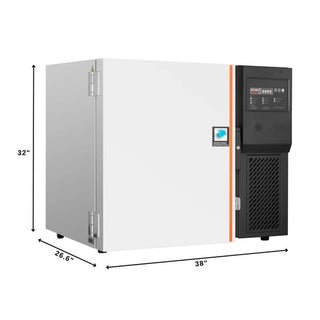

Length 37.6
Width 26.57
Height 32.09
Weight (lbs) 248
Depth Excluding Handles 26.57
Depth Including Handles 26.57
Depth Less Door 22.05
Depth With Door Open 90 Degrees 46.46
Height to Top of Door Hinge 32.09
Height To Top Of Case 32.09
Minimum Back Air Clearance 8 In.
Minimum Side Air Clearance 8 In.
Defrost Type Manual
Cooling Unit Type Static
Compressor Location Right Side
Horsepower 0.8
Control Type Digital
Door Style Swing
Number Of Doors 1 (2 Inner)
Individual Shelf Capacity 108 lbs.
Shelves Adjustable Yes
Number Of Shelves 1
Shelf Material Type Stainless-Steel 304
Temperature Range -123- -40 F
Ambient Temperature Range 61-90 F
Installation Type Under Counter
Backup Battery Hours 52
Backup Battery Type 12V Lead-acid battery
Backup Battery Replaceable Yes
Backup Battery Rechargeable Yes
Data Logging Yes

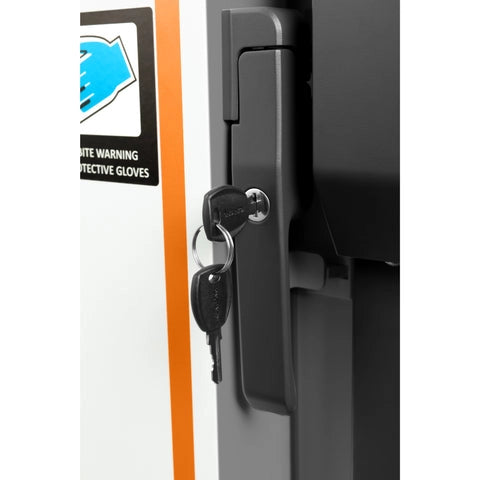

Safety Lock Yes
Low Temp Alarm Yes
High Temp Alarm Yes
Ambient Temp Alarm Yes
Power Failure Alarm Yes
Sensor Failure Alarm Yes
Door Ajar Alarm Yes
Remote Alarm Yes
Build In Air Duct No
Sensor Count 3
Color Finish White
Interior Lights No
Door Material Steel, VIP Insulation and PCM
Self Closing Door No
Temperature Pull Down Time -114F in 3 Hours
Temperature Variation Within 3 C

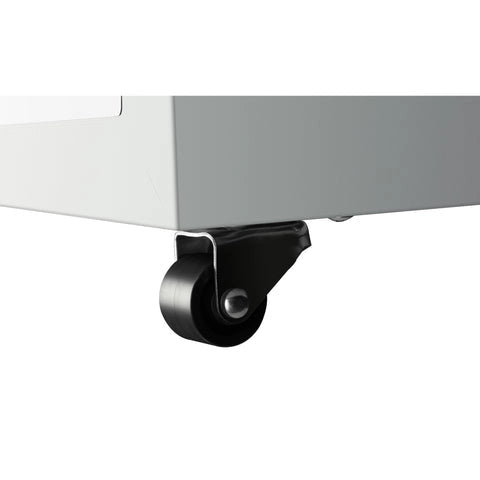

Casters 4
Warranty 1-Year Parts and Labor; 5-Year Compressor Warranty
