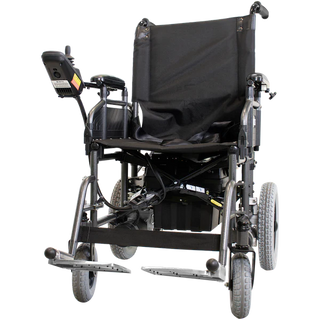

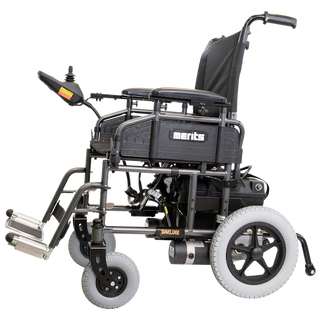

Merits P101AUAZMU1B TRAVEL-EASE FOLDING, RWD, 18"x16"x15-19", SLING SEAT
Merits P101AUAZMU1B TRAVEL-EASE FOLDING, RWD, 18"x16"x15-19", SLING SEAT 300 LBS CAP, 12" FOAM-FILLED DRIVE TIRES, VSI, INCLUDES U1 BATTS
Features:
- Weight capacity 300 lbs.
- Available in 16” or 18” seat width, 20” optional.
- Adjustable height flip-up armrests, swing away footrests.
- Adjustable mounting bracket for controller, swing back mounting bracket optional.
- Patented foldable battery bracket for improved portability.
- Lightweight and foldable for easy handling, storage and transportation.
- 23” turning radius allows access to narrow space.
- Compact size and remarkable maneuverability.
- Programmable controller with various choices of different performance to fit various needs.
- Rugged heavy duty casters and wheels.
- Optional pneumatic casters, drive wheels and elevating legrests.
- Limited lifetime warranty on frame.
Product Specifications:
| Driving Range | 28 km / 18 mi. |
| Max Speed | 6.5 km/h , 4mi. |
| Battery Type | 12V / U1 x 2 pcs |
| Motor | DC 24V, 180W (Rating) / 630W (Max) |
| Max Climbing Angle | 12° |
| Turning Radius | 58 cm / 23" |
| Ground Clearance | 12 cm / 4.5" |
| Controller | PG VSI 50 |
| Charger | 5A off-board |
| Weight Capacity | 136 kg / 300 lb |
| Total Weight | 18" Seat 68 kg / 150 lb |
| Total Weight | 20" Seat 70 kg / 154 lb |
| Front wheel | 8"(200x50) PU tire |
| Drive Wheel | 12 - 1/2” x 2 - 1/4” foam filled tire |
| Rear wheel | 12 - 1/2” x 2 - 1/4” foam filled tire |
| Standard Colors | Silvertone |
| HCPCS Code | K0822 |
| Battery Size | (2 required) 33Ah, U1 AGM |
| Gradient | 10° |
| Overall Length | 43” |
| Overall Width | 24” - 26” |
| Overall Height | 36” |
| Seat Type | Sling |
| Seat Width | 18” / 20” |
| Seat Depth | 16” |
Accessories:
• USB charger
• Oxygen tank holder
• Swing-away joystick
• Cup holder
• Side bag
Options:
•Height adjustable armrests and swing-away footrests
• Elevating leg rests (E0990)
