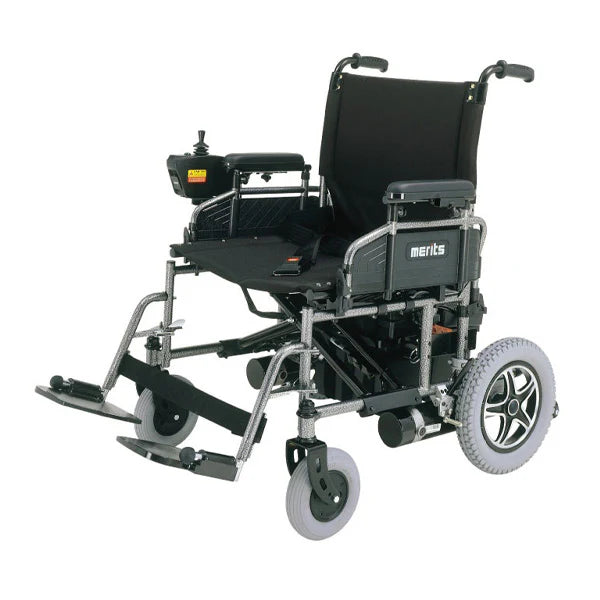

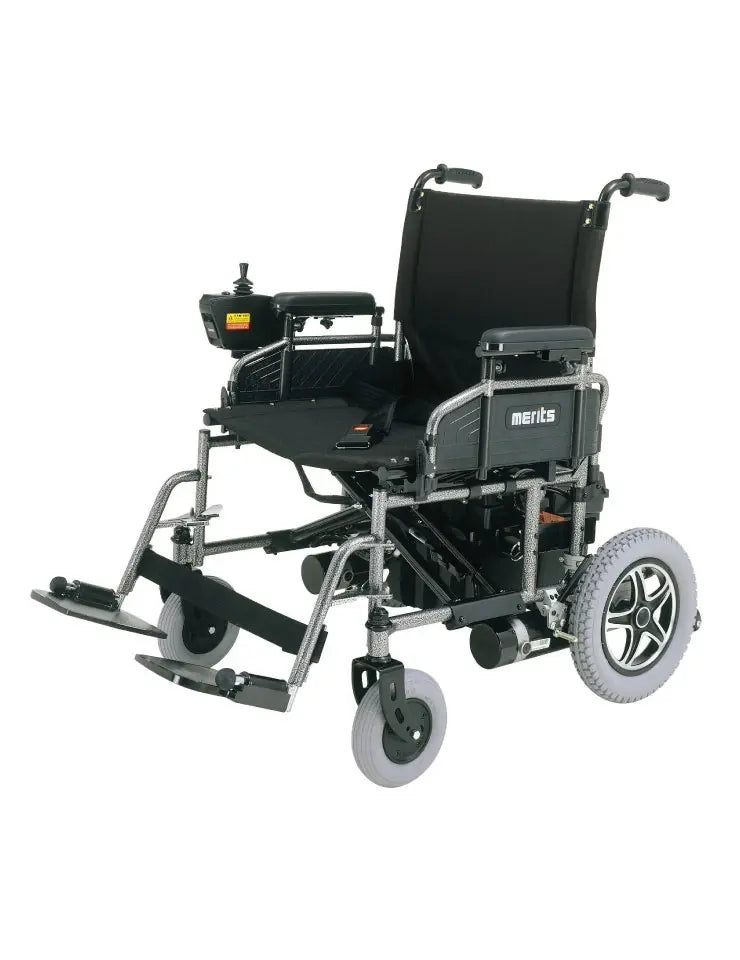

Merits P181XUAZMU8 TRAVEL-EASE FOLDING, RWD, 22"x18"x15-19", SLING SEAT 450 LBS CAP CAP, 12" FOAM-FILLED DRIVE TIRES, VSI, REQUIRES 22NF BATTS, BW12550-IT or M22NF SLD G
Features:
- Reinforced frame with double cross braces provide a sturdy support for heavy duty use.
- Auxiliary hand brakes offer extra safety.
- Aluminum rim drive wheels and reinforced front casters.
- Optional pneumatic casters and drive wheels.
- Patented folding battery tray allows improved portability.
- Programmable controller with various choices of different performance to fit various needs of users.
- Height adjustable flip-up desk armrests and swing away footrests for easier access.
- Optional adjustable mounting bracket for the controller, swing back mounting bracket.
Specifications:
Dimensions:
| Seat width | 56 cm / 22" |
| Seat depth | 46 cm /18" |
| Seat height | 51 cm / 20" |
| Backrest height | 38-48 cm / 15"-19" |
| Armrest height | 20-30 cm / 8"-12" |
| Footrest extension length | 40-53 cm / 16"-21" |
| Overall length | 114 cm / 45" |
| Overall width | 71 cm / 28" |
| Overall height | 91 cm / 36" |
| Folded width | 38 cm / 15" |
| Folded Length | 36" |
Performance:
| Driving Range | 40 km / 25 miles |
| Max Speed | 6.5 km/h , 4 mph |
| Battery Type | 12V / 22NF x 2 pcs |
| Motor | DC 24V , 240W , 2P (Rating) / 950W (Max) |
| Max Climbing Angle | 10° |
| Turning Radius | 63 cm / 25" |
| Ground Clearance | 12 cm / 4.5" |
| Controller | PG VR2 70A |
| Charger | 5A off-board |
Other Specifications:
| Weight Capacity | 205 kg /450 lb |
| Total Weight | 59.5 kg /131lb |
| Front wheel | 8" (200 x50) Foam filled tire |
| Drive Wheel | 12 -1/2” x2 -1/4” Foam filled tire |
| Rear wheel | 12 -1/2” x2 -1/4” Foam filled tire |
| Remote Control | No |
| Brakes | Automatic (Magnetic) |
| Seat Type | Half-Back Seat |
| Removable Seat | Yes |
| Seat Rotation | No |
| Seat Belt | No |
| Armrests Included | Yes |
| Height Adjust Armrest | Yes |
| Flip Up Armrests | Yes |
| Removable Armrests | Yes |
| Seat Post Type | Platform |
| Tire Type | Solid |
| Front Tire Size | 8" |
| Rear Tire Size | 12 1/2" x 2 1/4" |
| Wheel Count | 4 Wheel |
| Joystick Options | Several |
| Horn | Yes |
| Lights | No |
| Turn Signals | No |
| Charging Port(s) | On Joystick & Battery |
| Controller Type | PG VSI 70A Joystick |
| Transit (Tie-Down) Loops | No |
| Adjustable Angle Footplates | Yes - Height |
