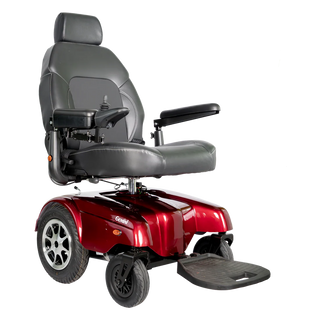

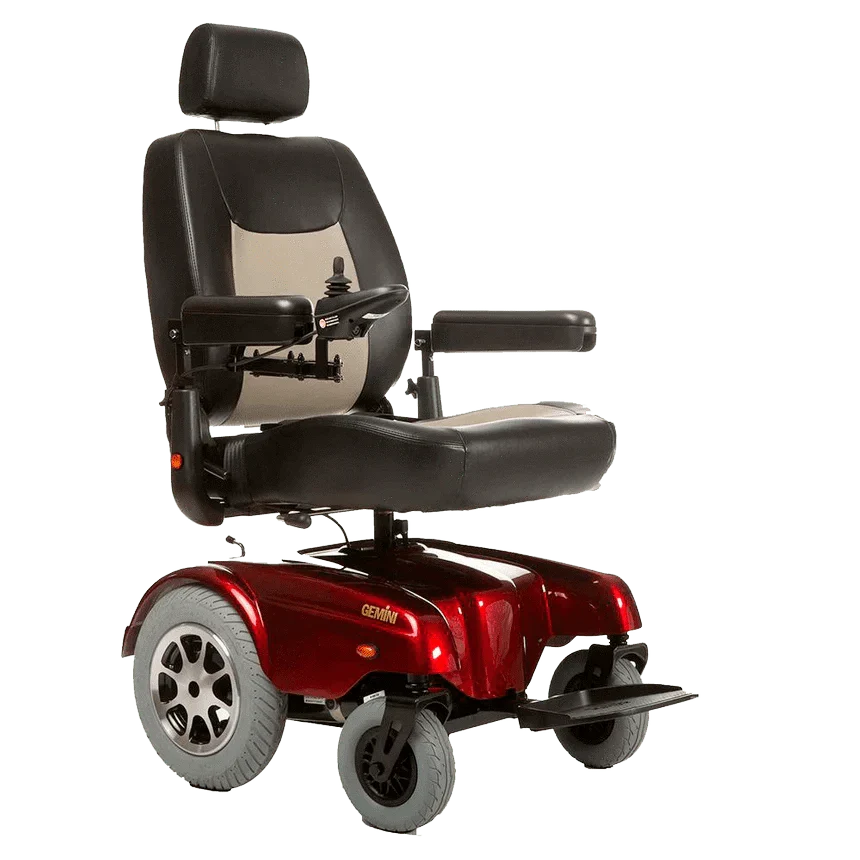

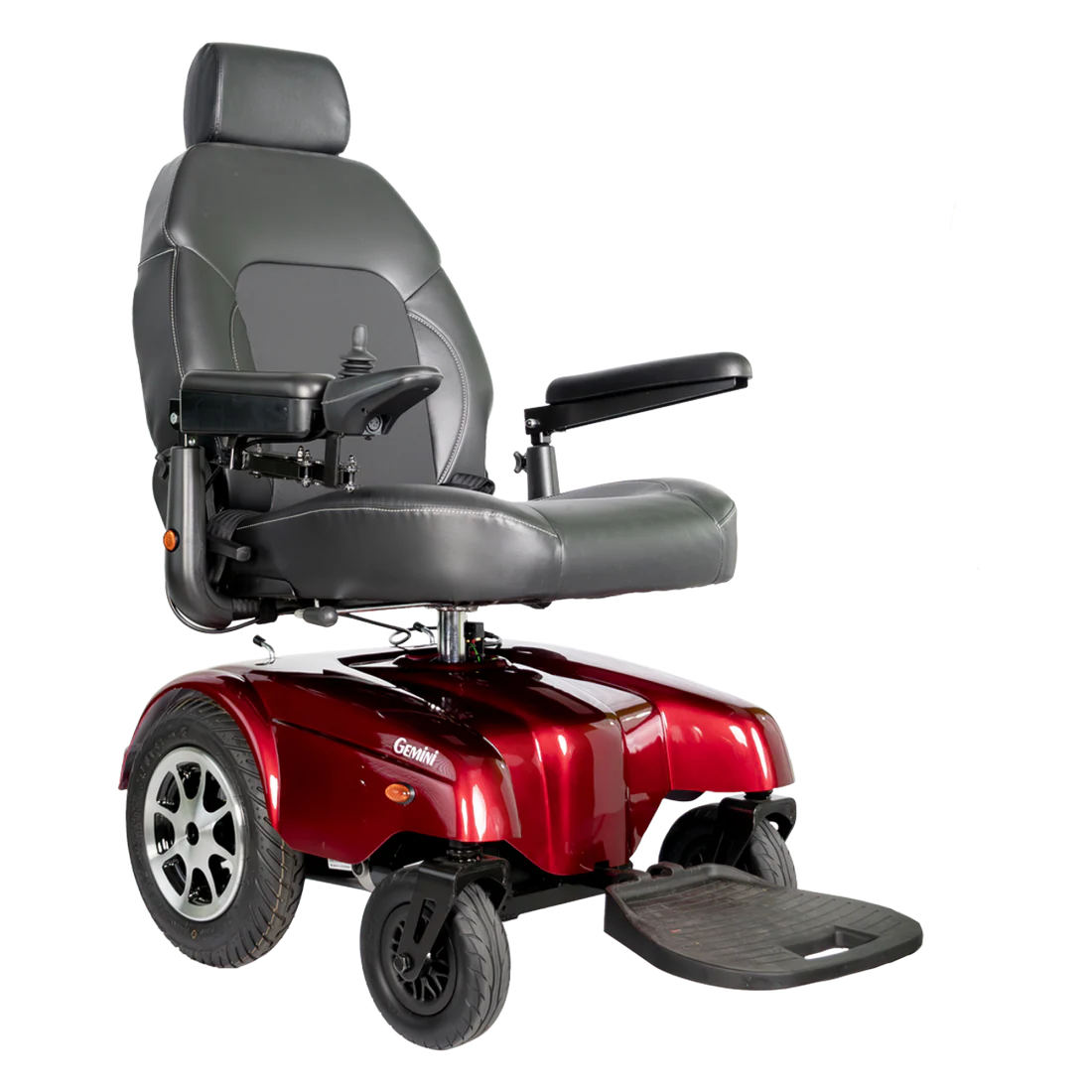

Merits P30111ARMU GEMINI W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, RWD,20", 22", CAPTAIN or PAN SEAT, RED
by
Merits
Merits P30111ARMU GEMINI W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, RWD,20", 22", CAPTAIN or PAN SEAT, RED
Merits P30111ARMU GEMINI W/ LIFT POWER SEAT LIFT, HEAVY-DUTY, RWD,20", 22", CAPTAIN or PAN SEAT, RED , 350 LBS CAP 14" FOAM-FILLED DRIVE TIRES, VR2, REQUIRES 22NF BATTS, BW12550-IT or M22NF SLD G
Features :
- Weight capacity: 350 lbs
- Unique suspension system and high-density foam seat provides a smooth and comfortable ride
- The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability

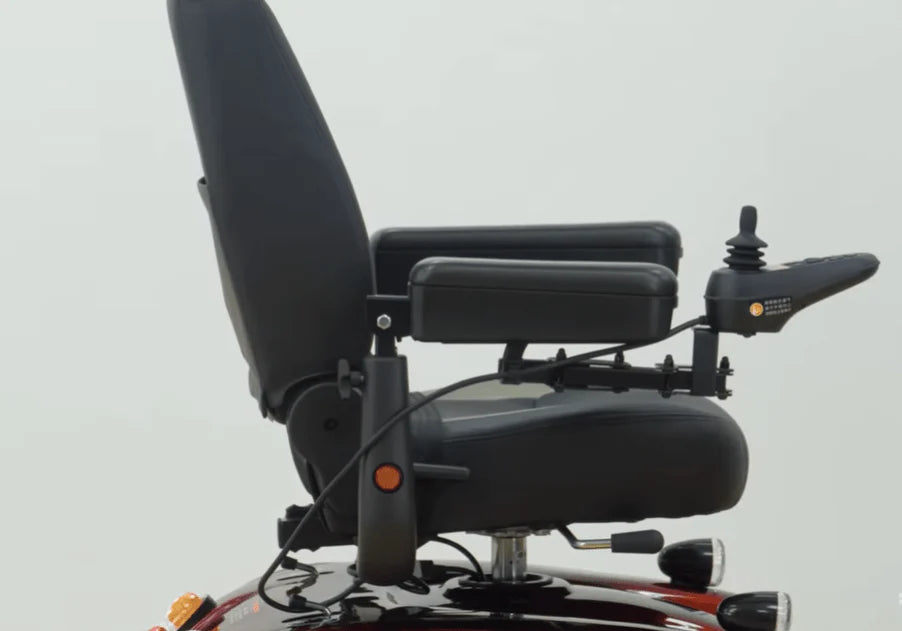

- Comfortable 20" wide captain seat has swivel and folding capabilities with adjustable head and backrest
- Aluminum footplate with flip-up height and angle adjustability provides various comfort positions
- Programmable controller with a wide range of selections to suit the needs and demands of different users
Product Specifications:
|
SKU |
P30111ARMU |
|
HCPCS |
"Group 2: Heavy Duty (K0830/K0831)" |
|
Weight Capacity |
350 lbs |
|
Maximum Speed |
5 mph |
|
Per Charge Range |
up to 20 miles |
|
Total Weight |
350 lbs |
|
Heaviest piece |
146 lbs |
|
Seat Depth |
22" |
|
Seat Width |
22" |
|
Seat-to-Floor Height |
24”-29” |
|
Overall Height |
45" |
|
Overall Length |
41" |
|
Overall Width |
24" |
|
Front Wheel Size |
9" foam filled |
|
Mid Wheel Size |
14" foam filled |
|
Rear Wheel Size |
3"anti-tippers |
|
Controller |
P&G VR2 60A |
|
Motor |
DC 24V; 240W |
|
Braking System |
intelligent; regenerative; electromagnetic |
|
Elevating Seat |
10" |
|
Drivetrain |
RWD |
|
Backrest Height |
22" |
|
Turning Radius |
21" |
|
Ground Clearance |
4" |
|
Max Climbing Angle |
10 ° |
|
Battery Size |
12V/22NF (50AH) |
|
Charger |
5A off-board |
