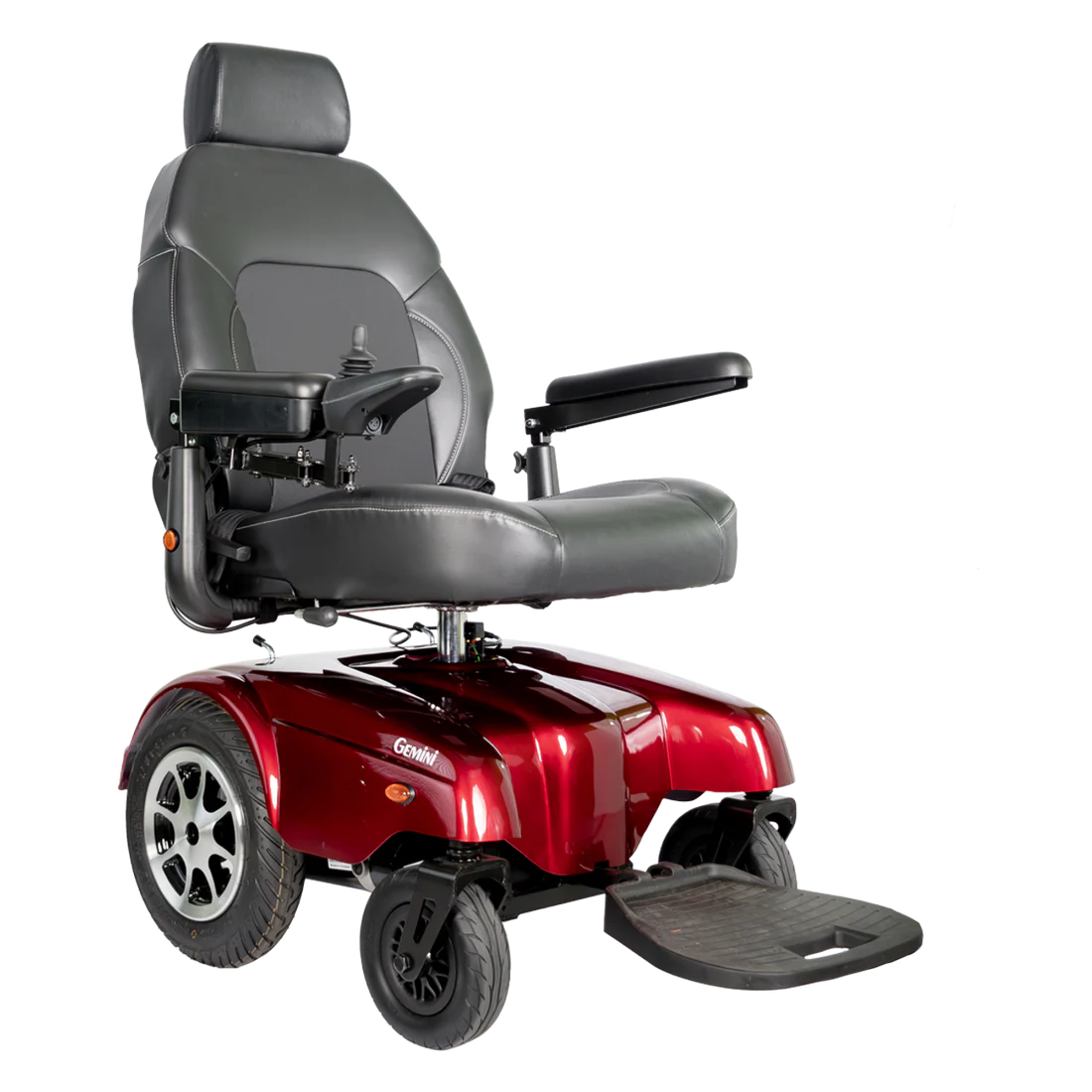

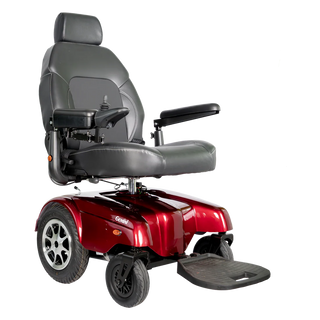

Merits P3017-ARMU Gemini HEAVY-DUTY, RWD, 20",22", CAPTAIN or PAN SEAT
Merits P3017-ARMU Gemini HEAVY-DUTY, RWD, 20",22", CAPTAIN or PAN SEAT RED, 450 LBS CAP, 14" FOAM-FILLED DRIVE TIRES, LiNX, REQUIRES 22NF BATTS , BW12550-IT or M22NF SLD G
Features:
• Weight capacity of 450 lbs.
• Ergonomic semi-reclining seat that reclines up to 135°
• 14” rubber drive tires for superior traction
• True RWD and 35” turning radius
• Optional 5” power elevating seat
• Rated up to 5 mph and range up to 20 miles
Product Specifications:
| Product | # P301 |
| Weight Capacity | 450 lbs. |
| Drivetrain | RWD |
| Seat Type | Captain or Pan |
| Seat Width | 21.75” |
| Seat Depth | 18” - 22” |
| Backrest Height | 21.5” |
| Seat-to-Floor Height | 23” |
| Overall Length | 29.5” |
| Overall Width | 28” |
| Overall Height | 42.75” |
| Turning Radius | 35” |
| Ground Clearance | 2.5” |
| Total Weight | 242 lbs. |
| Wt of Heaviest Pc. | 126 lbs. |
| Max Speed | 5 mph |
| Range Per Charge | up to 20 mi. |
| Motor | DC 24V / 240W |
| Controller | P&G VR2 60A |
| Battery Size | (2 required) 50Ah, 22NF, 12V |
| Charger | 5A off-board |
| Gradient | 10° |
| Front Wheels | 8” - foam-filled |
| Drive Wheels | 14” - foam-filled |
| Rear Wheels | 4” anti-tippers |
| HCPCS Codes | K0824 / K0825 |
| Color Options | Candy Apple Red Metallic Silver Blue |
Accessories:
• Oxygen tank holder
• Cane & crutch holder
• Walker holder
• Foldable rear basket
• Cup holder
• Side bag
• Cover
• USB charger
Options:
• Captain or Pan powered seat option
• 20” and 22” seat width option
• Elevating leg rest available (K0195)
• 5” power lift option, available
• Swing-away joystick
• XL footplate
