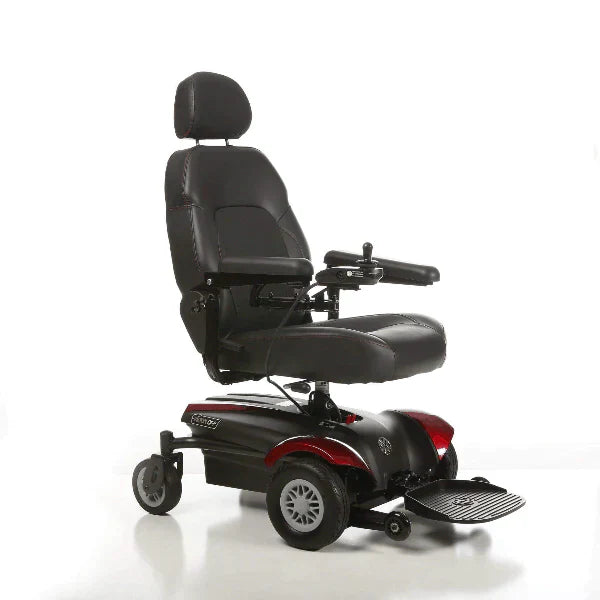

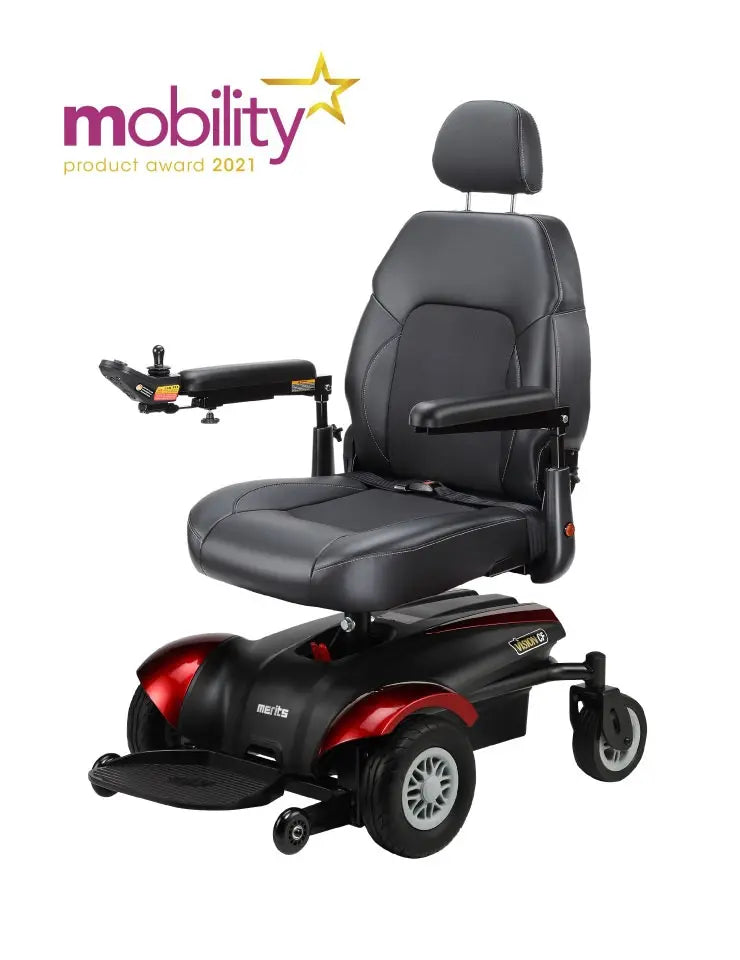

Merits P322B0M-ARMUB Vision Cf FWD, 16",18",20", CAPTAIN or PAN SEAT
Merits Vision Cf P322B0M-ARMUB FWD, 16",18",20", CAPTAIN or PAN SEAT RED, 300 LBS CAP, 9" FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
Features
• A true FWD with a 17”turn radius

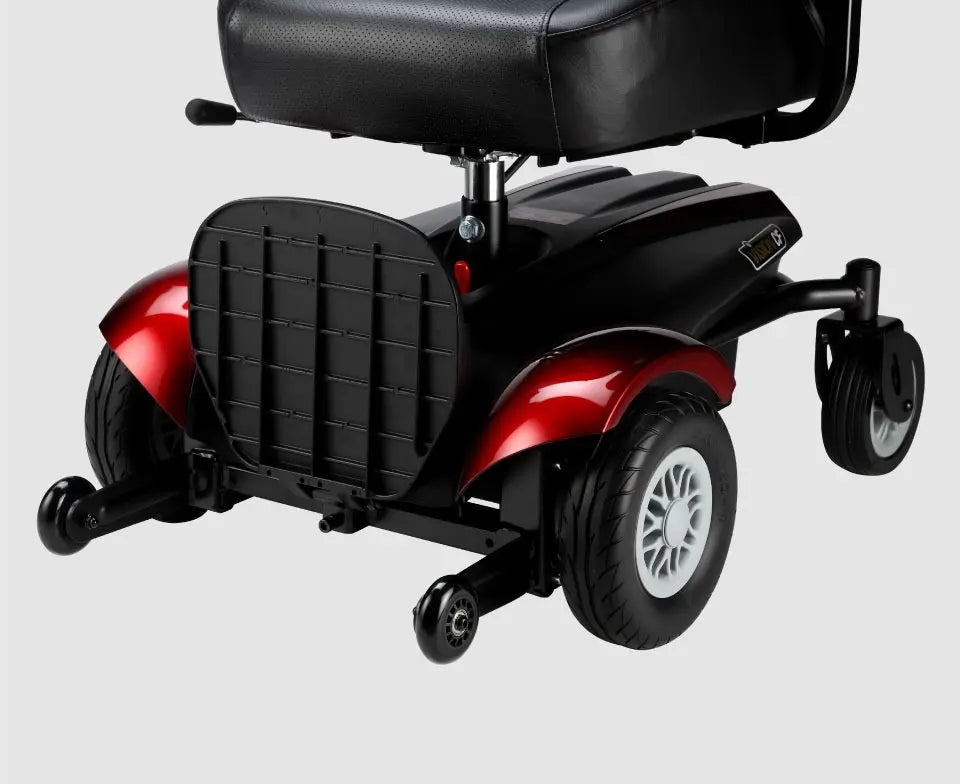

• 9” knobby drive tires for superior traction
• Dynamic LiNX controller for convenient Bluetooth
programming and diagnostics
• Premium, semi-reclining ergonomic seat up to 135°
• 16” - 20” customizable seat depth in 1“ increments
Product Specifications:
| Product | # P322 |
| Weight Capacity | 300 lbs. |
| Drivetrain | FWD |
| Seat Type | Captain or Pan |
| Seat Width | 16” - 20” |
| Seat Depth | 16” - 20” |
| Backrest Height | 18"-20" |
| Seat-to-Floor Height | 16.5” - 22” |
| Overall Length | 33” |
| Overall Width | 24” |
| Overall Height | 37” |
| Turning Radius | 17” |
| Ground Clearance | 2.4” |
| Total Weight | 154 lbs. |
| Wt of Heaviest Pc. | 62.7 lbs. |
| Max Speed | 4 mph |
| Range Per Charge | up to 18 mi. |
| Motor | DC 24V / 130W |
| Controller | Dynamic LiNX 40A |
| Battery Size | (2 required) 33Ah, U1 AGM |
| Charger | 4A off-board |
| Gradient | 6° |
| Front Wheels | 3” anti-tippers |
| Drive Wheels | 9” foam-fi lled |
| Rear Wheels | 6” foam-fi lled |
| HCPCS Codes | K0815-K0816-K0820-K0821-K0822-K0823 |
| Color Options | Candy Apple Red |
Accessories
• Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
• Foldable rear basket
• Safety fl ag
• Side under, arm bag
Options:
• Optional, 16” - 20” seat width
• Elevating leg rests (K0195)
• Captain or Pan powered seat option
