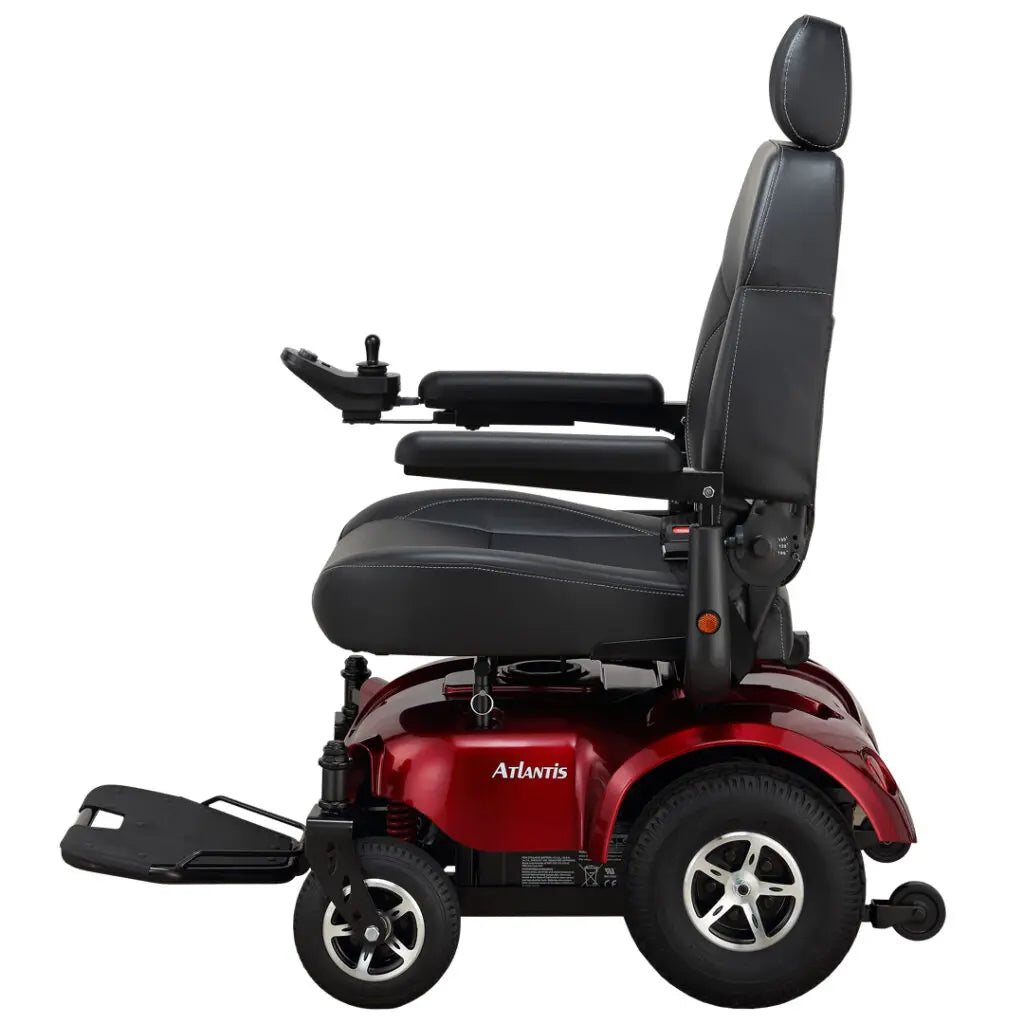

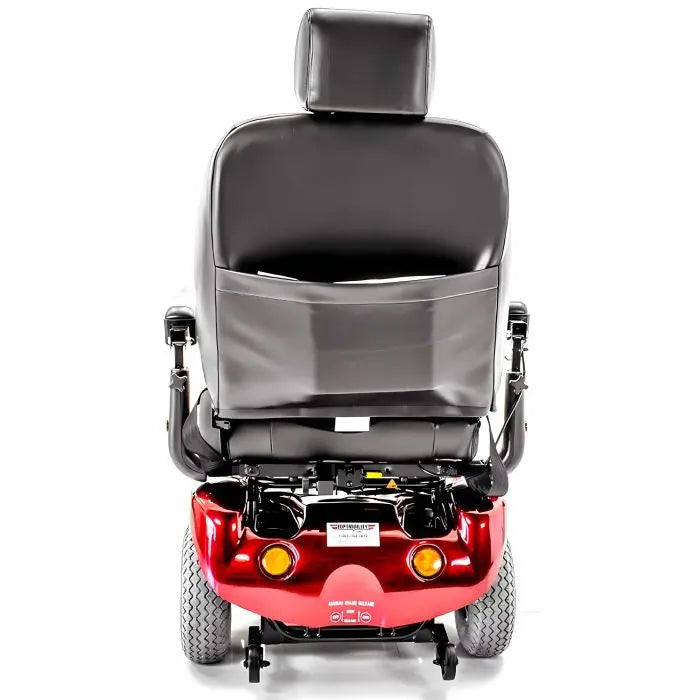

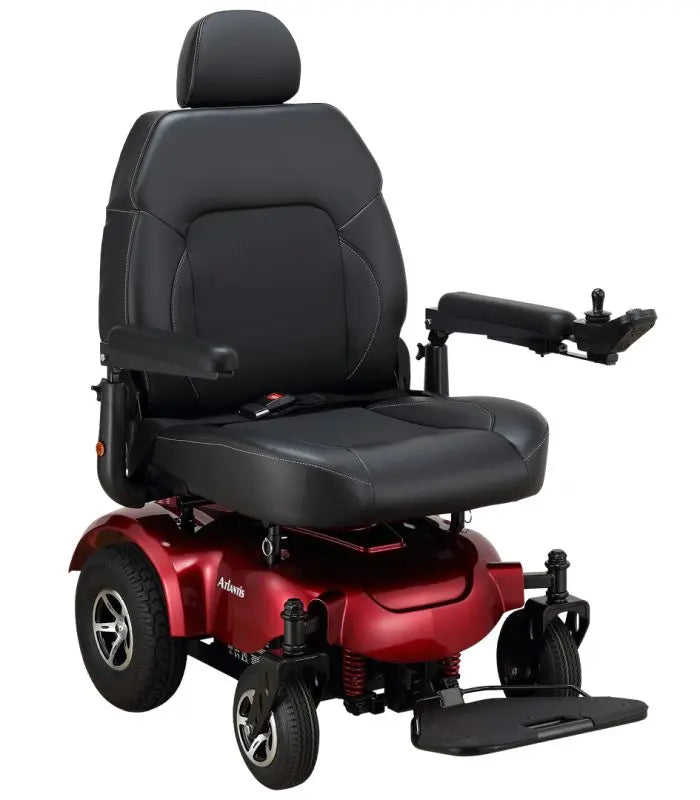

Merits P71026ARMUB ATLANTIS VERY HEAVY-DUTY, RWD, 24, CAPTAIN or PAN SEAT
Merits P71026ARMUB ATLANTIS HEAVY-DUTY,RWD, 24"/26", CAPTAIN or PAN SEAT, RED, 600 LBS CAP, 12" FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES GROUP 24 BATTS
Features:
• Heavy-duty power wheelchair with a weight capacity of 600 lbs.
• Four seat posts provide a stable and durable structure for the frame
• Extra-wide seat and extra-high back provide great comfort for bariatric users
• Super high power in-line
Product Specifications:
| Product | P710A |
| Weight Capacity | 600 lbs. |
| Drivetrain | RWD |
| Seat Type | Captain |
| Seat Width | 24.5" |
| Seat Depth | 20" |
| Backrest Height | 21.25" |
| Seat-to-Floor Height | 22”-23" |
| Overall Length | 33” |
| Overall Width | 32” |
| Overall Height | 41.5” |
| Turning Radius | 31.5” |
| Ground Clearance | 2.75” |
| Total Weight | 304 lbs. |
| Wt of Heaviest Pc. | 167 lbs. |
| Max Speed | 5 mph |
| Range Per Charge | up to 32 mi. |
| Motor | DC 24V / 300W |
| Controller | Dynamic LİNX |
| Battery Size | (2 required) 75Ah, M24 AGM |
| Charger | 6A off-board |
| Gradient | 10° |
| Front Wheels | 9” pneumatic |
| Drive Wheels | 12” pneumatic |
| Rear Wheels | 3” anti-tippers |
| HCPCS Codes | K0826 / K0827 |
| Color Options | Candy Apple Red Metallic Blue |
Accessories:
• Oxygen tank holder
• Cane & crutch holder
• Walker holder
• Foldable rear basket
• Cup holder
• Side bag
• USB charger
• Cover
Options:
• Captain power seat option
• Elevating legrest available (K0195)
• Swing-away joystick
• Flip-up, height-adjustable, detachable armrests
