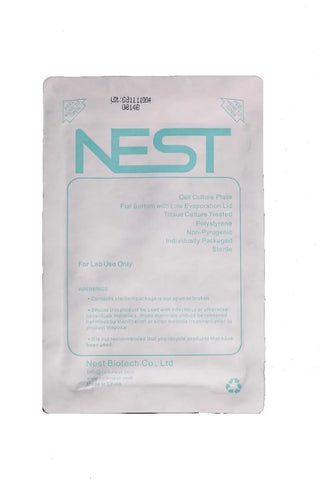

NEST Scientific 6 Well or 96 Well Low Evap EDGE Cell Culture Plate, Flat Bottom, Non-Treated, Sterile, Individually Wrapped In Peelable Film, 50/cs for 6 Well, 100/cs for 96 Well, Optically Clear USP Grade VI Virgin Polystyrene - Ideal for Microscopy, Alphanumeric Markings for Easy Sample ID, 9.5 cm² Growth Area per Well for 6 Well, 0.32 cm² Growth Area per Well for 96 Well
NEST Scientific Low Evaporation EDGE Cell Culture Plates provide an exceptional, highly reliable solution engineered specifically for demanding suspension cell culture workflows and high-throughput cell-based assays. These premium plates feature specialized liquid-filled outer channels surrounding the wells to eliminate the edge effect and prevent media evaporation during extended incubation periods. Constructed from optically clear USP Grade VI virgin polystyrene, they deliver clarity for light microscopy and high-resolution imaging applications.
Each plate adheres strictly to standard SBS/ANSI footprint guidelines, ensuring full compatibility with automated liquid handling workstations and robotic readers. Manufactured in an ISO 7 cleanroom within ISO 13485 and ISO 9001 certified facilities under cGMP compliance, these non-treated plates come individually wrapped in peelable film for complete sterility assurance. Designed with micro-feet on the base to protect optical surfaces and notched edges for stable stacking, NEST cell culture plates maintain consistent cellular environments across every single well.
Features
- Individually Wrapped - 1 per blister pack - 50 plates per case
- 6 wells or 96 wells
- Liquid filled channels surround wells to eliminate edge effect
- Non-Treated for suspended cells
- Flat bottom wells
- 9.5 cm² growth area per well for 714001 (6 Well)
- 1.9~2.9/1900uL-2900uL media per well for 714001 (6 Well)
- 0.32 cm² growth area per well for 713001 (96 Well)
- 0.1-0.2mL/100uL-200uL media per well for 713001 (96 Well)
Product Details
- Optically clear USP grade VI virgin polystyrene - ideal for microscopy
- Alphanumeric markings for easy sample ID
- SBS/ANSI Footprint, suitable for automation
- Raised edges to slow evaporation
- Small feet on the bottom of the plate to prevent scratching microscope objectives
- Clear lot number printed on each flask for traceability
- Notched bottoms with raised edges for stable stacking
Quality Details
- Manufactured in cGMP (21 CFR part 820/821) compliant factory
- Produced in ISO 13485:2016 and ISO 9001 facility
- Molded and packed in ISO 7 cleanroom
- E-beam sterilized and lot tested to SAL 10⁻⁶
- Lot tested free of pyrogens USP 85
- Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87
- Lot tested free DNase/RNase and DNA
- Lot tested free BSE/TSE
- Certified free of animal products
Product Specifications
| Specification | Details |
| Catalog Number (SKU) | 714001 (6 Well) / 713001 (96 Well) |
| Format Options | 6 Well / 96 Well Flat Bottom |
| Surface Treatment | Non-Treated (for suspension cells) |
| Sterility | E-beam sterilized, SAL 10⁻⁶ |
| Packaging Configuration | Individually wrapped in peelable film (1 per pack) |
| Case Quantity | 50 plates/case (714001) / 100 plates/case (713001) |
| Material Construction | Optically clear USP grade VI virgin polystyrene |
| Footprint Standard | Standard SBS/ANSI Footprint (suitable for automation) |
| Evaporation Control | Liquid-filled channels surrounding wells |
| Well Surface Area (6 Well) | 9.5 cm² per well |
| Recommended Media Volume (6 Well) | 1.9–2.9 mL (1900–2900 µL) per well |
| Well Surface Area (96 Well) | 0.32 cm² per well |
| Recommended Media Volume (96 Well) | 0.1–0.2 mL (100–200 µL) per well |
| Exterior Dimensions | Standard SBS/ANSI Microplate Footprint |
| Microscopy Features | Small feet on bottom to prevent objective scratching |
| Stacking & Identification | Notched bottoms with raised edges; clear lot number printed |
| Biological Safety Compliance | USP 85 Pyrogen-free, USP 87 / USP 88 Cytotoxin-free |
| Contaminant Testing | DNase/RNase free, DNA free, BSE/TSE free |
| Quality & Manufacturing Standards | ISO 13485:2016, ISO 9001, cGMP (21 CFR part 820/821), ISO 7 Cleanroom |
