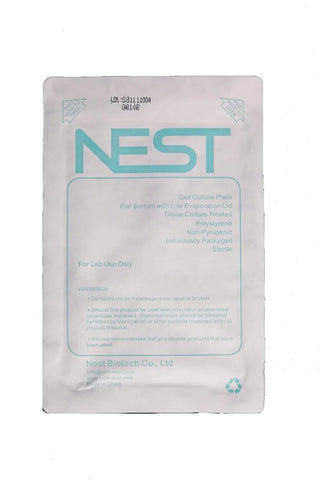

NEST Scientific 6 Well or 96 Well Low Evap EDGE Cell Culture Plate, Flat Bottom, TC Treated, Sterile, Individually Wrapped In Peelable Film, 50/cs for 6 Well, 100/cs for 96 Well, 9.5 cm² growth area per well for 714011 (6 Well), 0.32 cm² growth area per well for 713011 (96 Well), Alphanumeric Markings for Easy Sample ID, Raised Edges to Slow Evaporation
NEST Scientific Low Evaporation EDGE Cell Culture Plates are engineered to deliver consistent cellular growth while preventing evaporation during long-term incubation. Constructed from optically clear USP Class VI virgin polystyrene, these plates feature outer fluid-filled channels surrounding the wells to eliminate the edge effect. The tissue culture (TC) treated surface utilizes vacuum plasma etching to enhance cell attachment and uniform spreading for adherent cell lines.
Built strictly to standard SBS/ANSI footprints, each plate integrates notched bottoms with raised edges for stable stacking and automated handler compatibility. Manufactured in an ISO Class 7 cleanroom within ISO 13485:2016 and ISO 9001 certified facilities, every lot is E-beam sterilized to a Sterility Assurance Level of 10^-6. Individually wrapped in peelable film, these plates provide verifiable purity with complete lot-tested certification against pyrogens, cytotoxins, DNase/RNase, and animal products.
Features
- Individually Wrapped - 1 per blister pack - 50 plates per case
- 6 wells or 96 wells
- Liquid filled channels surround wells to eliminate edge effect
- TC treated - plasma etched for adherent cells
- Flat bottom wells
- 9.5 cm² growth area per well for 6 well (714011)
- 1.9~2.9/1900uL-2900uL media per well for 6 well (714011)
- 0.32 cm² growth area per well for 96 well (713011)
- 0.1-0.2mL/100uL-200uL media per well for 96 well (713011)
Product Details
- Optically clear USP grade VI virgin polystyrene - ideal for microscopy
- Alphanumeric markings for easy sample ID
- SBS/ANSI Footprint, suitable for automation
- Raised edges to slow evaporation
- Small feet on the bottom of the plate to prevent scratching microscope objectives
- Clear lot number printed on each flask for traceability
- Notched bottoms with raised edges for stable stacking
Quality Details
- Manufactured in cGMP (21 CFR part 820/821) compliant factory
- Produced in ISO 13485:2016 and ISO 9001 facility
- Molded and packed in ISO 7 cleanroom
- E-beam sterilized and lot tested to SAL 10^-6
- Lot tested free of pyrogens USP 85
- Lot tested free of cytotoxins/pyrogens In Vivo USP 88 and In Vitro USP 87
- Lot tested free DNase/RNase and DNA
- Lot tested free BSE/TSE
- Certified free of animal products
Product Specifications
| Specification | Details |
| Product Material | Optically clear USP Grade VI virgin polystyrene |
| Surface Treatment | Tissue Culture (TC) Treated (Vacuum plasma etched for adherent cells) |
| Evaporation Protection | Liquid-filled perimeter channels (EDGE design) |
| Sterilization Method | Electron Beam (E-beam) irradiated to SAL 10^-6 |
| Manufacturing Facility Standards | cGMP (21 CFR part 820/821), ISO 13485:2016, and ISO 9001 certified |
| Cleanroom Standard | Molded and packed in ISO Class 7 cleanroom |
| Footprint / Exterior Dimensions | Standard SBS/ANSI Footprint |
| Temperature Range | Stored at room temperature |
| Well Bottom Geometry | Flat bottom with small corner feet |
| Growth Area (SKU 714011) | 9.5 cm² per well (6-Well Plate) |
| Recommended Media Volume (SKU 714011) | 1.9 mL to 2.9 mL (1900 µL - 2900 µL) per well |
| Growth Area (SKU 713011) | 0.32 cm² per well (96-Well Plate) |
| Recommended Media Volume (SKU 713011) | 0.1 mL to 0.2 mL (100 µL - 200 µL) per well |
| Stacking Design | Notched bottoms with raised edges for stable stacking |
| Purity Certifications | Non-pyrogenic (USP 85), Non-cytotoxic (In Vivo USP 88 / In Vitro USP 87) |
| Contaminant Testing | Lot tested free of DNase, RNase, and human DNA |
| Biological Safety | BSE/TSE free and certified animal product free |
