PHCbi High-Performance Sliding Glass Door Pharmaceutical Refrigerator, Energy Saving Inverter Compressor Algorithm, QPS Listed, Natural refrigerant
The PHCbi High-Performance Sliding Glass Door Pharmaceutical Refrigerator is designed for dependable storage of vaccines, biologics, pharmaceuticals, reagents, and other temperature-sensitive materials. Available with either full-width adjustable wire shelves or a combination of wire shelves and sliding drawer racks, the refrigerator maintains stable temperatures from +2°C to +14°C using forced-air circulation, an inverter compressor algorithm (ICA), and natural R-600a refrigerant.
Argon-insulated dual-pane sliding glass doors reduce air exchange during door openings while improving visibility and energy efficiency. An OLED control panel with password protection, onboard data archiving, USB download capability, and comprehensive alarm functions provides secure monitoring for laboratories, hospitals, pharmacies, and healthcare facilities.
Features
- Temperature range +2°C to +14°C

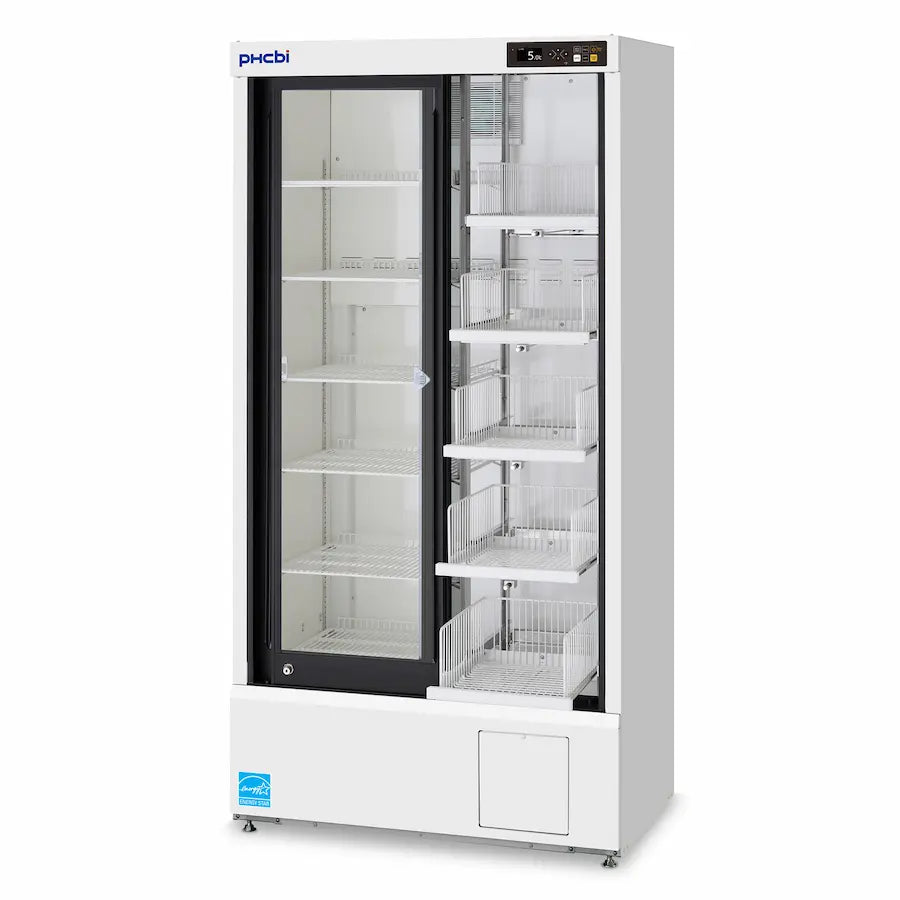

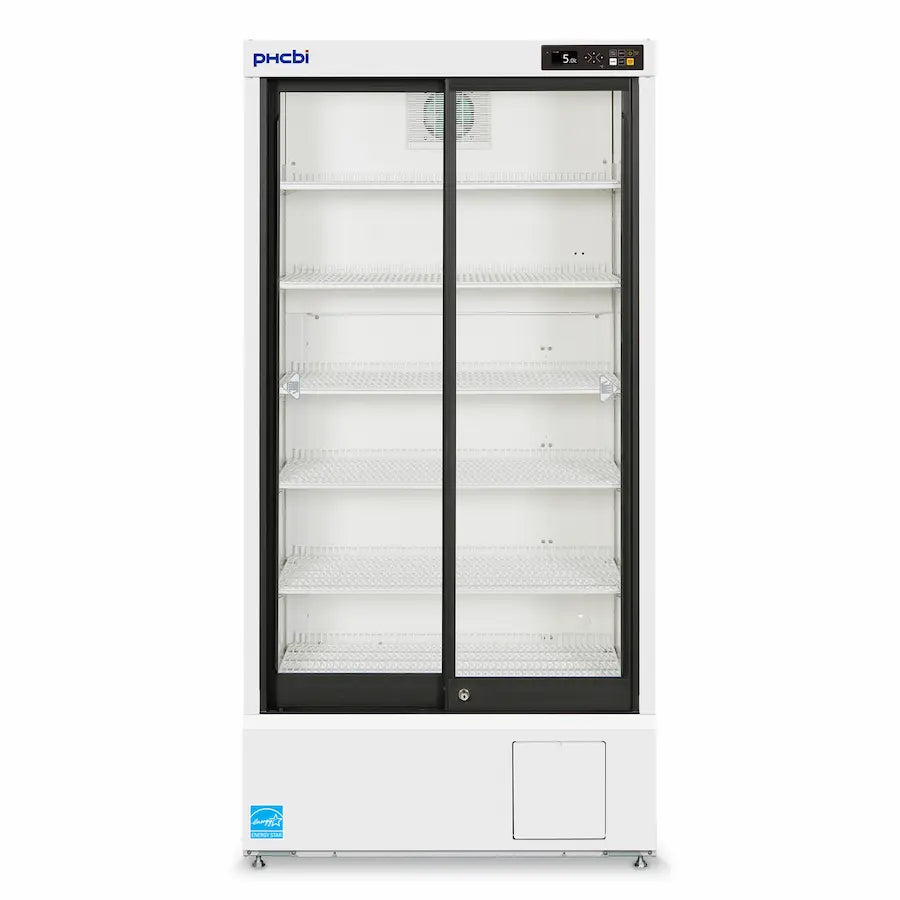

- Available with wire shelves or wire shelves plus sliding drawer racks
- Dual-pane argon-insulated sliding glass doors
- Integrated keyed door lock
- Fan forced-air circulation
- Electronically actuated cycle defrost
- Automatic evaporator coil defrost
- Natural refrigerant (R-600a)
- Inverter Compressor Algorithm (ICA)
- Microprocessor controller
- White graphic OLED display
- Password-protected keypad
- USB data download
- Three-month onboard temperature and alarm data archive
- LED interior lighting
- Visual, audible, logged, and remote alarms
- Rear access port
- Optional blackout panel
- Optional LabAlert Monitoring System
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Product Type | Pharmaceutical Refrigerator |
| Door Type | Sliding Dual-Pane Tempered Glass Doors |
| Temperature Control Range | +2°C to +14°C |
| Controller | Microprocessor with Non-Volatile Memory |
| Display | White Graphic OLED Digital Display |
| Temperature Sensor | Thermistor |
| Cooling Method | Fan Forced Air Circulation |
| Defrost Method | Electronically Actuated Cycle Defrost |
| Refrigerant | R-600a (45 g) |
| Insulation | PUF (Rigid Polyurethane Foamed Insulation) |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Door Lock | Included |
| Doors | 2 Sliding Glass Doors |
| Interior Lighting | LED |
| Access Port | 1 |
| Access Port Location | Rear Center |
| Access Port Diameter | 1.2 in (30 mm) |
| Casters | 4 (2 Leveling Feet) |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-15P |
| Noise Level | 42 dB(A) |
| BTU Output | 785 BTU/hr |
| Data Logging | 3-Month Onboard Archive with USB Download |
| Certifications | QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
| SKU | MPR-S500H-PA | MPR-S500RH-PA |
|---|---|---|
| Storage Configuration | 6 Adjustable Full-Width Wire Shelves | 6 Left-Side Wire Shelves + 5 Right-Side Sliding Drawer Racks |
| Effective Capacity | 19.5 Cu. Ft. (554 L) | 19.4 Cu. Ft. (550 L) |
| External Dimensions (W × D × H) | 35.4 × 25.5 × 71.8 in | 35.4 × 25.5 × 71.8 in |
| Internal Dimensions (W × D × H) | 31.4 × 20.0 × 56.1 in | 31.4 × 20.0 × 56.1 in |
| Net Weight | 300 lbs (139 kg) | 320 lbs (145 kg) |
| Shelf Size | 30.7 × 16.5 in | 16.9 × 16.5 in |
| Maximum Shelf Load | 110 lbs (50 kg) | 44 lbs (20 kg) |
