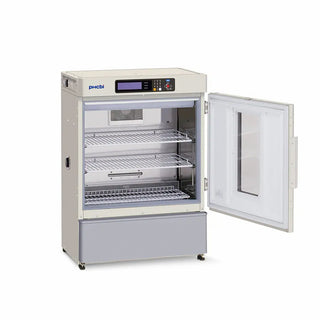

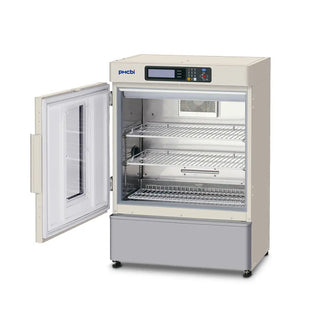

PHCbi MIR-154-PA Heated & Cooled Laboratory Incubator, 4.4 Cu. Ft., 115V, Stainless Steel Chamber
PHCbi MIR-154-PA Heated & Cooled Laboratory Incubator, 4.4 Cu. Ft., 115V, Stainless Steel Chamber
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
PHCbi MIR-154-PA Heated & Cooled Laboratory Incubator, LCD Alphanumeric Display, Automatic And Manual Defrost, LabAlertAnd LabSVIFT™ Gen 2 Compatible
The PHCbi MIR-154-PA Heated & Cooled Laboratory Incubator provides precise temperature control across a wide operating range from -10°C to +60°C, making it suitable for microbiology, plant cell biology, industrial testing, and general laboratory applications. A microprocessor with PID control maintains excellent temperature stability while gentle forced-air circulation delivers uniform heating and cooling without drying culture media.
The programmable controller supports multi-step temperature profiles with memory for up to ten programs. A solid insulated door with an integrated viewing window, automatic and manual defrost functions, and SNAP-approved refrigerant complete a versatile incubation system designed for reliable laboratory performance.
Features
- 4.4 Cu. Ft. (123 L) chamber capacity
- Temperature range from -10°C to +60°C
- Microprocessor with PID control
- LCD alphanumeric display
- Programmable multi-step operation
- Stores up to 10 programs
- Up to 12 programmable steps with repeat cycles
- Forced-air circulation conditioning system
- Automatic and manual defrost
- SNAP-approved R-513A refrigerant
- Solid insulated door with viewing window
- Stainless steel chamber
- Interior fluorescent lighting
- Three adjustable polyethylene-coated wire shelves
- Adjustable temperature in 0.1°C increments
- Stackable with optional stacking plate
- Visual, audible, and remote alarms
- LabAlert and LabSVIFT™ Gen 2 compatible
- 3-Year Parts & Labor Warranty
Specification
| Brand | PHCbi |
| Model | MIR-154-PA |
| Product Type | Heated & Cooled Laboratory Incubator |
| Chamber Capacity | 4.4 Cu. Ft. (123 L) |
| External Dimensions (W × D × H) | 27.6 × 22.8 × 40.1 in (700 × 580 × 1018 mm) |
| Internal Dimensions (W × D × H) | 24.4 × 14.5 × 21.9 in (620 × 368 × 555 mm) |
| Net Weight | 172 lbs (78 kg) |
| Temperature Range | -10°C to +60°C |
| Temperature Uniformity | ±1.5°C (-10°C to Ambient), ±0.2°C (Ambient to +60°C) |
| Controller | Microprocessor with PID Control |
| Display | LCD Alphanumeric |
| Temperature Sensor | Thermistor |
| Programming | 12 Steps, 1–99 Repeat Cycles, 10 Program Memory |
| Refrigeration System | Single Compressor |
| Compressor | 150 W Output |
| Refrigerant | SNAP Approved R-513A |
| Conditioning System | Forced Air Circulation |
| Defrost | Automatic and Manual |
| Defrost Heater | 141 W |
| Insulation | Rigid Polyurethane Foam-in-Place |
| Exterior Material | Painted Steel |
| Interior Material | Stainless Steel |
| Door | Solid Painted Steel with Viewing Window |
| Interior Light | 15 W Fluorescent |
| Adjustable Shelves | 2 Upper + 1 Lower Polyethylene-Coated Wire Shelves |
| Maximum Shelf Load | 44 lbs (20 kg) |
| Access Port | 1 |
| Access Port Position | Left Sidewall |
| Access Port Diameter | 1.6 in (40 mm) |
| Leveling Feet | 4 Adjustable |
| Stackable | Yes (Optional Stacking Plate) |
| Alarms | Power Failure, High Temperature, Low Temperature, Door Open |
| Remote Alarm Contact | DC 30V, 2A |
| Power Supply | 115V, 60Hz, 1Ø, NEMA 5-15P |
| Noise Level | 41 dB(A) |
| Optional Monitoring | LabAlert Monitoring System, LabSVIFT™ Gen 2 |
| Warranty | 3 Years Parts & Labor |
