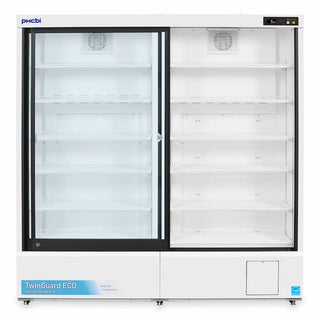

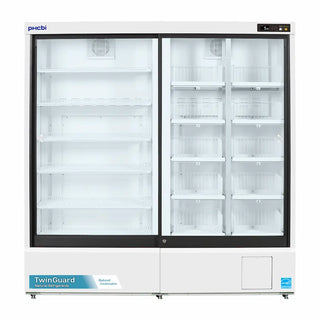

PHCbi TwinGuard ECO Sliding Glass Door Pharmaceutical Refrigerator, 41.1 or 40.8 Cu. Ft., 115V
PHCbi TwinGuard ECO Sliding Glass Door Pharmaceutical Refrigerator, 41.1 or 40.8 Cu. Ft., 115V
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
PHCbi TwinGuard ECO Sliding Glass Door Pharmaceutical Refrigerator, Dual Cooling, Sensor-Initiated Cycle Defrost, ENERGY STAR Listed
The PHCbi TwinGuard ECO Pharmaceutical Refrigerator delivers exceptional protection for temperature-sensitive pharmaceuticals, vaccines, biologics, reagents, and laboratory materials through TwinGuard dual independent cooling circuits. If one refrigeration circuit experiences a malfunction, the second circuit automatically maintains the chamber at the preset temperature to help protect valuable inventory.
Natural hydrocarbon refrigerants, inverter-controlled compressors, forced-air circulation, and a sensor-initiated cycle defrost system provide stable temperatures from +2°C to +14°C while improving energy efficiency. Thermal double-pane Low-E sliding glass doors, an OLED display, USB data retrieval, onboard alarm logging, and password-protected controls make this refrigerator an excellent choice for laboratories, pharmacies, hospitals, and research facilities.
Features
- Temperature range +2°C to +14°C
- TwinGuard dual independent cooling circuits
- Automatic backup cooling during circuit failure
- Up to 41.1 Cu. Ft. (1165 L) capacity
- Thermal double-pane Low-E sliding glass doors
- Natural HC refrigerants (R-600a)
- Dual inverter-controlled compressors
- Forced-air cooling system
- Sensor-initiated cycle defrost
- OLED alphanumeric display
- Password-protected keypad
- Adjustable temperature in 0.1°C increments
- USB data retrieval
- Alarm history logging
- LED interior lighting
- Three access ports
- Adjustable visual, audible, and remote alarms
- ENERGY STAR Listed
- QPS Listed
- 3-Year Parts & Labor Warranty (U.S. & Canada)
Specification
| Brand | PHCbi |
| Series | TwinGuard ECO |
| Product Type | Pharmaceutical Refrigerator |
| Door Type | Dual Sliding Insulated Glass Doors |
| Temperature Control Range | +2°C to +14°C (Preset +5°C) |
| Temperature Uniformity | ±3°C |
| Cooling Method | Forced Air (Fin & Tube) |
| Defrost Method | Sensor-Initiated Cycle Defrost |
| Refrigeration System | TwinGuard Dual Independent Cooling Circuits |
| Refrigerant | R-600a (45 g × 2) |
| Controller | Microprocessor |
| Display | OLED with Alphanumeric Messaging |
| Temperature Sensor | RTD |
| Controller Security | Password-Protected Keypad |
| Exterior Material | Painted Steel |
| Interior Material | Painted Steel |
| Doors | 2 Highly Insulated Double Glass Sliding Doors |
| Door Lock | Included |
| Access Ports | 3 (Rear: Right Middle, Right Bottom, Left Middle) |
| Access Port Diameter | 1.18 in (30 mm) |
| Interior Light | LED |
| Casters | 6 |
| Leveling Legs | 3 |
| Ambient Operating Temperature | -5°C to +35°C |
| Power Consumption | 3.18 kWh/day |
| BTU Output | 270.16 BTU/hr |
| Noise Level | 42 dB(A) |
| Running / Maximum Current | 1.2 / 5.5 A |
| Power Supply | 115V, 60Hz, NEMA 5-15P |
| Certifications | ENERGY STAR Listed, QPS Listed |
| Warranty | 3 Years Parts & Labor (U.S. & Canada) |
| SKU | MPR-S1201XH-PA | MPR-S1201RXH-PA |
|---|---|---|
| Storage Configuration | 12 Adjustable Full-Width Wire Shelves | 6 Adjustable Left-Side Wire Shelves + 10 Right-Side Sliding Drawer Racks |
| Effective Capacity | 41.1 Cu. Ft. (1165 L) | 40.8 Cu. Ft. (1155 L) |
| External Dimensions (W × D × H) | 70.9 × 25.6 × 71.8 in | 70.9 × 25.6 × 71.8 in |
| Internal Dimensions (W × D × H) | 66.9 × 20.1 × 56.1 in | 66.9 × 20.1 × 56.1 in |
| Net Weight | 585 lbs (265 kg) | 611 lbs (277 kg) |
| Shelf / Drawer Size | 30.7 × 16.5 × 0.9 in | Drawer: 12.2 × 14.0 × 5.7 in |
| Maximum Load | 110 lbs (50 kg) per Shelf | 44 lbs (20 kg) per Drawer |
