| Overview | |
|---|---|
| Product Name | Body-Solid ProDual Biceps and Triceps Machine |
| SKU / Product Code | DBTCSF |
| Manufacturer / Brand | Body-Solid |
| Target Muscle Groups | Biceps, Triceps |
| Machine Type | Selectorized Dual-Function Upper Arm Station |
| Frame Structure | 11-Gauge 2.375" x 4.625" (60 mm x 117 mm) oval high-tensile steel tubing |
| Finish | Electrostatically applied powder coating (resists scratching, chipping, and corrosion) |
| Upholstery | Tear-resistant DuraFirm™ padding over 2" high-density foam |
| Pulleys | Precision-matched fiberglass-reinforced nylon pulleys with sealed ball bearings |
| Cable System | 5.5mm diameter, 2500 lb rated aircraft steel cable |
| Connecting Hardware | 3-gauge steel connecting plates with 0.50" diameter connecting bolts |
| Grips | High-density foam rubber hand grips |
| Seat Adjustment | 5-position gas-assisted adjustable seat with back support |
| Arm Support Pad | Ergonomically angled padded arm pad |
| Handle Adjustment | 3-position pivoting handles |
| Total Exercise Adjustments | 14 combined start-position adjustments (bicep and tricep modes) |
| Modular Compatibility | Connects as a station on ProDual 3-Stack and 4-Stack Gym systems |
| Dimensions & Weights | |
| Assembled Dimensions (210 lb Stack) | 53.00" L x 40.00" W x 62.00" H (1346.2 mm L x 1016.0 mm W x 1574.8 mm H) |
| Assembled Weight (210 lb Stack) | 501.00 lbs. (227.25 kg) |
| Packaging Breakdown (3 Boxes for Standard 210 lb Model) | |
| Package 1 Dimensions | 46.9" L x 29.5" W x 13.0" H (1190 mm x 750 mm x 330 mm) |
| Package 1 Volume / Gross Weight | 10.40 ft³ (0.295 m³) / 107.0 lbs. (48.5 kg) |
| Package 2 Dimensions | 30.7" L x 24.8" W x 13.4" H (780 mm x 630 mm x 340 mm) |
| Package 2 Volume / Gross Weight | 5.90 ft³ (0.167 m³) / 71.0 lbs. (32.2 kg) |
| Package 3 Dimensions | 61.4" L x 34.3" W x 9.1" H (1560 mm x 870 mm x 230 mm) |
| Package 3 Volume / Gross Weight | 11.02 ft³ (0.312 m³) / 143.0 lbs. (64.9 kg) |
| Weight Stack Configuration | |
| Standard Weight Stack | 210 lbs. |
New
Sale
Pro Clubline DBTCSF ProDual Biceps and Triceps Machine, 210 lb. Stack
SKU: DBTCSF
20% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Pro Clubline DBTCSF ProDual Biceps and Triceps Machine, Dual-Function Upper Arm Isolation, 3-Position Pivoting Handles, Modular Multi-Gym System Ready

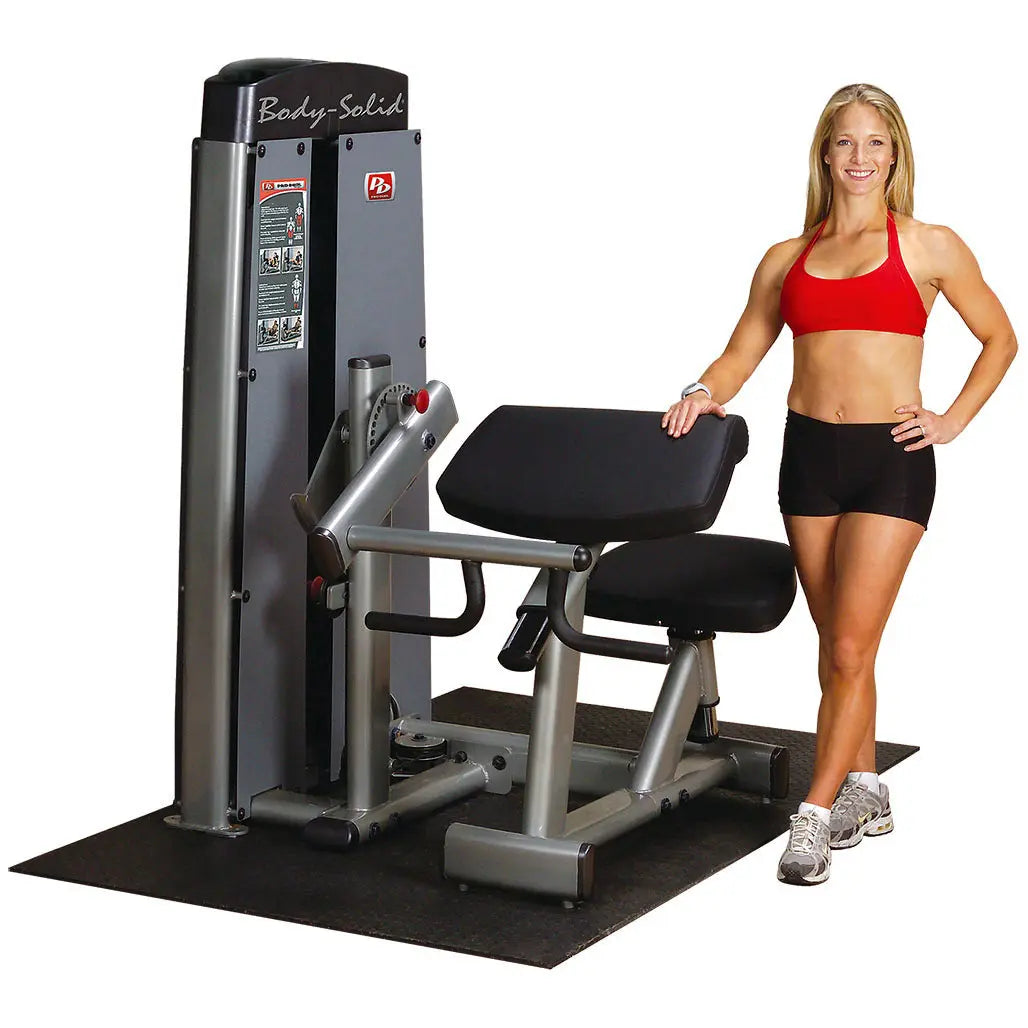

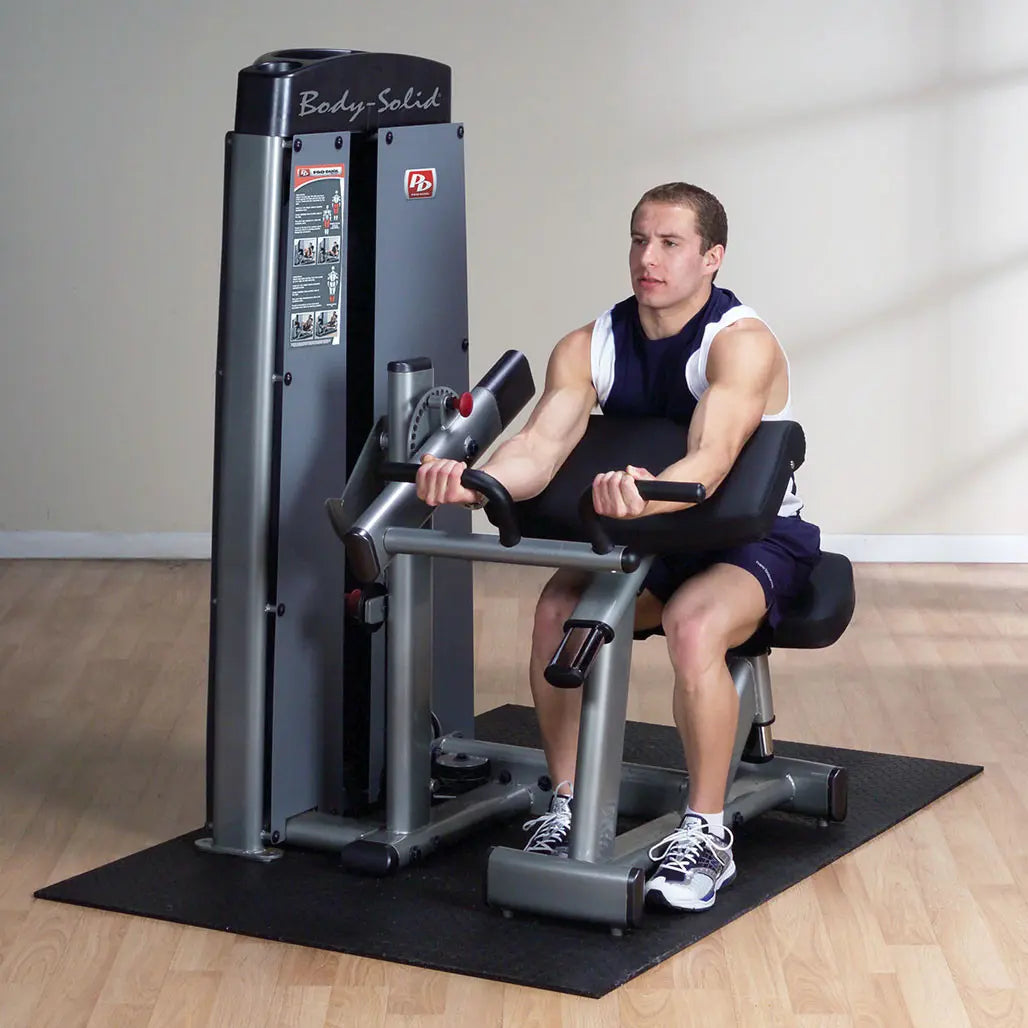

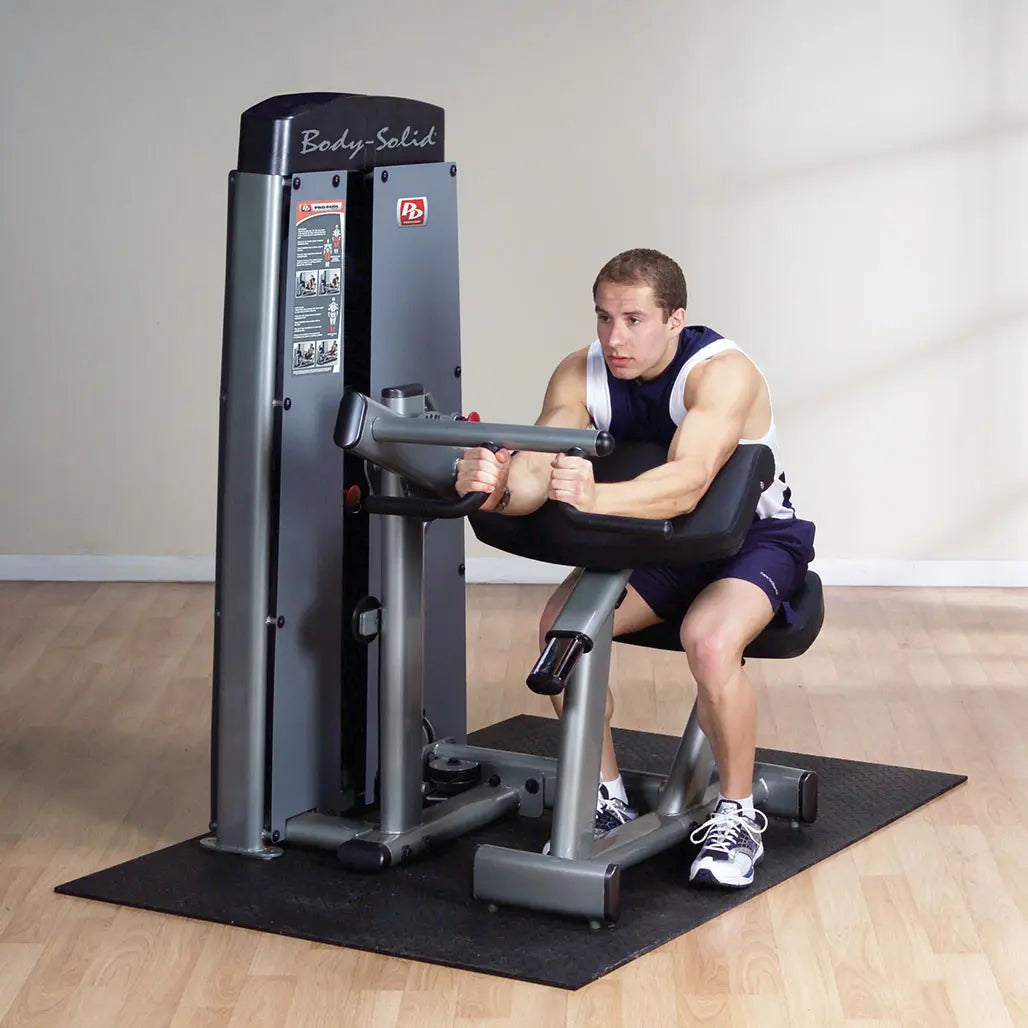

The Body-Solid ProDual Bicep and Tricep Machine (DBTCSF) is a commercial-grade dual-function strength training station engineered for targeted, biomechanically precise upper arm development. Featuring a seamless transition mechanism, users can effortlessly alternate between bicep curls and tricep extensions using the same dual-grip pivoting handles without requiring secondary attachments or complex machine reconfigurations. Built with sleek, electrostatically powder-coated oval steel frame tubing, it combines modern commercial aesthetics with maximum structural integrity.
To maximize exercise isolation, the unit features an ergonomically angled upper arm pad paired with a 5-position gas-assisted adjustable seat with integrated back support. This setup ensures proper alignment of the user's elbow with the lifting arm's axis of rotation, preventing unwanted shoulder compensation. Self-aligning 3-position pivoting handles rotate along a natural motion arc to reduce wrist torque, while 14 combined start-position settings offer extended range-of-motion flexibility for users of varying body sizes and mobility levels. Constructed with an 11-gauge 2.375" x 4.625" oval steel mainframe, continuous 4-side factory welds, sealed ball bearings at all pivot points, and 2,500 lb rated aircraft cables over fiberglass-reinforced nylon pulleys, this machine is built to perform in heavy-use commercial fitness centers.
Equipped standard with a 210 lb weight stack (with an optional 310 lb heavy stack upgrade available), the DBTCSF functions exceptionally well as a standalone station or as a modular component integrated within Body-Solid ProDual 3-Stack and 4-Stack multi-station gym configurations.
Features:
- Dual-Function Upper Arm Isolation: Facilitates smooth transitions between bicep curl and tricep extension movements without changing cable attachments or handling separate bars.
- Ergonomic Alignment & Support: Features an ergonomically angled arm pad and a 5-position gas-assisted adjustable seat with back support for optimal elbow-to-axis alignment.
- 3-Position Pivoting Handles: Handles automatically rotate along a natural arc of movement to eliminate wrist strain and maintain constant tension throughout the exercise.
- 14 Combined Position Adjustments: Offers multiple starting angles for both bicep and tricep movements, accommodating various heights and range-of-motion needs.
- Heavy-Duty Commercial Frame: Built using 11-gauge 2.375" x 4.625" high-tensile oval steel tubing with 4-side continuous welds and 3-gauge steel connecting plates.
- Smooth & Maintenance-Free Cable Drive: Industrially rated sealed ball bearings and fiberglass-reinforced nylon pulleys support a 5.5mm, 2,500 lb rated aircraft cable system.
- DuraFirm™ Commercial Upholstery: Extra-thick, tear-resistant padding over 2" high-density foam provides firm body support that will not bottom out.
- Modular Multi-Gym System Ready: Serves as an independent unit or connects seamlessly into ProDual 3-Stack and 4-Stack modular commercial gym setups.
- Weight Stack Options: Includes a standard 210 lb weight stack,
Specifications:
