| Overview | |
|---|---|
| Product Name | Body-Solid ProDual Inner Outer Thigh Machine (310 lb. Stack) |
| Product Model | DIOTSF/3 |
| Brand / Product Line | Body-Solid ProDual Series |
| Product Category | Commercial Selectorized Dual Inner & Outer Thigh Station |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Resistance System | 310 lb. Selectorized Weight Stack |
| Frame Tubing | 11-Gauge 2.375" x 4.625" Structural Oval Tubing |
| Frame Construction | Factory-Assembled Continuous 4-Side Welded Steel Frame |
| Cables | 5.5 mm Diameter, 2,500 lb. Rated Aircraft Cable |
| Pulleys & Bearings | Fiberglass-Reinforced Nylon Pulleys with Sealed Industrial Pillow-Block Bearings |
| Upholstery & Padding | Tear-Resistant DuraFirm™ Upholstery over 2" High-Density Foam |
| Modular Integration | Compatible with ProDual 3-Stack & 4-Stack Multi-Gym Frames |
| Target Exercises & Muscle Groups | |
| Primary Movements | Seated Hip Adduction (Inner Thigh), Seated Hip Abduction (Outer Thigh & Glutes) |
| Target Musculature | Adductor Longus, Adductor Magnus, Adductor Brevis, Gracilis, Gluteus Medius, Gluteus Minimus, Tensor Fasciae Latae (TFL) |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 76.00" L x 36.00" W x 62.00" H (1,930.40 mm L x 914.40 mm W x 1,574.80 mm H) |
| Assembled Product Weight | 475.00 lbs. (215.46 kg) |
| Shipping & Packaging Specifications | |
| Package 1 Dimensions | 61.00" L x 31.50" W x 18.50" H (1,550.00 mm L x 800.00 mm W x 470.00 mm H) |
| Package 1 Gross Weight / Volume | 111.00 lbs. (50.35 kg) / 20.58 ft³ (0.583 m³) |
| Package 2 Dimensions | 28.30" L x 21.70" W x 10.60" H (720.00 mm L x 550.00 mm W x 270.00 mm H) |
| Package 2 Gross Weight / Volume | 58.00 lbs. (26.31 kg) / 3.78 ft³ (0.107 m³) |
| Package 3 Dimensions | 61.40" L x 34.30" W x 9.10" H (1,560.00 mm L x 870.00 mm W x 230.00 mm H) |
| Package 3 Gross Weight / Volume | 143.00 lbs. (64.86 kg) / 11.02 ft³ (0.312 m³) |
| Warranty Structure | |
| Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings, Bearings, & Hardware | 1 Year Pads, Rollers, Cables, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Bearings, Hardware, Pads, & Cables |
New
Sale
Pro ClubLine DIOTSF3 ProDual Inner Outer Thigh Machine (310 lb. Stack)
SKU: DIOTSF3
20% off
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Pro ClubLine DIOTSF3 ProDual Inner Outer Thigh Machine, Upgraded 310 lb. Weight Stack, Dual Adductor and Abductor Functionality

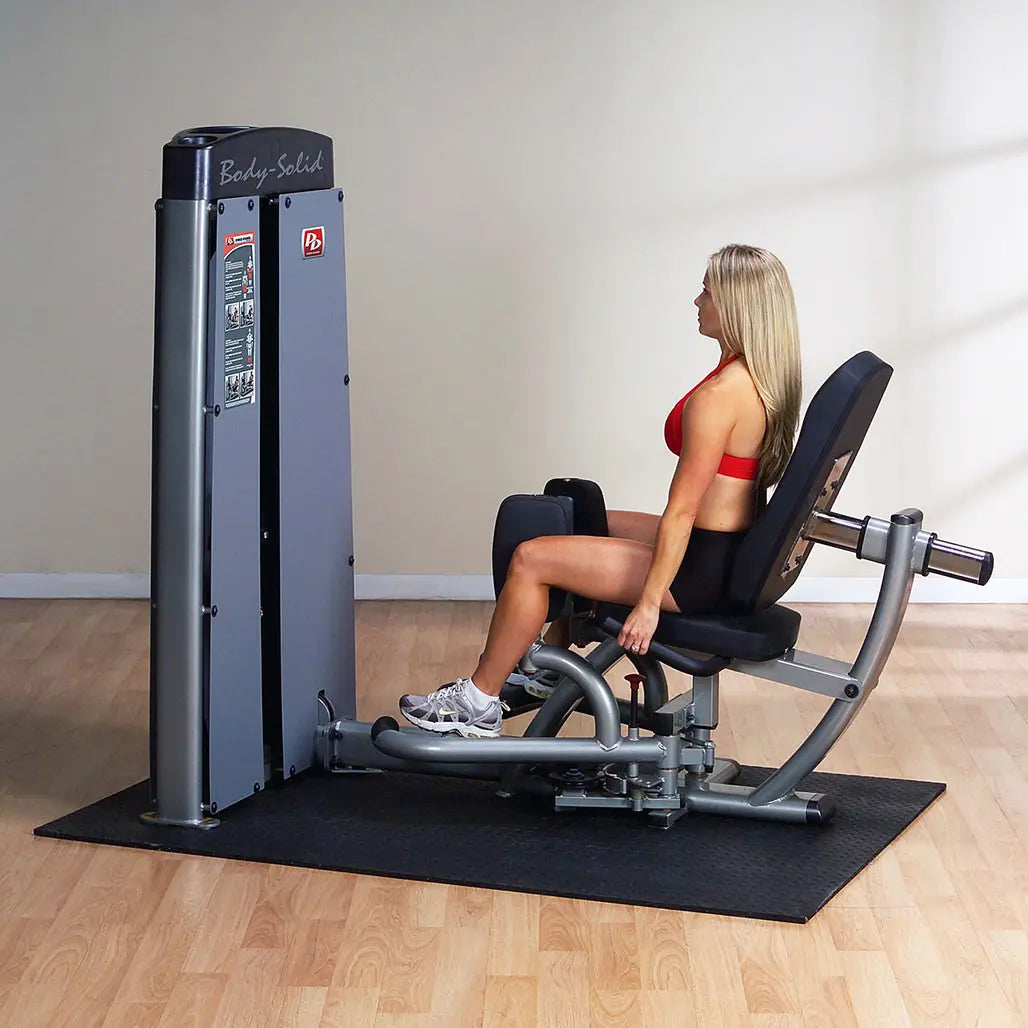

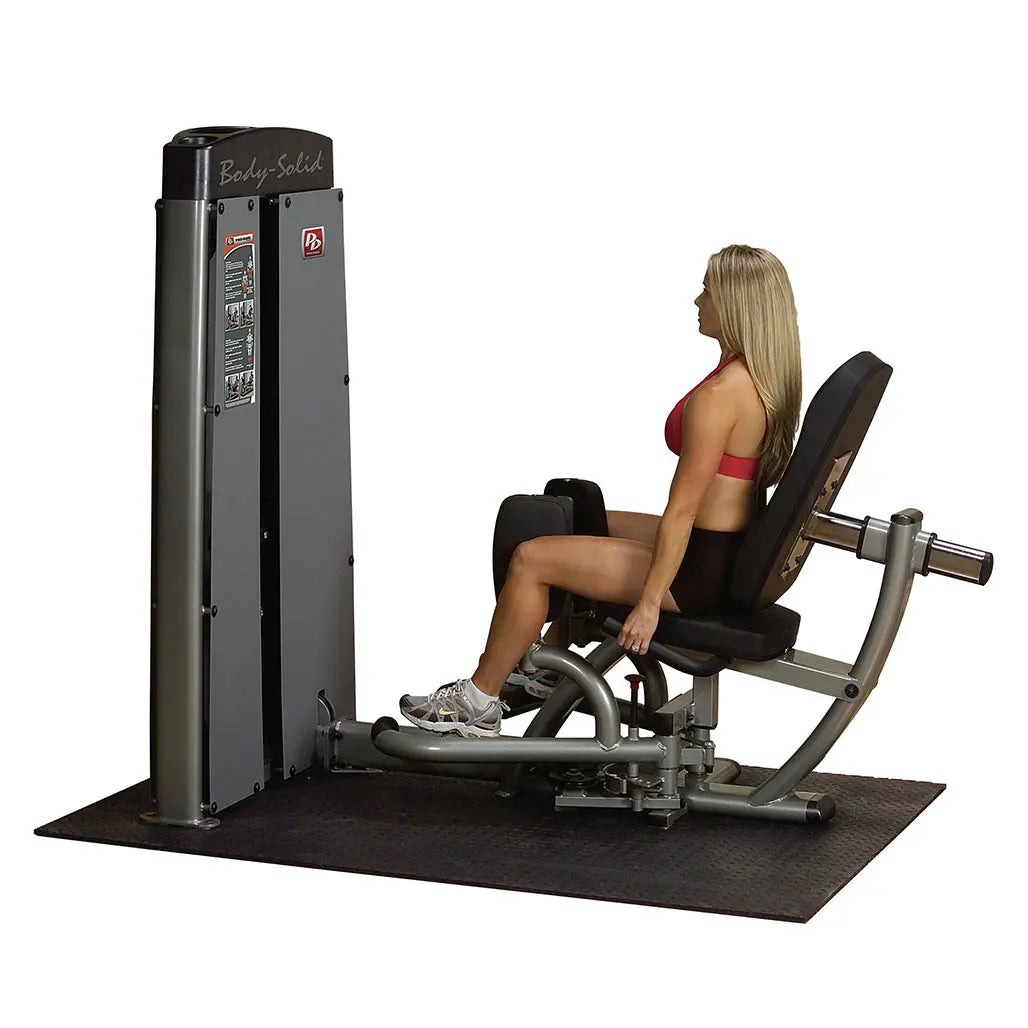

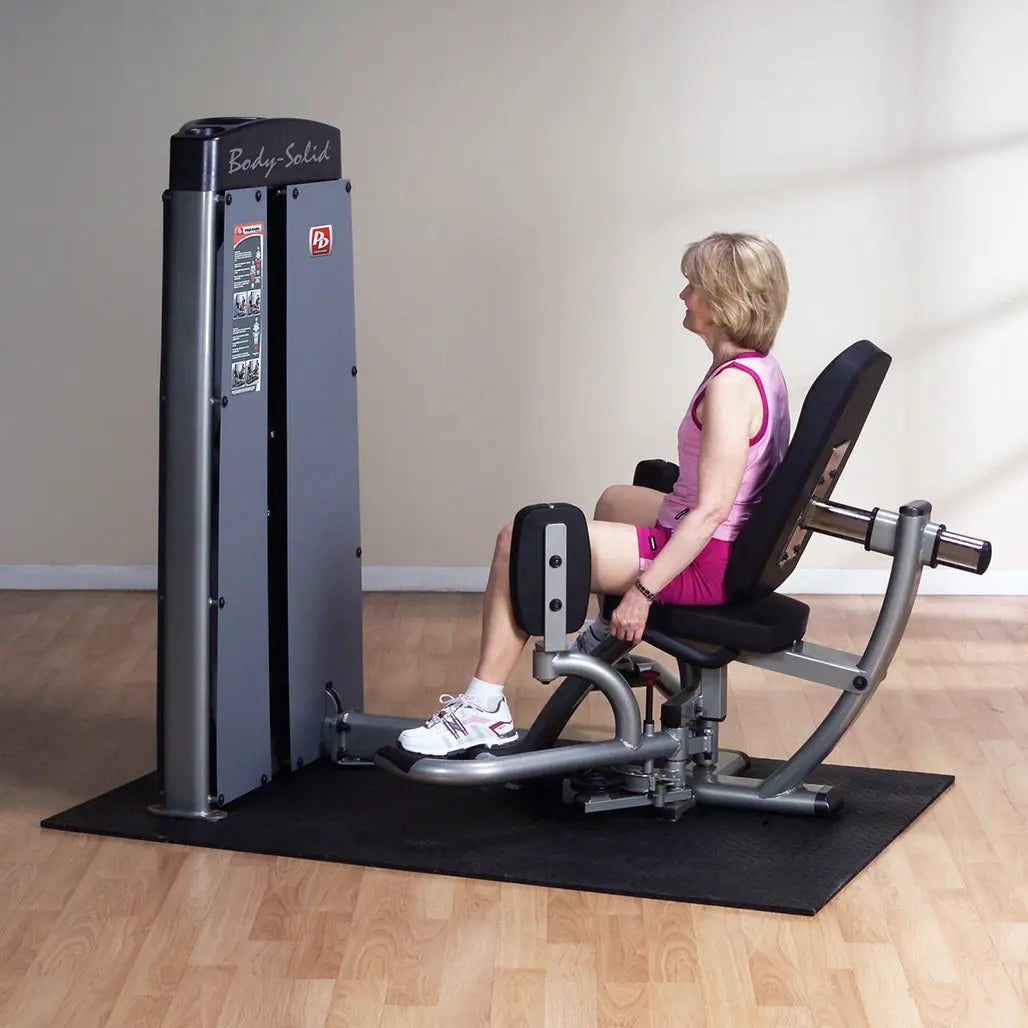

The Body-Solid ProDual Inner Outer Thigh Machine (SKU: DIOTSF/3) provides an effective dual-function solution for isolating and strengthening the hip adductors and abductors. Engineered with precise biomechanics, this station eliminates lower-back strain by keeping the hips and knees in optimal alignment throughout the movement range.
Equipped with an upgraded 310 lb. selectorized weight stack, a 9-position adjustable seat back, and a pop-pin cam range-of-motion system, the DIOTSF/3 easily adjusts to accommodate users of all sizes and mobility levels. Featuring a forward-facing weight stack design for quick weight selection and user privacy, this commercial-grade unit can function as a standalone single station or integrate as a modular component on Body-Solid ProDual 3-Stack and 4-Stack multi-gym systems.
Features:
- Upgraded 310 lb. Weight Stack: Features an expanded 310 lb. selectorized weight stack to provide smooth, progressive resistance for both rehabilitation and heavy resistance training.
- Dual Adductor & Abductor Functionality: Rotating knee pads and dual-direction resistance cams allow users to seamlessly transition between inner thigh (adduction) and outer thigh/glute (abduction) exercises.
- Pop-Pin Cam ROM Adjustments: Easy-to-reach pop-pin range-of-motion adjustment system allows users to customize their starting position and movement arc.
- Ergonomic Angled Seating: Bent-knee angled seating with a 9-position adjustable back pad supports the spine and minimizes lower-back stress during movements.
- Forward-Facing Weight Stack: Design positions the user facing the weight stack, offering easy access to resistance pin adjustments and increased privacy in commercial settings.
- Extra-Large Rotating Knee Pads: High-density DuraFirm™ knee pads pivot naturally with movement to maximize comfort and inner/outer thigh stabilization.
- Precision Ball-Bearing Pivots: Four sealed pillow-block ball-bearing systems ensure friction-free motion and exact frame alignment.
- Heavy-Gauge Commercial Frame: Constructed with 11-gauge 2.375" x 4.625" oval steel tubing and continuous 4-sided welds, protected by a scratch-resistant powder-coat finish.
- Modular Multi-Gym System Compatibility: Functions independently or integrates into ProDual 3-Stack and 4-Stack gym configurations.
Specifications:
