| Overview | |
|---|---|
| Product Name | Body-Solid ProDual Leg Extension & Leg Curl Machine (310 lb. Stack) |
| Product Model | DLECSF/3 |
| Brand / Product Line | Body-Solid ProDual Series |
| Product Category | Commercial Selectorized Dual Leg Extension & Leg Curl Station |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Resistance System | 310 lb. Selectorized Weight Stack |
| Frame Tubing | 11-Gauge 2.375" x 4.625" Structural Oval Steel Tubing |
| Frame Construction | Continuous 4-Side Welded Steel Construction |
| Cables | 5.5 mm Diameter, 2,500 lb. Rated Aircraft Cable |
| Pulleys & Bearings | Fiberglass-Reinforced Nylon Pulleys with Sealed Ball Bearings |
| Upholstery & Padding | Tear-Resistant DuraFirm™ Upholstery over 2" High-Density Foam |
| Modular Integration | Compatible with ProDual 3-Stack & 4-Stack Multi-Gym Frames |
| Target Exercises & Muscle Groups | |
| Primary Exercises | Seated Leg Extensions, Seated Leg Curls, Single-Leg Extensions, Single-Leg Curls |
| Target Musculature | Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis, Vastus Intermedius), Hamstrings (Biceps Femoris, Semitendinosus, Semimembranosus) |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 46.00" L x 66.00" W x 62.00" H (1,168.40 mm L x 1,676.40 mm W x 1,574.80 mm H) |
| Assembled Product Weight | 506.00 lbs. (229.52 kg) |
| Shipping & Packaging Specifications | |
| Package 1 Dimensions | 39.40" L x 33.10" W x 13.00" H (1,000.00 mm L x 840.00 mm W x 330.00 mm H) |
| Package 1 Gross Weight / Volume | 102.00 lbs. (46.27 kg) / 9.79 ft³ (0.277 m³) |
| Package 2 Dimensions | 50.80" L x 23.20" W x 9.80" H (1,290.00 mm L x 590.00 mm W x 250.00 mm H) |
| Package 2 Gross Weight / Volume | 88.00 lbs. (39.92 kg) / 6.72 ft³ (0.190 m³) |
| Package 3 Dimensions | 82.70" L x 33.90" W x 8.70" H (2,100.00 mm L x 860.00 mm W x 220.00 mm H) |
| Package 3 Gross Weight / Volume | 173.00 lbs. (78.47 kg) / 14.03 ft³ (0.397 m³) |
| Warranty Structure | |
| Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings, Bearings, & Hardware | 1 Year Pads, Rollers, Cables, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Bearings, Hardware, Pads, & Cables |
Pro ClubLine DLECSF3 ProDual Leg Extension and Leg Curl Machine (310 lb. Stack)
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Pro ClubLine DLECSF3 ProDual Leg Extension and Leg Curl Machine (310 lb. Stack), Dual Quad and Hamstring Functionality, Biomechanical Elliptical Cam System

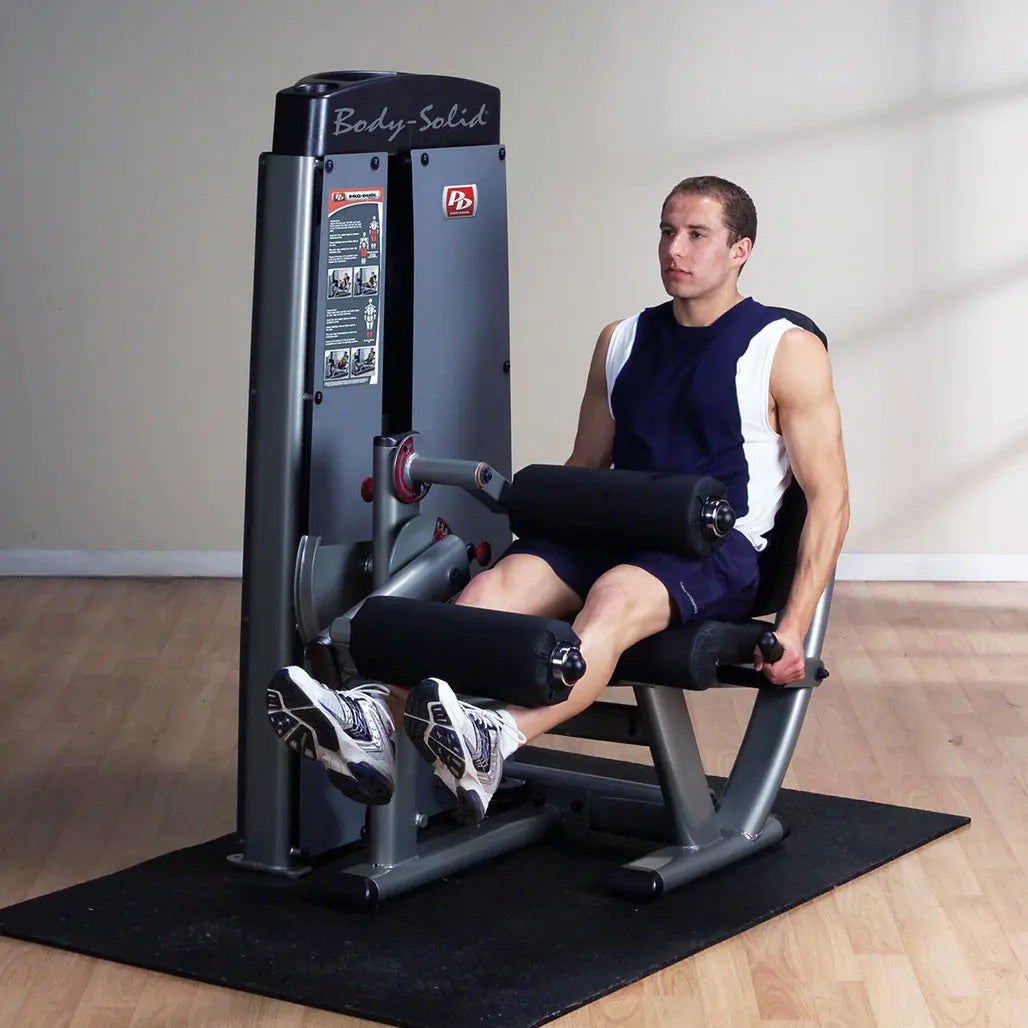

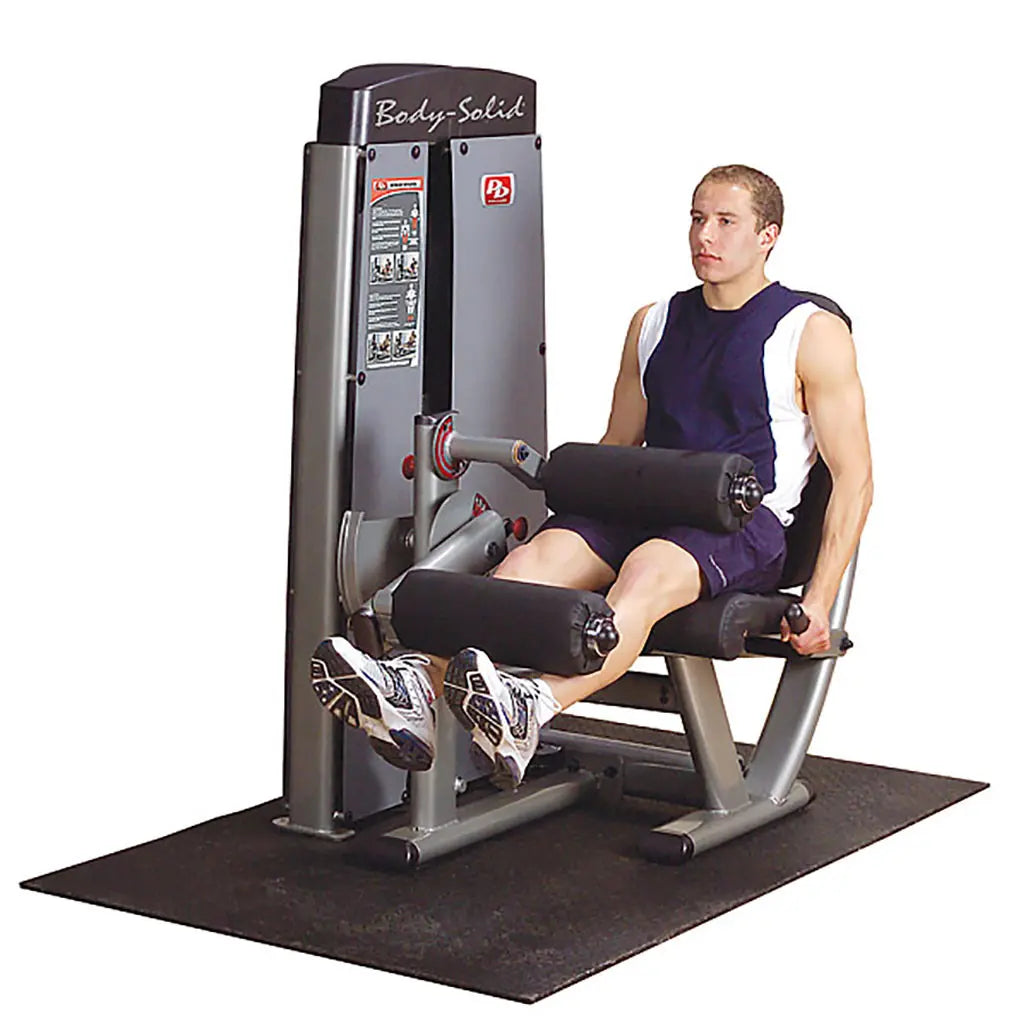

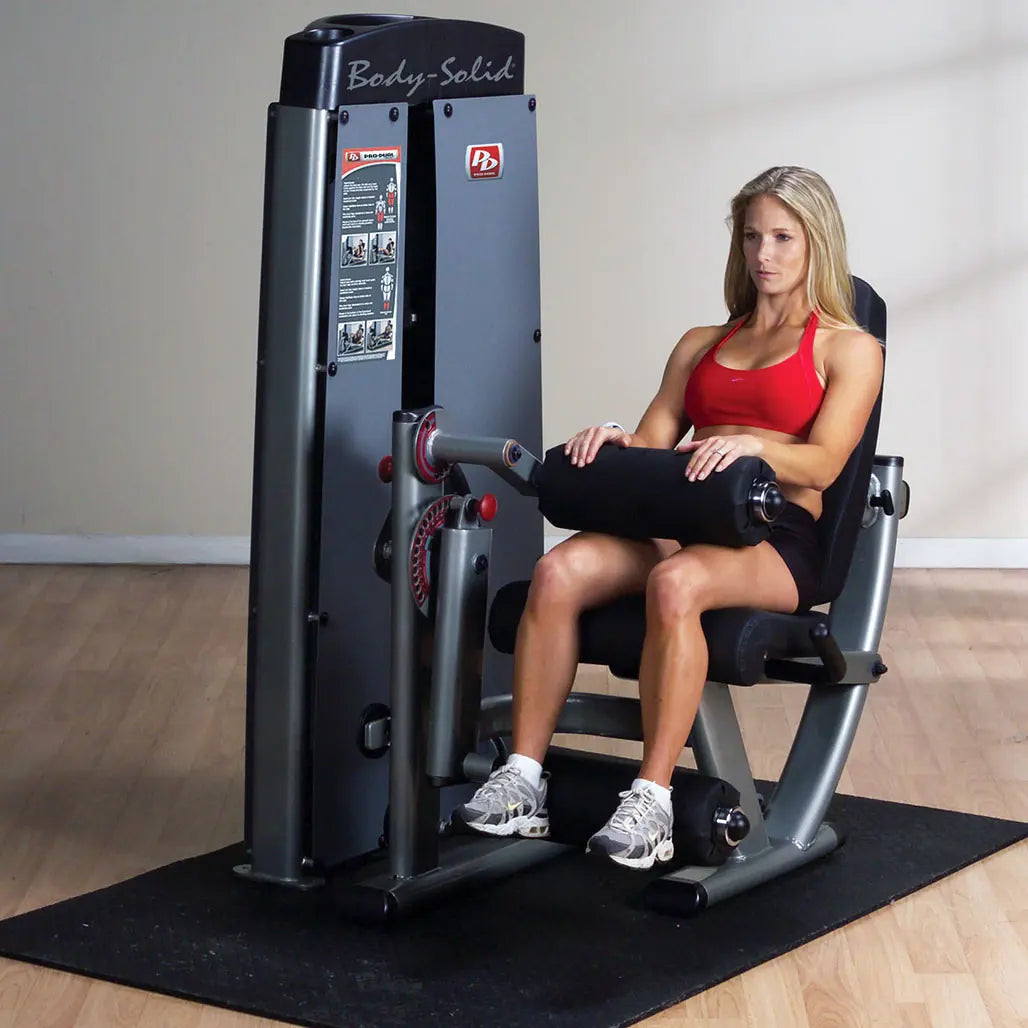

The Body-Solid ProDual Leg Extension & Leg Curl Machine (SKU: DLECSF/3) provides a comprehensive dual-function strength solution designed to isolate and build both the quadriceps and hamstrings. Engineered with precise biomechanical pivot points and an elliptical cam system, this station ensures an ergonomically correct path of motion with smooth, variable resistance through the entire movement arc.
Outfitted with an upgraded 310 lb. selectorized weight stack, a 12-position adjustable recumbent back pad, and a 7-position self-adjusting leg pad, the DLECSF/3 effortlessly accommodates users of all sizes while eliminating lower back strain. Built on an 11-gauge 2.375" x 4.625" oval steel frame with continuous welds, this commercial-grade unit functions effectively as a standalone single station or integrates as a modular component on Body-Solid ProDual 3-Stack and 4-Stack multi-gym systems.
Features:
- Upgraded 310 lb. Weight Stack: Features an expanded 310 lb. selectorized pin-select weight stack to support progressive strength gains for both isolation exercises.
- Dual Quad & Hamstring Functionality: Combines seated leg extensions and seated leg curls into a single, space-saving commercial footprint.
- Biomechanical Elliptical Cam System: Delivers consistent, smooth variable resistance through a natural arc of movement for complete muscle engagement.
- Custom 12-Position Back Pad: Recumbent DuraFirm™ seat back adjusts across 12 positions to align the knee joint with the machine's biomechanical pivot point.
- Oversized 9" Self-Adjusting Leg Pad: Features 7 adjustment positions for both leg extensions and curls, ensuring optimal lower-leg placement and range of motion.
- Pop-Pin Adjustable Thigh Hold-Down: Stabilizes the thighs during leg curls to prevent unnecessary body shifting and maintain strict isolation.
- Heavy-Gauge Oval Frame Construction: Manufactured with 11-gauge 2.375" x 4.625" structural oval steel tubing featuring four-sided continuous welds and an electrostatic powder-coat finish.
- Commercial-Grade Components: Fitted with 5.5 mm aircraft-grade steel cable (rated to 2,500 lbs.), fiberglass-reinforced nylon pulleys with sealed ball bearings, and tear-resistant DuraFirm™ padding over 2" high-density foam.
- Modular Multi-Gym System Compatibility: Operates independently or connects directly into Body-Solid ProDual 3-Stack and 4-Stack multi-station frame configurations.
Specifications:
