| Overview | |
|---|---|
| Product Name | Body-Solid Pro Clubline LVLA Leverage Lat Pulldown |
| Product Model | LVLA |
| Brand / Product Line | Body-Solid Pro Clubline Leverage Series |
| Product Category | Commercial Plate-Loaded Lat Pulldown Machine |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Resistance Type | Standard & Olympic Weight Plate-Loaded (Weight Plates Sold Separately) |
| Frame Construction | 2" x 3" 11-Gauge Structural Steel Tubing |
| Finish | Electrostatically Applied Metallic Silver Powder Coat Paint |
| Bearing System | Precision Sealed Ball Bearings at Main Pivot Points |
| Upholstery | Double-Stitched Ultra-Dense DuraFirm™ Upholstery |
| Seat Adjustment | Gas-Shock Assisted Heights Adjustment |
| Target Exercises & Muscle Groups | |
| Primary Target | Latissimus Dorsi (Lats), Middle Back, Rhomboids |
| Secondary Target | Rear Deltoids, Biceps, Teres Major, Core Stabilizers |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 76.00" L x 49.00" W x 84.00" H (1,930.40 mm L x 1,244.60 mm W x 2,133.60 mm H) |
| Alternative Listed Dimensions | 73.00" L x 49.00" W x 84.00" H (1,854.20 mm L x 1,244.60 mm W x 2,133.60 mm H) |
| Assembled Product Weight | 183.00 lbs. (83.01 kg) |
| Package Shipping Dimensions | 57.48" L x 47.44" W x 11.42" H (1,459.99 mm L x 1,204.98 mm W x 290.07 mm H) |
| Package Shipping Weight | 201.19 lbs. (91.26 kg) |
| Package Volume | 18.02 ft³ (0.51 m³) |
| Warranty Structure | |
| In-Home Warranty | Frame & Welds: Lifetime; Bushings & Hardware: Lifetime; Pads, Rollers, & Grips: Lifetime |
| Commercial Warranty | Frame & Welds: Lifetime; Bushings & Hardware: 3 Years; Pads, Rollers, & Grips: 1 Year |
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

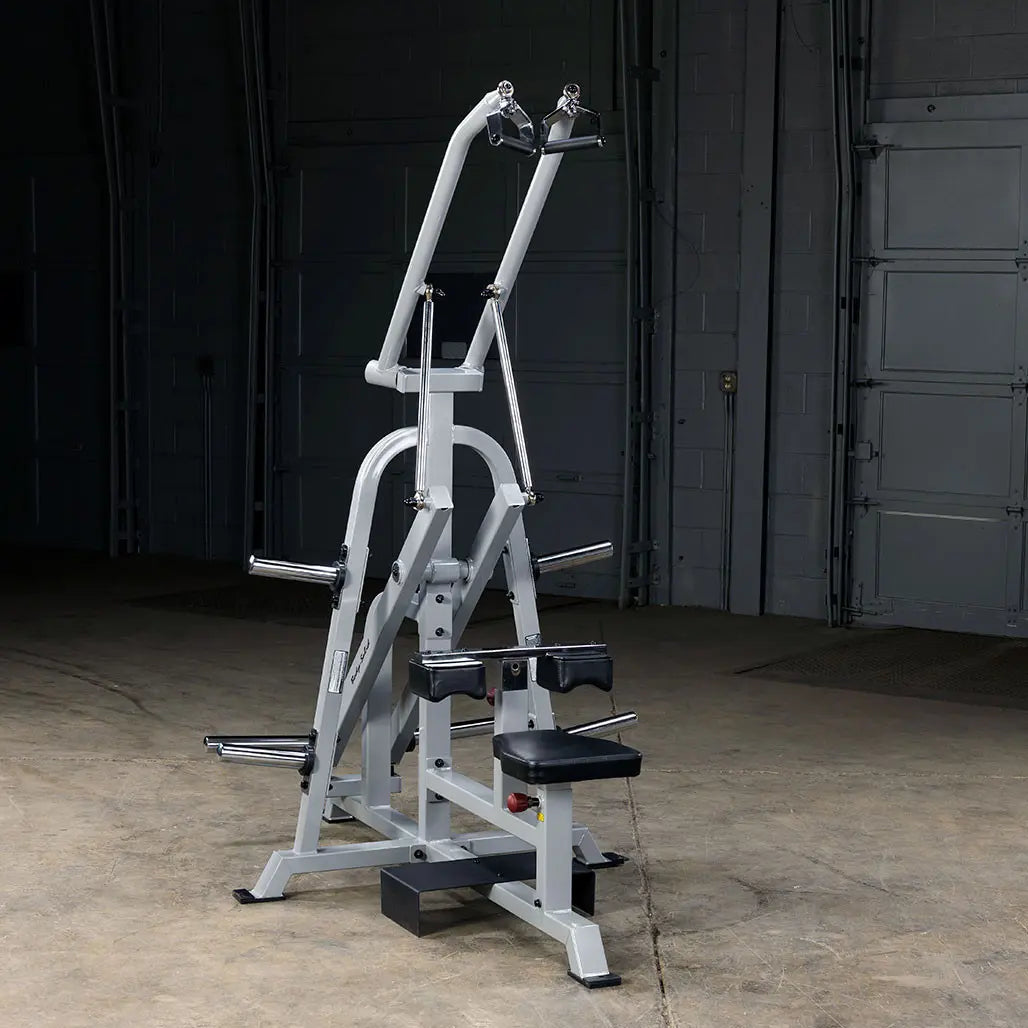

Pro Clubline LVLA Leverage Lat Pulldown, 360-Degree Articulating Grips, Heavy-Duty 11-Gauge Steel Frame, Sealed Bearing Pivot Points, Gas-Assisted Seat Adjustment
The Body-Solid Pro Clubline LVLA Leverage Lat Pulldown (SKU: LVLA) is a commercial-grade, plate-loaded strength machine designed to isolate and build the latissimus dorsi, rhomboids, and upper back musculature. Engineered specifically for full-commercial facilities, high-school and collegiate weight rooms, and premium personal training studios, the LVLA combines heavy-duty construction with advanced biomechanical movement pathways.

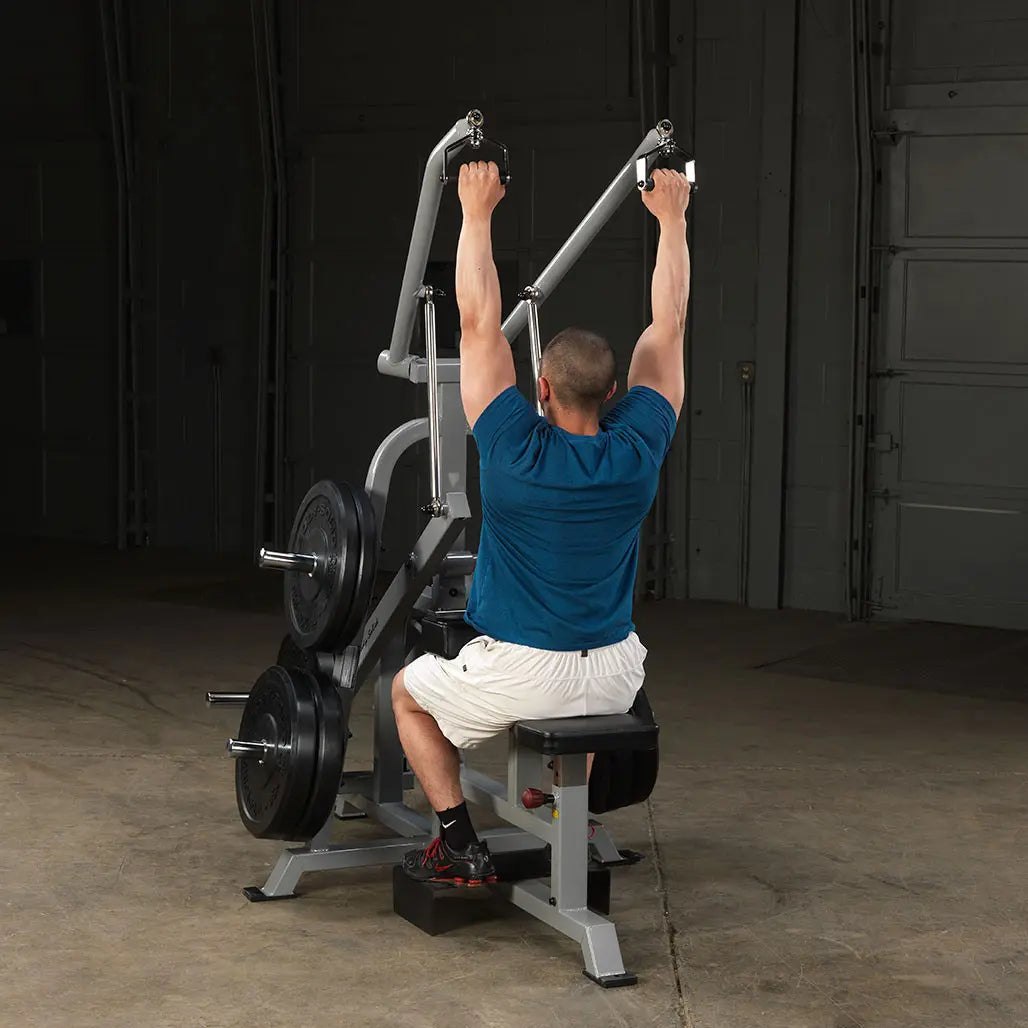

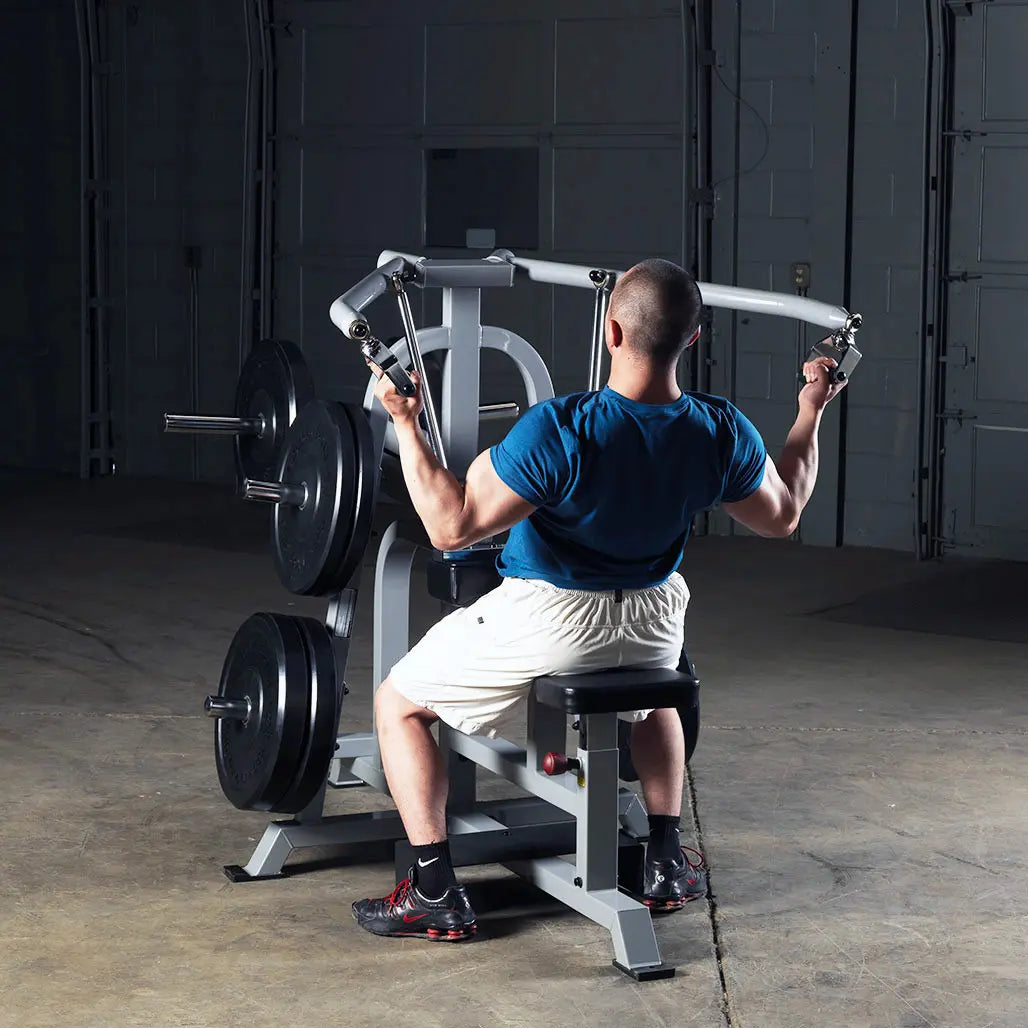

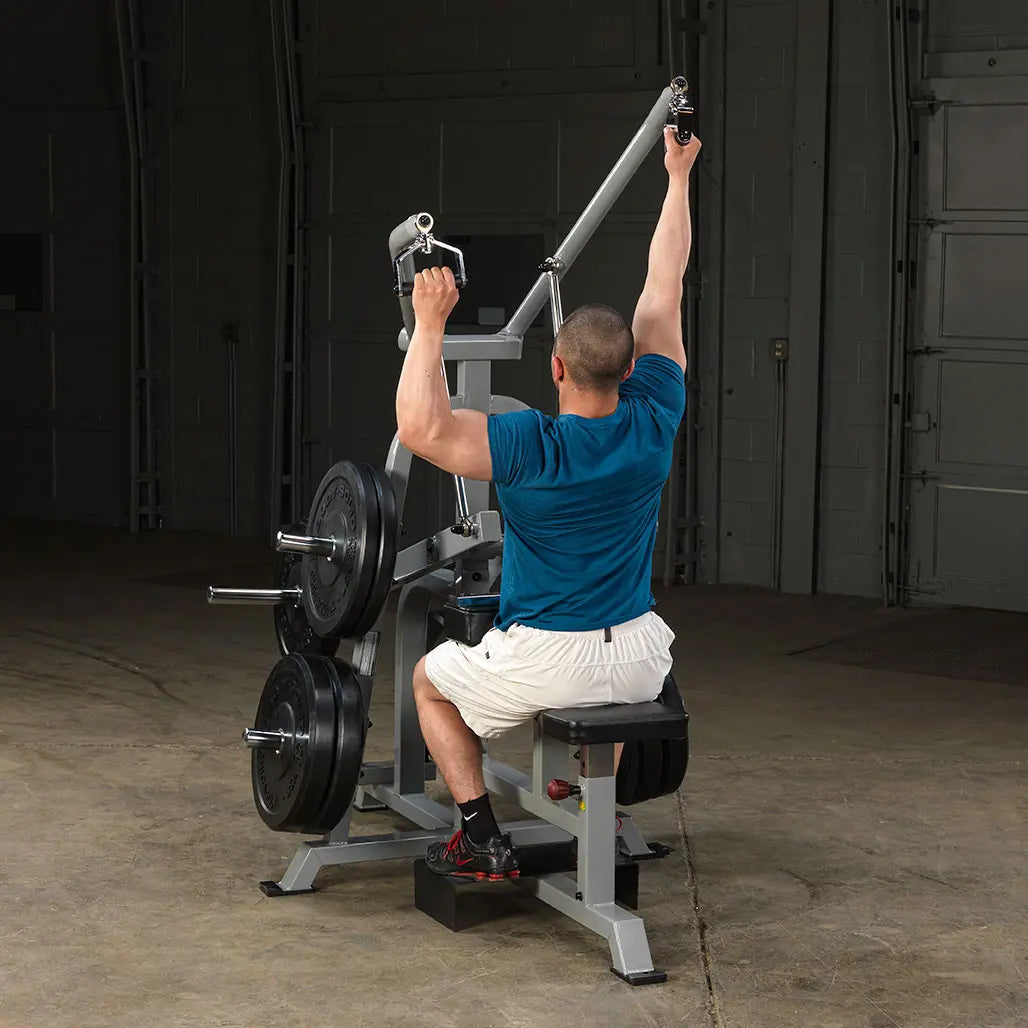

Built with dual-axis diverging arm movement, the LVLA provides a natural, diverging arc of motion that mimics free-weight lat pulldowns while keeping constant tension on the muscle. Its 360-degree articulating hand grips allow a fluid, free-floating downward pulling motion that reduces wrist strain and caters to individual body mechanics. Constructed from an 11-gauge 2" x 3" steel frame with sealed bearing pivot points, gas-assisted seat adjustments, and integrated weight storage horns, the LVLA is engineered for maximum performance under high-frequency facility use.
Features:
- Dual-Axis Diverging Movement: Independent moving arms diverge naturally during the downward pulling phase to mirror the body's anatomical movement path and fully contract the lats.
- 360-Degree Articulating Grips: Ergonomic hand handles rotate through a complete 360-degree range to accommodate natural wrist pronation/supination during exercise.
- Heavy-Duty 11-Gauge Steel Frame: Constructed from massive 2" x 3" 11-gauge structural steel tubing finished with an electrostatically applied metallic silver powder coat.
- Sealed Bearing Pivot Points: Precision-sealed ball bearings deliver smooth, friction-free operation and eliminate lateral play under maximum plate loads.
- Gas-Assisted Seat Adjustment: Gas-shock assisted seat height mechanism enables quick, effortless vertical adjustments to accommodate users of all heights.
- Adjustable Leg Hold-Down Pads: High-density leg hold-down rollers keep the lower body securely locked into position during heavy pulldown sets.
- Integrated Weight Storage: Features built-in Olympic weight plate horns for convenient plate access and gym floor organization (Olympic weight plates sold separately).
- Double-Stitched Upholstery: Premium, thick DuraFirm™ padding wrapped in tear- and sweat-resistant double-stitched vinyl guarantees lasting support.
Specifications:
