| Overview | |
|---|---|
| Product Name | Body-Solid Pro Clubline Leverage Horizontal Leg Press |
| Product Model | LVLP |
| Brand / Product Line | Body-Solid Pro Clubline Series |
| Product Category | Commercial Plate-Loaded Horizontal Leg Press |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Resistance System | Plate-Loaded Leverage / Direct Drive System |
| Frame Tubing | 2" x 3" 11-Gauge Structural Steel Tubing |
| Finish | Electrostatically Applied Powder Coat (Metallic Silver) |
| Seat Carriage System | Dual Self-Aligning 1.5" Linear Bearings |
| Pivot System | Industrially Rated Sealed Bearings at All Pivot Points |
| Upholstery & Padding | Durable Double-Stitched Upholstery over High-Density Foam |
| Weight Storage Posts | 10.75" Long Olympic Weight Plate Storage Horns |
| Target Exercises & Muscle Groups | |
| Primary Movements | Seated Horizontal Leg Press, Single-Leg Press, Seated Calf Raises |
| Target Musculature | Quadriceps (Rectus Femoris, Vastus Lateralis, Vastus Medialis), Gluteus Maximus, Hamstrings, Adductor Group |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 87.00" L x 61.00" W x 56.00" H (2,209.80 mm L x 1,549.40 mm W x 1,422.40 mm H) |
| Alternative Spec Sheet Dimensions | 89.00" L x 57.00" W x 52.00" H (2,260.60 mm L x 1,447.80 mm W x 1,320.80 mm H) |
| Assembled Product Weight | 525.00 lbs. (238.14 kg) |
| Shipping & Packaging Specifications | |
| Total Shipping Weight | 525.00 lbs. (238.14 kg) |
| Total Package Count | 2 Main Boxes |
| Package 1 Dimensions | 77.56" L x 33.27" W x 11.61" H (1,970.02 mm L x 845.06 mm W x 294.89 mm H) |
| Package 1 Gross Weight / Volume | 268.00 lbs. (121.56 kg) / 17.34 ft³ (0.49 m³) |
| Package 2 Dimensions | 44.49" L x 41.14" W x 18.70" H (1,130.05 mm L x 1,044.96 mm W x 474.98 mm H) |
| Package 2 Gross Weight / Volume | 257.00 lbs. (116.58 kg) / 19.81 ft³ (0.56 m³) |
| Warranty Structure | |
| Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings & Hardware | 1 Year Pads, Rollers, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Hardware, Pads, Rollers, & Grips |
Pro ClubLine LVLP Leverage Horizontal Leg Press
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Pro ClubLine LVLP Leverage Horizontal Leg Press, Direct-Drive Leverage Press System, Dual 1.5" Linear Bearing Seat Carriage, Integrated Olympic Weight Storage

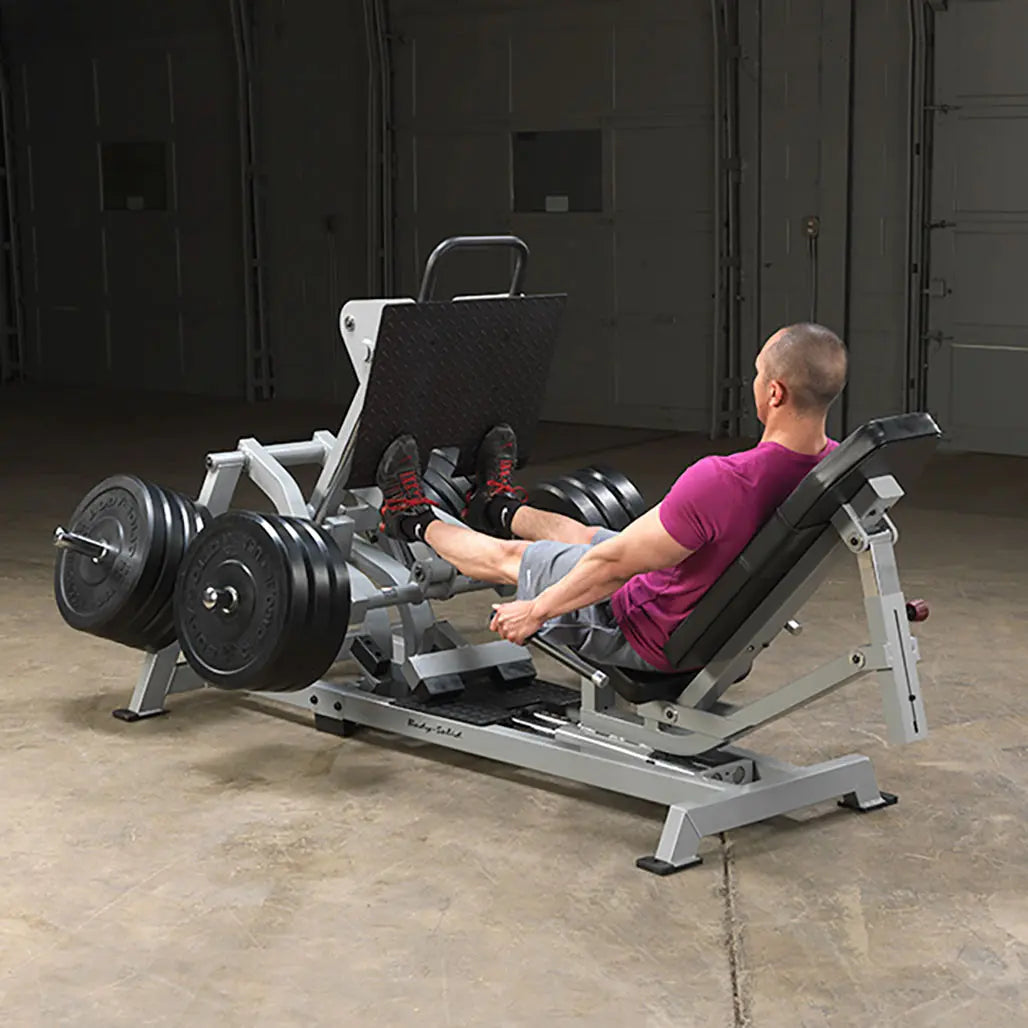

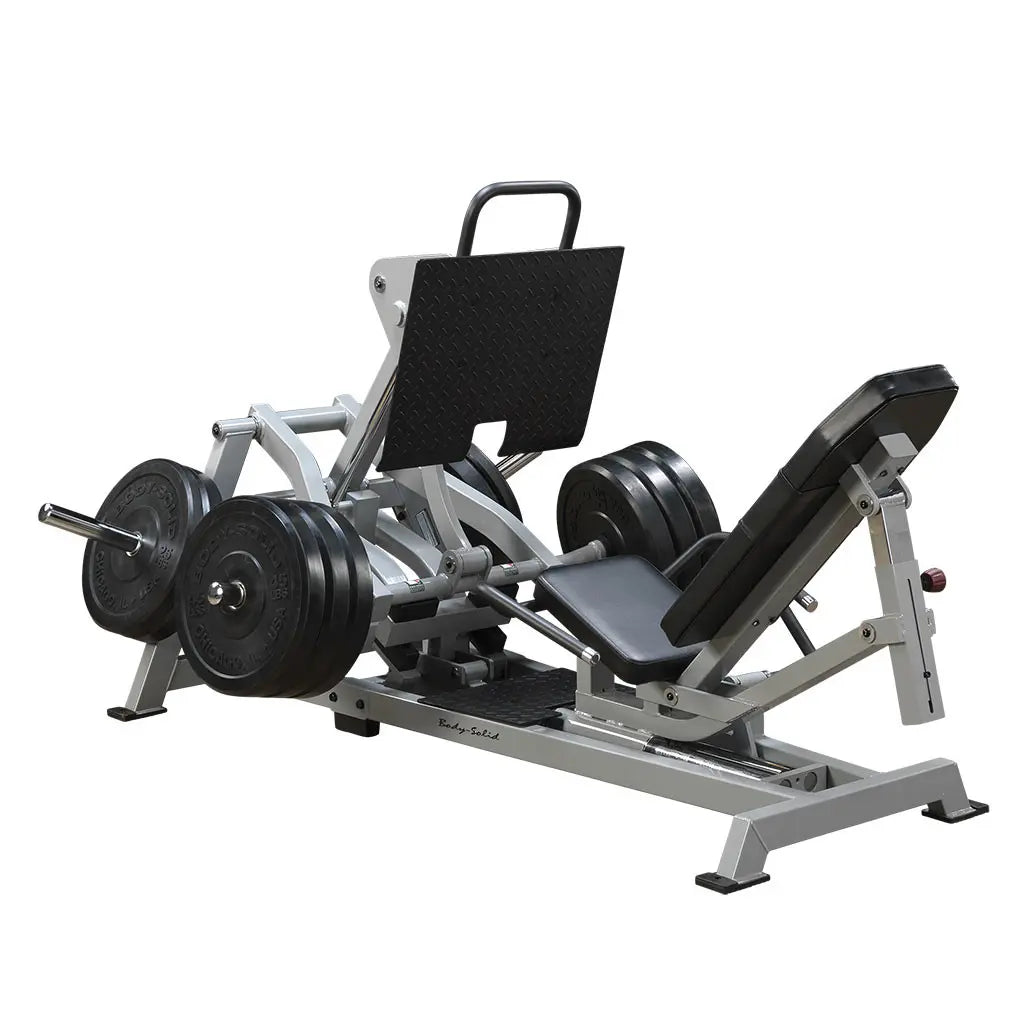

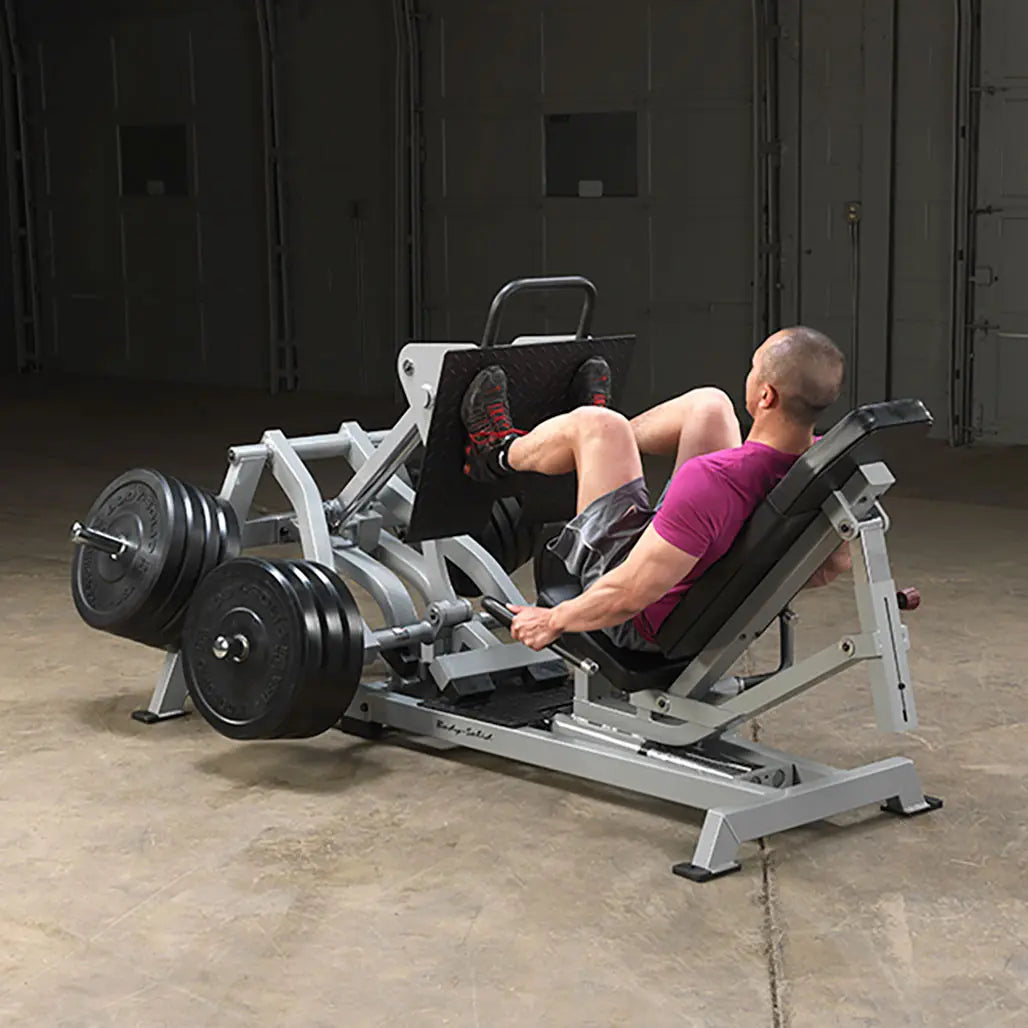

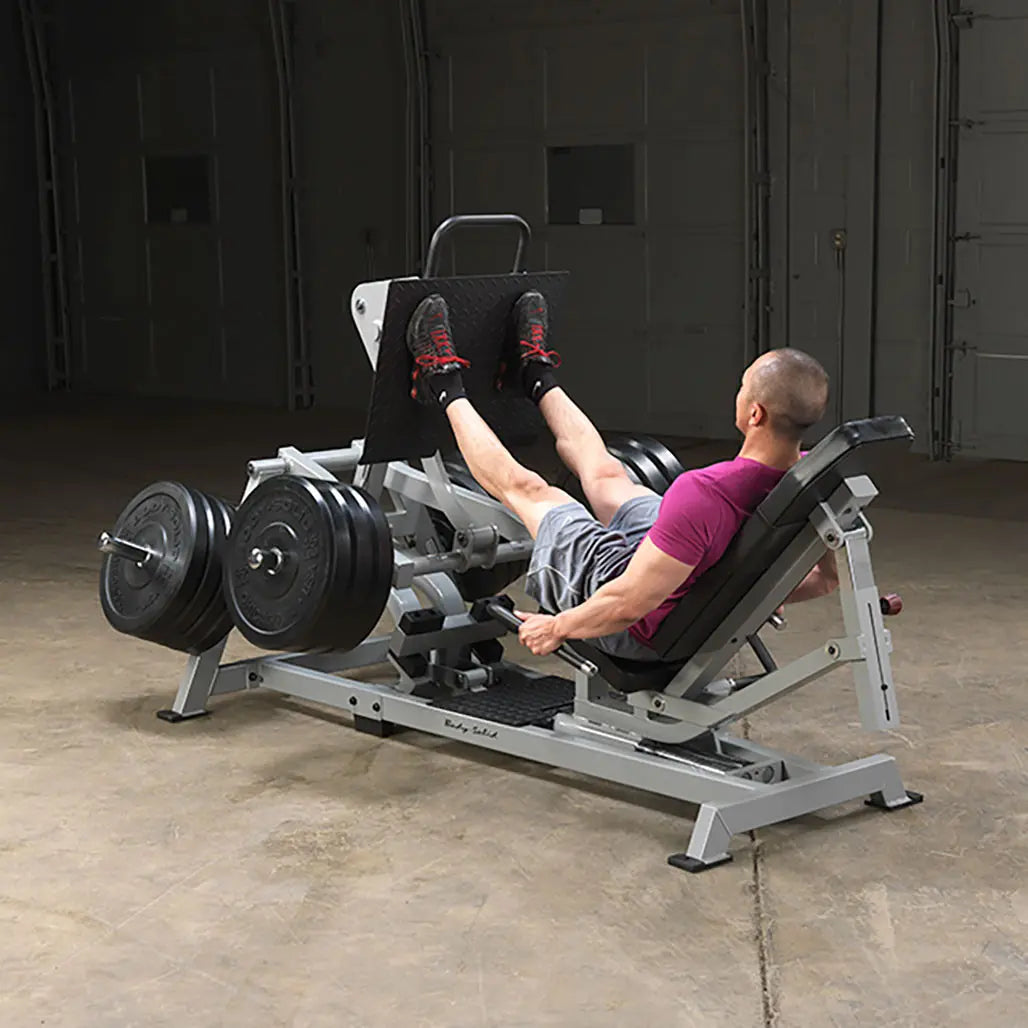

The Body-Solid Pro Clubline Leverage Horizontal Leg Press (LVLP) is a commercial-grade, plate-loaded leg press engineered to target and build the quadriceps, hamstrings, and glutes. Designed with a direct-drive leverage press system, this machine delivers immediate, accurate weight resistance throughout the entire motion, offering the natural feeling of free-weight training combined with the safety and control of a guided machine.
Built on a heavy-duty 2" x 3" 11-gauge steel mainframe, the LVLP features a dual self-aligning 1.5" linear bearing seat carriage that glides effortlessly to accommodate users of all sizes. An extra-large pivoting footplate maintains proper ankle and foot positioning across the movement arc, while the fully adjustable backrest provides biomechanically correct spine alignment. Complete with 10.75" Olympic weight storage posts, sealed bearing pivot points, and a metallic silver powder-coat finish, this leverage station is an ideal addition to commercial gyms, athletic training facilities, and high-end home workout spaces.
Features:
- Direct-Drive Leverage Press System: Connects the footplate movement directly to the leverage arm for accurate, smooth, and consistent weight resistance.
- Dual 1.5" Linear Bearing Seat Carriage: Self-aligning 1.5" linear bearing carriage system glides smoothly along precision guide shafts for effortless positioning.
- Large Pivoting Footplate: Oversized foot surface pivots naturally with movement to maintain correct foot placement and eliminate ankle joint strain.
- Fully Adjustable Back Support: Customizable backrest accommodates different torso lengths and maximizes lumbar support during heavy presses.
- Industrial Sealed Bearing Pivots: High-grade sealed bearings at key pivot points deliver friction-free performance and long-lasting durability.
- Integrated Olympic Weight Storage: Features 10.75" long weight plate horns to keep Olympic plates organized, accessible, and off the floor (weight plates sold separately).
- Heavy-Duty Mainframe Construction: Constructed with 2" x 3" 11-gauge high-tensile steel tubing, finished with an electrostatic metallic silver powder coat.
- Durable Double-Stitched Upholstery: Premium tear-resistant pads provide superior cushioning and support during intense leg training sessions.
Specifications:
