| Overview | |
|---|---|
| Product Name | Body-Solid Pro Clubline Linear Bearing Commercial Leg Press |
| Product Model | SGLP500 |
| Brand / Product Line | Body-Solid Pro Clubline Series |
| Product Category | Plate-Loaded Commercial Leg Press / Sled Station |
| Commercial Rating | Full Commercial / Light Commercial / In-Home Rated |
| Max Weight Capacity | 1,500.00 lbs. (680.39 kg) |
| Bearing System | Sealed Industrial Linear Ball Bearings |
| Sled Angle | 45-Degree Angle Frame Design |
| Effective Resistance Ratio | 1:2 Weight Ratio (50% Plate Weight + 70 lb. Initial Sled Weight) |
| Weight Horns (Sled) | Dual 14.75" Loadable Olympic Weight Posts |
| Storage Horns (Frame) | 4 Integrated Olympic Weight Plate Storage Posts |
| Back Pad Adjustments | 5 Angle Positions |
| Safety System | Flip-In / Flip-Out Lockout Mechanism with Secondary Safety Stops |
| Target Exercises & Muscle Groups | |
| Primary Movements | 45-Degree Seated Leg Press, Single-Leg Press, Calf Press |
| Target Musculature | Quadriceps (Vastus Lateralis, Rectus Femoris, Vastus Medialis), Gluteus Maximus, Hamstrings, Adductor Group |
| Dimensions & Weights | |
| Assembled Unit Dimensions | 88.00" L x 68.00" W x 54.00" H (2,255.00 mm L x 1,720.00 mm W x 1,375.00 mm H) |
| Alternative Spec Sheet Dimensions | 89.00" L x 68.00" W x 54.00" H (2,260.60 mm L x 1,720.00 mm W x 1,375.00 mm H) |
| Assembled Product Weight | 556.00 lbs. (252.20 kg) / Alternative Spec Listing: 518.00 lbs. (234.96 kg) |
| Shipping & Packaging Specifications | |
| Total Shipping Weight | 716.00 lbs. (324.77 kg) |
| Total Package Count | 3 Boxes |
| Box 1 Dimensions | 79.00" L x 15.00" W x 19.00" H (2,000.00 mm L x 370.00 mm W x 475.00 mm H) |
| Box 1 Gross Weight | 286.00 lbs. (129.73 kg) |
| Box 2 Dimensions | 62.00" L x 15.00" W x 14.50" H (1,570.00 mm L x 370.00 mm W x 365.00 mm H) |
| Box 2 Gross Weight | 174.00 lbs. (78.93 kg) |
| Box 3 Dimensions | 39.00" L x 38.00" W x 24.00" H (980.00 mm L x 955.00 mm W x 605.00 mm H) |
| Box 3 Gross Weight | 256.00 lbs. (116.12 kg) |
| Warranty Structure | |
| Commercial Warranty | Lifetime Frame & Welds | 3 Years Bushings, Bearings, & Hardware | 1 Year Pads, Rollers, & Grips |
| In-Home Warranty | Lifetime Coverage on Frame, Welds, Bushings, Bearings, Hardware, Pads, Rollers, & Grips |
Pro ClubLine SGLP500 Pro Clubline Linear Bearing Commercial Leg Press
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

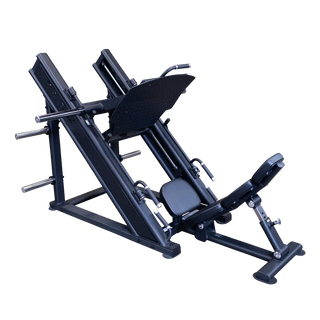

Pro ClubLine SGLP500 Pro Clubline Linear Bearing Commercial Leg Press, 1,500 lb. Weight Capacity, Sealed Linear Bearing System, Extra-Large 30" x 24" Footplate
The Body-Solid Pro Clubline SGLP500 Leg Press (SKU: SGLP500) is a heavy-duty, plate-loaded commercial leg press engineered to target and develop the quadriceps, hamstrings, and glutes. Designed for extreme durability and heavy load capacities, this unit features precision industrial-grade sealed linear bearings that deliver smooth, friction-free movement along guided steel shafts under maximum weight loads.
Built with a 45-degree angle sled design, the SGLP500 accommodates up to 1,500 lbs. of weight capacity. It includes an extra-large 30" x 24" footplate for versatile foot placement, a 5-position adjustable back pad for optimal range of motion, and dual 14.75" Olympic weight horns on the sled. Complete with an intuitive flip-in, flip-out safety racking system, assist entry handles, and four integrated frame-mounted plate storage posts, this commercial-grade leg press is an ideal anchor piece for full commercial gyms, athletic training facilities, and premium home gyms.
Features:
- 1,500 lb. Weight Capacity: Engineered with a high structural load threshold to accommodate high-level athletic training and heavy commercial gym environments.
- Sealed Linear Bearing System: Industrial sealed bearings move along precision guide shafts to deliver ultra-smooth, low-friction motion throughout the press.
- 45-Degree Sled Angle Resistance: The 45-degree incline creates a 1:2 weight ratio effect (e.g., 200 lbs. of added plates provides 100 lbs. of plate resistance plus the 70 lb. unweighted sled, totaling 170 lbs. of effective initial resistance).
- Extra-Large 30" x 24" Footplate: Oversized foot surface allows users to alter stance width and foot angles to target specific muscle groups safely and comfortably.
- 5-Position Adjustable Back Pad: Customizes seat incline to fit users of all sizes, maximizing range of motion while minimizing lower-back compression.
- Flip-In / Flip-Out Safety Racking: Intuitive safety lockouts allow easy lockout and racking at any point during the movement without sacrificing form.
- Integrated Olympic Weight Storage: Includes four frame-mounted Olympic plate horns for convenient weight plate organization and fast reloading, plus two 14.75" loadable horns on the sled.
- Assist Handles & Easy Entry: Ergonomically placed handles assist with torso stabilization during heavy reps and facilitate easy entry and exit.
Specifications:
