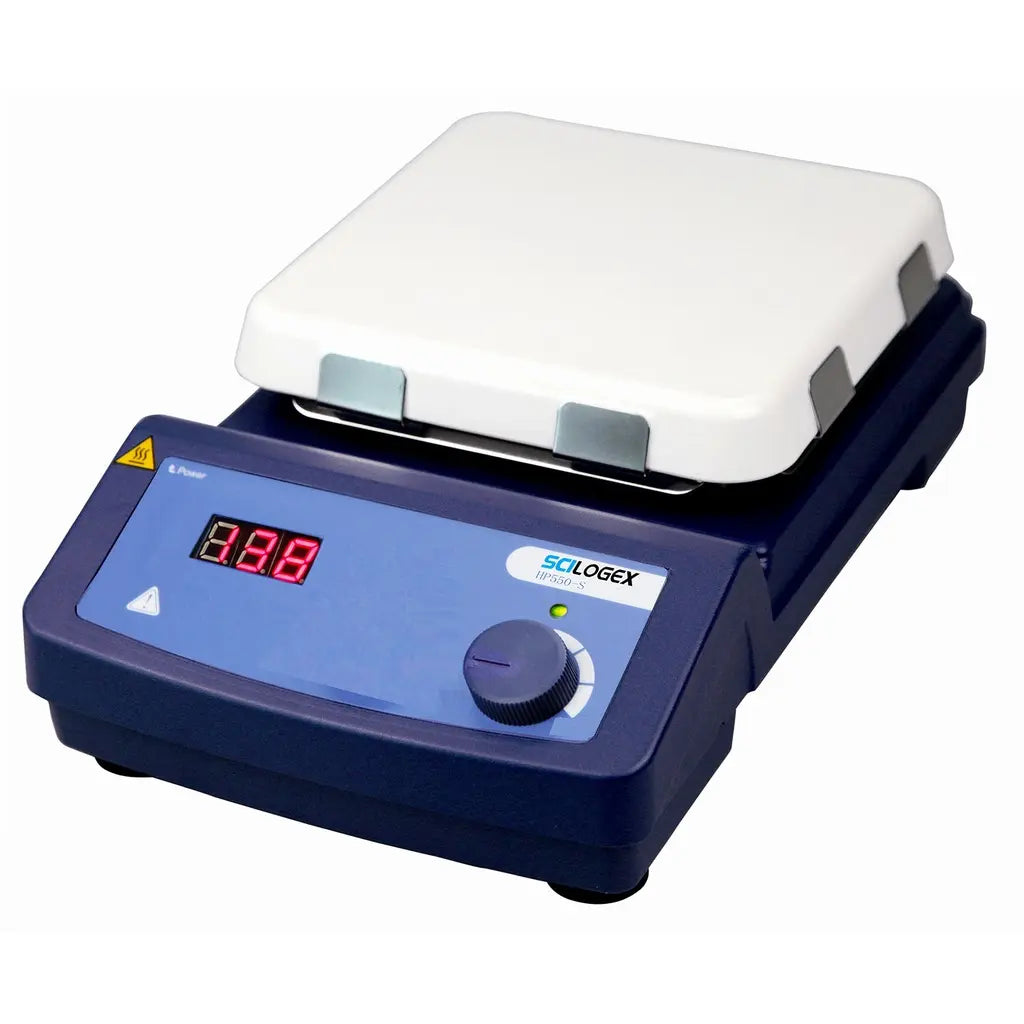

SCILOGEX 512121019999 SCI550-H LED Digital 7" x 7" Square Hotplate with Ceramic-Glass Plate for Lab Heating up to 550°C, 110V/60Hz US Plug
SCILOGEX’s 512121019999 SCI550-H LED Digital Hotplate is a technically advanced, compact heating device for uniform temperature control in chemistry, biology, and industrial labs, supporting applications like sample evaporation, drying, and thermal reactions up to 550°C. Featuring a chemically resistant ceramic-glass work plate (7" x 7") for even heat distribution and easy cleaning, it includes an LED display for real-time temperature monitoring with 5°C increments and ±10°C plate accuracy (improved to ±1°C with optional PT1000 sensor). The PID-controlled system ensures stable performance without hot spots, with overheat protection and "HOT" warning (>50°C). Power-efficient at 1000W with 6 K/min heating rate for 1L water, it's ideal for benchtop use in educational or research settings. Accessories like PT1000 sensor and reaction blocks available. Made in China with a 2-year warranty for reliable, maintenance-free operation.
Features:
- Easy-to-read LED display for real-time temperature monitoring and simple knob control
- Ceramic-glass work plate (7" x 7") provides excellent chemical resistance and rapid, uniform heating
- PID temperature control with max 550°C range and 5°C increments for precise lab protocols
- Overheat protection and "HOT" warning flash (>50°C) for user and sample safety
- Compact, lightweight design (11 lbs) for easy portability and space-saving on lab benches
- IP21 protection against spills; compatible with optional PT1000 external sensor for ±1°C accuracy
- cTUVus approved for UL/CSA safety; simple ON/OFF operation with LED indicators
- Made in China for cost-effective, lab-grade durability compliant with standards
Specifications:
| Specification | Details |
|---|---|
| Model | 512121019999 SCI550-H LED Digital Hotplate |
| Work Plate Dimension | 7" x 7" (184 x 184 mm) |
| Work Plate Material | Ceramic-Glass |
| Temperature Range | Ambient - 550°C (5°C Increments) |
| Temperature Accuracy | ±10°C (Plate); ±1°C (with PT1000 Sensor) |
| Heat Output | 1000W |
| Heating Rate | 6 K/min (1L Water) |
| Voltage/Frequency | 110V, 60Hz, US Plug |
| Dimensions (L x W x H) | 14" x 8.5" x 4.5" |
| Weight | 11 lbs |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI550-H LED Digital Hotplate Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- LED Display: Precise monitoring of temperature with real-time readout.
- Ceramic-Glass Plate: Excellent chemical-resistant performance and efficient heat transfer.
- Max Heating: Plate temperature up to 550°C for rapid heating.
- Temperature Control: ±10°C plate accuracy; optional PT1000 sensor improves to ±1°C for medium monitoring.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.

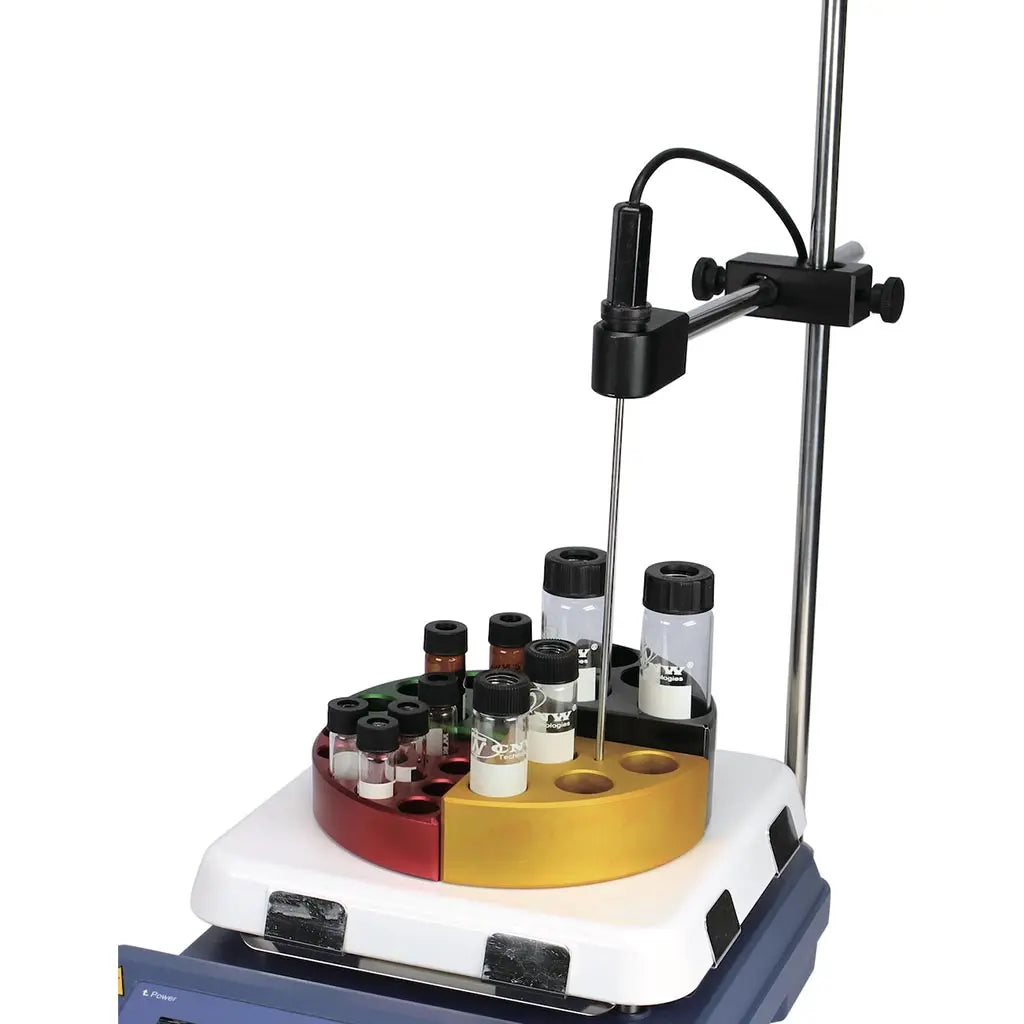

- Accessories Available: PT1000 sensor and reaction blocks sold separately.
