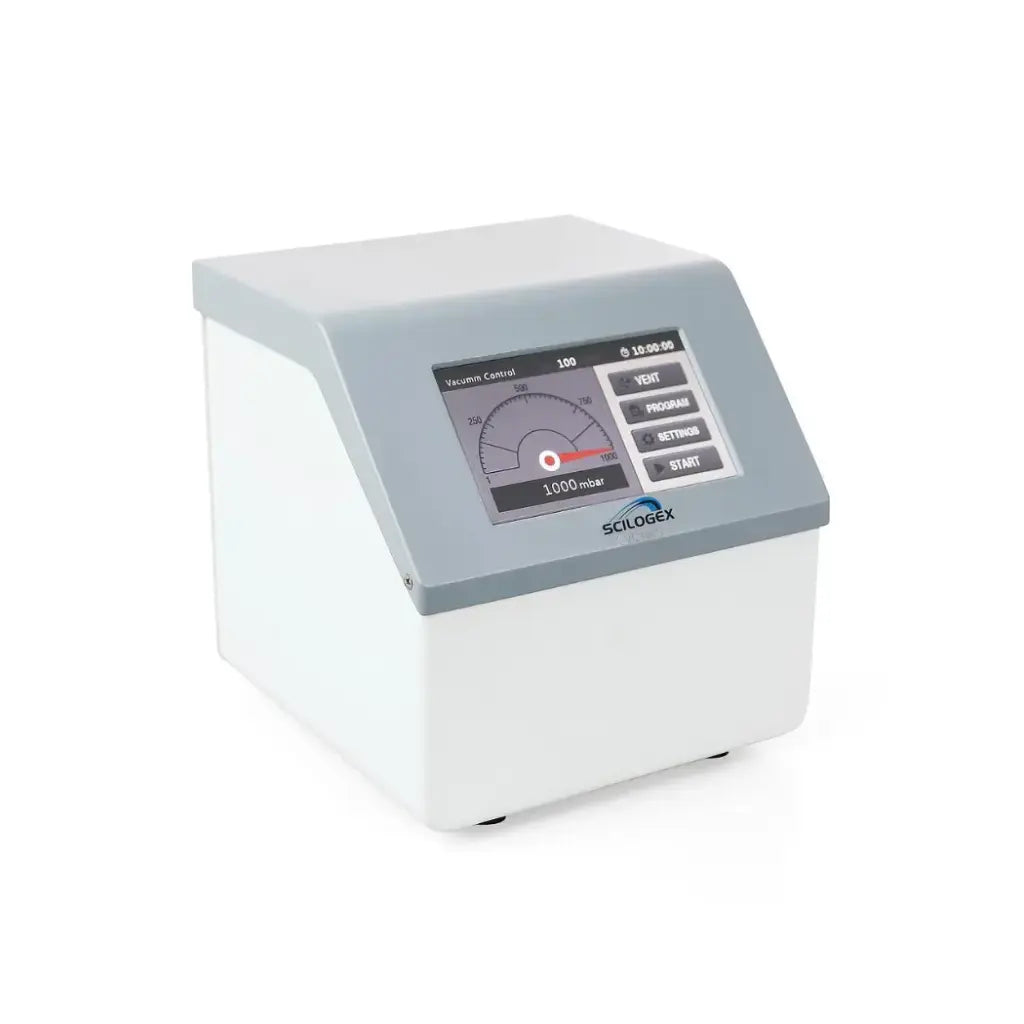

SCILOGEX 60311003009 SCI100VC Smart Benchtop Vacuum Controller for Rotary Evaporators & Lab Distillation with TFT Touch Screen & Program Mode
SCILOGEX’s 60311003009 SCI100VC Benchtop Vacuum Controller is a user-friendly, smart vacuum regulator for precise control in rotary evaporators, concentrators, parallel evaporators, desiccation, and distillation applications, compatible with diaphragm, piston, or rotary vane pumps. Featuring a 5-inch TFT touch screen for single-point or program mode operation (up to 5 programs with five-step vacuum/timer settings), it offers 1-1000 mbar range with ±1 mbar accuracy and automatic evaporation detection for hands-free monitoring. The graphical interface and evaporation detection allow users to start and leave operations, with overload protection (1500 mbar) and chemical-resistant materials (PTFE, PP, silica gel, ceramics) for safe handling. Ideal for chemical, pharma, and research labs; made in China with a 2-year warranty for reliable, intuitive performance.
Features:
- Compatible with most vacuum sources (diaphragm, piston, rotary vane pumps) for versatile lab integration
- Smart control technology with evaporation detection and graphical TFT touch screen for user-friendly operation
- Single-point control mode for immediate vacuum adjustment; program mode saves up to 5 programs with five-step vacuum/timer settings

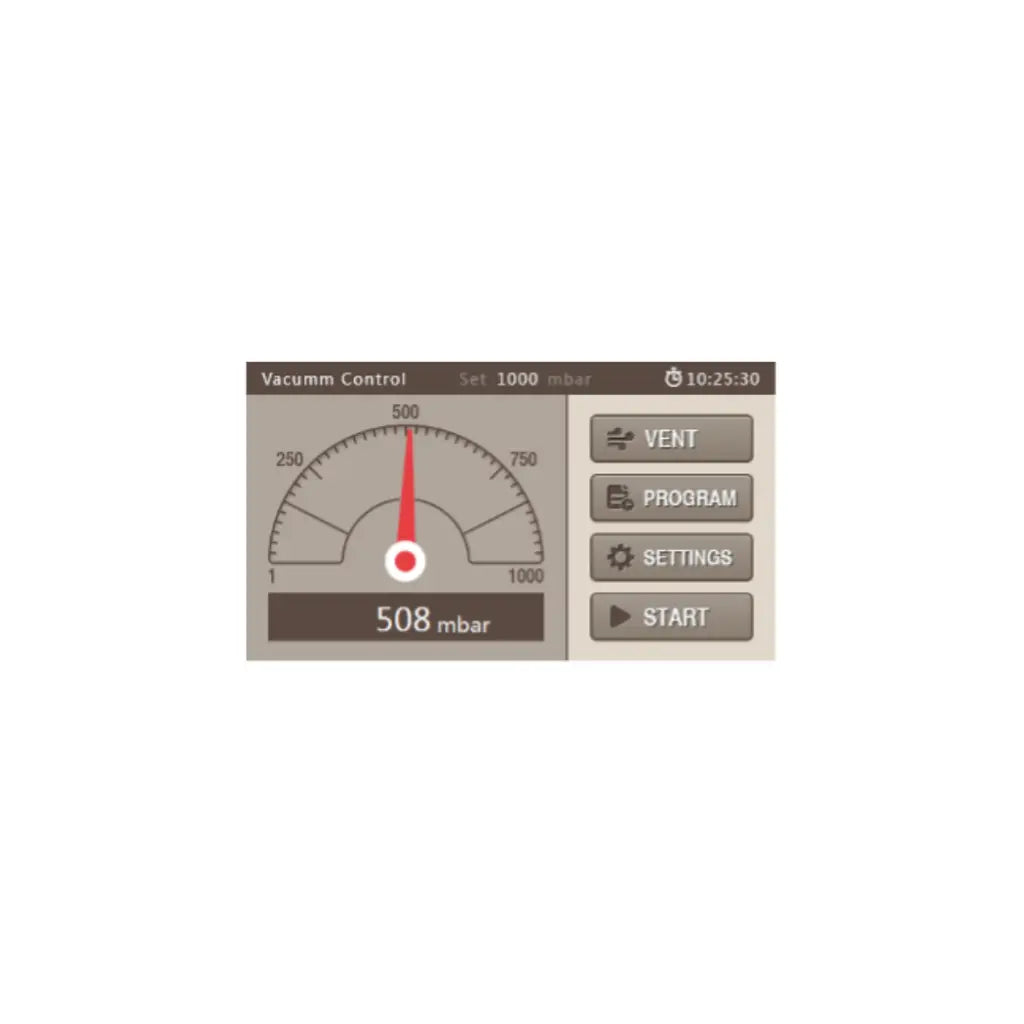

- 5-inch TFT touch screen displays real-time vacuum levels and parameters for easy monitoring
- Sensor overload pressure protection at 1500 mbar prevents damage during high-vacuum runs
- Tube connection interface (6.2mm diameter) for quick, secure setup
- Materials in contact with steam (PTFE, PP, silica gel, ceramics) ensure chemical resistance and hygiene
- Steam temperature compatibility (5-40°C) for safe operation in controlled environments
- cTUVus approved and CE marked for electrical safety; IP20 protection class
- Made in China for cost-effective, lab-grade durability compliant with standards
Specifications:
| Specification | Details |
|---|---|
| Model | 60311003009 SCI100VC Vacuum Controller |
| Vacuum Range | 1-1000 mbar |
| Control Accuracy | ±1 mbar |
| Control Modes | Single-Point; Program (Up to 5 Programs, 5-Step Each) |
| Display Screen | 5-inch TFT Touch Screen |
| Sensor Overload Pressure | 1500 mbar |
| Tube Connection Diameter | 6.2 mm |
| Materials in Contact with Steam | PTFE, PP, Silica Gel, Ceramics |
| Steam Temperature | 5-40°C |
| Dimensions (W x D x H) | 7.4" x 8.1" x 7.6" (189 x 207 x 193 mm) |
| Weight | 9 lbs |
| Input Power Supply | AC 110-240V, 50/60 Hz |
| Working Temperature | 10-40°C, ≤80% RH (Altitude ≤2000m) |
| Input Power | 600W |
| Maximum Output Power | 500W (220V); 300W (110V) |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | N/A |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI100VC Benchtop Vacuum Controller Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
