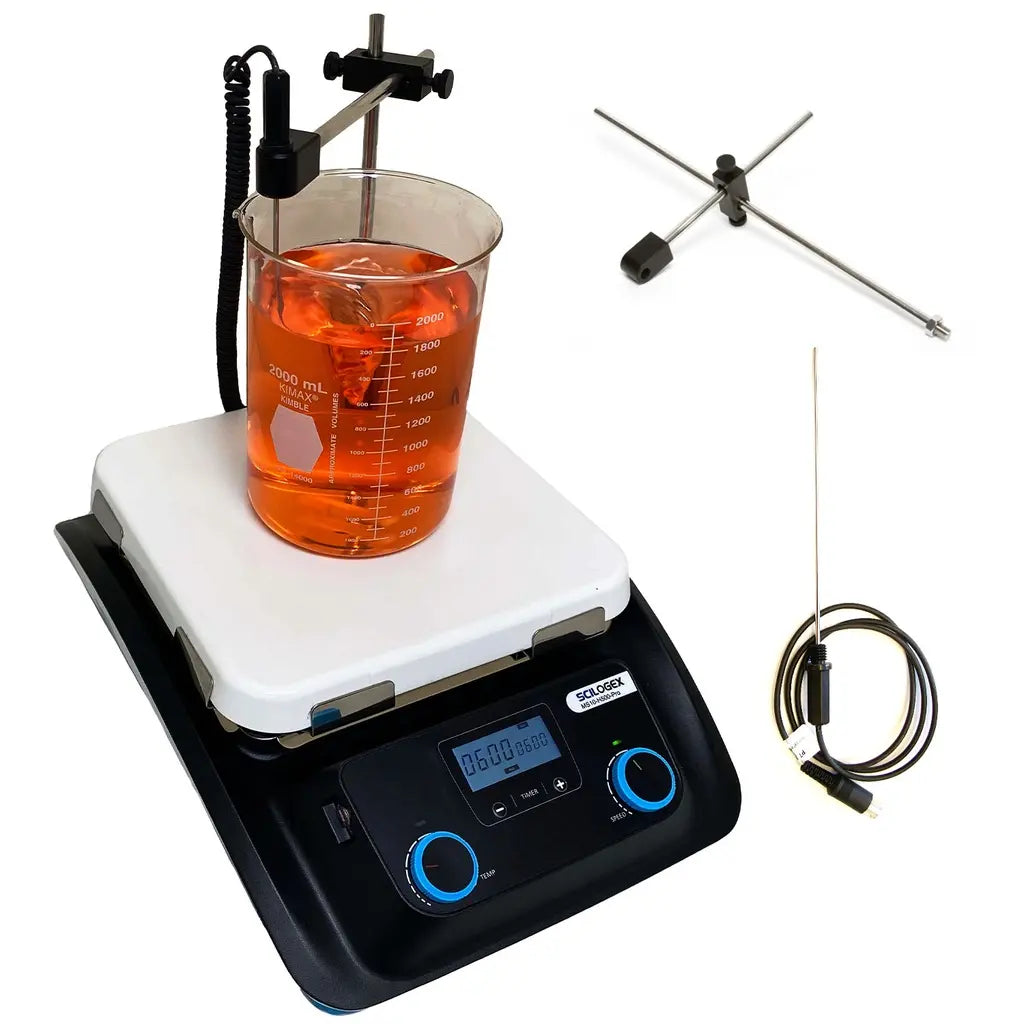

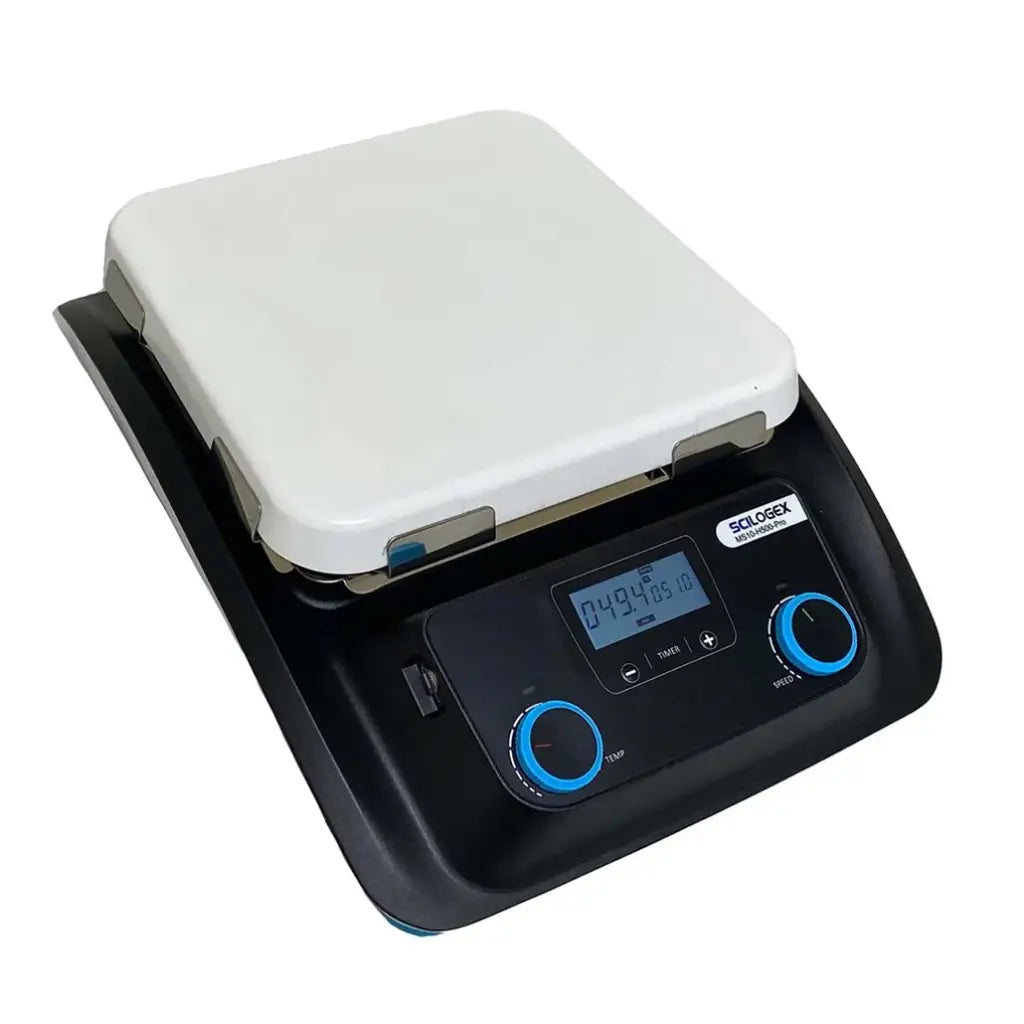

SCILOGEX 80301321159999 SCI500HS-Pro LCD Digital 10" x 10" Magnetic Hotplate Stirrer with Ceramic-Glass Plate for Lab Heating & Mixing up to 30L, 100-240V/50/60Hz US Plug
SCILOGEX’s 80301321159999 SCI500HS-Pro LCD Digital Hotplate Stirrer is a large-capacity, PID-controlled lab device for simultaneous heating (up to 500°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 30L, ideal for chemical synthesis, physical/chemical analysis, biopharmaceuticals, and more. Featuring a chemically resistant glass ceramic work plate (254x254mm) for uniform heat transfer, it includes independent LCD displays for speed/temperature, digital control (±1°C accuracy <100°C, ±1% >100°C), brushless DC motor for maintenance-free operation, and SD card logging for real-time data. External PT1000 sensor (bundle option) enables ±0.2°C medium monitoring. Safety features include overheat protection (540°C) and "HOT" warning (>50°C). Power-efficient at 1400W, it's perfect for research labs. Made in China with a 2-year warranty for reliable, high-precision performance.
Features:
- Large 10" x 10" work plate supports up to 30L stirring capacity for high-volume lab tasks
- Independent LCD displays for precise monitoring of speed (100-1500 rpm) and temperature (room temp. - 500°C)
- Built-in PID controller ensures stable heating with overheat protection (540°C) and "HOT" warning (>50°C)
- Heat only, stir only, or combined functions with timing (1 min - 99 hrs 59 min) for versatile protocols
- Glass ceramic work plate provides excellent chemical resistance and efficient heat transfer
- Brushless DC motor (low power, long life) maintains constant speed under load changes

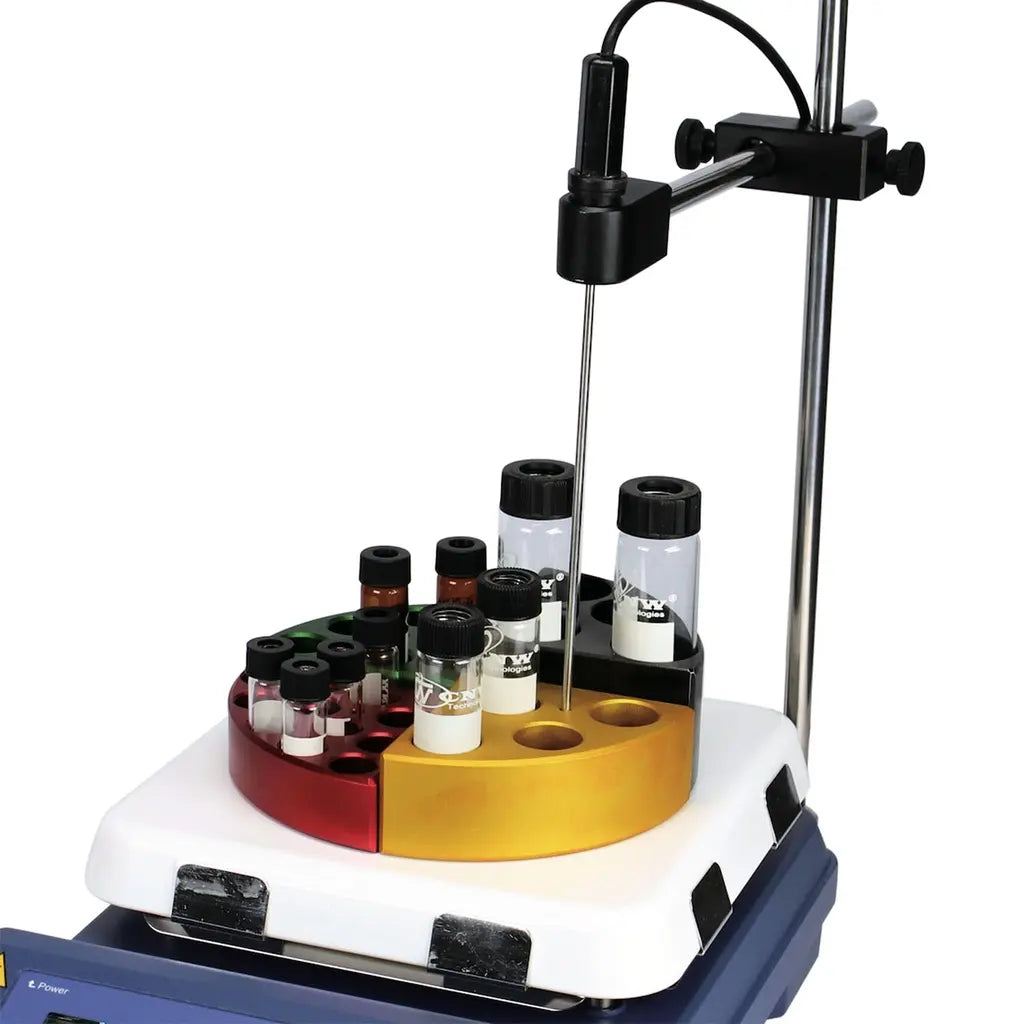

- External PT1000 sensor compatibility (bundle option) for ±0.2°C accurate medium temperature control

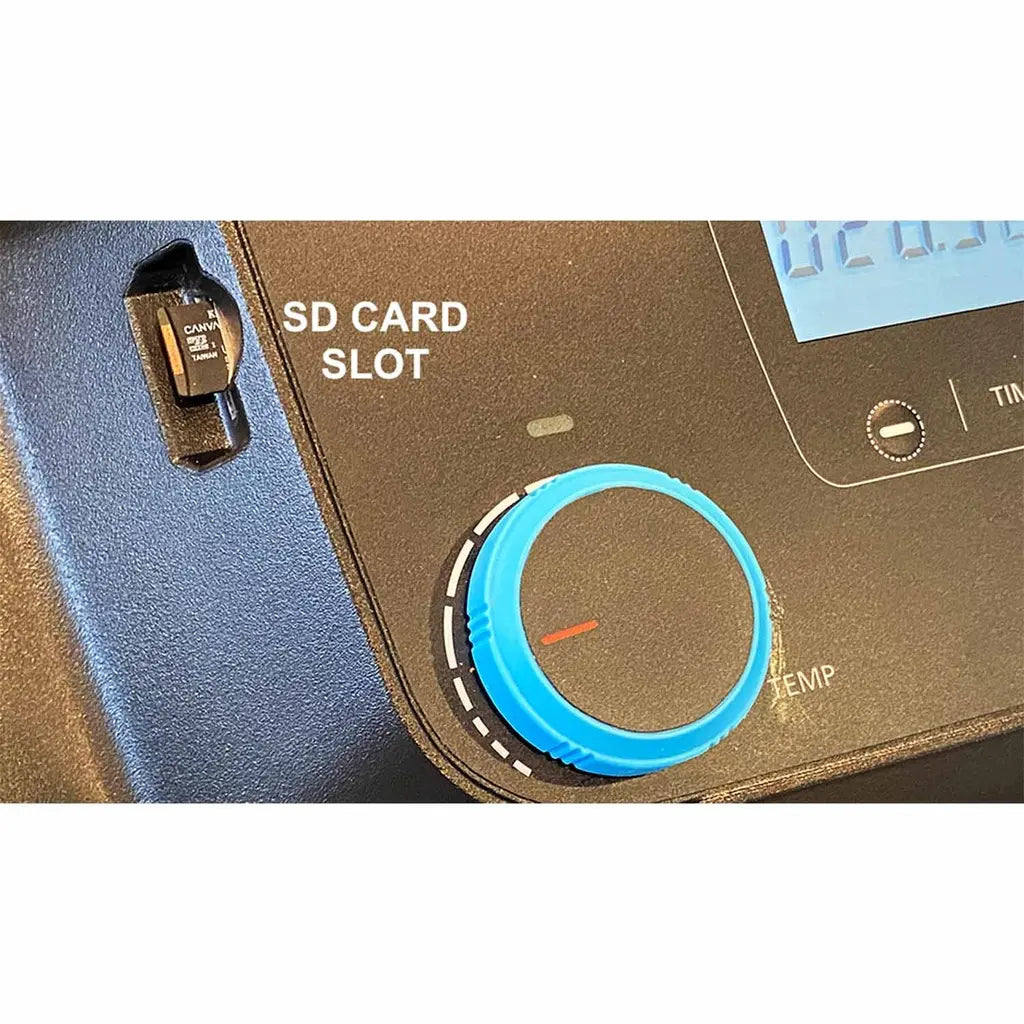

- SD card records running data in real-time for compliance and analysis
- Single stirring position with 80mm magnetic bar support for reliable vortex formation
- cTUVus approved for UL/CSA; IP21 protection against spills
Specifications:
| Specification | Details |
|---|---|
| Model | 80301321159999 SCI500HS-Pro Hotplate Stirrer |
| Work Plate Dimension | 254 x 254 mm (10" x 10") |
| Work Plate Material | Glass Ceramic |
| Motor Type | Brushless DC |
| Power Consumption | 1400W |
| Heating Output | 1350W |
| Voltage/Frequency | 100-120V/200-240V, 50/60 Hz, US Plug |
| Stirring Capacity | Up to 30L (H2O) |
| Max Magnetic Bar | 80mm Length |
| Speed Range | 100-1500 rpm (±1 rpm Resolution) |
| Temperature Range | Room Temp. - 500°C (1°C Increment) |
| Temperature Accuracy | ±1°C (<100°C); ±1% (>100°C) |
| External Sensor | PT1000 (Accuracy ±0.2°C, Bundle Option) |
| Overheat Protection | 540°C |
| Timer Range | 1 min - 99 hrs 59 min |
| Dimensions (W x D x H) | 12.9" x 16.7" x 5.4" (328 x 424 x 138 mm) |
| Weight | 7.18 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Data Connector | SD Card (Real-Time Logging) |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI500HS-Pro LCD Digital Hotplate Stirrer Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Large Volume Capacity: Up to 30L of liquid on the 10-inch hot plate with powerful magnetic stirring for high-volume experiments.
- Glass Ceramic Work Plate: Excellent chemical-resistant performance and efficient heat transfer for safe handling of corrosive substances.
- LCD Display: Precise monitoring of speed and temperature; liquid temperature control via PT1000 sensor (bundle option) with ±0.2°C accuracy.
- Digital Speed Control: 100-1500 rpm with resolution ±1 rpm for consistent mixing under varying loads.
- Max Heating: Plate temperature up to 500°C with 1°C increments for rapid heating.
- "Hot" Warning: Flashes when work plate >50°C, even when off, for user safety.
- Free SD Card: Records instrument running data in real-time for compliance and analysis.
- Timing Function: Set run time for automated operations.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.
