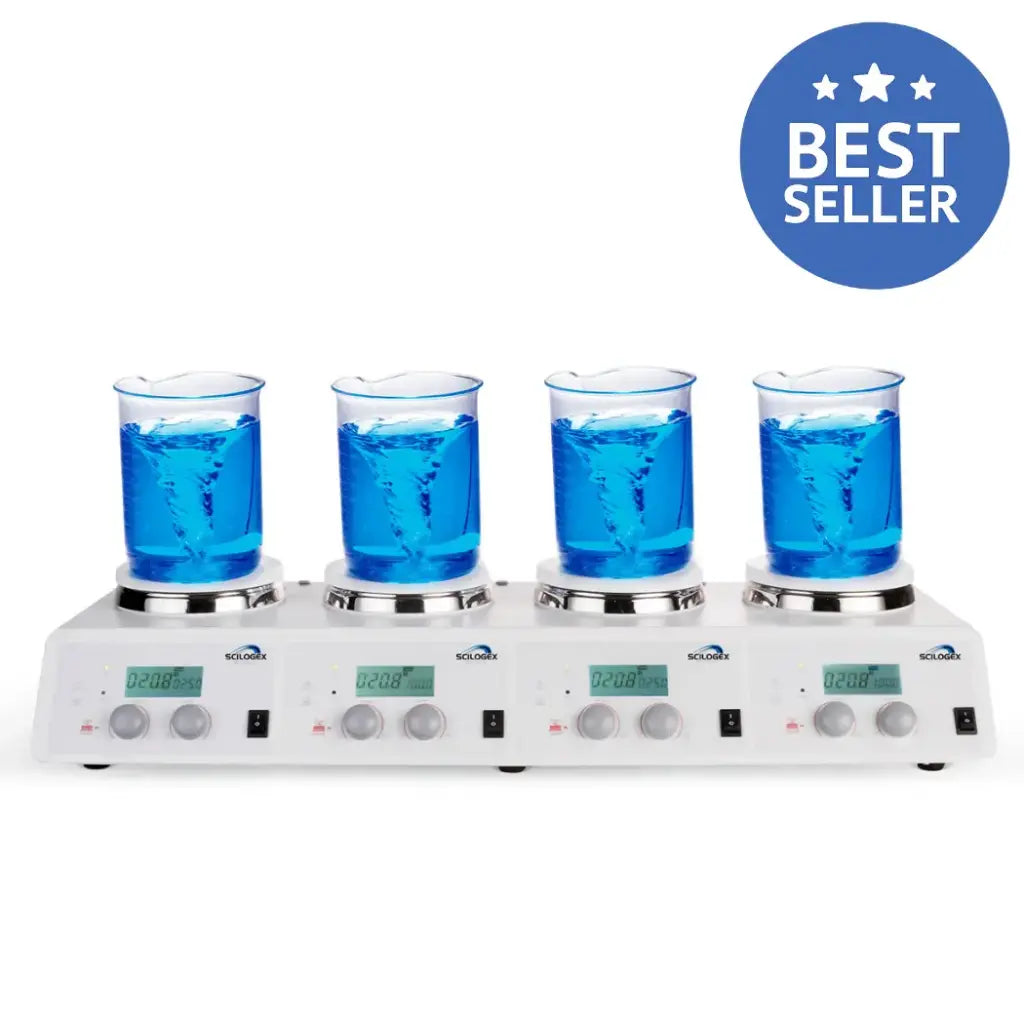

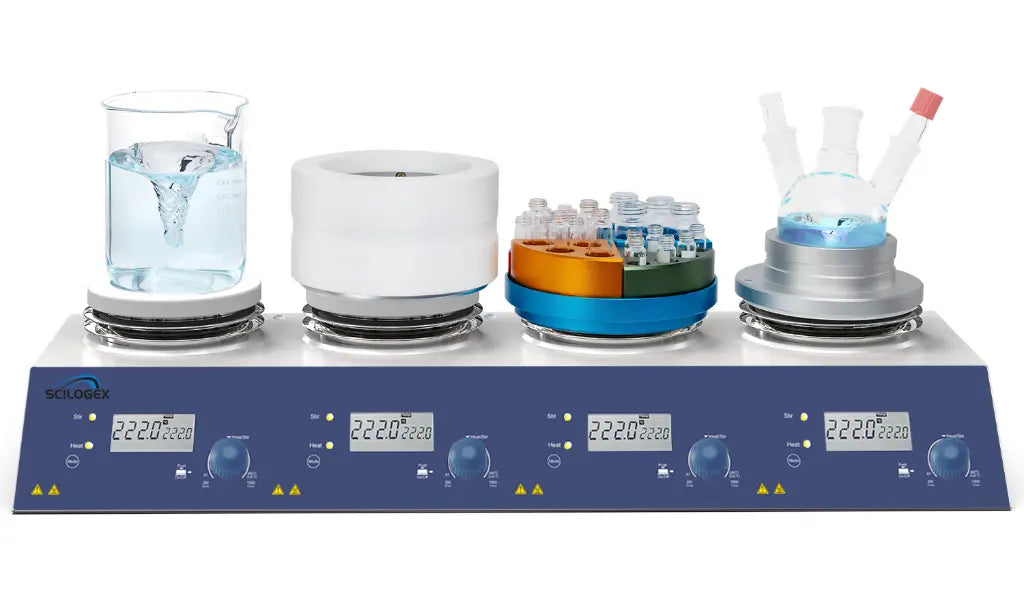

SCILOGEX 80302711109999 SCI340-4 Digital Hotplate-Stirrer 4-Channel, Ceramic Plates
SCILOGEX 80302711109999 SCI340-4 Digital Hotplate-Stirrer 4-Channel, Ceramic Plates
SCILOGEX 80302711109999 SCI340-4 LCD Digital 4-Channel Magnetic Hotplate Stirrer with Ceramic Plates for Lab Heating & Mixing up to 40L, 100-120V/60Hz US Plug
SCILOGEX’s 80302711109999 SCI340-4 Digital Hotplate-Stirrer is a multi-channel, PID-controlled lab device for independent simultaneous heating (up to 340°C) and stirring (up to 1500 rpm) across 4 positions, ideal for chemical synthesis, physical/chemical analysis, biopharmaceuticals, and more, handling up to 40L total (10L per channel). Featuring chemically resistant ceramic-coated stainless steel work plates (Ø135mm each) for uniform heat transfer, it includes LCD displays for set/real-time temperature/speed, digital control (±1°C accuracy <100°C, ±1% >100°C), brushless DC motors for maintenance-free operation, and external PT1000 sensor compatibility (accuracy ±0.2°C). Safety features include overheat protection (420°C) and "HOT" warning (>50°C). Power-efficient at 515W per channel, it's perfect for high-throughput research labs. Made in China with a 2-year warranty for reliable, precise performance.
Features:
- Independent heating and stirring control across 4 channels for multi-sample workflows
- LCD displays show set temperatures/speeds and real-time values for accurate monitoring
- PID controller ensures precise heating with overheat protection (420°C)
- Max temperature up to 340°C with stainless steel ceramic-coated plates for chemical resistance
- Brushless DC motor (1.8W input per channel) for powerful, maintenance-free speed control (200-1500 rpm)

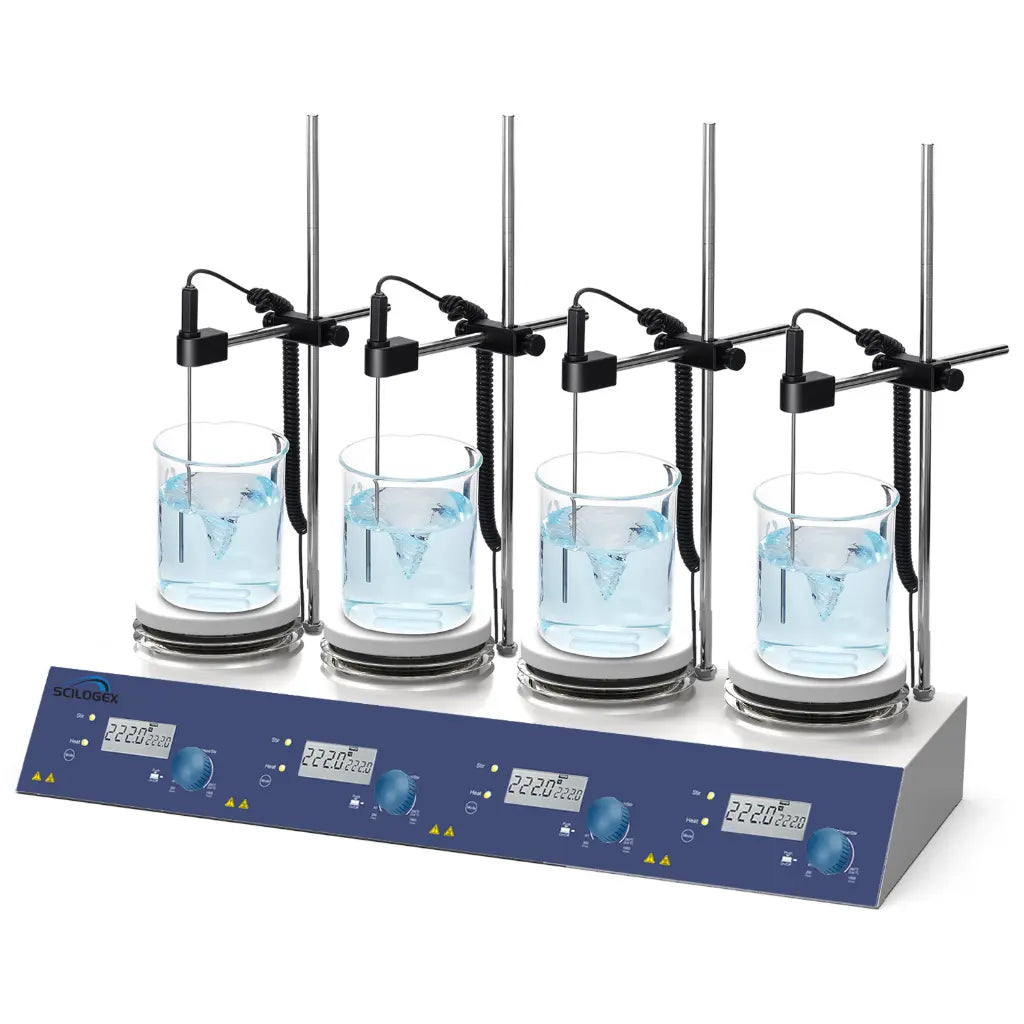

- External PT1000 temperature sensor compatibility for ±0.2°C medium monitoring (sold separately)
- High magnetic adhesion supports stirring bars up to 40mm length per channel
- "HOT" warning flashes if plate >50°C, even when off; IP21 protection against spills
- Single-position per channel with 10L max stirring capacity (H2O) for efficient parallel processing
- cTUVus approved for UL/CSA safety; wide accessory support for flasks/vessels
Specifications:
| Specification | Details |
|---|---|
| Model | 80302711109999 SCI340-4 Hotplate Stirrer |
| Work Plate Diameter | Ø135mm (5") per Channel (Ceramic-Coated Stainless Steel) |
| Motor Type | Brushless DC (1.8W Input per Channel) |
| Power Consumption | 515W per Channel |
| Heating Output | 500W per Channel |
| Voltage/Frequency | 100-120V, 60Hz, US Plug |
| Stirring Capacity | Up to 10L per Channel (Total 40L H2O) |
| Max Magnetic Bar | 40mm Length per Channel |
| Speed Range | 200-1500 rpm |
| Temperature Range | Room Temp. - 340°C (1°C Increment) |
| Temperature Accuracy | ±1°C (<100°C); ±1% (>100°C) |
| External Sensor | PT1000 (Accuracy ±0.2°C, Optional) |
| Overheat Protection | 420°C |
| Dimensions (W x D x H) | 27.5" x 10.6" x 5" (698 x 270 x 128 mm) |
| Weight | 9.5 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI340-4 LCD Digital 4-Channel Hotplate Stirrer Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
