SCILOGEX 811111129999 SCI-S Circular Analog Magnetic Stirrer with Ceramic Plate
SCILOGEX 811111129999 SCI-S Circular Analog Magnetic Stirrer with Ceramic Plate
SCILOGEX 811111129999 SCI-S Analog Magnetic Stirrer for Lab Mixing with 0-1500 rpm Speed & 20L Capacity

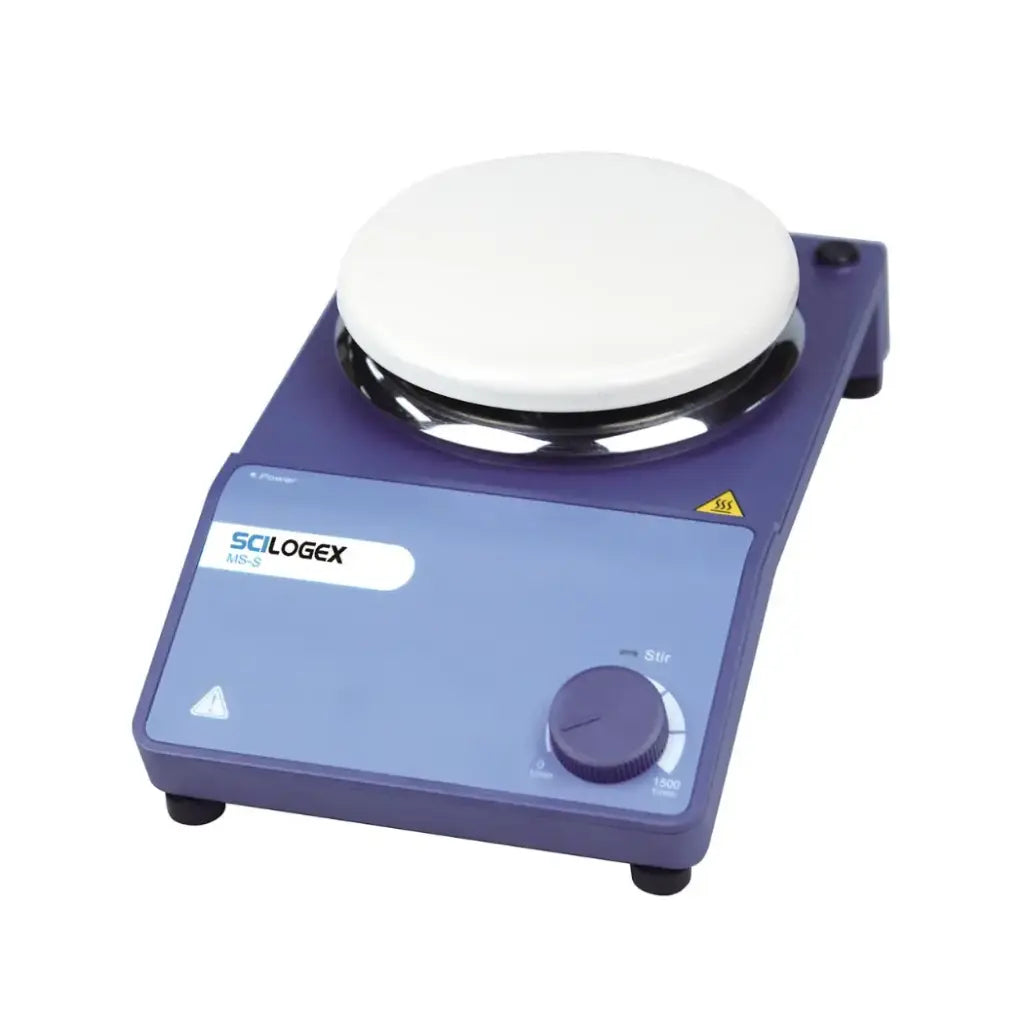

SCILOGEX’s 811111129999 SCI-S Circular Analog Magnetic Stirrer is a reliable, analog-controlled lab mixer for stirring liquids in beakers, flasks, or vessels up to 20L, ideal for chemistry, biology, and industrial applications like solution preparation, extraction, and cell culture maintenance. Featuring a durable porcelain enamel ceramic plate (Ø135mm) for chemical resistance and even heat distribution (up to 340°C with optional heating model MS-H-S), it offers smooth speed control from 0-1500 rpm with external rotor brushless motor for quiet, vibration-free operation. The compact 280 x 160 x 85mm design fits tight benches, with IP42 protection against spills and a 530W power rating for efficient performance. Easy-to-use knobs for stirring/heating (MS-H-S variant), plus accessories like stirring bars (10-25mm). Made in China with stainless steel/porcelain enamel construction for longevity; 2-year warranty for lab-grade reliability.
Features:
- Analog speed control knob for precise 0-1500 rpm stirring, suitable for low-viscosity to medium solutions
- Porcelain enamel ceramic hotplate (Ø135mm) resists chemicals and provides uniform heating up to 340°C (MS-H-S model)
- External rotor brushless motor (18W input, 10W output) ensures quiet, maintenance-free operation without overheating
- Compatible with stirring bars (10-25mm x 6-8mm) for effective vortex formation in vessels up to 20L
- IP42-rated housing protects against dust and splashes; overheat protection up to 350°C for safety
- Simple ON/OFF mains switch and LED indicators for power/heating status
- Optional accessories: Carrier plates and quarter vessels (4-40ml) for precise reaction control
- Compact and lightweight (2.8 kg) for easy portability in educational or research labs
Specifications:
| Specification | Details |
|---|---|
| Model | 811111129999 SCI-S Analog Magnetic Stirrer |
| Temperature Range | Room Temp. to 340°C (Heating Model MS-H-S) |
| Speed Range | 0-1500 rpm |
| Stirring Capacity | Up to 20L (H2O) |
| Hotplate Diameter | Ø135mm (Porcelain Enamel) |
| Motor Type | External Rotor Brushless (18W Input, 10W Output) |
| Heating Power | 500W (MS-H-S Model) |
| Heating Rate | 6 K/min (1L Water, MS-H-S) |
| Dimensions (L x W x H) | 11" x 6.3" x 3.3" (280 x 160 x 85 mm) |
| Weight | 2.8 kg |
| Power Requirements | 200-240V / 100-120V, 50/60 Hz |
| Protection Class | IP42 |
| Ambient Temperature | 5-40°C (80% Humidity) |
| Warranty | 2-Year Limited |
| Compliance | EN 61010-1, UL 3101-1, CAN/CSA C22.2 No. 1010.1; EMC EN 61326-1 |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393616191 |
Contents:
| Description | Quantity |
|---|---|
| SCI-S Analog Magnetic Stirrer Unit | 1 |
| Stirring Bar (e.g., 20mm x 8mm) | 1 |
| Power Cable | 1 |
| User Manual | 1 |
