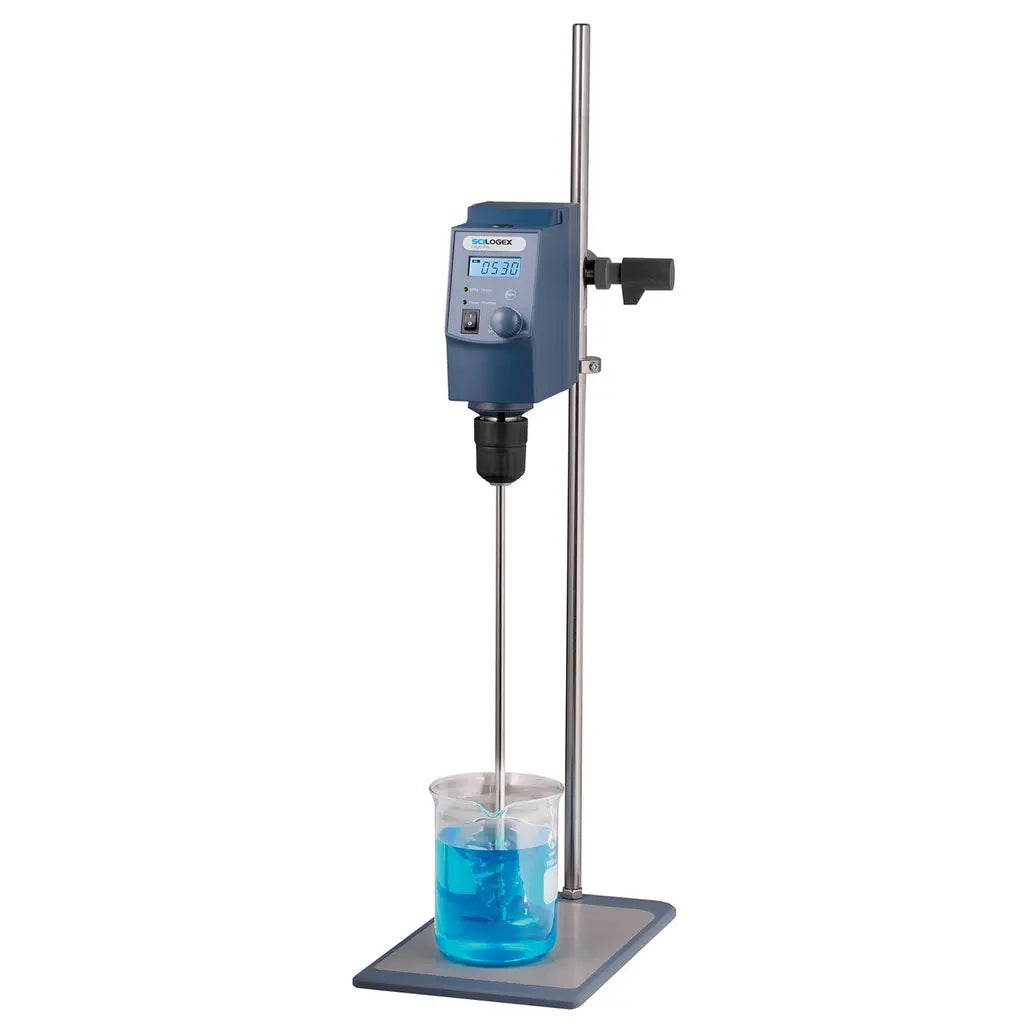

SCILOGEX 840103019999 and 840203019999 SCI20-Pro Overhead LCD Digital Stirrer with Stand & Stainless Steel Cross Stirrer for 20-40L Lab Mixing, 100-220V/50/60Hz US Plug
SCILOGEX’s 840103019999 SCI20-Pro Overhead LCD Digital Stirrer is a high-precision, microprocessor-controlled lab mixer for viscous liquids and suspensions in chemical synthesis, pharma, physical/chemical analysis, and petrochemical industries, handling up to 40L with constant speed (50-2200 rpm accuracy ±3 rpm) even under load changes. This package includes the drive motor, stand, and stainless steel cross stirrer, with a through-shaft design for easy impeller positioning. Features anti-spill slow start-up, torque trend display for viscosity monitoring, over-torque protection, RS232 for PC control/data transmission (free software), and brushless DC motor for maintenance-free operation. Keyless chuck fits 0.5-10mm rods; ideal for fume hoods with IP21 protection. Made in China with a 2-year warranty for reliable, high-torque performance in demanding workflows.
Features:
- Accurate microprocessor stirring speed control guarantees speed precision with ±3 rpm accuracy
- Anti-spill microprocessor control slow start-up prevents accidental spillage and splashing
- RS232 provides PC control and data transmission with free software for logging
- Through-shaft design allows easy adjustment of impeller positions for optimal mixing
- Brushless DC motor for long life and maintenance-free operation
- Provides constant speed even with changes in viscosities of the samples

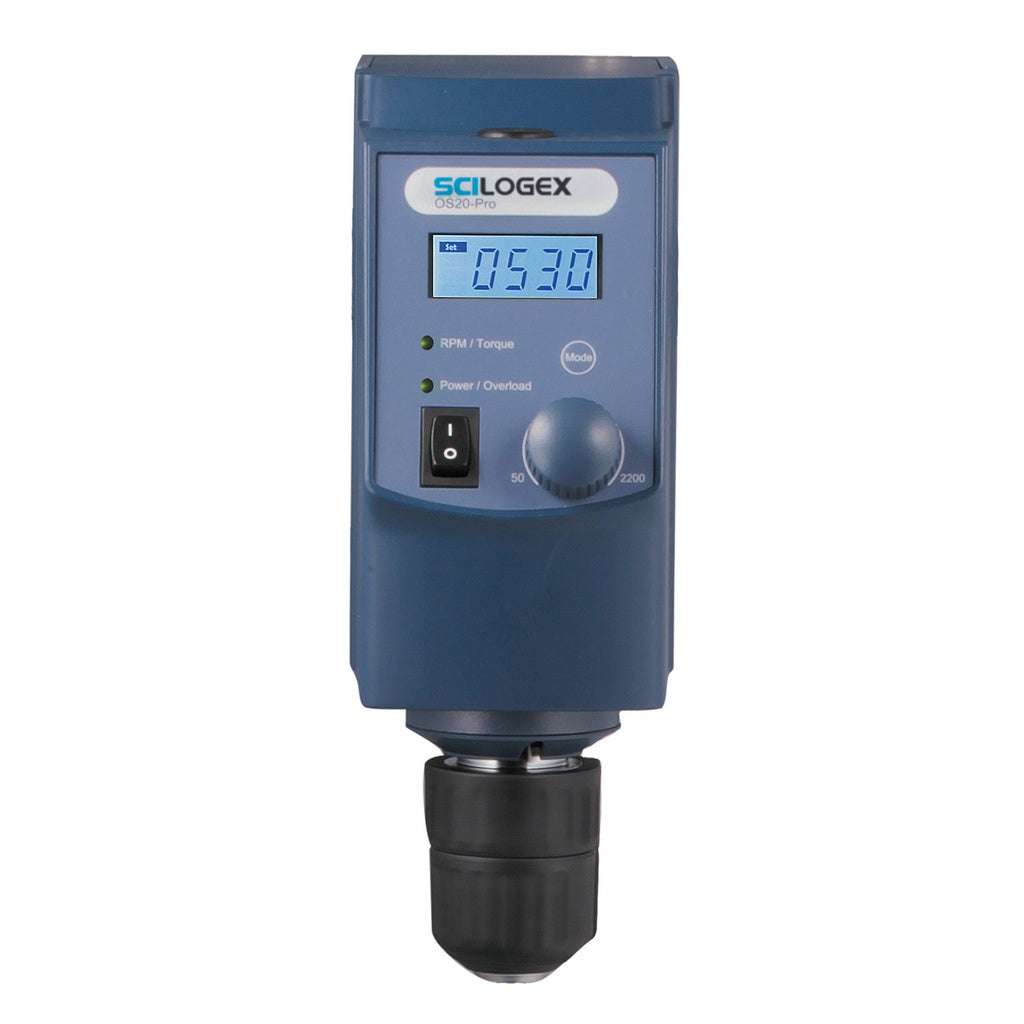

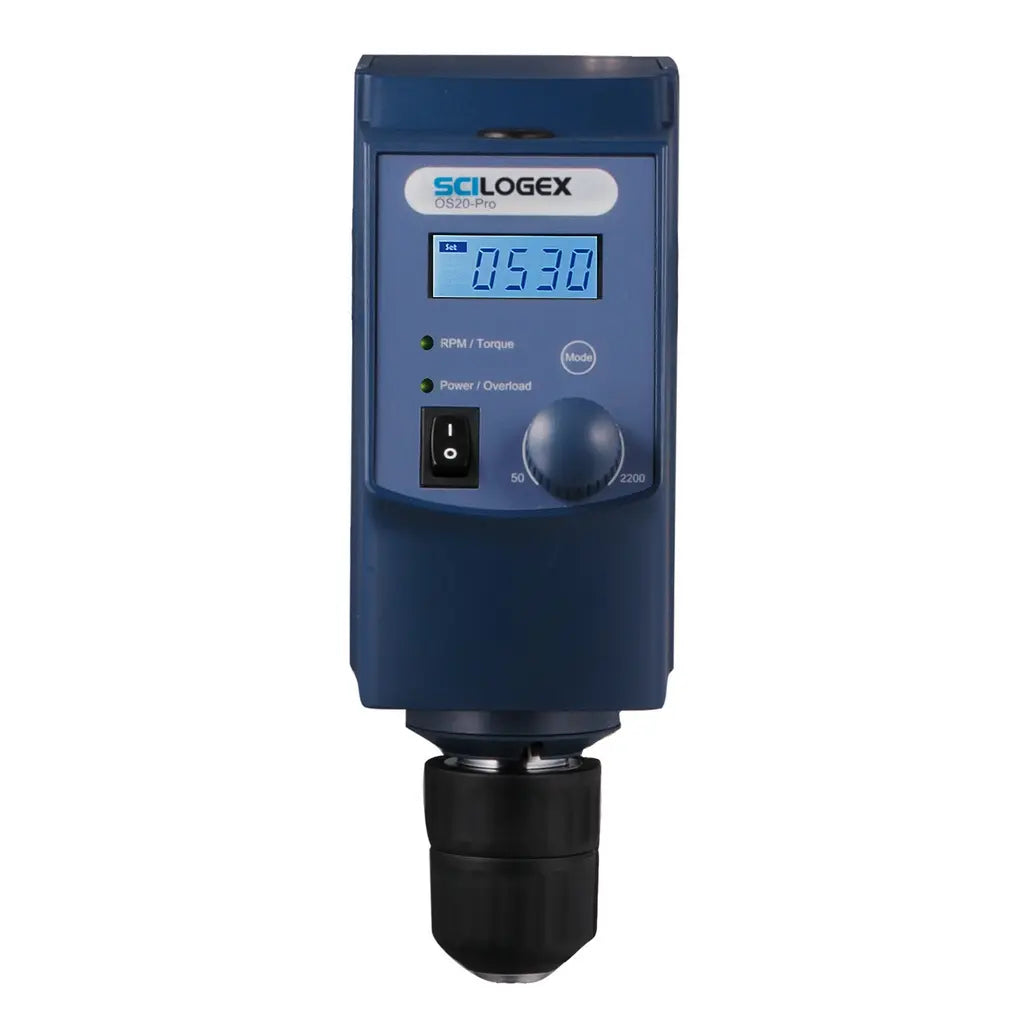

- LCD display for precise monitoring of set and actual speeds, with torque trend for real-time viscosity changes
- Over-torque protection automatically stops the motor to prevent damage
- Pass-through stirrer rods accepted with keyless chuck for quick changes (0.5-10mm diameter)
- cTUVus approved for UL/CSA safety; IP21 protection class
Specifications:
| Specification | Details |
|---|---|
| Model | 840103019999 SCI20-Pro Overhead Stirrer Package |
| Capacity | 20L (SCI20-Pro); 40L (SCI40-Pro Variant) |
| Max Torque | 40 Ncm |
| Viscosity Max | 10,000 mPas |
| Speed Range | 50-2200 rpm (±3 rpm Accuracy) |
| Speed Resolution | ±1 rpm |
| Chuck Diameter | 0.5-10mm |
| Dimensions (W x H x D) | 3.3" x 8.7" x 7.3" (83 x 220 x 186 mm) |
| Motor Rating | Input 60W, Output 50W |
| Weight | 5.5 lbs |
| Voltage/Frequency | 100-220V, 50/60 Hz, US Plug |
| Torque Display | LCD (Trend for Viscosity Changes) |
| Safety Features | Over-Torque Protection, Anti-Spill Slow Start |
| Data Connector | RS232 (Free Software) |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393613947 (20L); 094393613954 (40L) |
Contents:
| Description | Quantity |
|---|---|
| SCI-Pro Overhead LCD Digital Stirrer Drive Motor | 1 |
| Stand | 1 |
| Stainless Steel Cross Stirrer | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Maximum Stirring Capacity: 20L (SCI20-Pro); 40L (SCI40-Pro variant).
- Maximum Torque: 40 Ncm for viscous samples up to 10,000 mPas.
- Speed Range: 50-2200 rpm with ±3 rpm accuracy and ±1 rpm resolution.
- Torque Trend Display: Real-time LCD monitoring of viscosity changes.
- RS232 PC Control: Free software for data transmission and remote operation.
- Through-Shaft Design: Easy impeller position adjustment.
- Brushless DC Motor: 60W input, 50W output for maintenance-free reliability.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.
