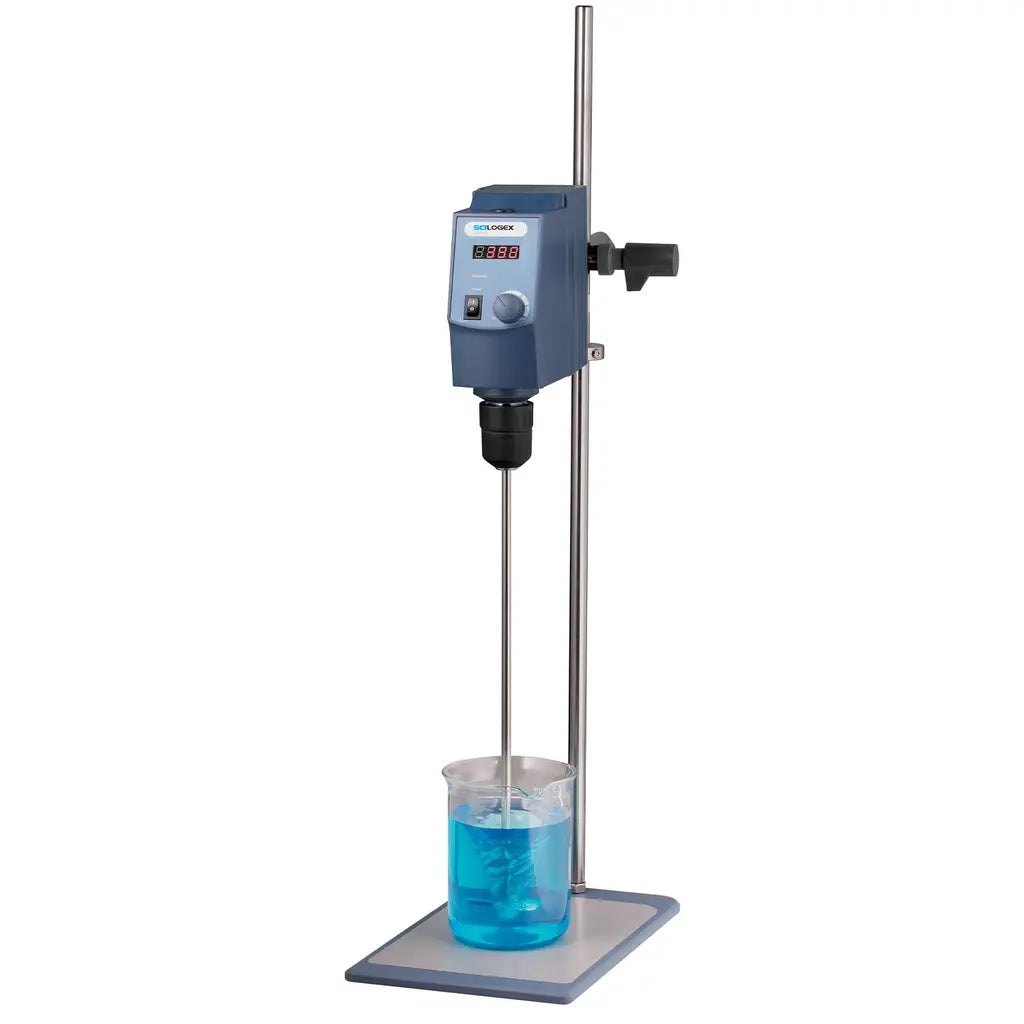

SCILOGEX 840202019999 SCI40-S LED Digital Overhead Stirrer with Stainless Steel Cross Stirrer for 40L Lab Mixing, 100-220V/50/60Hz US Plug
SCILOGEX’s 840202019999 SCI40-S Overhead LED Digital Stirrer is a high-torque, microprocessor-controlled lab mixer for viscous liquids and suspensions in chemical synthesis, pharma, physical/chemical analysis, and petrochemical industries, handling up to 40L with constant speed (50-2200 rpm accuracy ±50 rpm) even under load changes. This package includes the drive motor, H-600 stand, and stainless steel cross stirrer (Part# 1890007), with a through-shaft design for easy impeller positioning. Features anti-spill slow start-up, torque trend display for viscosity monitoring, over-torque protection, and brushless DC motor for maintenance-free operation. Keyless chuck fits 0.5-10mm rods; ideal for fume hoods with IP42 protection. FREE cross stirrer included. Made in China with a 2-year warranty for reliable, high-performance workflows.
Features:
- Wide speed range (50-2200 rpm resolution ±10 rpm) with LED display for real-time speed/torque monitoring
- Brushless DC motor (120W input, 100W output) for long life and maintenance-free high-torque stirring
- Anti-spill microprocessor control with slow start-up prevents accidental spillage and splashing
- Through-shaft design allows easy adjustment of impeller positions for optimal mixing
- Over-torque protection automatically stops the motor to prevent damage
- Safety circuits enable safe stop in anti-stall or overload conditions
- Pass-through stirrer rods accepted with keyless chuck for quick changes (0.5-10mm diameter)
- Power resume: Continues stirring at preset speed after power loss
- cTUVus approved for UL/CSA safety; IP42 protection class
Specifications:
| Specification | Details |
|---|---|
| Model | 840202019999 SCI40-S Overhead Stirrer |
| Capacity | Up to 40L |
| Max Torque | 60 Ncm |
| Viscosity Max | 50,000 mPas |
| Speed Range | 50-2200 rpm (±50 rpm Accuracy) |
| Speed Resolution | ±10 rpm |
| Chuck Diameter | 0.5-10mm |
| Dimensions (W x H x D) | 3.3" x 8.7" x 7.3" (83 x 220 x 186 mm) |
| Motor Rating | Input 120W, Output 100W |
| Weight | 5.5 lbs (2.5 kg) |
| Voltage/Frequency | 100-220V, 50/60 Hz, US Plug |
| Power Consumption | 130W |
| Torque Display | LED (Trend for Viscosity Changes) |
| Safety Features | Over-Torque Protection, Anti-Spill Slow Start |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393613978 |
Contents:
| Description | Quantity |
|---|---|

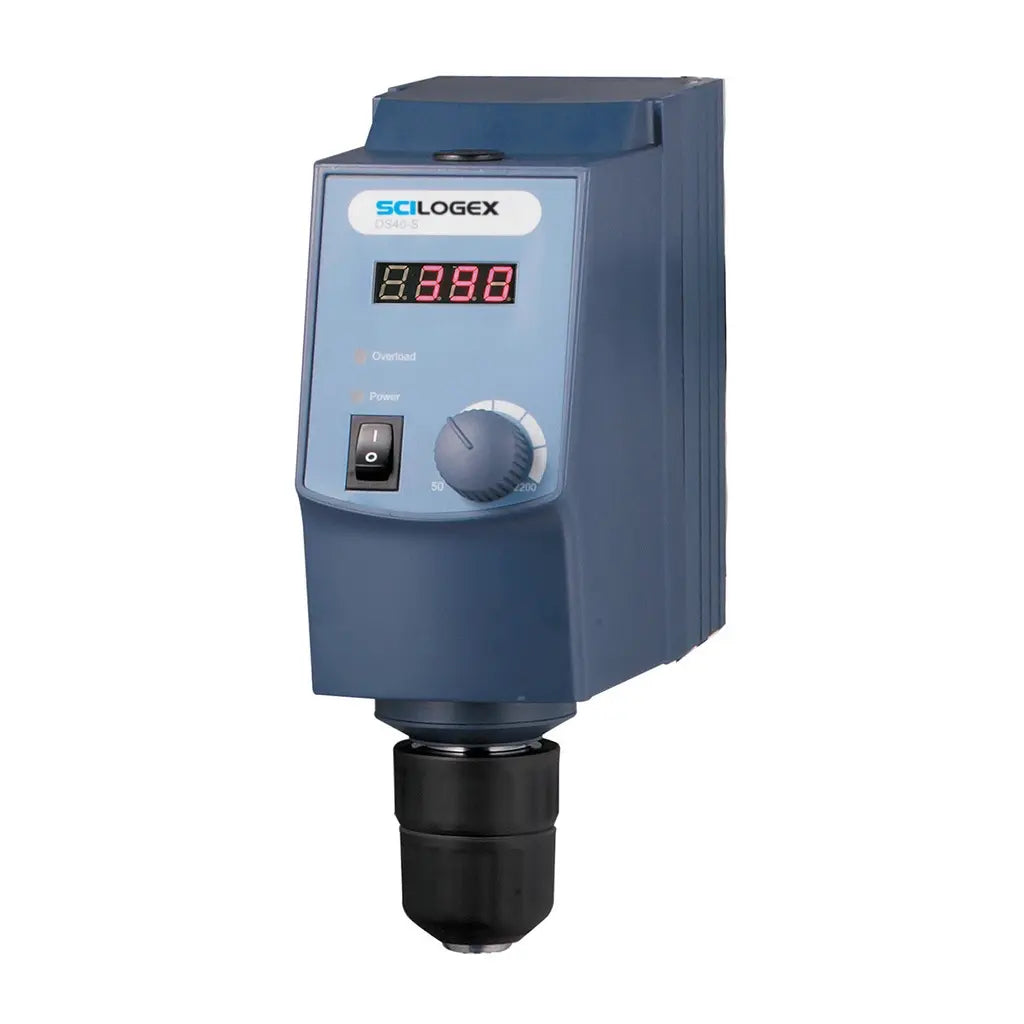

| SCI40-S LED Digital Overhead Stirrer Drive Motor | 1 |
| H-600 Stand | 1 |
| FREE Stainless Steel Cross Stirrer (Part# 1890007, 400mm Shaft x 8mm Dia., 50mm Impeller) | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Maximum Stirring Capacity: 40L for viscous samples up to 50,000 mPas.
- Speed Range: 50-2200 rpm with ±50 rpm accuracy and ±10 rpm resolution.
- Torque Trend Display: Real-time LED monitoring of viscosity changes.
- Brushless DC Motor: 120W input, 100W output for maintenance-free reliability.
- Through-Shaft Design: Easy impeller position adjustment.
- Permissible Ambient: 5-40°C, 80% RH; IP42 protection class.
- Accessories: Stirring impellers and blades available separately.
