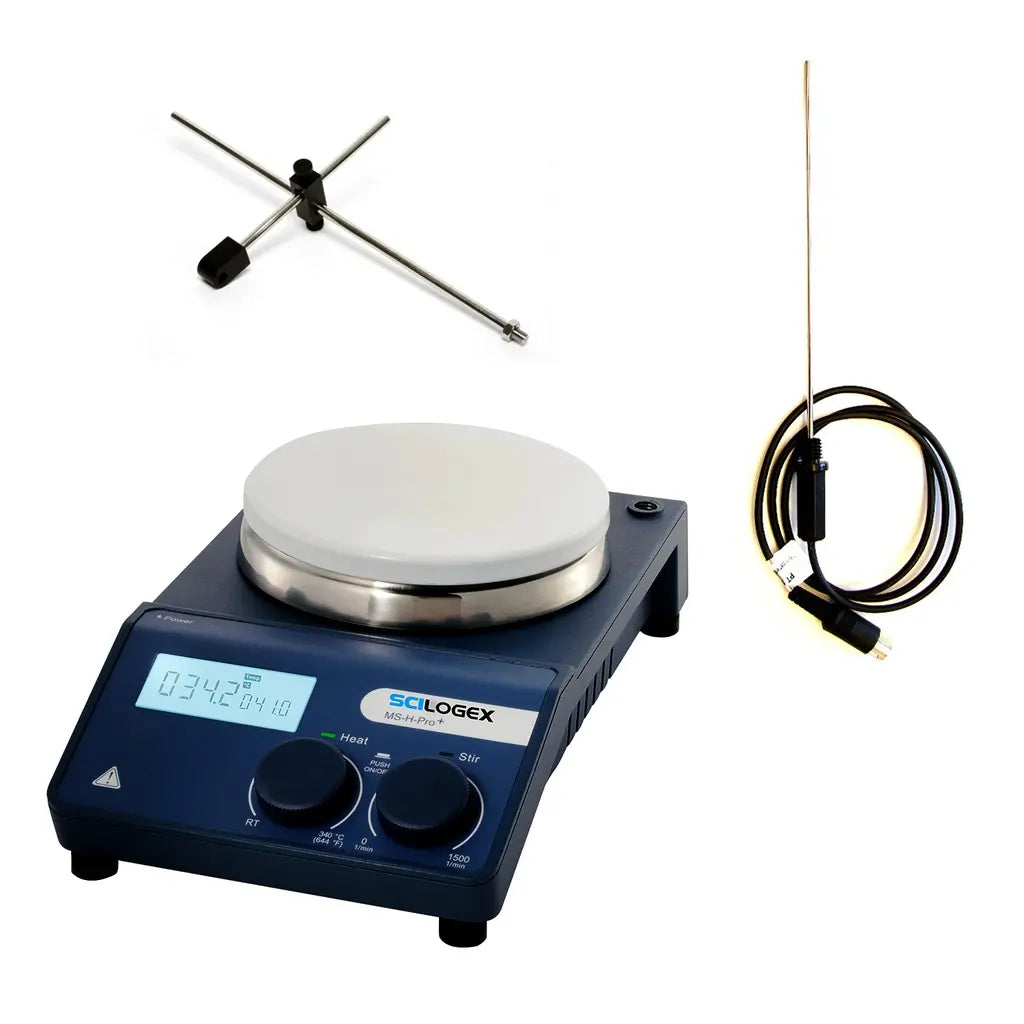

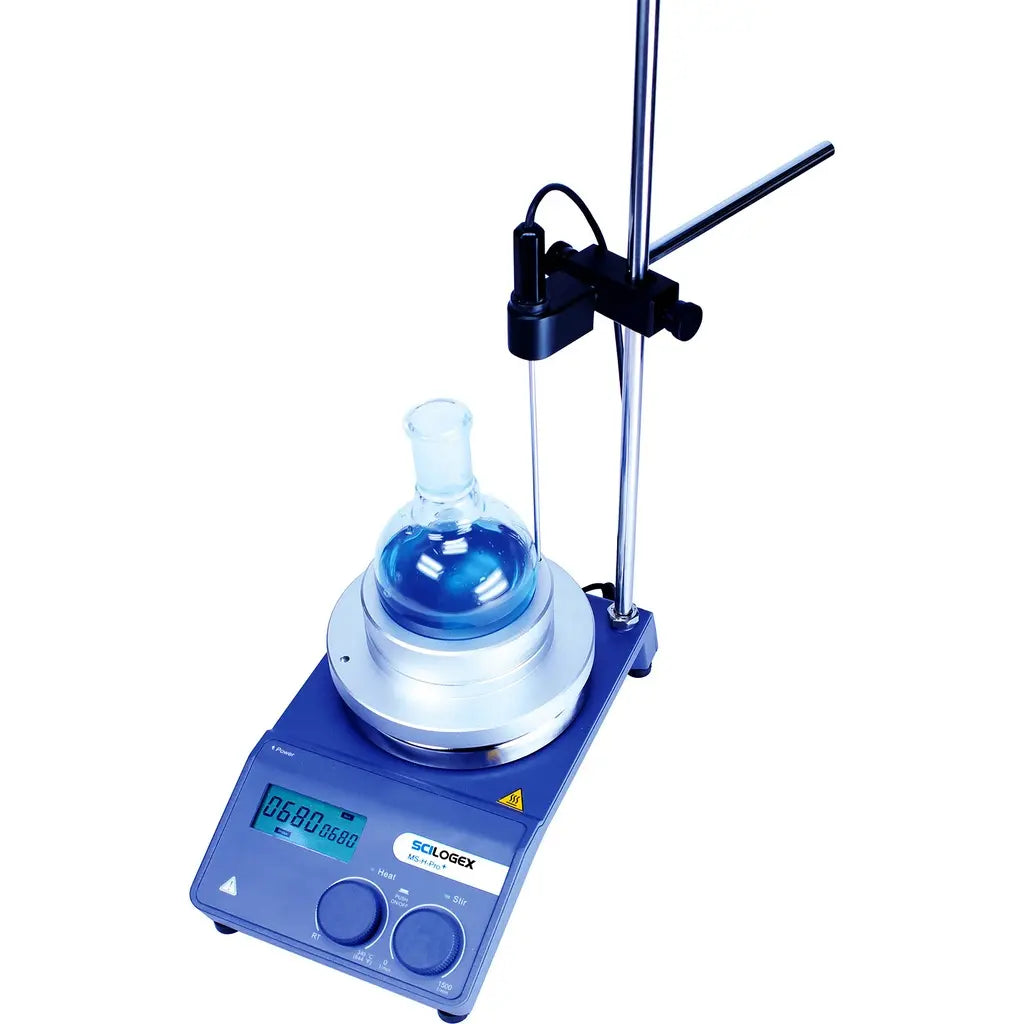

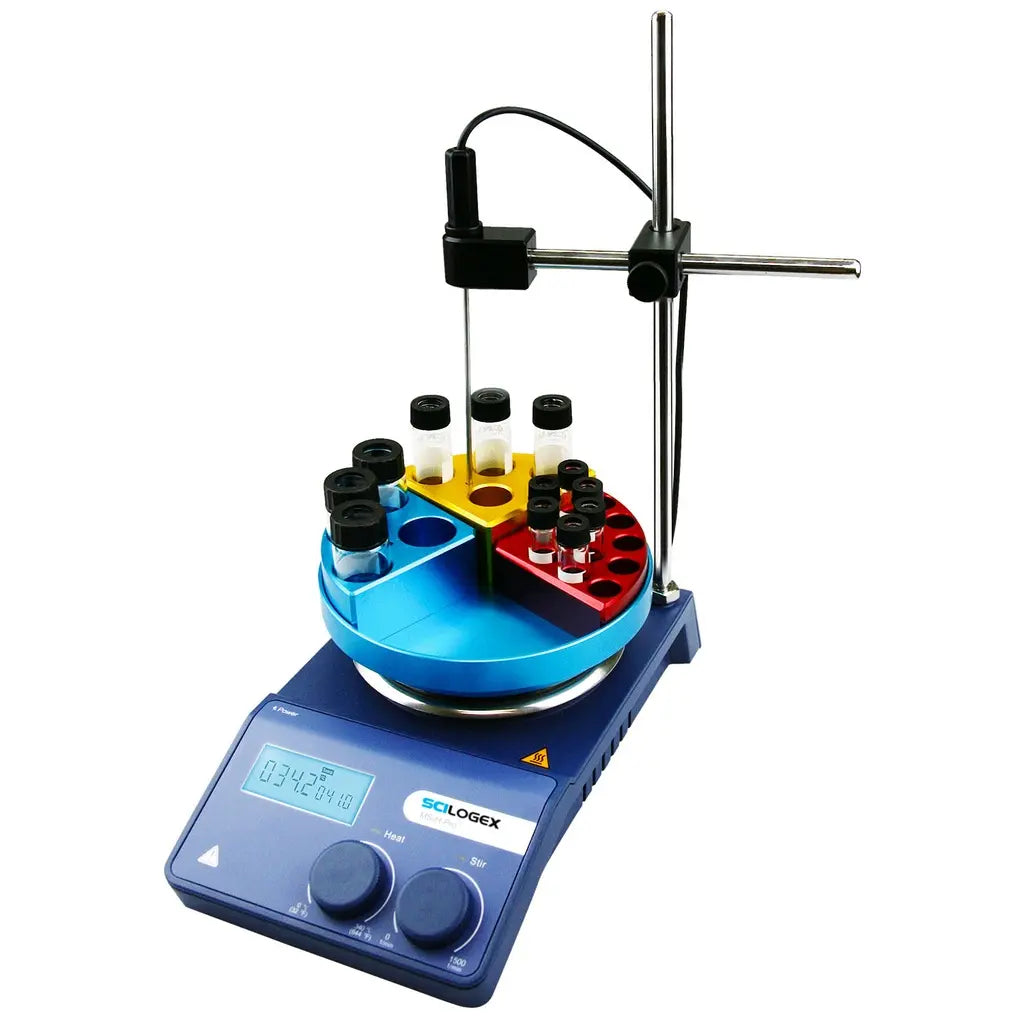

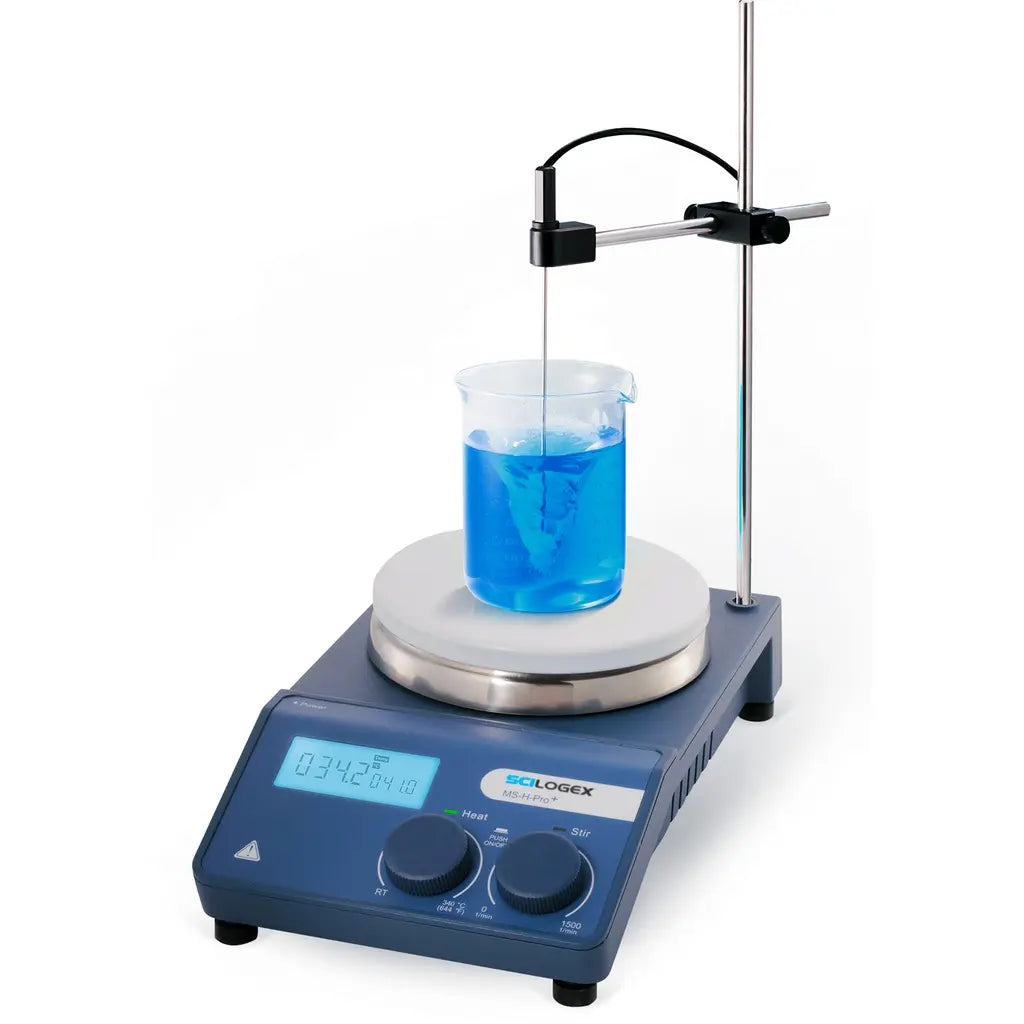

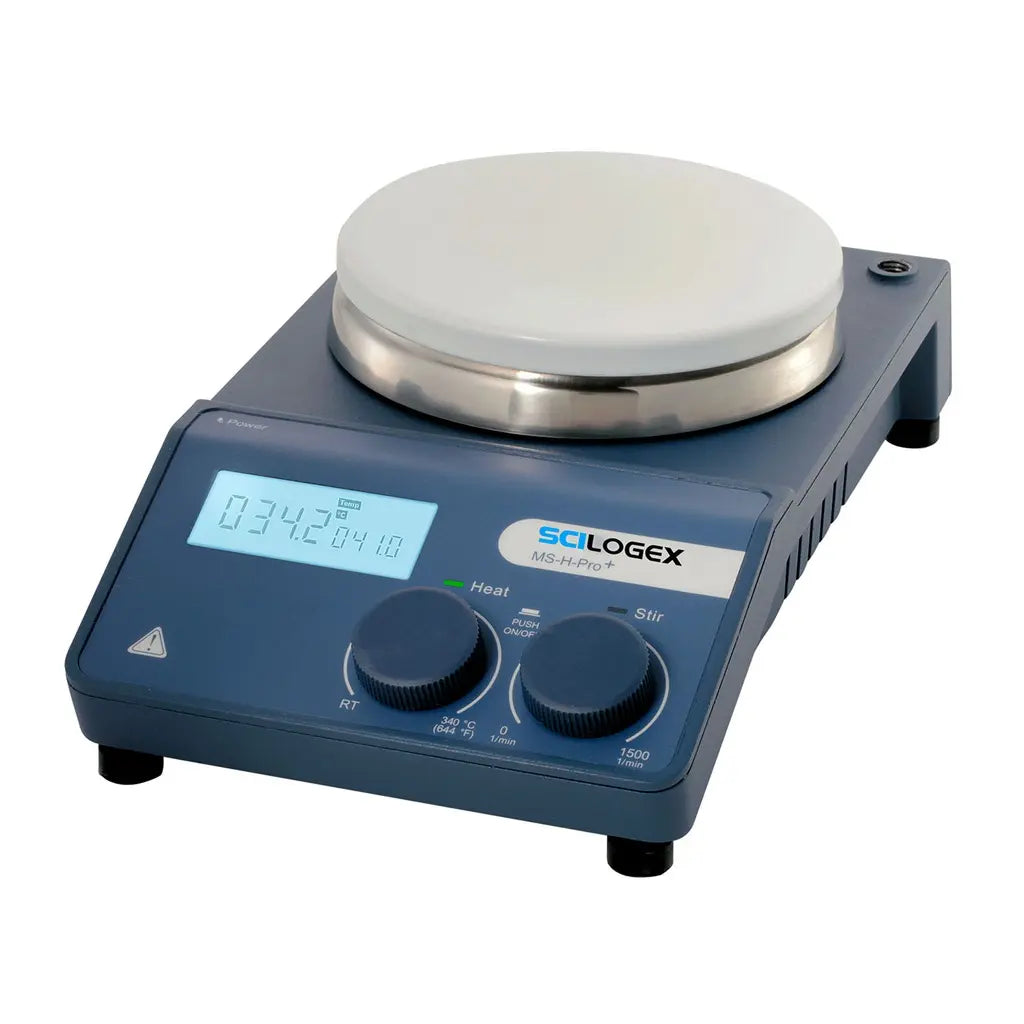

SCILOGEX 861442019999 SCI340-Pro Circular LCD Digital Magnetic Hotplate Stirrer, 340°C Max.
SCILOGEX 861442019999 SCI340-Pro Circular LCD Digital Magnetic Hotplate Stirrer, 340°C Max.
SCILOGEX 861442019999 SCI340-Pro LCD Digital Circular Magnetic Hotplate Stirrer for Lab Heating & Mixing up to 20L, 100-120V/60Hz US Plug
SCILOGEX’s 861442019999 SCI340-Pro LCD Digital Hotplate Stirrer is a technically advanced, PID-controlled lab device for simultaneous heating (up to 340°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 20L, ideal for chemical synthesis, physical/chemical analysis, biopharmaceuticals, and more. Featuring a chemically resistant stainless steel work plate with ceramic coating (Ø127mm) for uniform heat transfer, it includes independent LCD displays for speed/temperature, digital control (±1°C accuracy <100°C, ±1% >100°C), brushless DC motor for maintenance-free operation, and RS232 for PC control/data transmission (free software available). External PT1000 sensor (bundle option) enables ±0.2°C medium monitoring. Safety features include overheat protection (360°C) and "HOT" warning (>50°C). Power-efficient at 550W, it's perfect for research labs. Made in China with a 2-year warranty for reliable, high-precision performance.
Features:
- Heat only, stir only, or combined heat/stir functions for versatile lab workflows
- High-resolution LCD displays actual temperatures/speed with independent controls for easy monitoring
- Digital speed control (100-1500 rpm resolution ±1 rpm) maintains constant rate under load changes
- Max heating plate temperature 340°C with low temperature stability and immediate heat transfer from ceramic coating
- Stainless steel work plate with ceramic coating (5" diameter) provides excellent chemical resistance
- Brushless DC motor (18W input, 10W output) ensures long-life, quiet operation without sparks
- External temperature control via PT1000 sensor (bundle option) with ±0.2°C accuracy for precise medium monitoring
- RS232 interface for remote PC control and data transmission (free software available)
- Automatic spin bar retrieval and high magnetic adhesion for reliable stirring bars up to 80mm
- "HOT" warning flashes if work plate >50°C, even when off; IP42 protection against spills
Specifications:
| Specification | Details |
|---|---|
| Model | 861442019999 SCI340-Pro Hotplate Stirrer |
| Work Plate Diameter | Ø127mm (5") (Stainless Steel with Ceramic Coating) |
| Motor Type | Brushless DC (18W Input, 10W Output) |
| Power Consumption | 550W |
| Heating Output | 500W |
| Voltage/Frequency | 100-120V, 60Hz, US Plug |
| Stirring Capacity | Up to 20L (H2O) |
| Max Magnetic Bar | 80mm Length |
| Speed Range | 100-1500 rpm (±1 rpm Resolution) |
| Temperature Range | Room Temp. - 340°C (1°C Increment) |
| Temperature Accuracy | ±1°C (<100°C); ±1% (>100°C) |
| External Sensor | PT1000 (Accuracy ±0.2°C, Bundle Option) |
| Overheat Protection | 360°C |
| Dimensions (W x D x H) | 6.3" x 11" x 3.3" (160 x 280 x 85 mm) |
| Weight | 2.8 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP42 |
| Data Connector | RS232 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI340-Pro LCD Digital Hotplate Stirrer Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Independent Functions: Heat only, stir only, or heat and stir for flexible lab use.
- LCD Display: High-resolution for actual temperature and speed monitoring.
- Digital Speed Control: 100-1500 rpm for consistent mixing under varying loads.
- Max Heating: Plate temperature up to 340°C with 1°C increments.
- External Temperature Control: PT1000 sensor (bundle) with ±0.2°C accuracy for medium monitoring.
- "HOT" Warning: Flashes if work plate >50°C, even when off.
- Permissible Ambient: 5-40°C, 80% RH; IP42 protection class.
