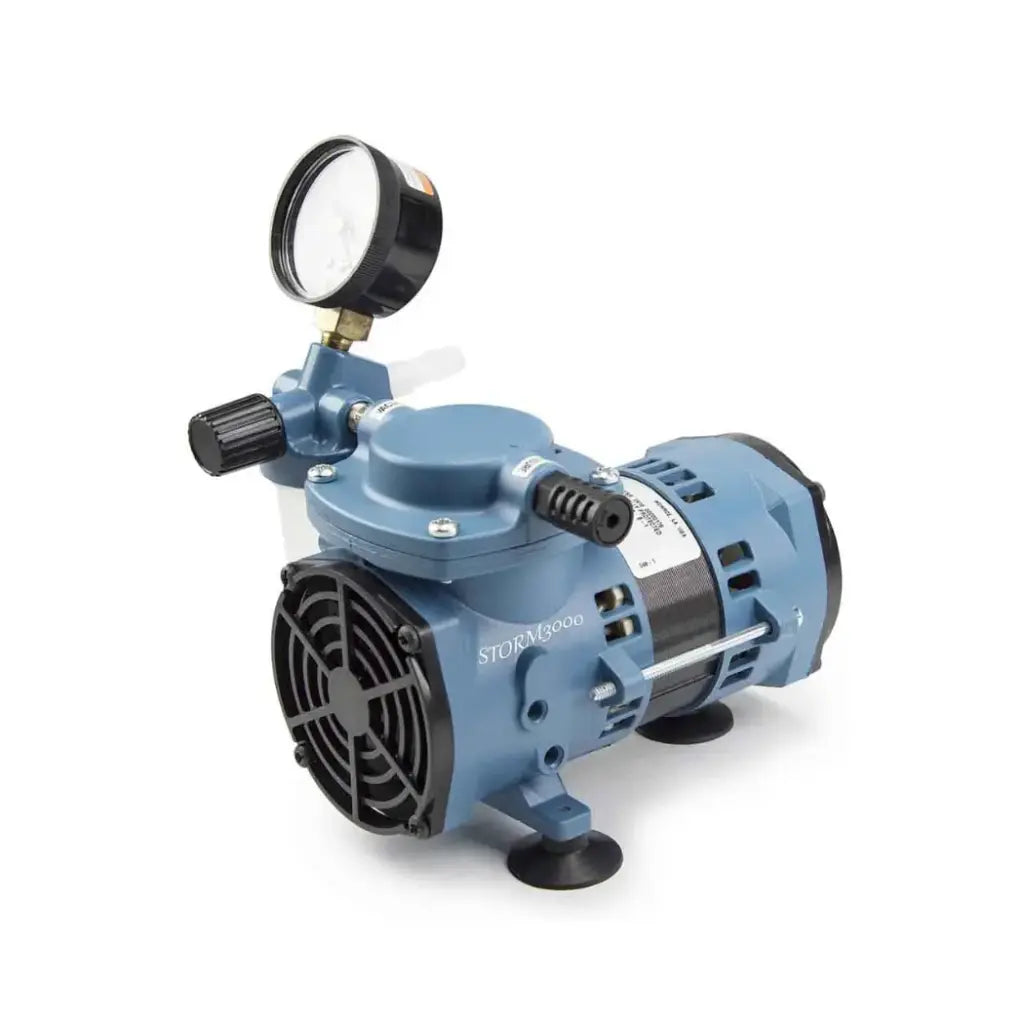

SCILOGEX STM3000 Economical Chemical Resistant Diaphragm Vacuum Pump, 115V/60Hz
SCILOGEX STM3000 Economical Chemical Resistant Diaphragm Vacuum Pump, 115V/60Hz
SCILOGEX STM3000 Professional PTFE Chemical Duty Vacuum Pump for Rotary Evaporators & Filtration with 20 LPM Flow & Bleach-Safe Design
SCILOGEX’s STM3000 Economical Chemical Resistant Diaphragm Vacuum Pump is a durable, oil-free lab vacuum pump for rotary evaporators, filtration, desiccation, and aspiration, featuring PTFE contact surfaces for acid/alkali/organic vapor resistance and bleach-safe decontamination. Made in USA with 1/7 HP motor, it delivers 20 LPM flow, 22" Hg vacuum, and 30 psi pressure at 50 dB noise level. Compact (6.8" x 7.3" x 8.3", 6.4 lbs) with vacuum regulator/gauges, exhaust muffler, and 15,000-hour diaphragm life for low maintenance. Optional pressure regulator kit available; CE approved for safety. Ideal for microbiology, cell culture, and fume suction; 1-year warranty for reliable performance in demanding lab environments.
Features:
- Made in USA with PTFE contact surfaces for chemical resistance and bleach-safe cell culture protocols
- Oil-free diaphragm design reduces maintenance and costs
- Vacuum to 22" Hg with 20 LPM flow rate for efficient filtration and evaporation
- Vacuum regulator with gauge for adjustable vacuum from zero to maximum
- Exhaust muffler for quiet operation at 50 dB noise level
- Compact, portable, and quiet for easy benchtop integration
- Diaphragm membrane rated for 15,000 hours of use
- Optional pressure regulator accessory kit available for enhanced control
- 1-year warranty for reliable lab performance
Specifications:
| Specification | Details |
|---|---|
| Free Air Displacement | 0.7 CFM (20 LPM) at 115V/60Hz |
| Maximum Vacuum | 22" Hg |
| Ultimate Pressure | 190 Torr (253 mbar) |
| Maximum Pressure | 30 psi |
| Tubing Needed | 1/4" ID |
| Weight | 6.4 lbs (2.9 kg) |
| Motor HP | 1/7 HP |
| Motor Voltage/Frequency/Watts | 115V, 60Hz, 1 Phase, 160W |
| Overall Dimensions (L x W x H) | 6.8" x 7.3" x 8.3" (17.3 x 18.3 x 21.1 cm) |
| Shipping Weight | 8.6 lbs (3.9 kg) |
| Noise Level | 50 dB |
| Capacitor | 8µF/250V |
| Poles | 4P |
| Port Thread | 5/16" |
| Voltage/Frequency | 115V, 60Hz, US Plug |
| Warranty | 1-Year Limited |
| Compliance | CE Approved |
| HS Code | 8414.10.0000 |
| Country of Origin | USA |
| UPC/Barcode | 094393616603 |
Contents:
| Description | Quantity |
|---|---|
| STM3000 Chemical Resistant Vacuum Pump | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
