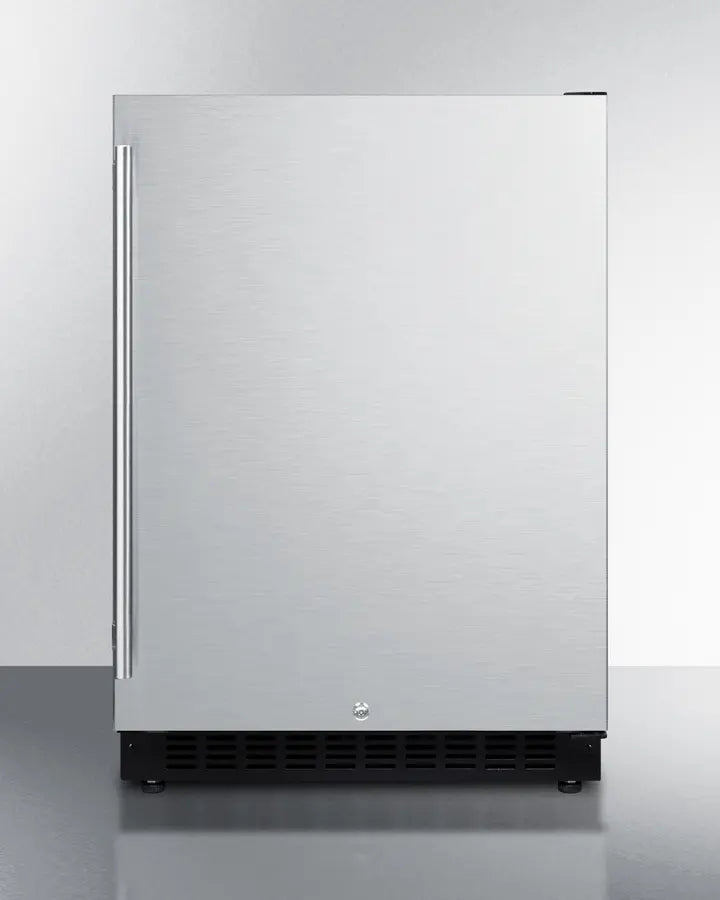

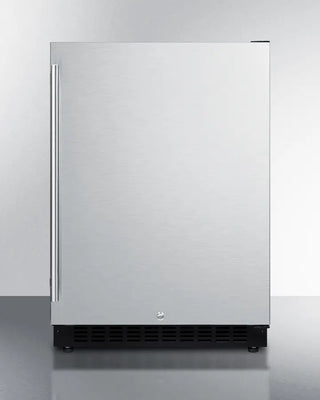

Summit AL54 Series 24" Wide Built-In All-Refrigerator, ADA Compliant, 4.8 cu.ft., Frost-Free Operation, Right Hinge
SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.
Sized with a convenient 24" footprint, the AL54 is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible door includes a pro style handle and a factory installed lock for added safety. This unit has a flush back for easy cleaning and a right angle cord.

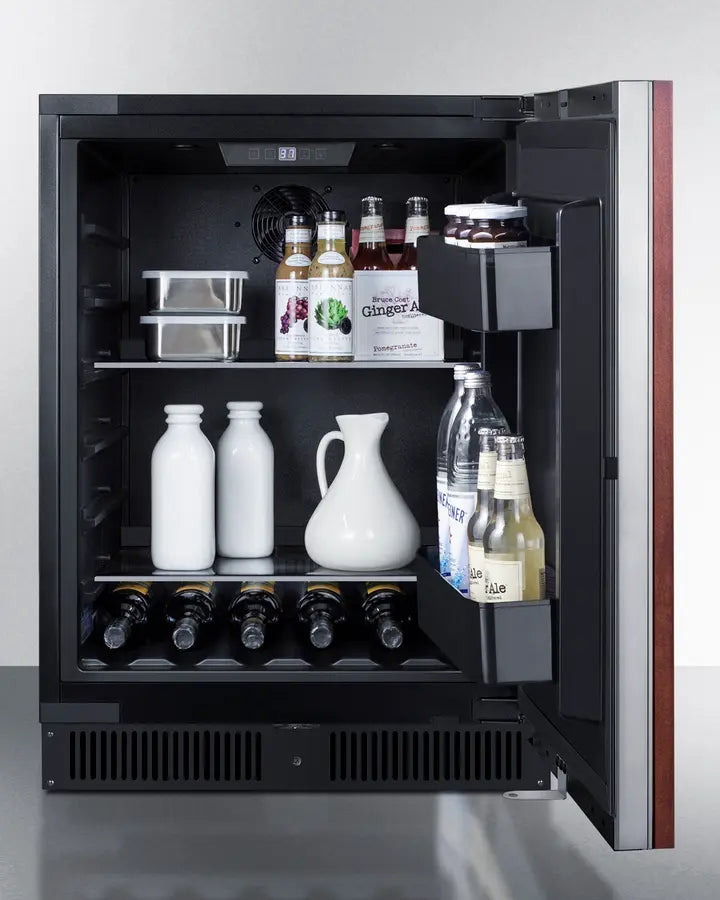

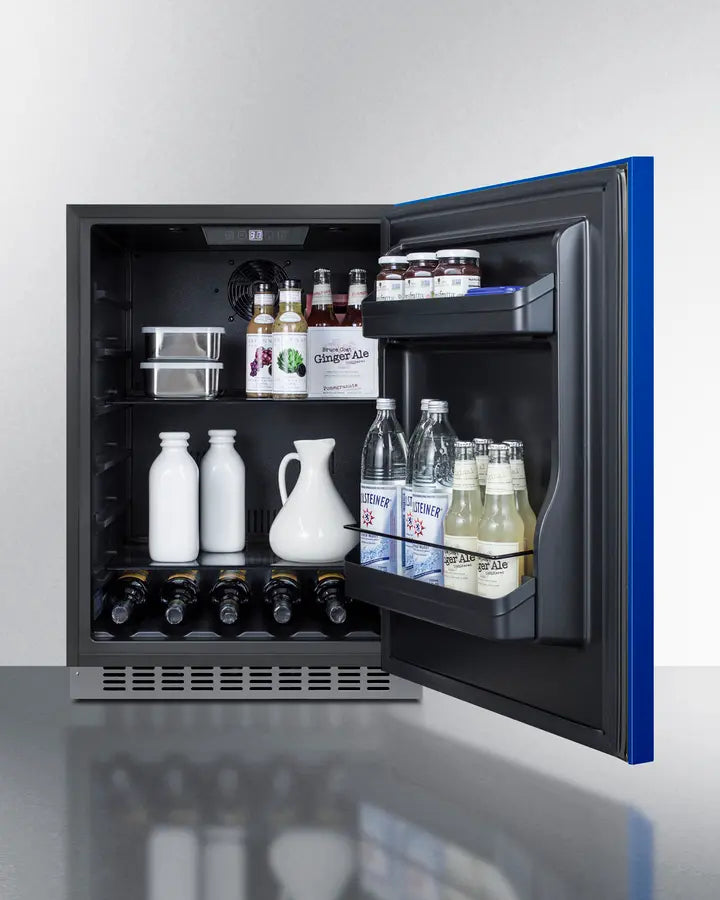

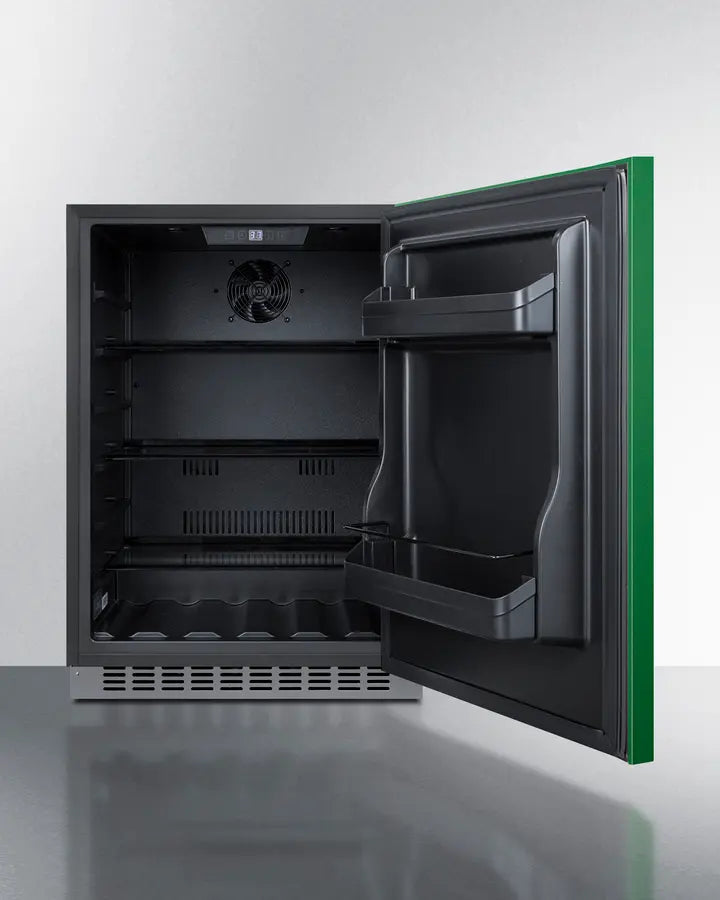

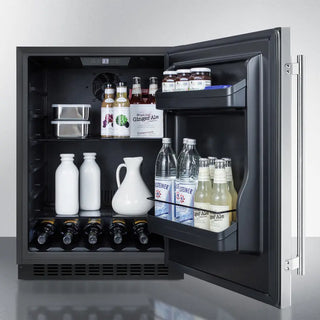

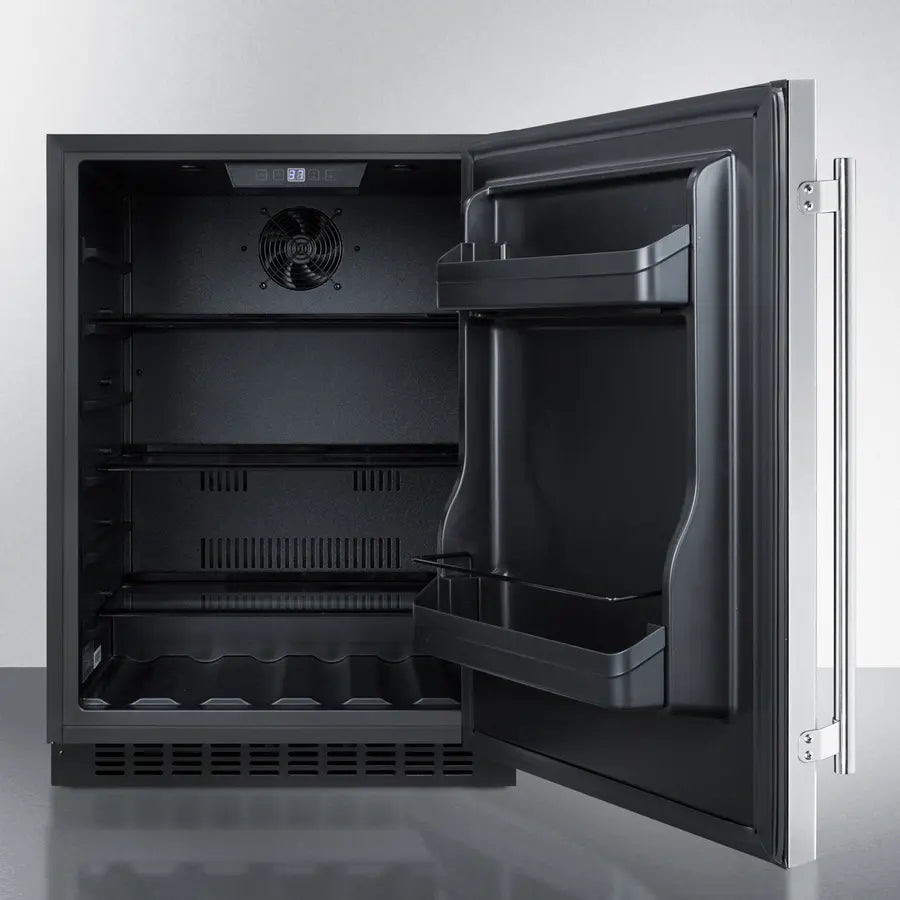

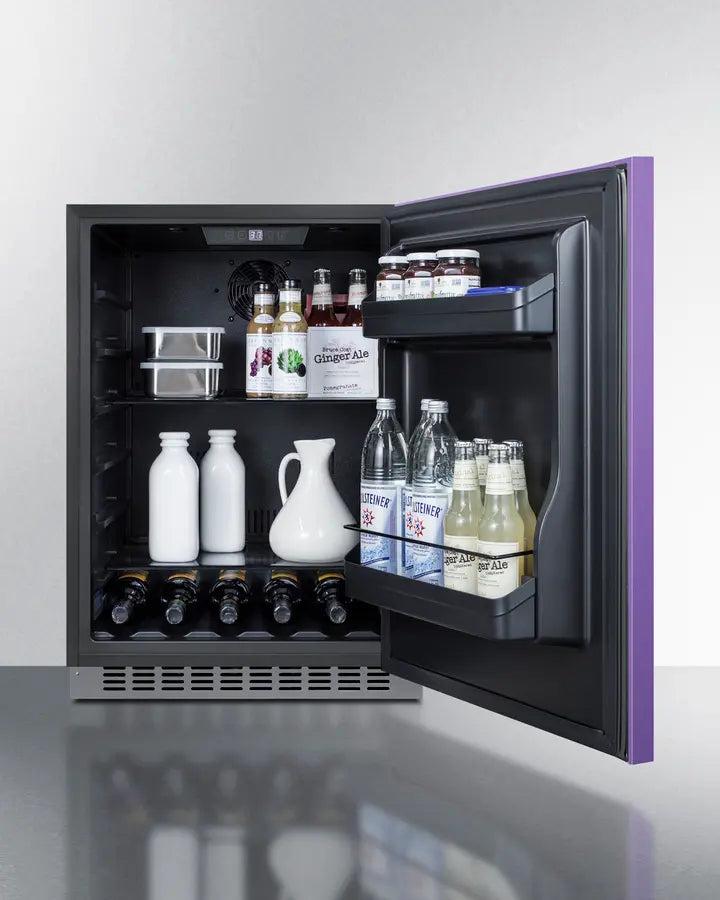

Inside, the AL54 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
The AL54 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.
Features:
• ADA compliant design
• Built-in capable

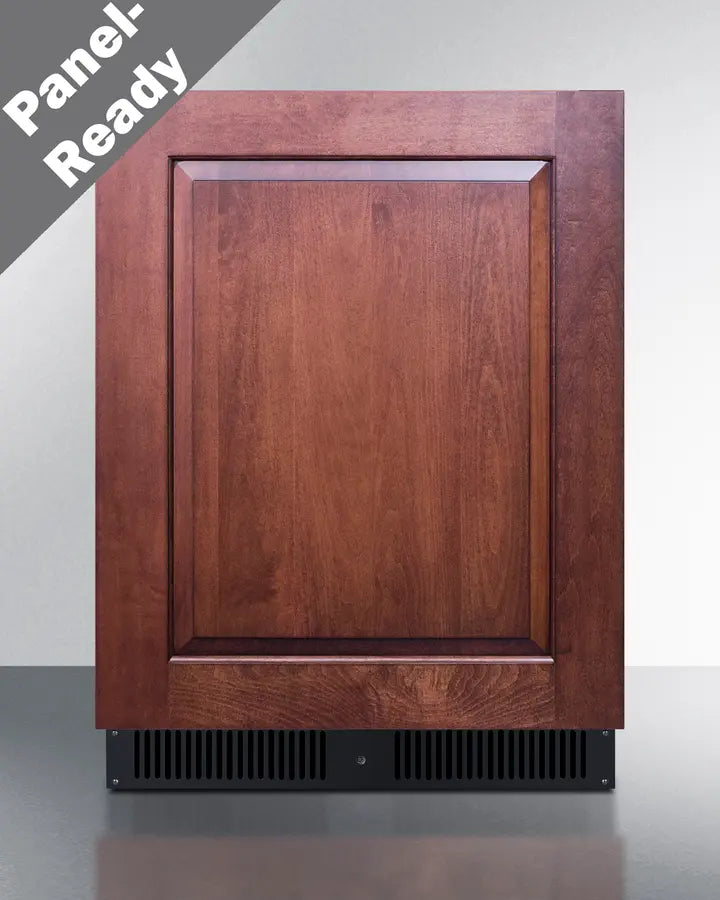

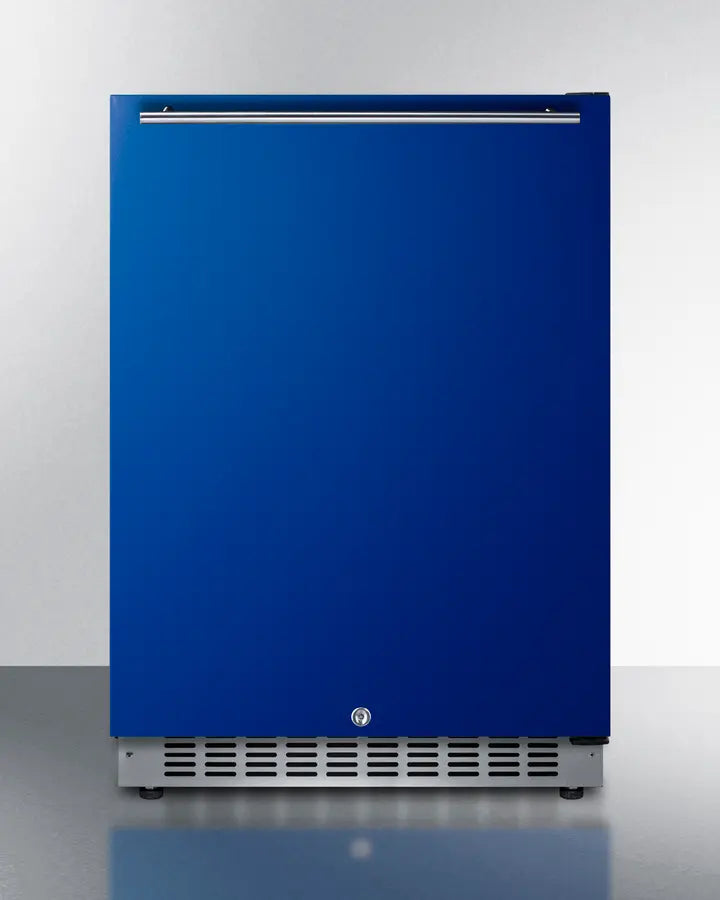

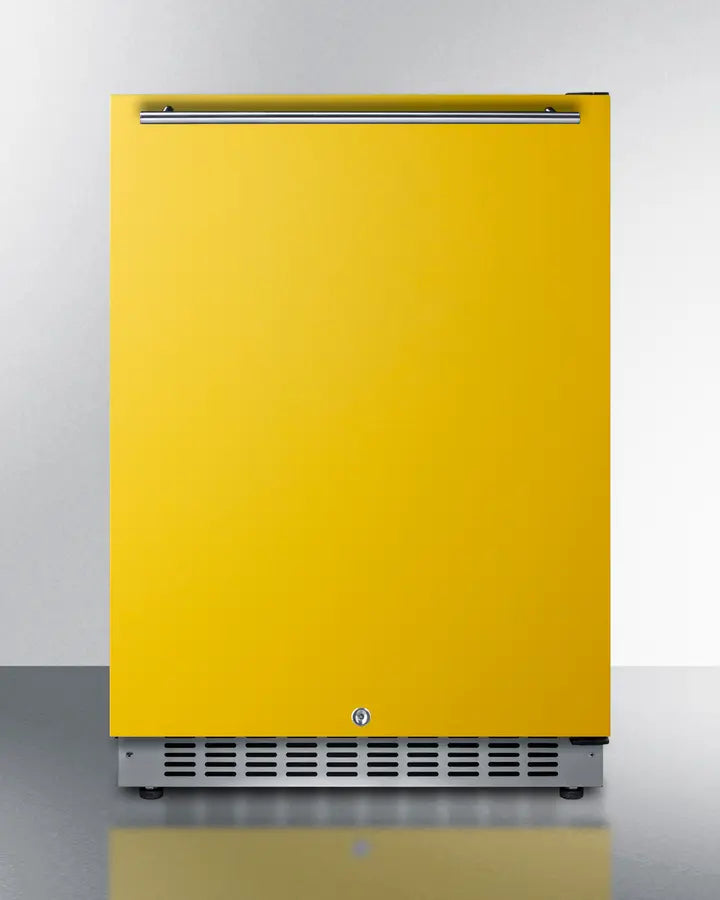

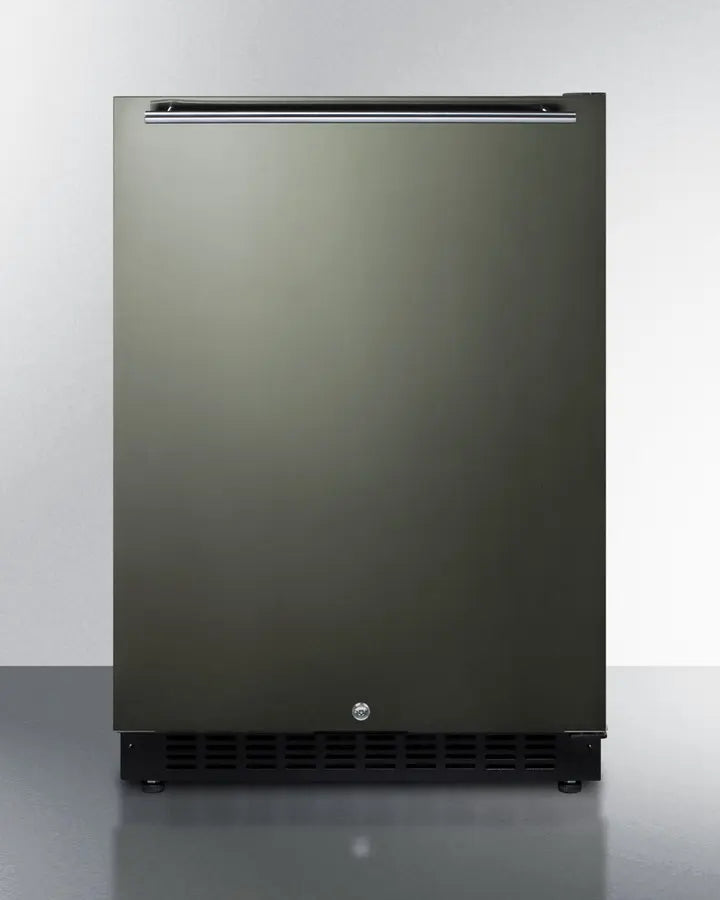

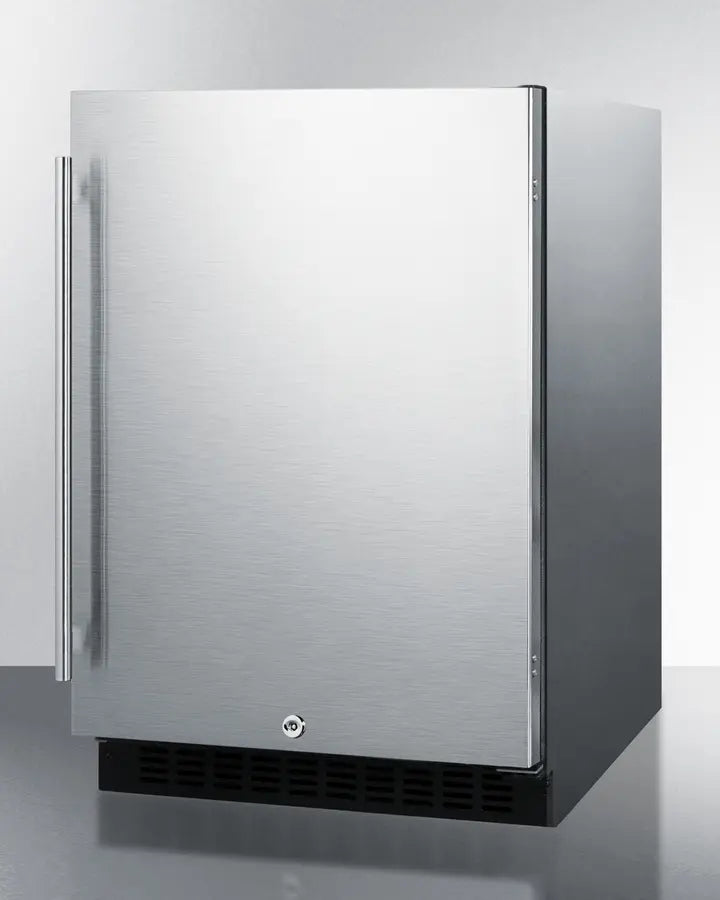

• Stainless Steel/Panel Ready/Black Stainless Steel/Green/Purple/Blue/Yellow door option
• Factory installed lock
• Professional handle
• Frost-free operation
• Digital thermostat
• Recessed LED light
• Adjustable glass shelves
• Door storage
• Bottle slots
• Internal fan
• Reversible door
• Open door alarm
• High temperature alarm
• Sabbath mode setting
• Temperature Memory Function
• Sealed back
• Right angle plug
• Commercially approved
• Fully finished black cabinet
• 100% CFC Free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 4.8 cu.ft. (136 L) |
| Defrost Type | Frost-Free |

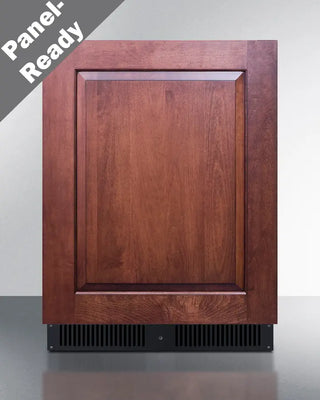

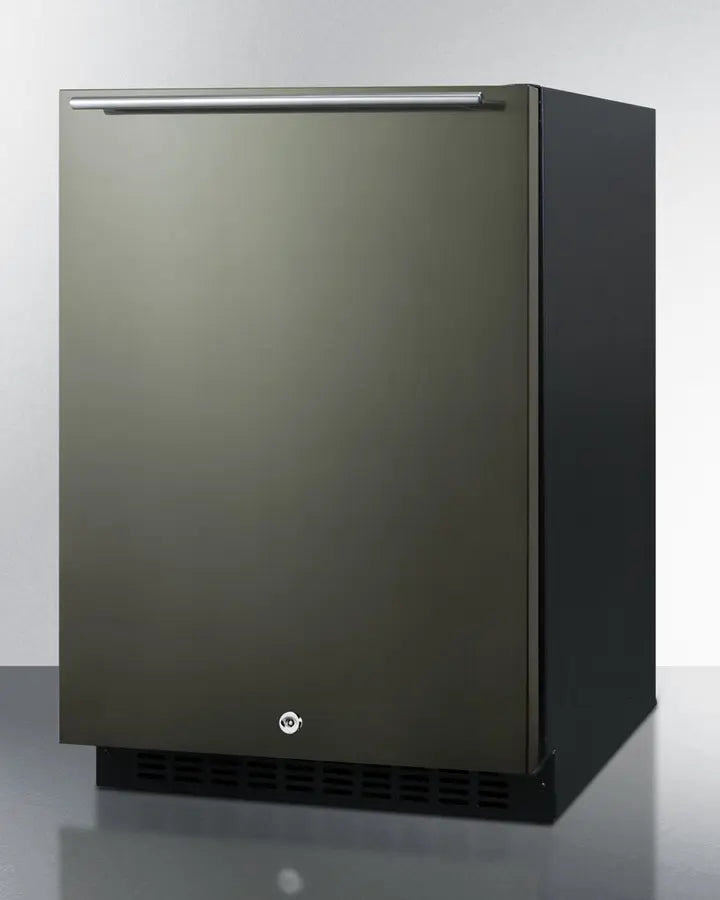

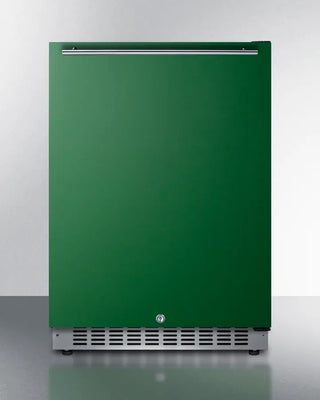

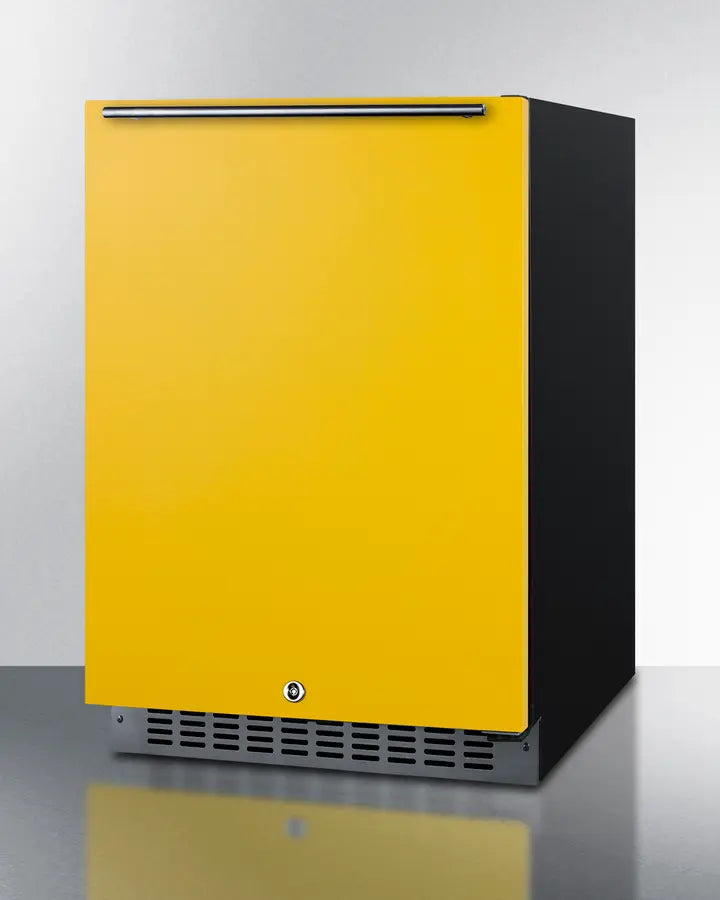

| Door | Stainless Steel/Panel Ready/Black Stainless Steel/Green/Purple/Blue/Yellow |
| Cabinet | Black/Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101052267 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.3 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
