Summit ACR51W 24" Wide Built-In Medical Refrigerator Automatic Defrost 3.88 cu.ft.
EQTemp introduces a new series of affordable, specialty medical refrigeration solutions for healthcare facilities seeking specialized cold storage.

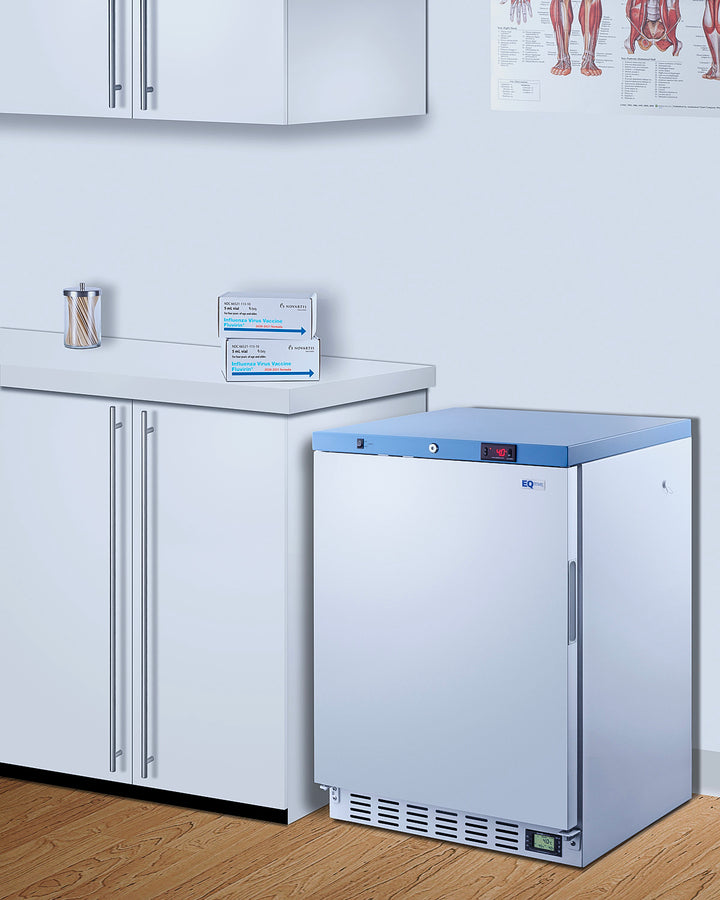

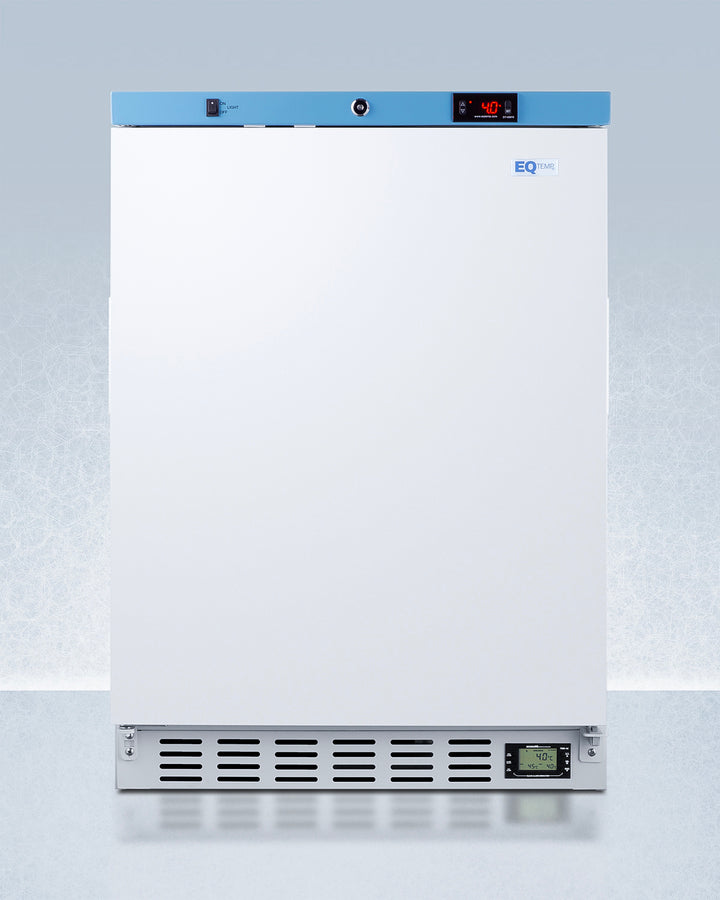

Model ACR51W is an upright 3.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. This unit features a front-breathing design for safe built-in installation under counters. The fully finished cabinet also allows freestanding use.

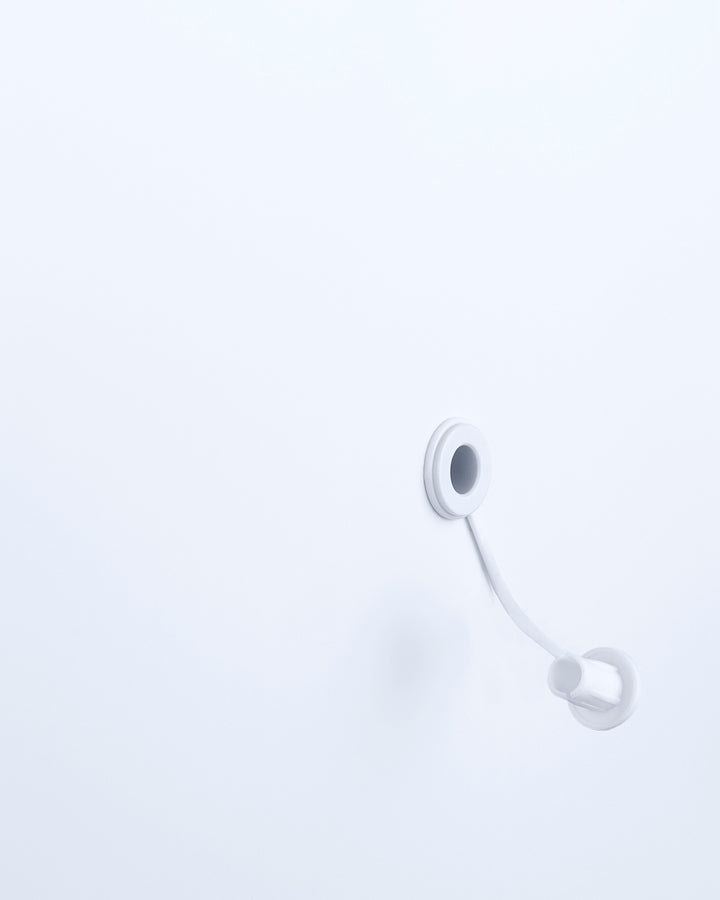

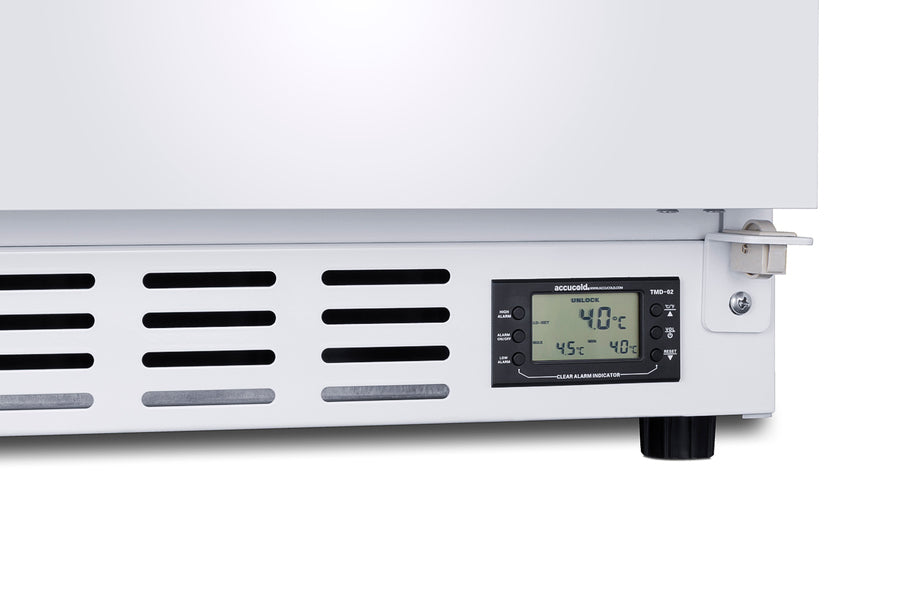

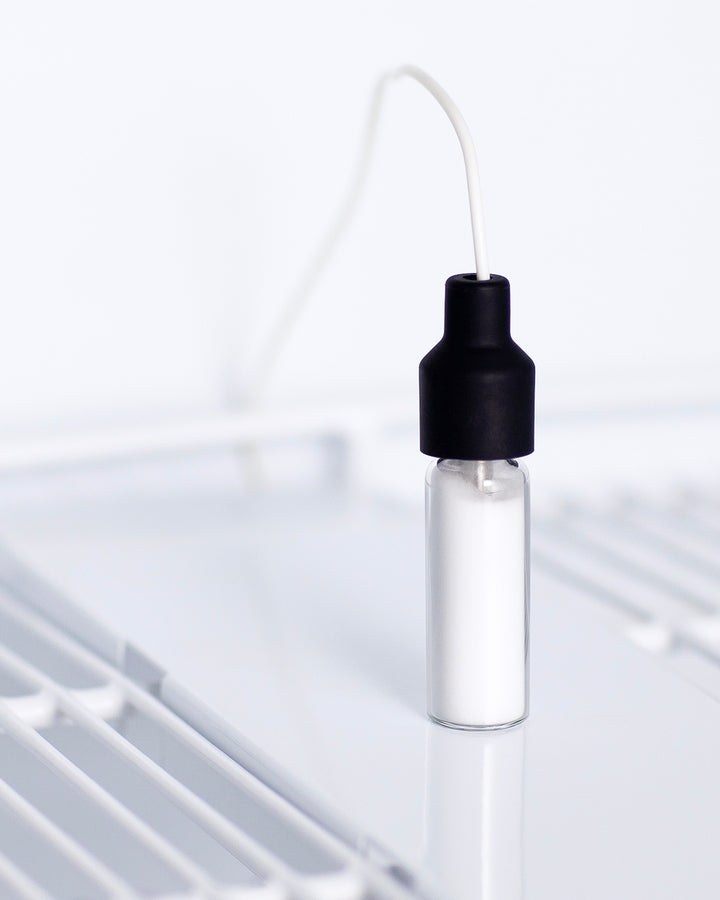

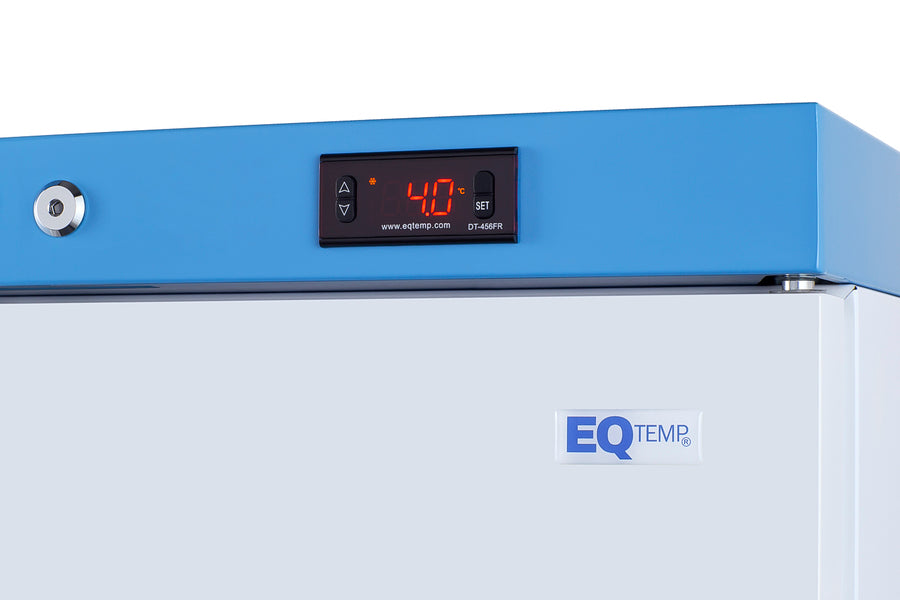

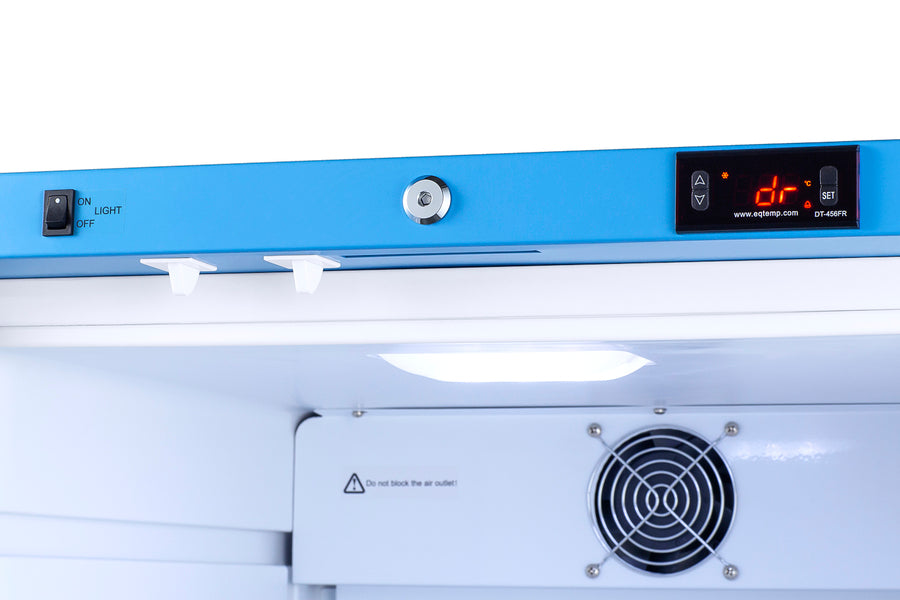

The ACR51W includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

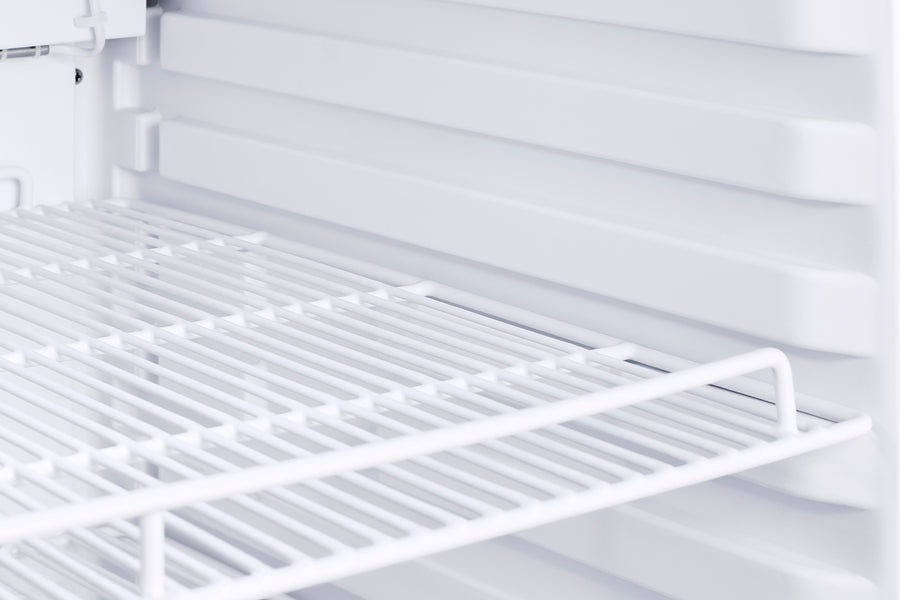

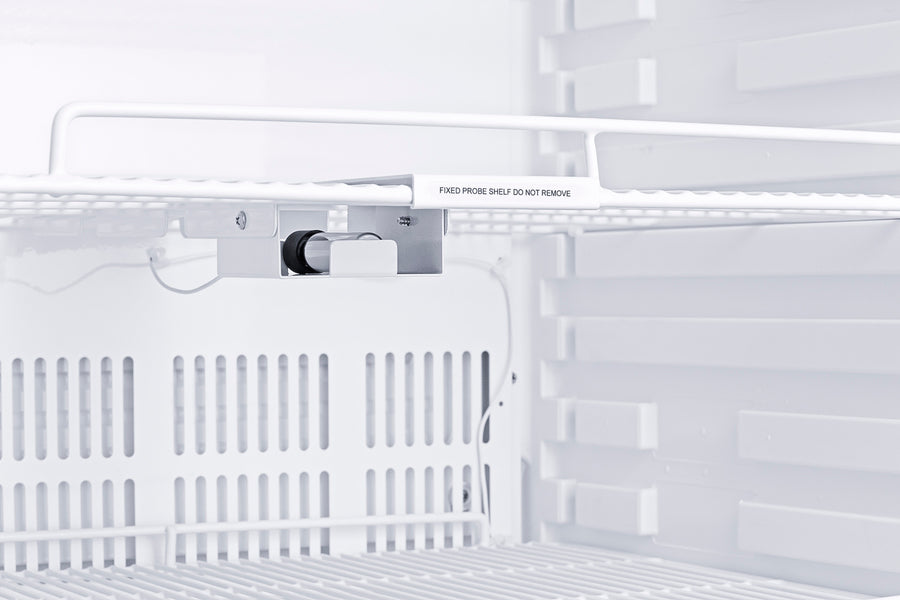

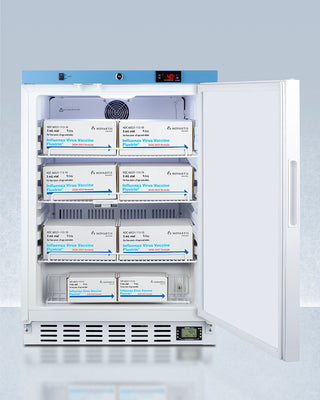

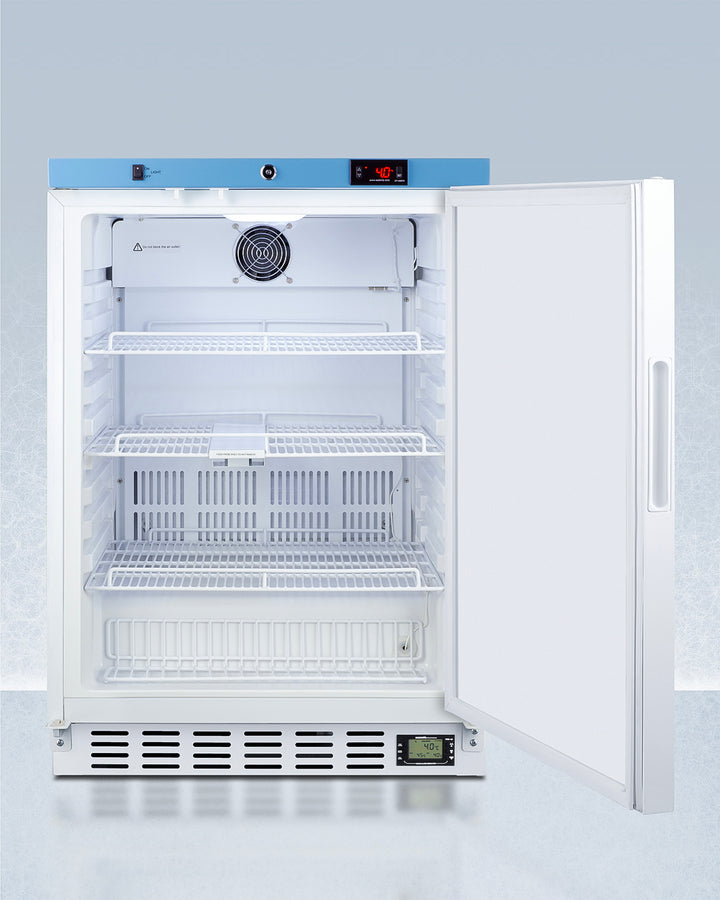

The interior includes one wire shelf in the center to hold the temperature probe, as well as two additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.
This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR51WNSF456).
Features:
- EQTemp Medical Refrigerator
- Temperature Range: 2º to 8ºC
- External temperature readout
- Built-In capable
- High/low temperature alarm
- Buffered temperature probe
- Access port
- Factory installed lock
- Automatic defrost
- Open door alarm
- Magnetic door gasket
- Temperature memory function
- Internal fan
- Digital thermostat
- Hospital grade cord with 'green dot' plug
- Fixed center shelf
- Flat door liner
- Foamed-in-place cabinet
- LED lighting
- Self-closing door
- Pocket handle
- Fully finished white cabinet
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
| Nominal Height |
34.0" (86 cm) |
| Height of Cabinet |
34.0" (86 cm) |
| Nominal Width |
24.0" (61 cm) |
| Width |
23.5" (60 cm) |
| Width with Door Open |
23.75" (60 cm) |
| Nominal Depth |
22.0" (56 cm) |
| Depth |
21.88" (56 cm) |
| Depth with door at 90° |
43.63" (111 cm) |
| Capacity |
3.88 cu.ft. (110 L) |
| Defrost Type |
Automatic |
| Door |
White |
| Cabinet |
White |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
2.0 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
81.6 lbs. (37 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101082943 |
|
Refrigerator Features
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Shelf Type |
Wire |
| Shelf Qty |
3 |
| Adjustable Shelves |
Yes |
| Thermostat Type |
Digital |
| Fan Type |
Interior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.23oz. |
| High Side PSI |
1.45 |
| Low Side PSI |
0.8 |
| Level Legs Qty |
2 |
| Interior Light |
Yes |
| Temperature Range |
2º to 8ºC |
| Sound Level |
40.9 dB |
|
Dimensions
|
| Interior Height |
25.88" (66 cm) |
| Interior Width |
18.75" (48 cm) |
| Interior Depth |
16.5" (42 cm) |
| Compressor Step Height |
4.0" (10 cm) |
| Compressor Step Width |
18.75" (48 cm) |
| Compressor Step Depth |
11.5" (29 cm) |
