Summit ADFD243OS 24" Wide Outdoor 2-Drawer All-Freezer, ADA Compliant, Weatherproof Outdoor Construction, Frost-Free Operation, Digital Thermostat and LED Controls

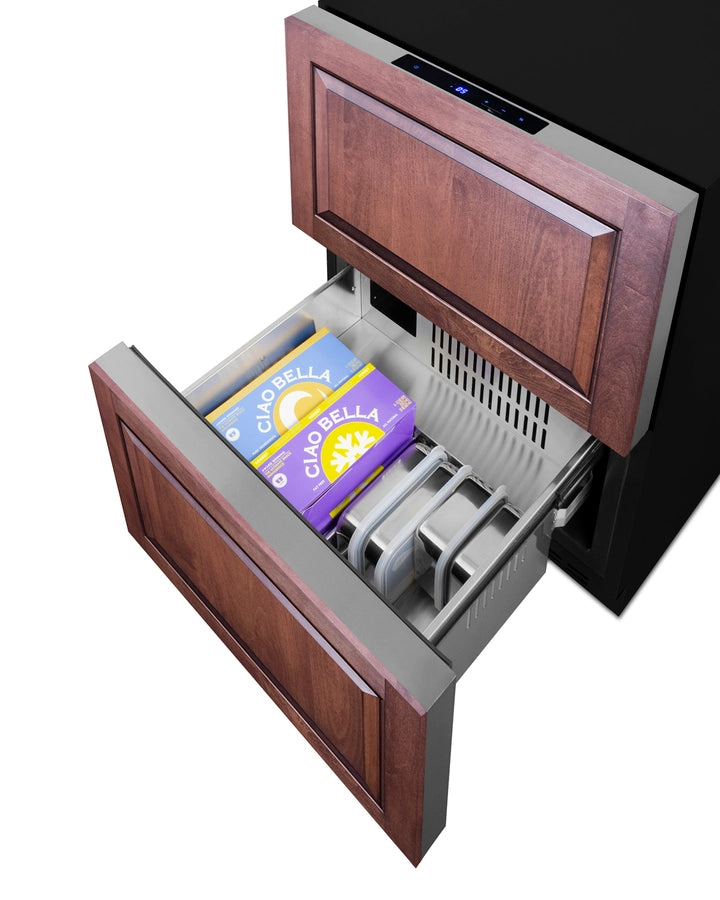

Sized at just under 24" wide and 32" high, model ADFD243OS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick).
Inside, the ADFD243OS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ADFD243OS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching outdoor refrigerator drawer (model ADRD241OS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244OS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide outdoor refrigerator drawers.
Features:
- 2-Drawer All-Freezer
- 24" wide 3.7 cu.ft. freezer with two gliding drawers
- Weatherproof design for outdoor use
- Durable construction allows safe installation in outdoor kitchens
- ADA compliant design
- Sized just under 32" high to allow installation under lower ADA compliant counters
- Built-in capable
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

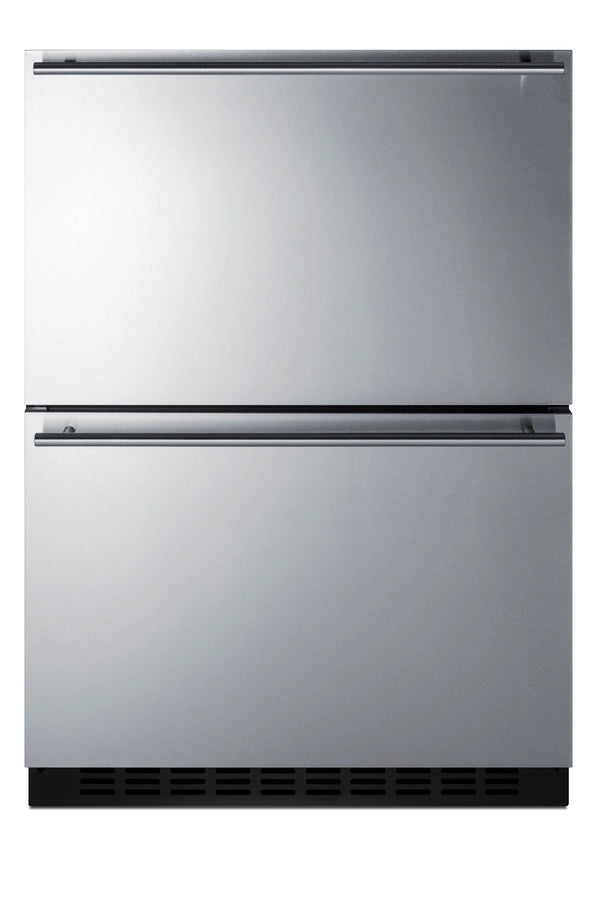

- Stainless steel drawers
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

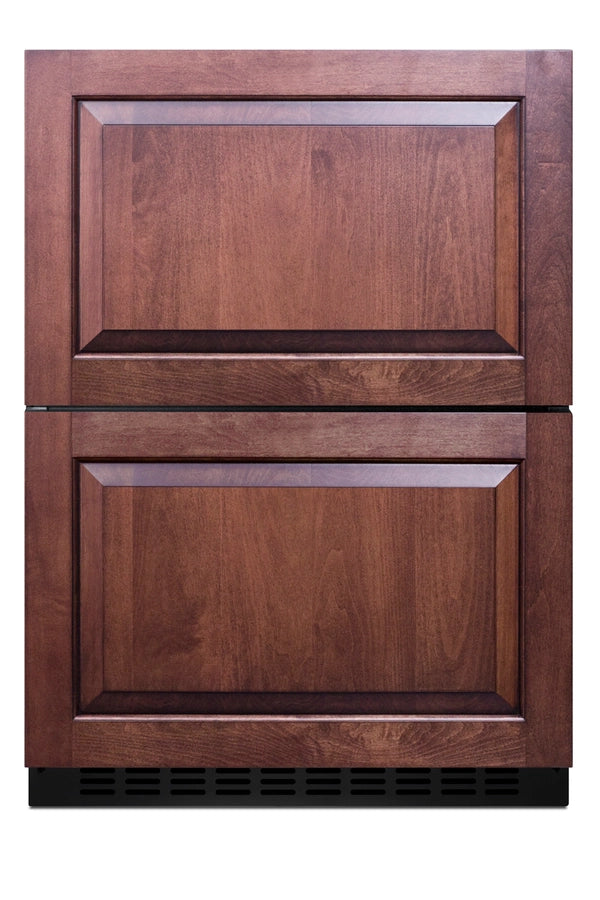

- Panel-ready drawer fronts
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
- Professional handles
- Sleek stainless steel handles add an elegant touch to any setting
- Frost-free operation
- No-frost operation for minimum user maintenance

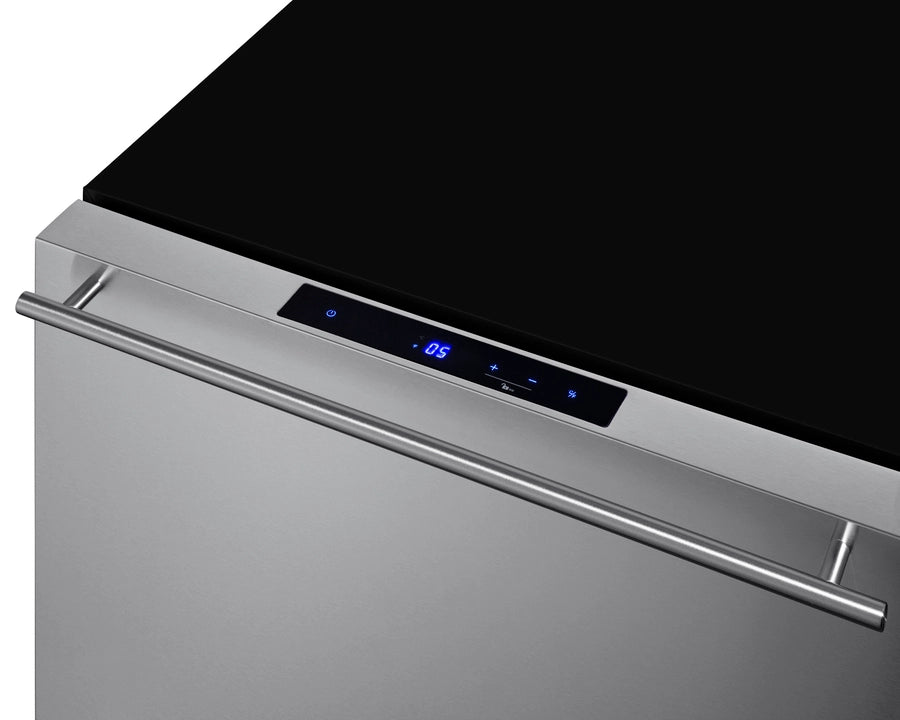

- Digital thermostat
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- LED lighting
- Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
- Internal fan
- Fan-forced cooling ensures even temperature distribution from top to bottom
- Drawer dividers
- Two adjustable dividers make it easier to organize the drawer interiors

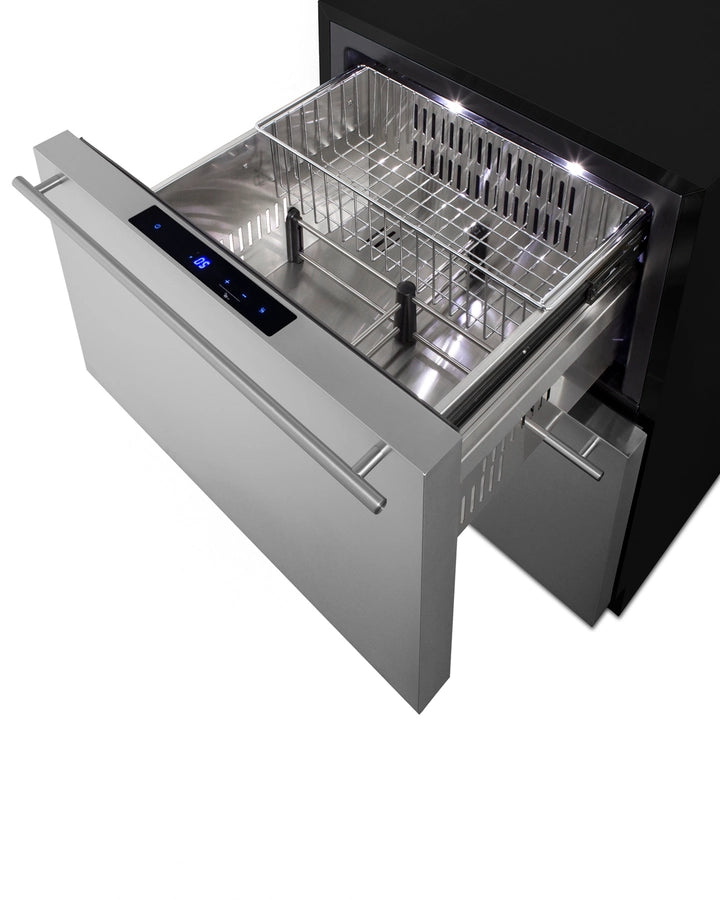

- Sliding basket
- Removable chrome basket included for added storage convenience
- Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open drawer alarm
- Audible alarm will sound if either drawer is left open longer than one minute
- Sabbath Mode
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- SuperFreezer function
- Allows you to lower the temperature and continuously run the compressor for short periods of time, ideal for recently loaded groceries
- Child lock
- Disables digital controls after two minutes of activity for added safety
- Temperature Memory Function
- Unit will restore the most recent temperature settings after losing power
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils for easier cleanability and added protection from the elements
- Fully finished black exterior cabinet
- Allows the freezer to be used as a freestanding model
- Anti-tip bracket
- Included and recommended for user-installation to reduce the risk of tipping
- Commercially approved
- ETL-S listed to NSF-7 standards to allow use in commercial establishments
- Matching refrigerator
- Pair with the ADRD241 refrigerator to create a complete 2-drawer undercounter set
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- STAR-K Certified
- Complies with kosher requirements for use during the Sabbath and Jewish holidays
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 34.25" (87 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 395.0kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088174 |
|
Freezer
|
|
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Interior Drawers | Yes |
| Drawers Qty | 2 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 17.0" (43 cm) |
| Interior Depth - Drawer 1 | 14.5" (37 cm) |
| Interior Height - Drawer 2 | 8.0" (20 cm) |
| Interior Width - Drawer 2 | 17.0" (43 cm) |
| Interior Depth - Drawer 2 | 14.5" (37 cm) |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 3.5" (9 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
