Summit ASDS1523 15" Wide Built-In All-Refrigerator, ADA Compliant, 1.72 cu.ft., Frost-Free Operation
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDS1523 is a 15" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle.

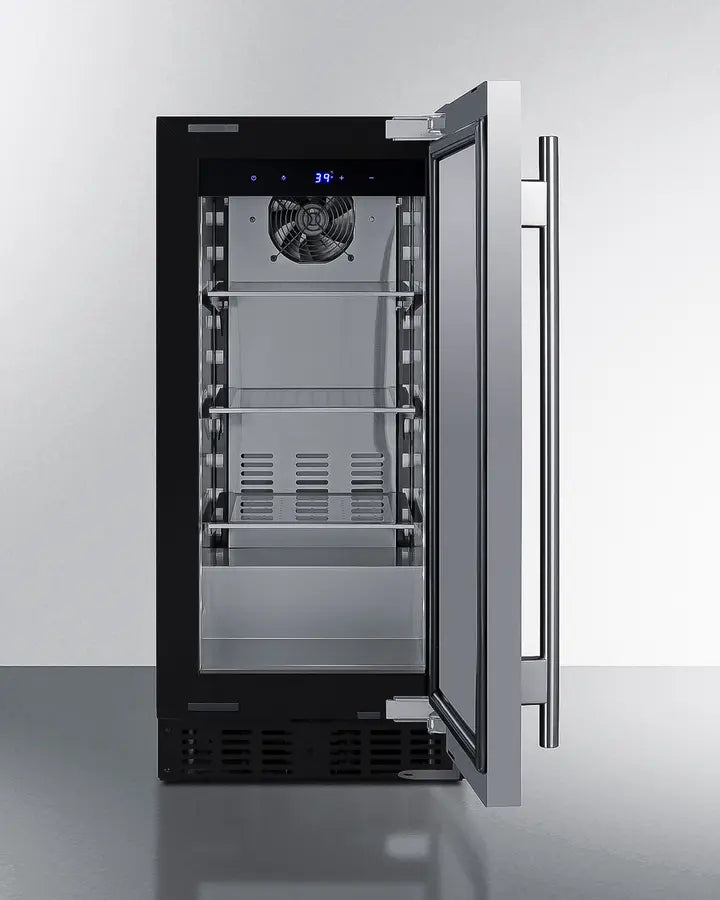

Inside, the ASDS1523 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
Features:
• 15" wide all-refrigerator
• Less than 18" deep
• ADA compliant design
• Adjustable height
• Built-in capable
• Stainless steel interior
• Stainless steel door
• Factory-installed lock
• Professional handle
• Frost-free operation
• Fan-forced cooling
• Digital thermostat
• Dimmable LED lighting
• Cantilevered shelving
• Open door alarm
• High temperature alarm
• Sabbath mode setting
• Temperature Memory Function
• Fully articulating European style hinge
• Right angle plug
• Sealed back
• Reversible door
• Fully finished black cabinet
• 100% CFC free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.75" (50 cm) |
| Depth with door at 90° | 31.25" (79 cm) |
| Capacity | 1.72 cu.ft. (49 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 235.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 59.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079523 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Reversible |
| Reversible | Yes |
| Height Adjustable | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33 dB |
|
Dimensions
|
|
| Interior Height | 24.25" (62 cm) |
| Interior Width | 10.75" (27 cm) |
| Interior Depth | 12.38" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
