Summit ASDS2413IF 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included), 3.1 cu.ft., Frost-Free Operation
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

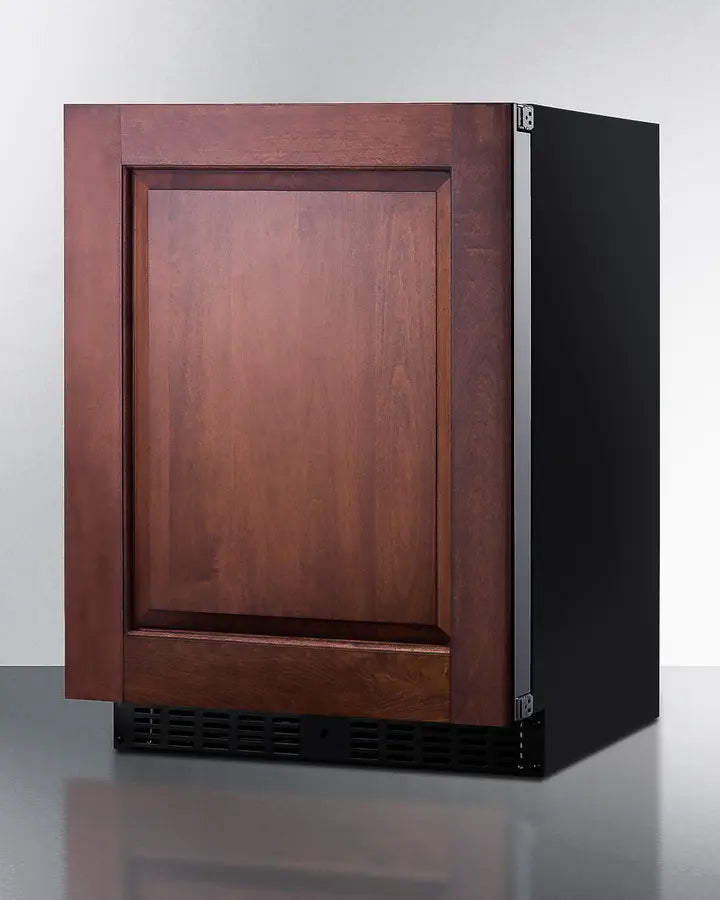

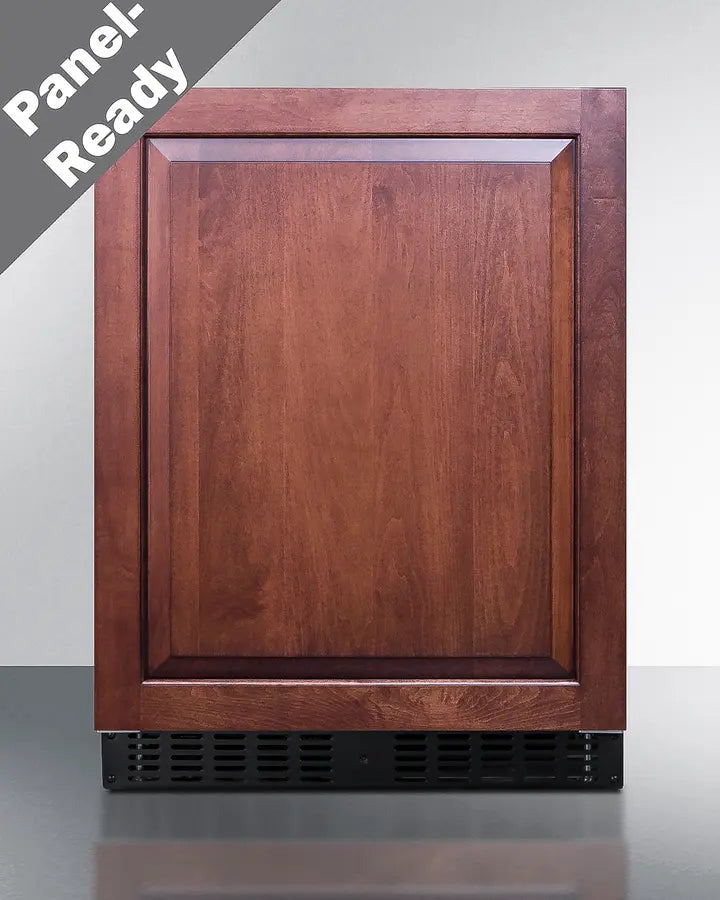

Model ASDS2413IF is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). Note: this unit ships with a handle for optional use (not shown in image). Customers may also supply their own (as shown) to better match their existing cabinetry.

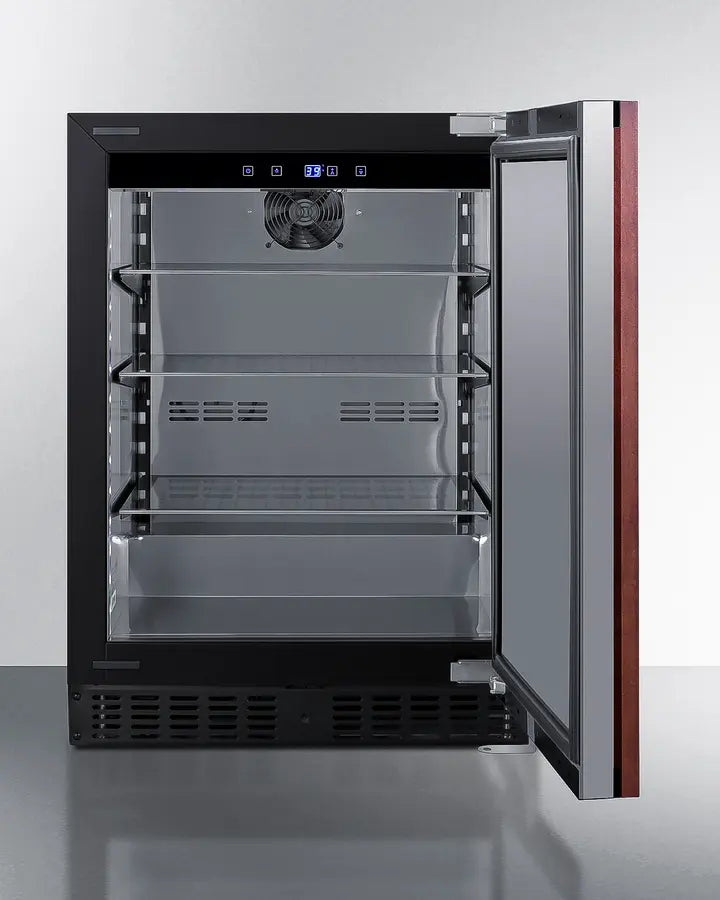

Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
Features:
• 24" Wide Shallow Depth All-Refrigerator
• Less than 18" deep
• ADA compliant design
• Adjustable height
• Built-in capable
• Panel-ready door
• Stainless steel door
• Factory installed lock
• Frost-free operation
• Stainless steel interior
• Internal fan
• Digital thermostat
• Dimmable LED lighting
• Cantilevered shelving
• Open door alarm
• High temperature alarm
• Sabbath mode setting
• Temperature Memory Function
• Fully articulating European style hinge
• Right angle plug
• Sealed back
• Fully finished black cabinet
• 100% CFC Free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 40.0" (102 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 215.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 89.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088822 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.9 dB |
|
Dimensions
|
|
| Interior Height | 24.25" (62 cm) |
| Interior Width | 19.5" (50 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.25" (11 cm) |
