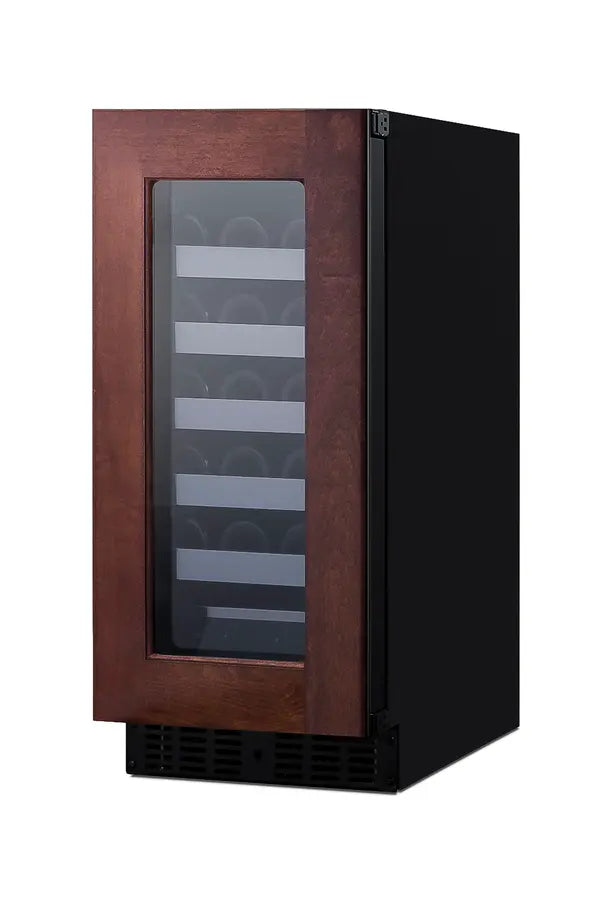

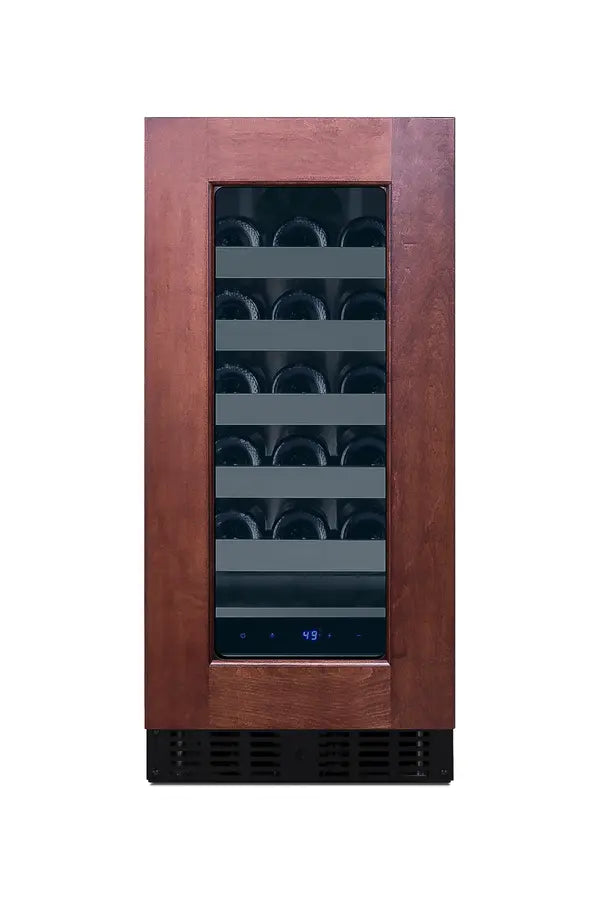

Summit ASDW1522PNRLHD 15" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included), Left Hand Door Swing
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Summit ASDW1522PNRLHD 15" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included), Left Hand Door Swing, Front-Breathing Built-In Capability, Digital Thermostat and Fan Cooling
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDW1522PNRLHD is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door ships with a left hand door swing and includes a front lock to protect your collection.
Inside, the ASDW1522PNRLHD features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521PNR beverage center.
Features:
- 15" wide wine cellar
- Single zone wine cooler for residential cold storage
- Less than 18" deep
- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- ADA compliant
- Sized at 32" high for use under lower ADA compliant counters
- Adjustable height
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Double pane tempered glass door
- Elegant design offers a clear but protected view of your interior

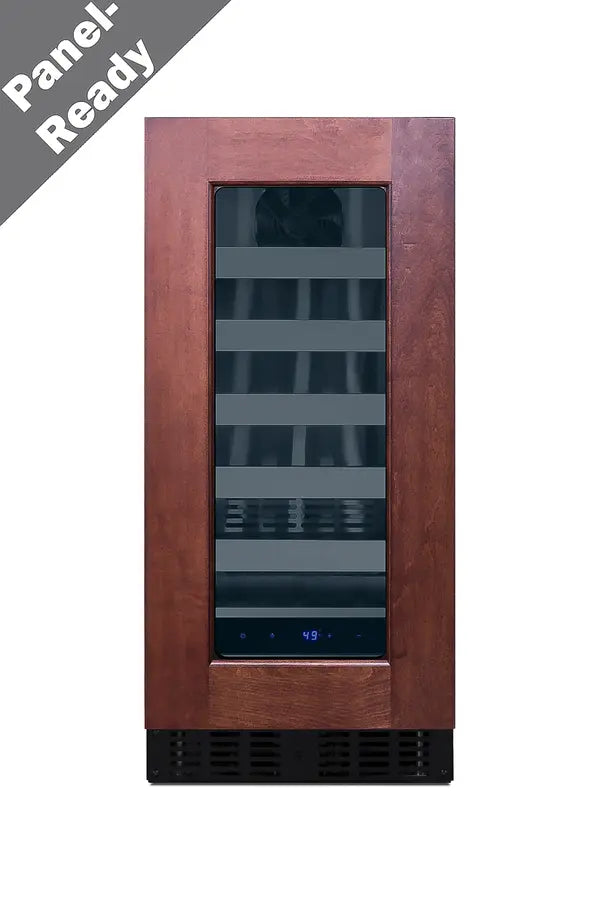

- Panel-ready door
- European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame
- Seamless stainless steel door trim
- Glass is framed by with a flush one-piece stainless steel trim for an elevated look
- Stainless steel interior
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Factory installed lock
- Keyed lock for a secure interior (2 keys included)
- Digital thermostat
- Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

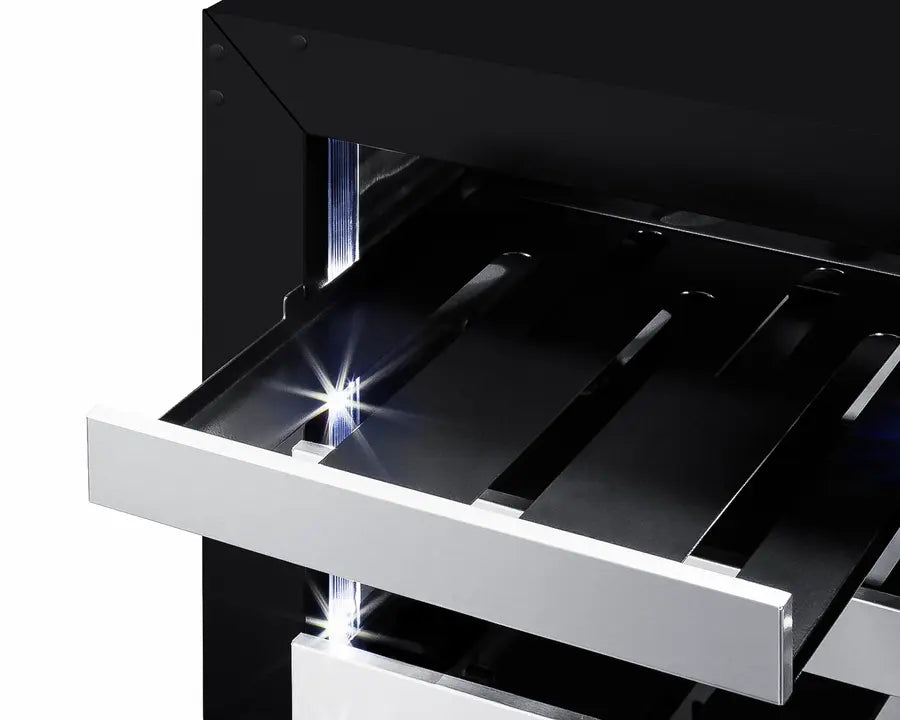

- Premium wine shelving
- Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
- Dimmable LED lighting
- Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
- Frost-free operation
- No-frost operation for minimum user maintenance
- Internal fan
- Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
- Open door alarm
- Alarm sounds if the door is left open for more than 60 seconds
- High temperature alarm
- Audible alarm sounds if the interior temperature rises out of set range
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils that offers easier cleanability
- Fully articulating European style hinge
- Smoother opening and a better fit with an integrated European hinge
- Left
- For this unit with the door opening from the other side, see model ASDW1522PNR
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- STAR-K Certified
- Complies with kosher requirements for use during the Sabbath and Jewish holidays
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.75" (45 cm) |
| Depth with door at 90° | 31.0" (79 cm) |
| Capacity | 1.8 cu.ft. (51 L) |
| Bottles | 18 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 68.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101108193 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | LHD |
| Reversible | No |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 20.5" (52 cm) |
| Interior Width 1 | 10.75" (27 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.75" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
| Sound Level | 33 dB |
