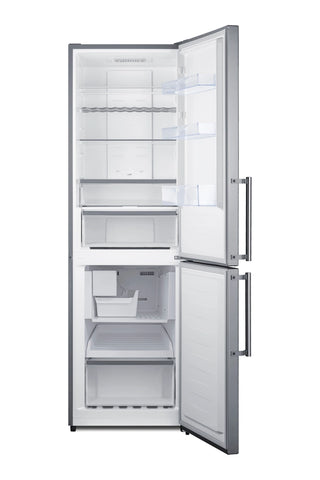

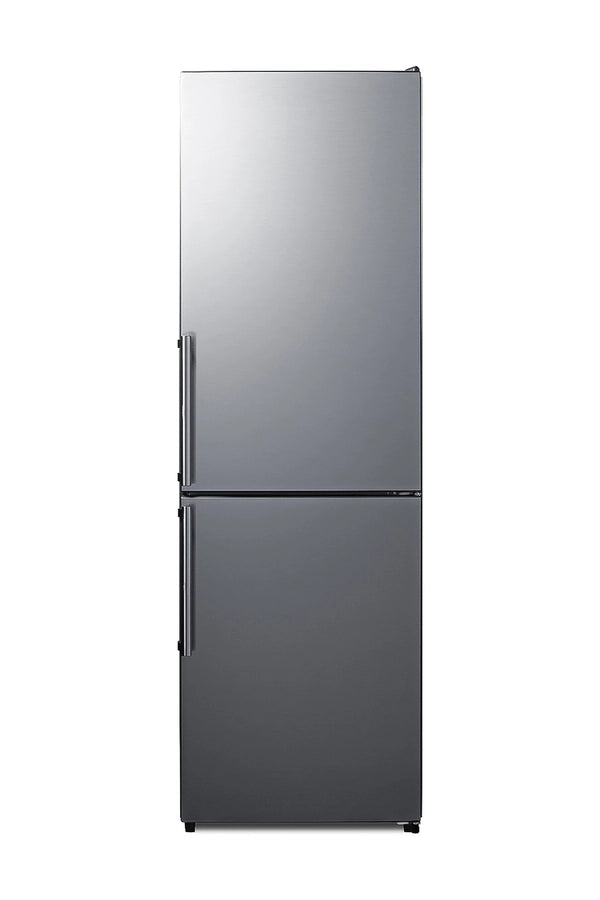

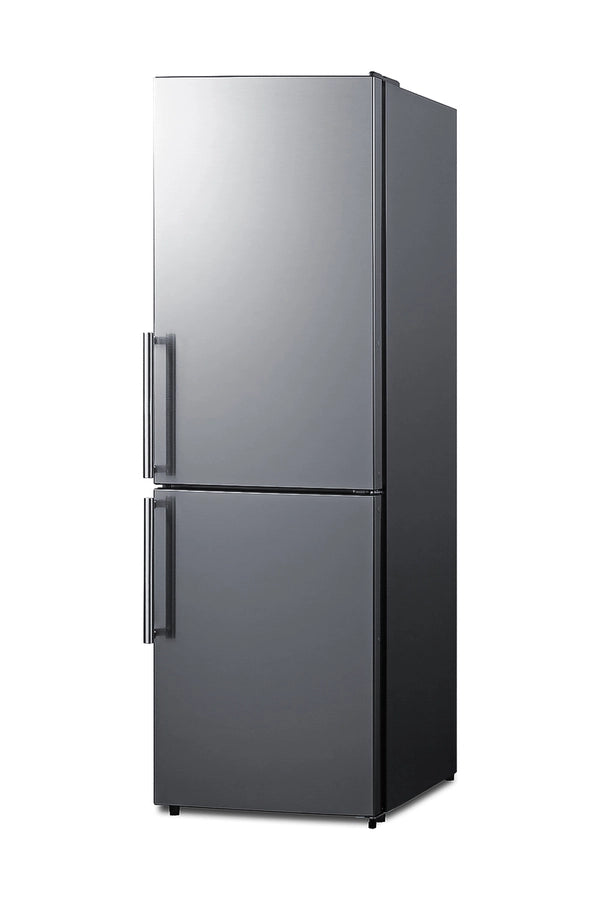

Summit FFBF235PLIM 24" Wide 10.8 cu.ft. Bottom Freezer Refrigerator with Icemaker Counter Depth, Ultra-Quiet Operation, Frost-Free Operation, Super Freeze Function
Summit's thin-line series of counter-depth bottom freezer refrigerators conserves space but adds quality and function with innovative features, convenient sizes, and energy-efficient operation.
At 23.25" deep and 23.5" wide, the FFBF235PLIM offers 10.8 cu.ft. of storage capacity, ideal for space-challenged kitchens with complete refrigeration needs. Reversible doors allow you to adjust the door swing to best suit your space. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience, paired with two handles in the same finish. The side cabinet features a textured gray finish. The unit comes with a sealed back and right-angle plug for added space savings in smaller kitchens.

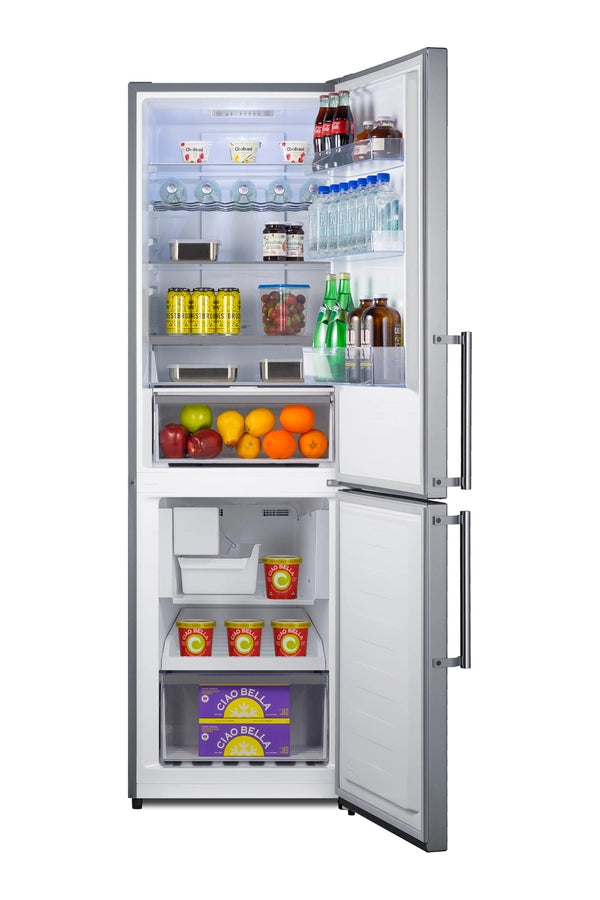

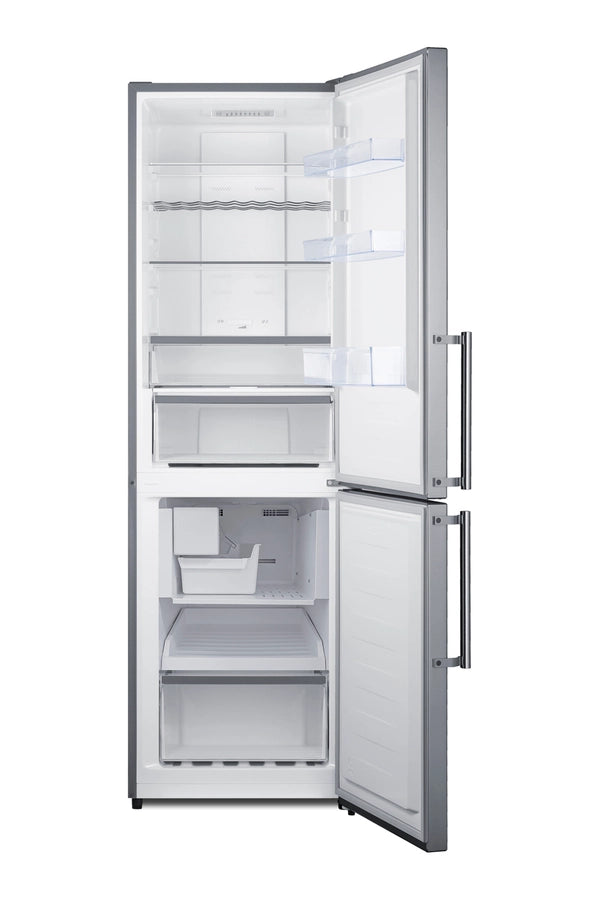

Inside, the FFBF235PLIM is designed for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes adjustable shelves made from safety glass for durability and easy cleaning. An innovative touch control system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. Super Freeze setting allows you to rapidly cool the freezer section, which is ideal for newly loaded groceries. The unit is laboratory-tested to ensure quiet operation at under 33 decibels.
Our FFBF235PLIM includes a large humidity-controlled crisper drawer and a second meat drawer that can hold colder temperatures for deli items or easily convert to a regular crisper. The large freezer section features one shelf and a slide-out storage drawer with clear plastic front to help to protect your frozen goods from warmer ambient temperatures when the door is opened. A factory-installed icemaker keeps a full supply of cubes at all times.
Features:
- Counter Depth Bottom Freezer Refrigerator

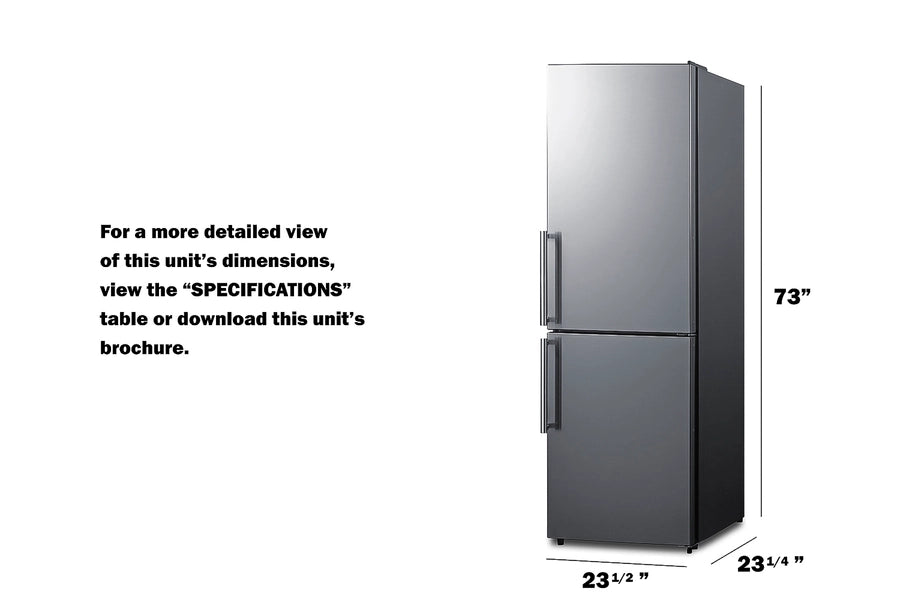

- 10.8 cu. Ft. Refrigerator-freezer in a unique 23.5" W x 23.25" D fit is ideal for smaller kitchens and apartments
- No-frost operation
- Frost-free operation for minimum user maintenance
- Stainless steel look
- Doors offer the look of stainless steel complete with a horizontal grain but the easier cleanability of a fingerprint-resistant steel finish

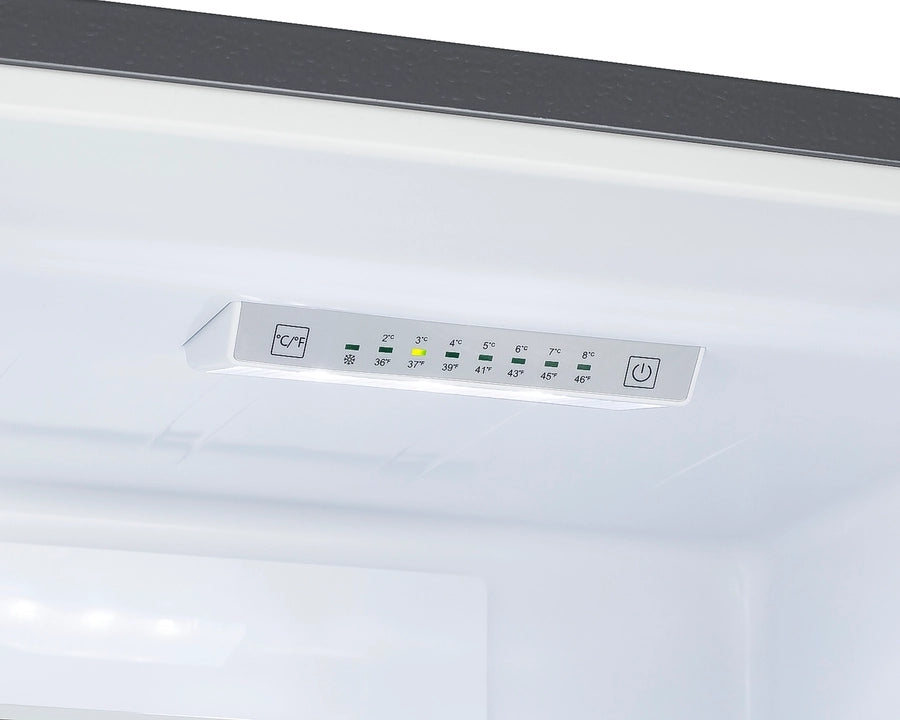

- Digital controls
- Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator temperature at the touch of a button
- Factory-installed icemaker
- Enjoy a steady supply of cubes in the freezer section
- Humidity controlled crisper
- Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables
- Convertible crisper/deli drawer
- Additional crisper allows you to store meats and deli items at a slightly colder temperature or convert to a second crisper using the easy slide control
- Adjustable glass shelves
- Steel-trimmed shelves users can rearrange to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Adjustable door storage
- Store tall bottles and condiments right on the door for convenient access
- Scalloped steel rack
- The unit features one adjustable scalloped rack to store and chill your favorite beverages
- Interior LED lighting
- Refrigerator section includes automatic LED lighting for an energy-efficient view
- Quiet operation
- Runs at just 32.9 dB for a quiet performance that won't disturb anyone in your kitchen
- Intensive freezing function
- Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature
- Bottom freezer drawers
- Two slide-out freezer drawers include clear plastic fronts to maximize convenience and accessibility
- Easy-to-use ice tray included
- Includes a convenient ice tray with a storage bin and crank system for easier ice retrieval

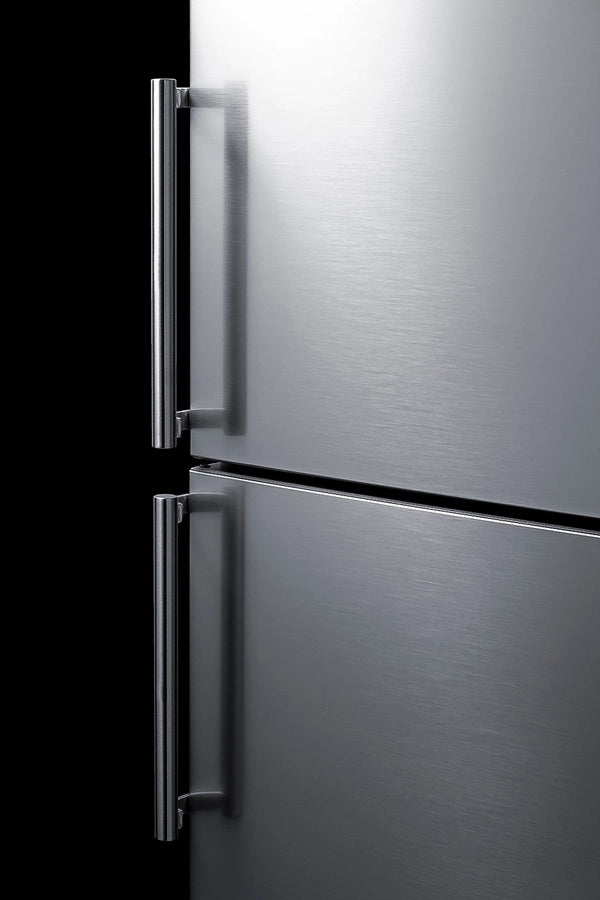

- Designer handles
- Brushed steel handles offer a modern look for the refrigerator
- Fully finished cabinet
- Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding
- Sealed back
- Space-saving convenience with easier cleanability
- Reversible doors
- User-reversible door swing for added flexibility
- Right angle plug
- The right-angle design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Lead-free certified
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 73.0" (185 cm) |
| Height of Cabinet | 72.5" (184 cm) |
| Height to Hinge Cap | 73.0" (185 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 44.63" (113 cm) |
| Capacity | 10.8 cu.ft. (306 L) |
| Defrost Type | Frost-Free/Automatic |
| Door | Stainless Look |
| Cabinet | Gray |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 475.0kWh/year |
| Amps | 1.3 |
| Plug Type | NEMA 5-15P |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 135.0 lbs. (61 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161136 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Interior Drawers | Yes |
| Drawer Qty | 4 |
| Crisper Qty | 2 |
| Crisper Finish | Transparent |
| Crisper Cover | Plastic |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 37.0" (94 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.75" (45 cm) |
| Refrigerator - Capacity | 7.35 cu.ft |
| Refrigerator - Shelf Type | Glass and Scalloped |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 2 |
| Freezer - Interior Height | 26.75" (68 cm) |
| Freezer - Interior Width | 17.0" (43 cm) |
| Freezer - Interior Depth | 14.0" (36 cm) |
| Freezer - Capacity | 3.43 cu.ft |
| Freezer - Shelf Type | Drawers |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 88.0 |
| Level Legs | 2 |
| Interior Height - Drawer 1 | 5.5" (14 cm) |
| Interior Width - Drawer 1 | 20.5" (52 cm) |
| Interior Depth - Drawer 1 | 12.0" (30 cm) |
| Interior Height - Drawer 2 | 8.0" (20 cm) |
| Interior Width - Drawer 2 | 20.5" (52 cm) |
| Interior Depth - Drawer 2 | 16.5" (42 cm) |
| Interior Height - Drawer 3 | 9.5" (24 cm) |
| Interior Width - Drawer 3 | 17.0" (43 cm) |
| Interior Depth - Drawer 3 | 12.75" (32 cm) |
| Interior Height - Drawer 4 | 9.0" (23 cm) |
| Interior Width - Drawer 4 | 17.0" (43 cm) |
| Interior Depth - Drawer 4 | 8.5" (22 cm) |
| Compressor Step Height | 10.0" (25 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Sound Level | 32.9 dB |
