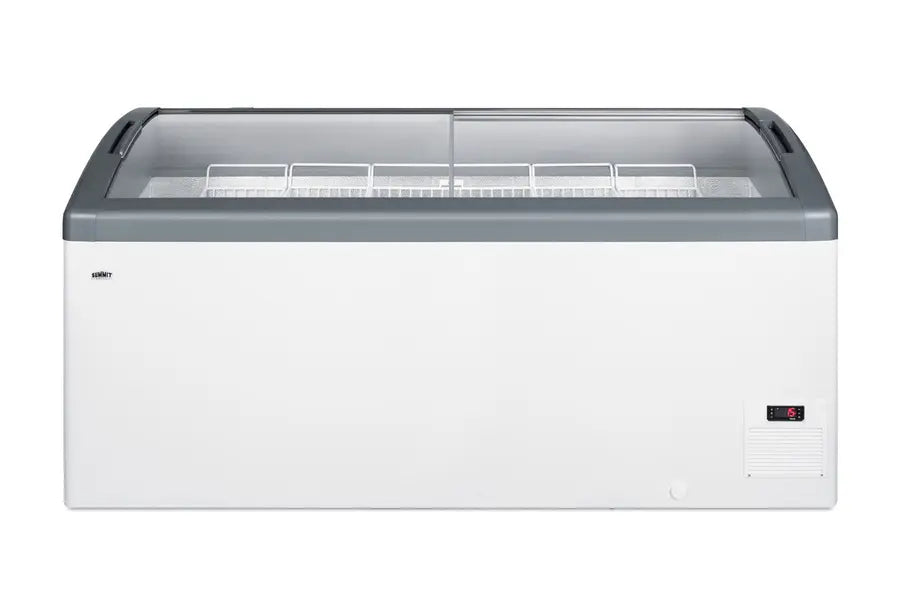

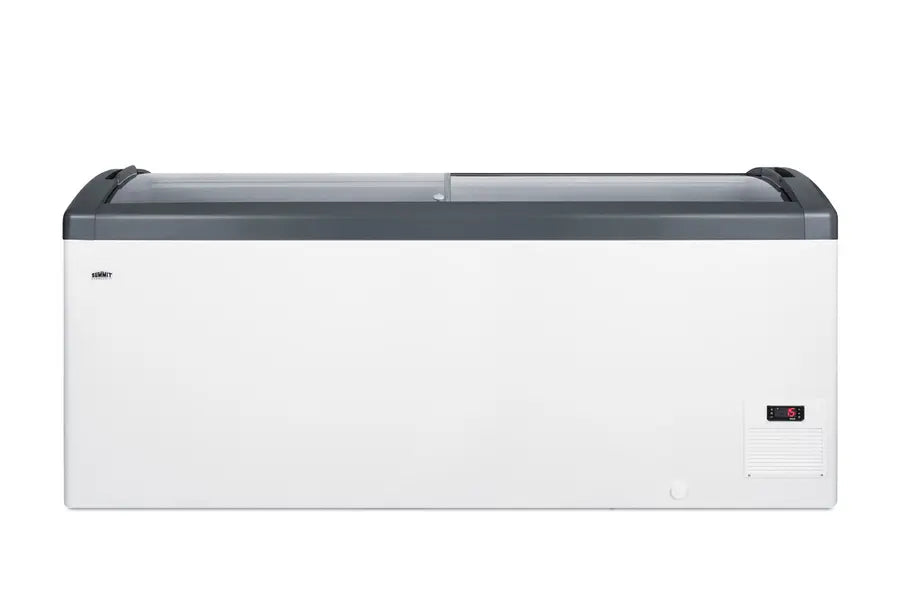

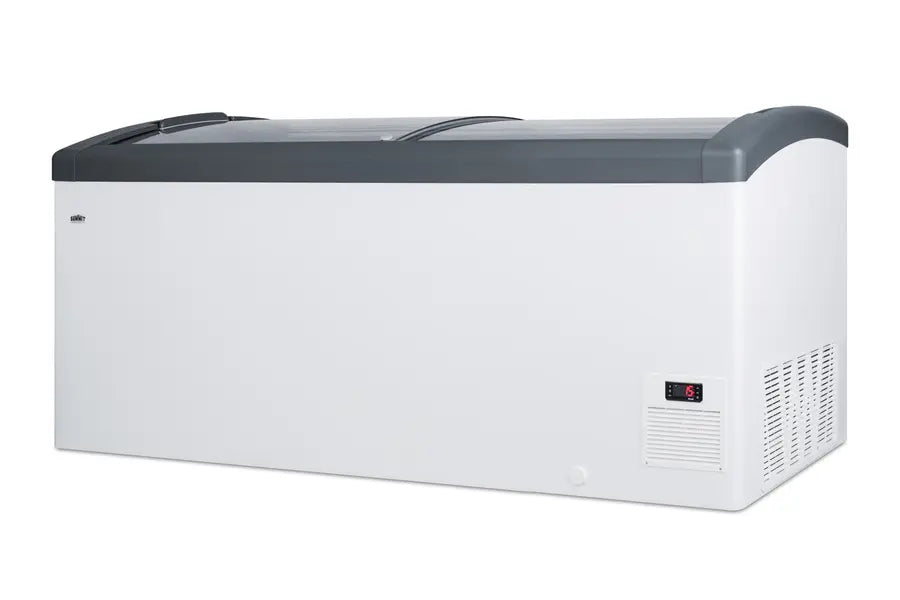

Summit FOCUS171 67" Wide Curved Top Chest Freezer, 17 cu.ft. NSF-7 Commercial Approved with Digital Thermostat and Glass Sliding Lids
Summit Commercial's line of curved top ice cream freezers features a deluxe European design to provide quality storage and an optimum product display.
Made for us by Elcold in Denmark, the FOCUS171 features two tempered glass lids on ball-bearing glides that open smoothly for added efficiency. The angled top offers increased visibility to help maximize impulse sales. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.
Inside, the FOCUS171 features hammered aluminum walls designed for lasting durability in busy commercial settings. We include six epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.
The FOCUS171 is UL-S listed to NSF-7 commercial standards. Additional sizes are available.
Features:
- Commercially approved
- UL-S listed to NSF-7 Standards for use in commercial establishments
- Digital thermostat
- Electronic controls for more precise temperature management
- Wide temperature range
- Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
- Baskets included
- Six epoxy-coated wire baskets included to store novelty items
- Angled top
- Curved design makes it easier for customers to view interior contents

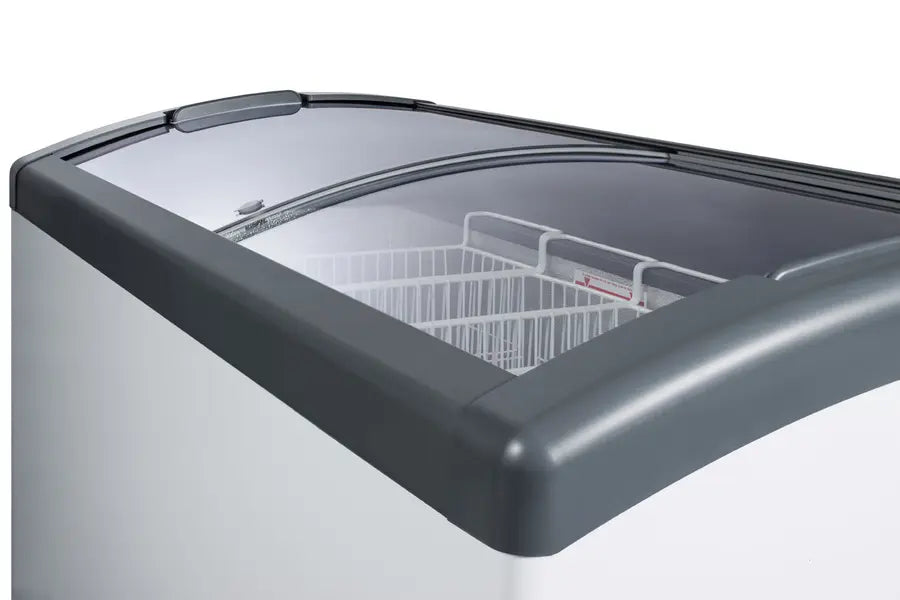

- Sliding glass lid
- Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency
- Strong insulation
- 3" thick insulation helps to ensure items stay cold
- Manual defrost
- Static cooling system for improved temperature stability

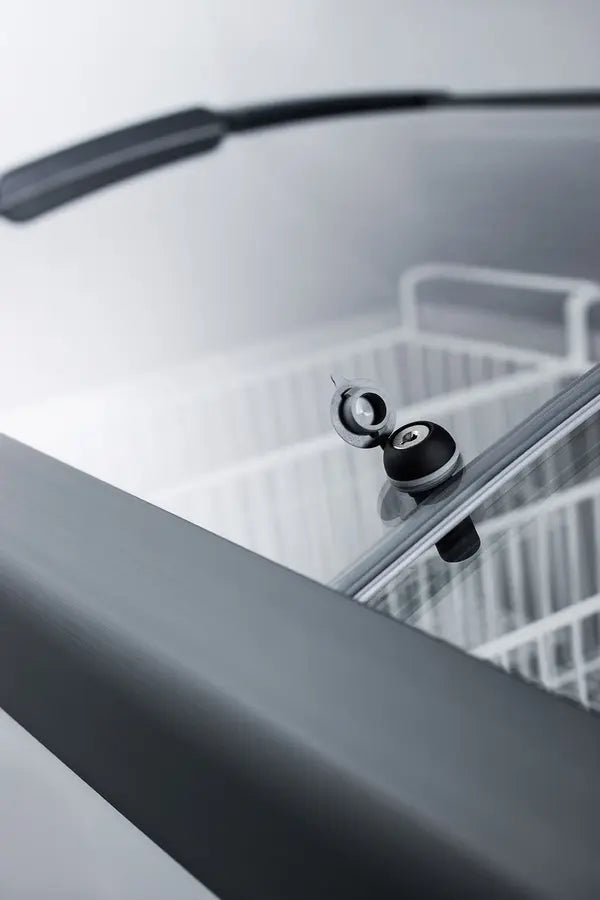

- Removable lock
- A keyed lock is included for optional use
- Hammered aluminum interior
- Durable and easy to clean
- Casters
- Heavy duty wheels for smooth mobility (ship unassembled)
- Fan-cooled compressor
- Offers improved temperature performance throughout the interior
- Defrost drain
- Front located for easier defrosting
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 31.0" (79 cm) |
| Height of Cabinet | 30.75" (78 cm) |
| Nominal Width | 67.0" (170 cm) |
| Width | 67.0" (170 cm) |
| Nominal Depth | 26.0" (66 cm) |
| Depth | 25.88" (66 cm) |
| Capacity | 17.1 cu.ft. (484 L) |
| Defrost Type | Manual |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | UL-S |
| Amps | 7.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 161.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101060248 |
|
Freezer
|
|
| Door Swing | Sliding |
| Interior Height | 20.75" (53 cm) |
| Interior Width | 61.0" (155 cm) |
| Interior Depth | 19.63" (50 cm) |
| Thermostat Type | Digital |
| Refrigerant Type | R290 |
| Refrigerant Amount | 3.74 oz. |
| High Side PSI | 345.0 |
| Low Side PSI | 140.0 |
| Compressor Step Height | 9.75" (25 cm) |
| Compressor Step Width | 7.88" (20 cm) |
| Compressor Step Depth | 19.63" (50 cm) |
| Temperature Range | -13 to 23ºF |
