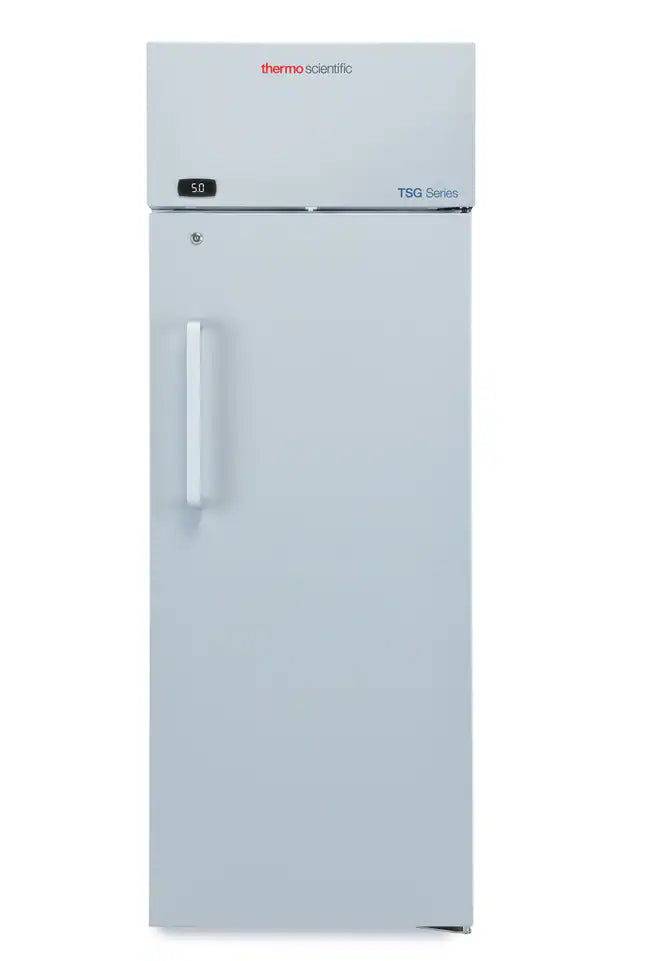

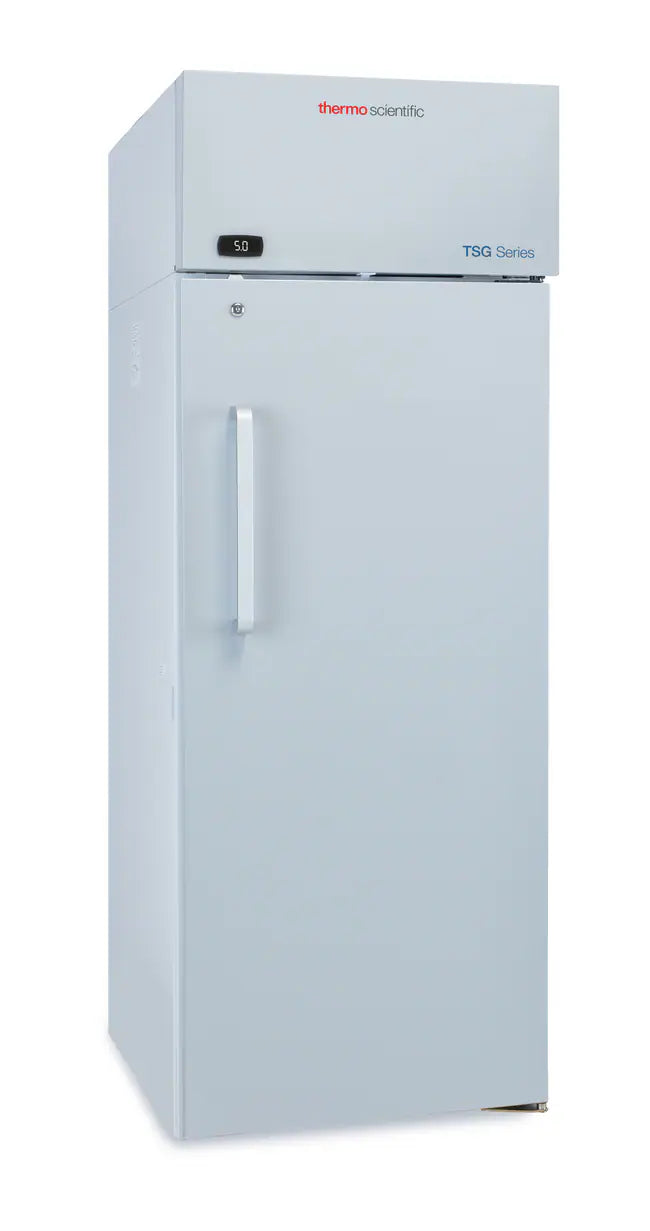

Thermo Scientific TSG2305SA Upright Laboratory Refrigerator, 23 cu.ft. with 1 Solid Swing Door and Heat-Free Defrost

Thermo Scientific™ TSG Series solid door laboratory refrigerators are engineered for quiet, intuitive operation, offering consistent temperature performance, exceptional energy efficiency, and long-term reliability for demanding clinical, medical, and scientific environments.

Model TSG2305SA is a high-performance general-purpose laboratory refrigerator configured with a 23 cu.ft. (650 L) footprint to optimize media and reagent storage. The single heavy-duty solid swing door provides an insulated thermal barrier against ambient room temperatures, while the advanced heat-free defrost type ensures uniform temperature maintenance without risking sample integrity during cyclical clearances. Built with zero-waste-to-landfill sustainability in Asheville, North Carolina, this model features a painted steel cabinet and an award-winning eco-friendly architecture. The front-facing configuration includes a premium self-closing door system with a $90^\circ$ stay-open stop designed to assist facility personnel during heavy inventory loads, establishing commercial-grade convenience in any workflow.

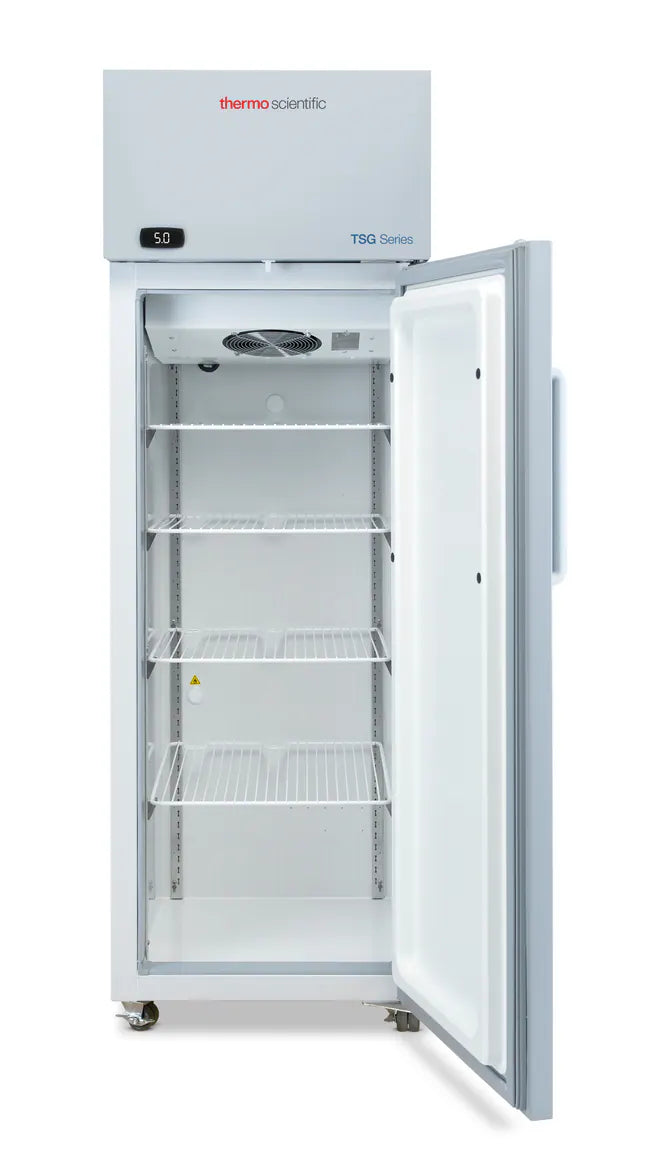

Inside, the TSG2305SA features a high-visibility white painted interior illuminated by vibrant, bright LED lighting. The layout is outfitted with 4 adjustable epoxy-coated shelves capable of handling heavy laboratory assets up to 100 lbs per shelf. Driven by a capacitive touch microprocessor control panel with a strict $+5^\circ\text{C}$ factory setpoint, it monitors visual/audible alarms and enforces setpoint security. Fully compatible with Thermo Scientific™ Smart-Vue™ Pro wireless tracking and built with standard key-lock access, this whisper-quiet, ultra-reliable refrigerator delivers compliant, eco-conscious sample protection directly into the modern laboratory workstation.

Features:

• Optimized 23 cu.ft. Capacity
• High-performance laboratory refrigerator designed to safely preserve media, reagents, and clinical-grade materials requiring an exceptionally stable temperature range.
• Smart Capacitive Touch Controls
• Equipped with an intuitive capacitive touch microprocessor control panel featuring interior light access, strict setpoint security parameters, and proactive system alarms.
• Whisper-Quiet Operation
• Acoustically insulated compressor design operates at a low sound level of just 52 dBA, allowing clinical and research personnel to work alongside the unit without distraction.
• Self-Closing Solid Door
• Features a robust, insulated solid swing door with an ergonomic handle and a built-in $90^\circ$ stop mechanism to maximize thermal retention and assist with heavy inventory loads.
• Flexible Epoxy-Coated Shelving
• Outfitted with 4 convenient, easy-to-clean adjustable full and half shelves, with each wire shelf engineered to hold up to 100 lbs (45 kg) safely.
• Verified ACT & SNAP Sustainability
• ACT Environmental Impact Factor Label Certified and powered by natural R290 hydrocarbon refrigerants and water-blown foam to comply fully with EPA SNAP and EU F-Gas regulations.
• Smart-Vue Pro Wireless Readiness
• Built ready for wireless monitoring systems and remote alarm contacts, allowing seamless integration with Thermo Scientific™ Smart-Vue™ Pro tracking hardware.
• Comprehensive Standard Access Lock
• Equipped with a standard integrated physical key lock to prevent unauthorized machinery access and enforce asset safety security.
• Rigorous Certification Compliance
• Tested and certified to conform with the strict design and safety standards of UL 61010, cULus, ENERGY STAR, and CE Directives 2011/65/EU and 2015/863.

Specifications:

• Model: TSG2305SA
• Capacity: 23 cu.ft. / 650 Liters
• Defrost Type: Heat-Free Defrost
• Door Style / Type: 1 Solid Swing Door
• Number of Shelves: 4 Adjustable Epoxy-Coated Wire Shelves
• Shelf Capacity: 100 lbs (45 kg) per shelf
• Temperature Range: 3°C to 7°C
• Factory Temperature Setpoint: +5°C
• Intended Use: General Purpose Laboratory Use
• Application: Upright Laboratory Refrigerator
• Control Interface: Capacitive Touch Microprocessor
• Refrigerant Type: Natural R290 Hydrocarbon
• Cabinet / Finish: Painted Steel Exterior with White Interior
• Sound Level: 52 dBA
• Rear Access Ports: 1 Rear Access Port
• Connectivity Compatibility: Smart-Vue Pro, Remote Alarm Contacts
• Plug / Electrical Requirements: NEMA 5-15 Plug / 115V, 60Hz
• Manufacturing Origin: Asheville, North Carolina, USA (Zero-waste to landfill facility)
• Certifications: cULus, ENERGY STAR, CE Directive, ACT Certified
• UNSPSC Code: 41103011
• Warranty: 4 Years Parts and Labor + 1 Additional Year on the Compressor

Dimensions:

• Exterior Dimensions (D x W x H): 37.9" x 28.0" x 78.5" (96.2 x 71.1 x 199.4 cm)
• Interior Dimensions (D x W x H): 28.5" x 24.0" x 58.0" (72.3 x 61.0 x 147.3 cm)
• Product Weight: 366 lbs (166.0 kg)
• Shipping Weight: 426 lbs (193.0 kg)
