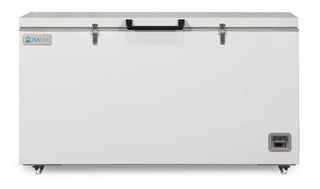

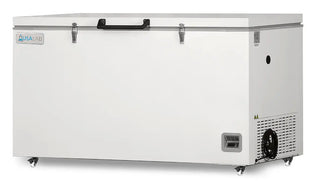

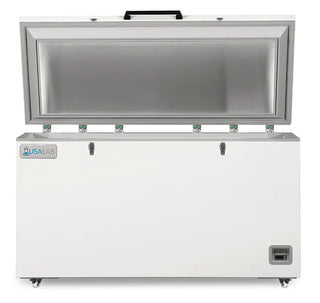

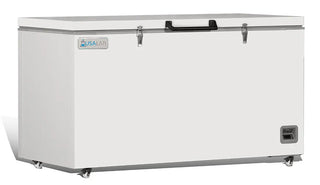

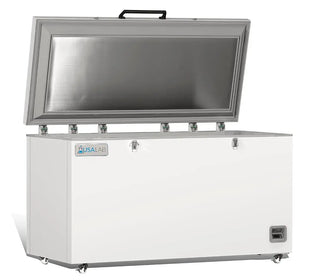

USA UCF-17.12-86 UltraChill 17.12 cu.ft., -86°C Ultra-Low Chest Freezer, Digital Display, 80°C ULT, Advanced Cascade Refrigeration
Introducing our -86°C Ultra Chill Series Chest Freezers — ultra-low temperature storage engineered for research, clinical, and biobanking environments. With a working range of -40°C to -86°C, these freezers safeguard enzymes, vaccines, cell lines, and temperature-sensitive materials with exceptional uniformity and long-term stability.
Advanced auto-cascade refrigeration, microprocessor control, and robust insulation deliver precise setpoint accuracy and energy-efficient performance. Built with a SUS304 stainless steel interior, color-sprayed steel exterior, and integrated safety alarms, the Ultra Chill Series provides dependable cold storage for mission-critical samples.
Features
- High-Capacity Sample Preservation:Featuring a spacious 17.12 cu. ft. (485 Liters) interior, the UCF-17.12-86 provides an expanded footprint designed to maximize rack efficiency and high-density sample storage without sacrificing thermal uniformity.
- Advanced Cascade Refrigeration:Powered by dual commercial-grade compressors operating on natural, environmentally friendly hydrocarbon (HC) refrigerants. This cascade system ensures rapid pull-down times, exceptional temperature recovery after door openings, and lower long-term energy consumption.
- Intuitive Touchscreen Interface:Equipped with a bright 7-inch LCD touchscreen display and a microprocessor controller, allowing operators to monitor real-time system metrics, adjust setpoints effortlessly, and track performance logs with precision.
- Superior Thermal Retention:Engineered with high-density polyurethane foam (PURF) insulation and insulated inner doors to prevent cold-air loss, maintain interior temperature consistency, and protect samples during power outages.
- Comprehensive Multi-Alarm Security:Features an integrated safety system with visual and audible alerts for high/low temperatures, power failure, sensor malfunctions, door-ajar states, and high ambient conditions—supported by a 72-hour battery backup for continuous alarm operation.
- Industrial-Grade Construction:Built for heavy-duty daily use with a powder-coated steel exterior and a seamless, easy-to-sanitize SUS304 stainless steel interior that resists corrosion and chemical degradation.
- Medical & Clinical Research: Preservation of biological tissues, cell lines, DNA/RNA samples, and enzymes.
- Pharmaceuticals & Biologics: Ultra-cold storage of APIs, reagents, vaccines, and biologics.
- Industrial & Materials Testing: Deep-freeze stress testing and specialty cold-chain storage.
Specifications
| Model | USA Lab UCF-17.12-86 UltraChill |
| Capacity | 485 Liters / 17.12 cu ft |
| Sample Storage Capacity | 30,000 Samples (2 ml) |
| Racks & Boxes Capacity | 24 Racks (11×1) + 6 Racks (6×1) / 300 Boxes (2-inch) |
| Temperature Range | −40℃ to −86℃ |
| Ambient Operating Temp. | 10℃ to 32℃ |
| Cooling & Defrost Method | Direct Cooling / Manual Defrost |
| Refrigeration System | Auto-cascade System |
| Refrigerant | R4001 (Mixed Gas) |
| Compressor Brand & QTY | 1 × SECOP Compressor |
| Controller & Display | Microprocessor with LED Digital Display |
| Sensor Type | PTC 100 |
| Exterior Material | Color Sprayed Steel |
| Interior Material | SUS304 Stainless Steel |
| Insulation | Polyurethane Foam (PURF) |

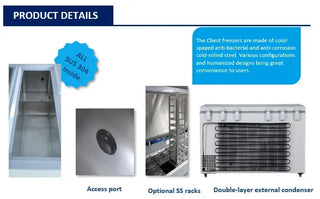

| Access Ports | 1 Port (25 mm Diameter) |
| USB Interface | No |
| Remote Alarm Access | No |
| Safety Alarms (Active) | High/Low Temp, Power Failure, Sensor Error, Thermostat Failure |
| Voltage & Frequency | 110V / 120V (60 Hz) |
| Power Consumption | 670 W |
| Current | 3.16 A |
| Energy Consumption | 13.5 Wh / 24 h |
| Noise Level | 50 dB |
| Interior Dimensions (W×D×H) | 57.2" × 20.7" × 26.5" |
| Exterior Dimensions (W×D×H) | 67" × 33" × 38" |
| Packaging Dimensions (W×D×H) | 69.5" × 35.5" × 42" |
| Net Weight / Shipping Weight | 290 lbs / 340 lbs |
| Optional Accessories | Chart Recorder, Data Logger, $\text{CO}_2$ Backup System, $\text{LN}_2$ Backup System, Protective Glove |
