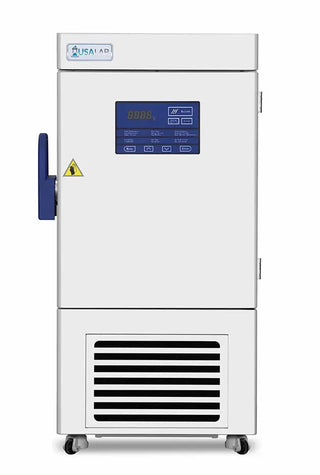

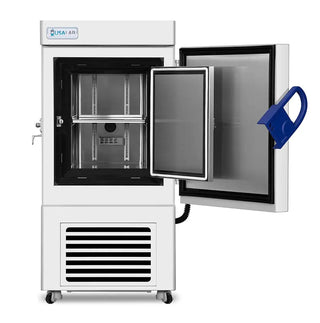

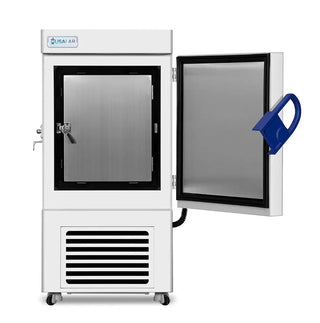

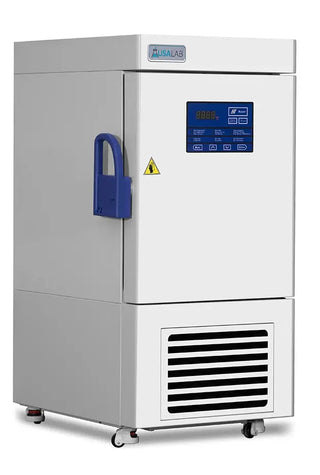

USA Lab UCF-2-86-UL UltraChill 2 cu.ft. -86°C Upright Ultra-Low Freezer (ULT), Digital Display, UL Listed, Advanced Auto-Cascade Refrigeration
Introducing our -86°C UltraChill Series Upright 2 Cu Ft Freezer, a compact, high-performance ULT designed to safeguard vaccines, enzymes, cell lines, and long-term research samples. Precision microprocessor control and an auto-cascade refrigeration system deliver stable, uniform ultra-low temperatures.
The chamber is stainless-steel (SUS304) with foamed inner doors for excellent thermal retention, while the exterior is durable color-sprayed steel. A bright LED digital display provides at-a-glance monitoring and quick set-point changes.
Built for labs that demand reliability, the UltraChill integrates comprehensive audible/visual alarms, remote alarm access (RS232/485), and optional CO2/LN2 backup systems for maximum sample protection.
Features
- Ultra-Low Temperature Range: Maintains stable deep-freeze performance from -40°C down to -86°C, safeguarding high-value biological samples, RNA/DNA, vaccines, and enzymes.
- UL Listed Certification: Fully compliant with North American safety and electrical standards for reliable, audit-ready laboratory operation.
- Compact Upright Design: Features a 2.0 Cu. Ft. (58 L) footprint ideal for benchtop or under-counter placement, saving valuable floor space.
- High-Efficiency Cooling System: Powered by a premium SECOP compressor and an auto-cascade refrigeration system utilizing R4001 mixed gas refrigerant.
- Microprocessor Digital Control: Equipped with a bright LED display and a PTC 100 temperature sensor for precise monitoring and easy setting adjustments.
- Superior Thermal Retention: High-density polyurethane foam (PURF) insulation and 3 insulated SUS304 inner doors prevent cold air loss during openings.
- Medical-Grade Stainless Steel Construction: Features a durable SUS304 interior chamber with color-sprayed steel exterior for long-lasting corrosion resistance.
- Comprehensive Alarm & Safety Network: Includes audible and visual alerts for high/low temperature, power failure, door ajar, sensor error, abnormal voltage, low battery, and condenser maintenance.
- 72-Hour Alarm Battery Backup: Integrated power failure backup system keeps monitoring and alarms active for up to 72 hours during power outages.
- Optimized Sample Storage Capacity: Holds up to 2 racks (6×2), 24 standard 2-inch boxes, or approximately 2,400 2 mL samples.
- Data Logging & Connectivity: Includes a USB interface for easy data export, integrated data logger, and RS232/RS485 ports for remote alarm monitoring.
- Convenient Mobility & Access: Universal castors for effortless positioning and a 25 mm access port for external temperature probes or monitoring cables.
Specifications
| Model | USA Lab UCF-2-86-UL UltraChill |
| Freezer Type | Upright Ultra-Low Temperature (ULT) |
| Capacity | 58 L / 2.0 cu. ft. |
| Cooling Method | Direct Cooling |
| Defrost Method | Manual |
| Temperature Range | -40°C ~ -86°C |
| Ambient Temperature | 10°C ~ 32°C |
| Display | LED digital |
| Access Port (QTY / Dia.) | 1 / 25 mm |
| USB Interface | Yes / 1 |
| Remote Alarm Access | RS232 / RS485 |
| Exterior Material | Color sprayed steel |
| Interior Material | SUS304 Stainless Steel |
| Castors | Universal |
| Refrigerant | R4001 (mixed gas) |
| Temperature Controller | Microprocessor |
| Refrigeration System | Auto-cascade |
| Sensor Type | PTC 100 |
| Compressor Brand / QTY | SECOP / 1 |
| Insulation | PURF (Polyurethane Foam) |
| Inner Door Material / QTY | Foamed SUS304 / 3 |
| Racks Capacity | 2 (6×2) |
| 2" Box Capacity | 24 |
| 2 mL Sample Capacity | ≈ 2,400 |
| High/Low Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Abnormal Voltage Alarm | Yes |
| Sensor Error Alarm | Yes |
| Door Ajar Alarm | Yes |
| Filter Screen Check Alarm | Yes |
| Thermostat Failure Alarm | Yes |
| Low Battery Alarm | Yes |
| Condenser Clean Alarm | Yes |
| High Ambient Temperature Alarm | Yes |
| Power Failure Backup Alarm | 72 h |
| Voltage / Frequency | 110V / 120V, 60Hz |
| Power | 442 W |
| Current | 3.18 A |
| Power Consumption | 6.09 Wh/24h |
| Noise Level | 50 dB |
| Interior Dimensions (W×D×H) | 13" × 17.8" × 16" |
| Exterior Dimensions (W×D×H) | 25" × 30" × 48" |
| Package Size (W×D×H) | 29" × 33" × 55" |
| Net Weight | 255 lb |
| Shipping Weight | 350 lb |
| Data Logger | Yes |
| Chart Recorder | Optional |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Cryo Gloves | Optional |
