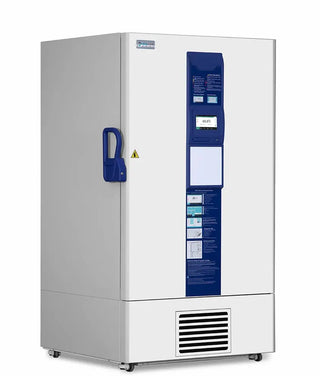

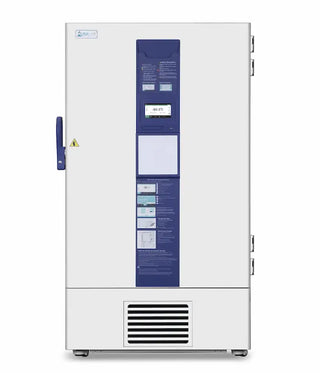

USA Lab UCF-25.7-86-UL UltraChill 25.7 cu.ft. -86°C Upright Ultra-Low Freezer, Touch Screen, UL Listed, 80°C ULT

USA Lab UCF-25.7-86-UL UltraChill 25.7 cu.ft. -86°C Upright Ultra-Low Freezer, Touch Screen, UL Listed, 80°C, ULT, Dual Inner Door Protection

Introducing our UltraChill 25.7 Cu Ft (728 L) –86°C Upright Ultra-Low Freezer, engineered to safeguard high-value biologicals, enzymes, vaccines, and temperature-sensitive pharmaceuticals. With best-in-class temperature uniformity and robust construction, UltraChill delivers reliable long-term sample integrity for research, clinical, and biobank environments.

The UltraChill Series offers a wide –40°C to –86°C set-point range with microprocessor precision and a 7″ LCD touchscreen for intuitive control, real-time monitoring, and streamlined compliance.

Advanced insulation (PURF + VIP) and an efficient cascade system using eco-forward HC (R290/R170) refrigerants reduce energy consumption while maintaining rapid pull-down and tight stability.

Features

• Ultra-Low Temperature Performance: Maintains stable storage conditions from -40°C down to -86°C in ambient laboratory environments up to 32°C.
• Dual Compressor Cascade System: Equipped with 2 high-efficiency SECOP compressors running on natural, environmentally friendly hydrocarbon refrigerants (R290 & R170).
• Massive Storage Capacity: Generous 728 L (25.70 cu. ft.) internal volume accommodating up to 504 standard 2" boxes or 50,400 individual 2 mL vials.
• Advanced Thermal Insulation: Constructed with high-density PURF + VIP (Vacuum Insulation Panels) to minimize heat transfer, lower power consumption, and maintain critical temperature during outage events.
• Intuitive Touchscreen Control: Features a responsive 7-inch LCD touch screen driven by a precise microprocessor controller for real-time monitoring and parameter management.

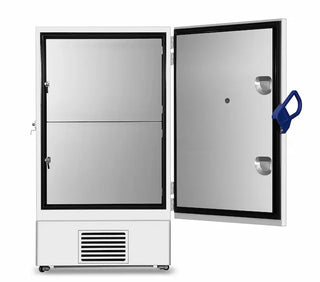

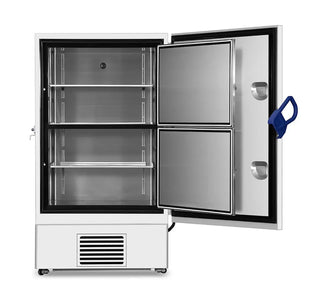

• Dual Inner Door Protection: Stainless steel (SUS304) interior equipped with 2 insulated inner doors to reduce cold air loss during routine door openings.
• Comprehensive Multi-Alarm Safety: Features built-in visual and audible alarms for high/low temperature, power failure, sensor errors, door ajar, abnormal voltage, low battery, and filter maintenance.
• 72-Hour Battery Backup: Integrated power failure backup keeps the alarm system operational for up to 72 hours during grid outages.
• Data Logging & Connectivity: Built-in USB port and data logger for continuous temperature recording, with RS232/RS485 interface for remote central monitoring systems.
• Built for Convenience: Includes a 25 mm access port for external validation probes, heavy-duty universal casters for smooth mobility, and quiet operation at just 53 dB.

Specifications

Standard delivery typically takes 5-7 business days
