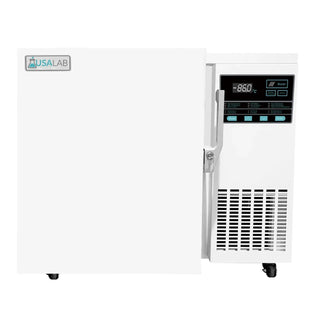

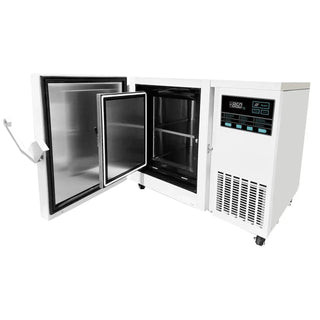

USA Lab UCF-UC-2 -86 UltraChill 2 Cu.Ft. -86°C Undercounter Ultra-Low Freezer, Digital Display, Heavy-Duty Construction, Stainless Steel Interior Construction
The USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer is a compact ULT freezer designed for long-term cold storage of biological samples, laboratory materials, and temperature-sensitive products. Its undercounter footprint makes it ideal for labs, hospitals, research facilities, blood banks, and production environments where reliable ultra-low temperature storage is needed without taking up full-size floor space.
Built with an auto-cascade refrigeration system, mixed refrigerant cooling, a microprocessor temperature controller, and a large digital LED display, this mini ULT freezer provides dependable performance from -40°C to -86°C. Advanced VIP insulation, multi-layer sealing, and stainless steel interior construction help improve temperature stability, reduce heat loss, and support energy-efficient operation.
The USA Lab UltraChill 2 Cu Ft -86°C Undercounter Ultra-Low Freezer - Digital Display includes multiple audible and visual alarms for high/low temperature, power failure, abnormal voltage, sensor error, door ajar, low battery, condenser clean alerts, and more, helping protect valuable samples during daily lab use.
Features
- Ultra-Low Temperature Range: Maintains stable operating temperatures from -40°C down to -86°C.
- Compact Capacity: 2 Liters (0.07 cu. ft.) internal volume, ideal for benchtop placement and small-footprint storage.
- Microprocessor Temperature Control: Digital LED display for precise temperature setting, real-time monitoring, and adjustment.
- Advanced Thermal Insulation: High-density polyurethane foam paired with vacuum insulation panels (VIP) to minimize cold air loss and maximize energy efficiency.
- Comprehensive Alarm System: Integrated visual and audible alerts for high/low temperature excursions, power failures, door-ajar states, and sensor errors.
- Eco-Friendly Refrigerants: Utilizes CFC-free, environmentally safe hydrocarbons.
- Durable Construction: Stainless steel interior chamber for corrosion resistance and easy cleaning; heavy-duty exterior casing.
- Secure Access: Built-in door lock mechanism to protect high-value samples.
- Quiet Operation: Engineered with low-noise compressors suited for quiet research environments.
Specifications
|
General Information |
Capacity |
58 Liters (2.0 cu. ft.) |
|
|
Temperature Range |
-40°C to -86°C |
|
|
Ambient Operating Temp. |
10°C to 32°C |
|
|
Cooling Method |
Direct Cooling |
|
|
Defrost Type |
Manual Defrost |
|
|
Display |
LED Digital Display |
|
|
Exterior Material |
Color-Sprayed Steel |
|
|
Interior Material |
Stainless Steel |
|
|
Inner Door |
1 x Stainless Steel Inner Door |
|
|
Mobility |
Universal Castors |
|
Refrigeration System |
Compressor |
1 x SECOP Compressor |
|
|
Refrigerant |
R4001 Mixed Gas |
|
|
System Type |
Auto-Cascade Refrigeration |
|
|
Temperature Controller |
Microprocessor |
|
|
Sensor Type |
PT100 (PTC 100) |
|
|
Insulation |
PURF (Polyurethane Foam) / VIP (Vacuum Insulation Panel) |
|
Storage Capacity |
2 ml Vials |
2,400 samples |
|
|
2-inch Storage Boxes |
24 boxes |
|
|
Racks Included / Supported |
2 Racks (6 × 2 layout) |
|
Electrical Data |
Voltage / Frequency |
110V / 60 Hz |
|
|
Power Consumption |
5.3 kWh / 24 hours |
|
|
Power Rating |
336 W |
|
|
Current |
3.0 A |
|
|
Noise Level |
50 dB |
|
Alarms & Security |
Alarm Triggers |
High/Low Temperature, Power Failure, Abnormal Voltage, Sensor Error, Door Ajar, Thermostat Failure, Low Battery, Condenser Clean / Filter Screen Check, High Ambient Temperature |
|
|
Power Failure Backup |
72 Hours (Alarm & Display System) |
|
Ports & Connectivity |
Access Port |
1 x 25 mm diameter port |
|
|
USB Interface |
1 x USB Port |
|
|
Remote Alarm Connection |
Yes |
|
|
Data Interface |
RS485 Access |
|
Dimensions & Weight |
Interior Dimensions (W × D × H) |
12.99" × 17.83" × 16.14" |
|
|
Exterior Dimensions (W × D × H) |
35.59" × 31.42" × 29.45" |
|
|
Package Size (W × D × H) |
38.03" × 32.20" × 36.69" |
|
|
Net Weight |
208 lbs (approx. 94.3 kg) |
|
|
Gross Weight |
282 lbs (approx. 127.9 kg) |
|
|
Shipping Volume |
0.73 CBM |
