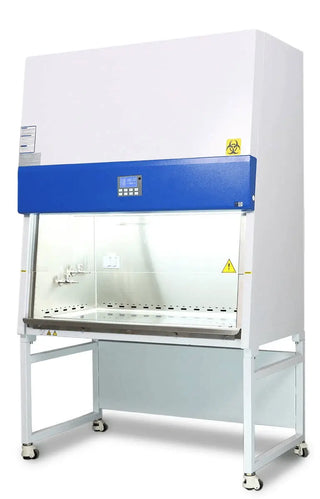

USA Lab USA-BSC-4FT NSF Certified Class II Type A2 Biosafety Cabinet, With Detachable Stand, Various Sizes, Bright, Ergonomic Workspace, Dual HEPA Filtration

The USA Lab Class II Type A2 Biosafety Cabinet (BSC) provides personnel, product, and environmental protection for handling infectious or potentially infectious materials. All exhaust air is HEPA-filtered prior to release, maintaining a safe workspace that meets NSF/ANSI 49 performance criteria.

Unlike clean benches that blow unfiltered air toward the user, and unlike chemical fume hoods that lack product protection, this NSF Certified Class II Type A2 Biosafety Cabinet combines inward airflow with HEPA-filtered laminar downflow for comprehensive protection. A motorized, laminated safety glass window, dual HEPA filters with life indicators, microprocessor control, and stainless-steel work zone simplify safe operation and cleaning.

Typical workflow: close sash → run UV for 30 minutes to disinfect → set sash to the 10" safety height and allow 10 minutes of stabilization → perform work → close sash and run UV for 30 minutes for post-use decontamination.

Ductwork not included, you will need to install your own ducting.

Features

  • NSF/ANSI 49 Certified Protection: Class II, Type A2 cabinet design guarantees full personnel, product, and environmental containment.
  • Dual HEPA Filtration (99.995% Efficiency @ 0.3 µm): Ensures an ISO Class 5 sterile workplace with dual HEPA filters and an integrated filter lifespan indicator.
  • Balanced 60/40 Airflow Recirculation: 60% laminar downflow air ($507\text{ CFM}$) protects products; 40% exhaust ($346\text{ CFM}$) preserves lab air quality.
  • Energy-Efficient ECM Blower Motor: Smart motor automatically adjusts speed to compensate for filter loading, keeping power draw low ($500\text{ W}$).
  • Motorized Anti-UV Front Sash Window: $\ge 5\text{ mm}$ laminated glass sloped at 10° for glare-free, ergonomic operation and $10" / 254\text{ mm}$ safe working clearance.
  • 304 Stainless Steel Interior: One-piece seamless chamber with rounded coved corners for effortless spill cleanup and chemical resistance.
  • Plug-and-Play Utilities Included: Ships with a heavy-duty base stand, $30\text{ W}$ UV sterilization lamp, dual LED lights ($\ge 1000\text{ Lux}$), stainless steel gas/water taps, 2 GFI outlets, and IV bar.

Specifications

Model USA-BSC-4FT
External Size (W×D×H) 1383 × 775 × 2295 mm | 54.5" × 30.5" × 90.4"
Internal Size (W×D×H) 1210 × 600 × 660 mm | 48" × 23.6" × 26"
Work Surface Height 750 mm
Max Opening 550 mm (22")
Tested Opening Safety sash height 254 mm (10")
Inflow Volume 587 m³/h (346 cfm)
Downflow Volume 60%: 863 m³/h (507 cfm)
Exhaust Volume 40%: 587 m³/h (346 cfm)
Front Window Motorized, two-layer laminated toughened glass ≥5 mm, Anti-UV
HEPA Filters Two; 99.995% efficiency @ 0.3 μm; filter life indicator
Filter Guard Type Aluminum alloy frame
Noise Level (NSF 49) ≤ 67 dB
Illumination ≥ 1000 Lux
Display LCD
Waterproof Sockets 2 sockets (total load ≤ 500 W)
Utilities Water tap × 1, Gas tap × 1
Ground Resistance ≤ 0.10 Ω
Power Supply 110V ± 10%, 60 Hz; Full load: 9 A
Power Consumption 500 W
Alarm System Abnormal airflow velocity; filter replacement; front window at unsafe height
Motor / Blower ECM motor; 110 V & 220 V acceptable; speed adjustable; high efficiency/low power
Materials

Work Area: 304 stainless steel



Frame/Decorative Plate: Cold-rolled steel with anti-bacterial powder coating

UV Lamp 30 W (Germicidal UV, 253.7 nm emission)
Illuminating Lamp 18 W × 2 (LED)
Standard Accessories Illuminating lamp, two UV lamps, base stand, SS water & gas taps, drain valve, waterproof sockets, stainless I.V. bar with 10 hooks
Optional Accessories Armrest, airflow tester, formalin fumigation sterilizer, infrared sterilizer, electric height-adjustable base stand, remote control
Package Size (W×D×H) 1540 × 1080 × 1900 mm | 60.6" × 42.5" × 75"
Gross Weight 340 kg | 750 lb

Standard delivery typically takes 5-7 business days
