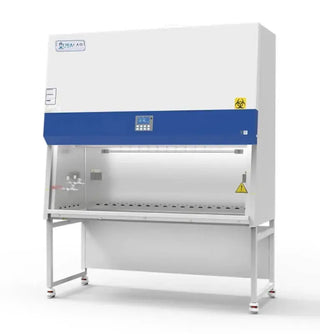

USA Lab USA-BSC-6FT NSF Certified Class II Type A2 Biosafety Cabinet, With Detachable Stand, Various Sizes, Microprocessor Control, Stainless-Steel Work Zone
The USA Lab Class II Type A2 Biosafety Cabinet (BSC) provides personnel, product, and environmental protection for handling infectious or potentially infectious materials. All exhaust air is HEPA-filtered prior to release, maintaining a safe workspace that meets NSF/ANSI 49 performance criteria.
Unlike clean benches that blow unfiltered air toward the user, and unlike chemical fume hoods that lack product protection, this NSF Certified Class II Type A2 Biosafety Cabinet combines inward airflow with HEPA-filtered laminar downflow for comprehensive protection. A motorized, laminated safety glass window, dual HEPA filters with life indicators, microprocessor control, and stainless-steel work zone simplify safe operation and cleaning.
Typical workflow: close sash → run UV for 30 minutes to disinfect → set sash to the 10" safety height and allow 10 minutes of stabilization → perform work → close sash and run UV for 30 minutes for post-use decontamination.
Ductwork not included, you will need to install your own ducting.

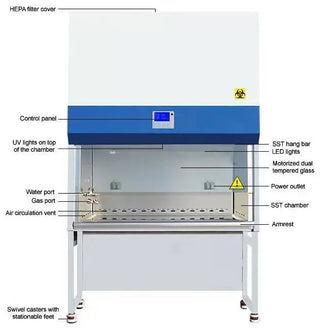

Features
- Classification & Certification: Class II, Type A2 Biological Safety Cabinet (built to NSF/ANSI 49 standards)
- Airflow Pattern: 70% internal air recirculation, 30% exhaust via HEPA filter
- Filtration: Dual HEPA filters rated at 99.995% efficiency for 0.3 µm particles
- Airflow Capacities: Inflow: 824 m³/h (485 CFM), Downflow: 1212 m³/h (713 CFM), Exhaust: 824 m³/h (485 CFM)
- Blower System: High-efficiency, speed-adjustable EC / ECM blower motor
- Exterior Dimensions (W × D × H): 1873 × 775 × 2295 mm (73.8" × 30.5" × 90.4")
- Interior Work Zone Dimensions (W × D × H): 1700 × 600 × 660 mm (67.0" × 23.6" × 26.0")
- Work Surface Height: 750 mm (with base stand)
- Sash Opening: Tested safe working height of 254 mm (10"); maximum opening of 550 mm (22")
- Gross Weight: ~370 kg (815 lbs)
- Internal Material: Corrosion-resistant 304 grade stainless steel
- External Material: Heavy-gauge cold-rolled steel with anti-bacterial powder coat finish
- Front Window: Motorized, Anti-UV double-layer laminated tempered glass (≥ 5 mm) with a 10° ergonomic slope
- UV Sterilization: 40 W germicidal UV lamp (253.7 nm emission) with automated safety interlock
- Work Area Illumination: Dual 22 W LED lamps (≥ 1000 Lux illumination)

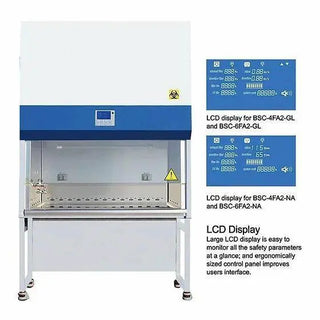

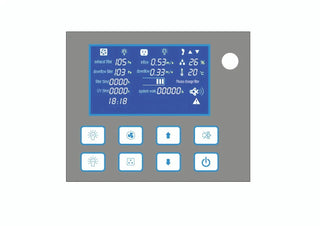

- Display & Control: Microprocessor-controlled digital LCD display with real-time filter lifespan tracking
- Safety Alarms: Audio and visual alerts for abnormal airflow velocity, sash height positioning, and filter replacement
- Noise Level: Low-noise operation (≤ 67 dB)
- Internal Power: 2 waterproof electrical sockets (maximum total load: 500 W)
- Service Connections: Stainless steel gas tap and water tap
- Included Accessories: Stainless steel I.V. bar with 10 hooks, drain valve, and heavy-duty base stand with lockable casters and leveling feet
- Power Requirements: 110V ± 10% / 60 Hz (Full load current: 9 A, Power consumption: ~700 W)
Specifications
| External Size (W×D×H) | 1873 × 775 × 2295 mm | 73.8" × 30.5" × 90.4" |
| Internal Size (W×D×H) | 1700 × 600 × 660 mm | 67" × 23.6" × 26" |
| Work Surface Height | 750 mm |
| Max Opening | 550 mm (22") |
| Tested Opening | Safety sash height 254 mm (10") |
| Inflow | 824 m³/h (485 cfm) |
| Downflow | 60%: 1212 m³/h (713 cfm) |
| Exhaust | 40%: 824 m³/h (485 cfm) |
| Front Window | Motorized, two-layer laminated toughened glass ≥5 mm, Anti-UV |
| HEPA Filters | Two; 99.995% efficiency @ 0.3 μm; filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise (NSF 49) | ≤67 dB |
| Illumination | ≥1000 Lux |
| Display | LCD |
| Waterproof Sockets | 2 (total ≤500 W) |
| Utilities | Water tap ×1, Gas tap ×1 |
| Ground Resistance | ≤0.10 Ω |
| Power Supply | 110V±10% 60 Hz; Full load: 9 A |
| Power Consumption | 700 W |
| Alarms | Abnormal airflow velocity; filter replacement; front window at unsafe height |
| Motor/Blower | ECM motor; 110 V & 220 V acceptable; speed adjustable; high efficiency/low power |
| Materials | Work area: 304 stainless steel; frame/decorative plate: cold-rolled steel with anti-bacterial powder coating |
| UV Lamp | 40 W |
| UV Type | Germicidal UV, 253.7 nm emission |
| Illuminating Lamp | 22 W ×2 | LED |
| Standard Accessories | Illuminating lamp, two UV lamps, base stand, SS water & gas taps, drain valve, waterproof sockets, stainless I.V. bar with 10 hooks |

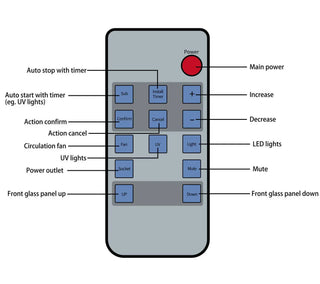

| Optional Accessories | Armrest, airflow tester, formalin fumigation sterilizer, infrared sterilizer, electric height-adjustable base stand, remote control |
| Package Size (W×D×H) | 2020 × 1080 × 1900 mm | 79.5" × 42.5" × 75" |
| Gross Weight | 370 kg | 815 lb |
