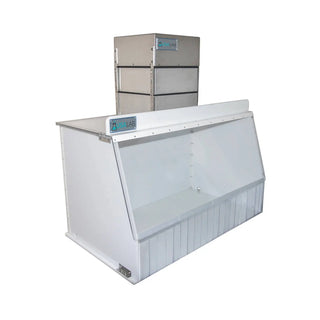

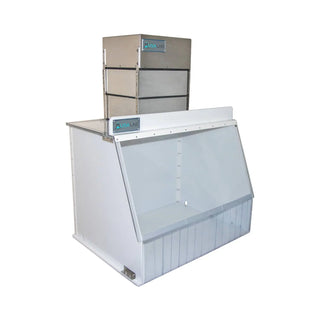

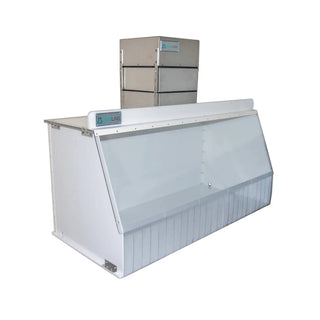

USA Lab Variant Size Options, High Efficiency Powder Fume Hood, Powder Containment, Ductless Powder Enclosure

The High Efficiency Powder Containment Hood combines powerful airflow with a sturdy, compact enclosure to deliver reliable respiratory and environmental protection during powder handling. Engineered to pull harmful particulate up and away from the operator’s breathing zone, it captures airborne contaminants into a dedicated filter chamber to help keep work areas cleaner and safer.

Depending on your application, the filter chamber can be configured with HEPA filtration (up to 99.97% efficient at 0.3 microns and larger), ULPA filtration (up to 99.9995% efficient at 0.12 microns and larger), Activated Carbon, or specialty-blended media (including Acid Gas, Mercury, Aldehyde, and Ammonia blends) for targeted adsorption.

With quiet operation, long filter life, and fast, simple filter changes, this containment hood is built for daily lab and production workflows where powder control and operator protection matter most.

Features

  • 99.99% HEPA Particulate Filtration: Captures fine powders, dusts, and hazardous particulates down to 0.3 microns to maintain a safe breathing zone.
  • Continuous Negative Pressure Protection: Draws air inward continuously, preventing fine particles and chemical powders from escaping into the room.
  • Variable Airflow & Fan Speed: Precision face velocity control prevents air turbulence from disturbing delicate powders or altering scale readings.
  • Anti-Static & Chemical-Resistant Build: Constructed from non-corrosive polypropylene and anti-static materials that prevent powder adhesion and simplify cleanup.
  • Low-Vibration & Ultra-Quiet Operation: Features an advanced centrifugal blower motor engineered to eliminate micro-vibrations affecting high-precision balances.
  • 360° High-Visibility Design: Durable, shatter-resistant transparent front sash and side panels provide clear, glare-free workspace visibility.
  • Plug-and-Play Ductless Design: Completely self-contained recirculating unit—no costly facility ductwork or external venting required.
  • Energy-Efficient LED Illumination: Bright, low-glare interior LED light bar ensures complete lighting over your work area.
  • Sealed Cable Pass-Through Ports: Built-in utility grommets allow easy power cord routing for internal lab instruments and scales.
  • Tool-Free Filter Replacement: Fast, front-access filter panels enable quick and safe filter swaps with minimal operational downtime.

Specifications

24" Wide Model 30" Wide Model 40" Wide Model 50" Wide Model
Outer Dimensions (OD) 24"D x 26"W x 25"H 24"D x 32"W x 25"H 24"D x 42"W x 25"H 24"D x 52"W x 25"H
Inner Dimensions (ID) 23.5"D x 24"W x 24"H 23.5"D x 30"W x 24"H 23.5"D x 40"W x 24"H 23.5"D x 50"W x 24"H
Hood Materials

Sides: .250" White Acrylic


Base: .500" HDPE


Top: .500" Clear Polycarbonate

Sides: .250" White Acrylic


Base: .500" HDPE


Top: .500" Clear Polycarbonate

Sides: .250" White Acrylic


Base: .500" HDPE


Top: .500" Clear Polycarbonate

Sides: .250" White Acrylic


Base: .500" HDPE


Top: .500" Clear Polycarbonate

Front Window 0.250" Clear Polycarbonate 0.250" Clear Polycarbonate 0.250" Clear Polycarbonate 0.250" Clear Polycarbonate
Blower Dimensions 13" L x 13" W x 17" H 13" L x 13" W x 17" H 13" L x 13" W x 17" H 13" L x 13" W x 17" H
Motor Fractional Horsepower Fractional Horsepower Fractional Horsepower Fractional Horsepower
Weight 125 lbs 125 lbs 100 lbs 125 lbs
Filter Efficiencies

• HEPA 99.97% @ 0.3µ


• ASHRAE 95% @ 0.5µ


• ULPA 99.9995% @ 0.12µ


• Carbon / Specialty

• HEPA 99.97% @ 0.3µ


• ASHRAE 95% @ 0.5µ


• ULPA 99.9995% @ 0.12µ


• Carbon / Specialty

• HEPA 99.97% @ 0.3µ


• ASHRAE 95% @ 0.5µ


• ULPA 99.9995% @ 0.12µ


• Carbon / Specialty

• HEPA 99.97% @ 0.3µ


• ASHRAE 95% @ 0.5µ


• ULPA 99.9995% @ 0.12µ


• Carbon / Specialty

Inlet Velocity 153 FPM 153 FPM 153 FPM 92 FPM
Electrical 115/1/60 2A | 220/1/50 .75A 115/1/60 2A | 220/1/50 .75A 115/1/60 2A | 220/1/50 .75A 115/1/60 2A | 220/1/50 .75A
Sound Level 61–66 dBA 61–66 dBA 61–66 dBA 61–66 dBA
Max Operating Temp ≤ 170°F ≤ 170°F ≤ 170°F ≤ 170°F
Warranty Limited 2-year Limited 2-year Limited 2-year Limited 2-year

Standard delivery typically takes 5-7 business days
