| Overview | |
|---|---|
| Product Name | GDM-41-SCI-HC-LD VWR WHT |
| VWR Catalog No | 75871-648 |
| Manufacturer | True Refrigeration |
| Capacity | 1161 L (41 cu. ft.) |
| Door Type | 2 self-closing "Low-E" double-pane thermal glass sliding doors |
| Shelves | 8 adjustable full-size PVC-coated wire shelves (20 7/8" L x 20 9/16" D) |
| Interface & Controls | Electronic controller with exterior digital temperature display and alarm function |
| Lighting | Safety-shielded interior LED lighting |
| Mounting | Frame rail fitted with leg levelers (optional castors or legs available) |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor warranty |
| Certifications | cULus Listed, UL Listed, NSF/ANSI Standard 7 Certified, Natural Refrigerant |
| Physical Dimensions & Weight | |
| Exterior Width | 47.125" (1197 mm) |
| Exterior Depth | 29.625" (753 mm) *Depth excludes 0.375" (10 mm) for door handles |
| Exterior Height | 78.625" (1998 mm) |
| Crated Weight | 197 kg (435 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 2°C to 8°C (35.6°F to 46.4°F) |
| Compressor Power | 1/2 HP |
| Refrigerant | Environmentally friendly natural R290 Hydrocarbon refrigerant |
| Electrical Requirements | 115V / 60 Hz / 1 Phase, 6.3 Amps (Rated 3.9 A) |
| Power Plug | NEMA 5-15P plug with 9 ft. (2.74 m) cord |

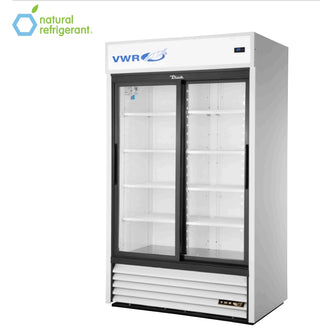

VWR GDM-41-SCI-HC-LD VWR WHT Basic Glass Sliding Door Refrigerator, Natural Refrigerant White, 41 cu. ft.
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
VWR GDM-41-SCI-HC-LD VWR WHT Basic Glass Sliding Door Refrigerator, NSF-Approved Interior Construction, Natural Refrigerant White, 41 cu. ft., High-Efficiency ECM Fan Motors
The VWR Basic Glass Sliding Door Refrigerator (Catalog No: 75871-648 / Model: GDM-41-SCI-HC-LD VWR WHT), manufactured by True Refrigeration, is a versatile double-door laboratory refrigerator designed for scientific, clinical, and industrial environments where spatial efficiency and smooth access are paramount. Featuring two space-saving sliding glass doors, a NSF-approved interior, and an eco-friendly natural refrigeration system, this 41 cubic foot (1161 L) upright cabinet delivers precise temperature retention and maximum product visibility in compact lab aisles.
Built for rigorous daily laboratory workflows, the exterior is constructed from durable, non-peel or chip white powder-coated cold-rolled steel. The interior liner is made of NSF-approved white aluminum paired with a heavy-duty stainless steel floor for corrosion and spill protection. High-density polyurethane insulation foamed-in-place throughout the cabinet structure delivers maximum thermal retention with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A black powder-coated, heavy-duty welded steel frame rail equipped with leg levelers ensures structural stability and long-term corrosion resistance.
The cabinet features two "Low-E" double-pane thermal insulated glass sliding doors set in mitered plastic channel frames. Operating on a counter-balanced weight system, the doors provide smooth, effortless, positive self-closing operation that eliminates door swing clearance requirements in narrow hallways or busy lab spaces. Each door includes an integrated 12" (305 mm) handle. Bright, safety-shielded interior LED lighting delivers even visibility across all storage levels.
Interior storage organization features eight adjustable, heavy-duty PVC-coated white wire full-size shelves supported by interior pilasters adjustable in 1/2" increments. A built-in floor clean-out drain facilitates rapid and hygienic maintenance.
Refrigeration performance is powered by a factory-engineered, self-contained capillary tube system utilizing eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Driven by a bottom-mounted 1/2 HP compressor with state-of-the-art electronically commutated fan motors (ECM), the system delivers low heat output and high airflow efficiency to keep internal conditions consistently between 2°C and 8°C (35.6°F to 46.4°F). An electronic temperature controller with an exterior digital display and alarm function provides continuous tracking and immediate sample protection.
Features:
- Space-Saving Sliding Glass Doors: Features two "Low-E" double-pane thermal insulated glass sliding doors with a counter-balanced weight self-closing system, ideal for narrow lab aisles.
- NSF-Approved Interior Construction: Bright white aluminum interior liner with a durable stainless steel floor for enhanced cleanliness and spill resistance.
- Eco-Friendly Natural Refrigerant: Powered by R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for optimal energy efficiency and environmental safety.
- Durable Powder-Coated Exterior: White powder-coated cold-rolled steel exterior provides a permanent, clean, and professional laboratory appearance.
- Electronic Temperature Control: Exterior digital display and integrated alarm system deliver continuous temperature monitoring and sample alerts.
- High-Efficiency ECM Fan Motors: Electronically commutated evaporator and condenser fan motors operate at high peak efficiencies while reducing energy consumption and motor heat.
- Generous Adjustable Shelving: Includes eight heavy-duty PVC-coated white wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
- Safety-Shielded LED Lighting: Interior LED lighting ensures uniform, bright visibility throughout both door compartments.
- Bottom-Mounted Condensing Unit: Bottom-mounted compressor raises the lowest shelf level for ergonomic "no-stoop" sample handling and easy condenser coil access.
- Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.
Specifications:
